V-SLOT BOX 55 modular housing in silver
V-SLOT BOX 55 modular housing in silver
3.92308
product unavailable
Description

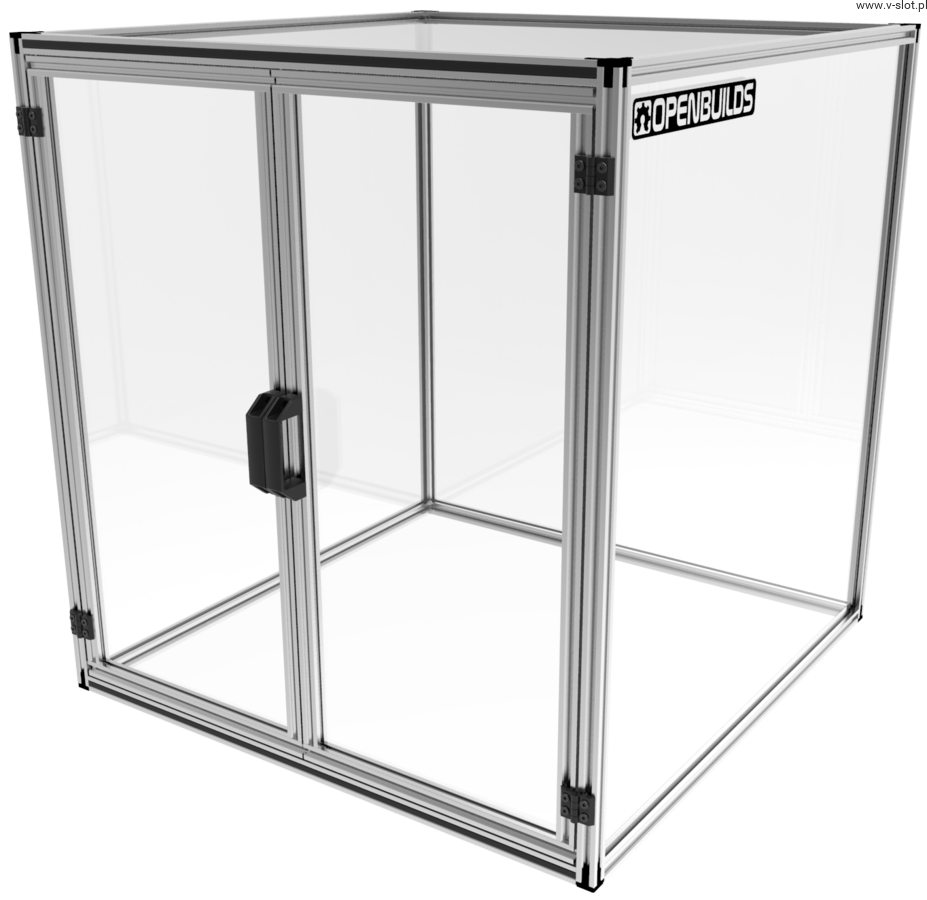

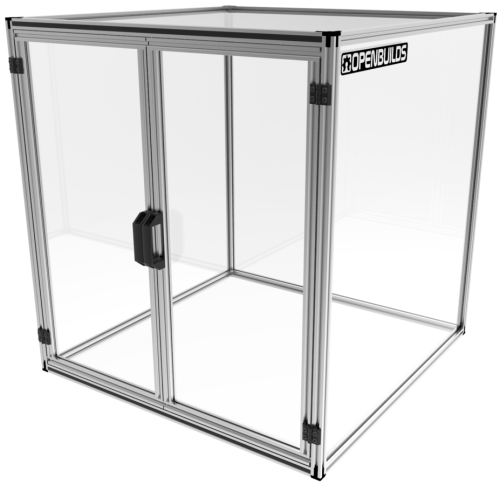

V-SLOT BOX 55 modular housing in silver
A set of elements that will allow you to build a BOX for your device!

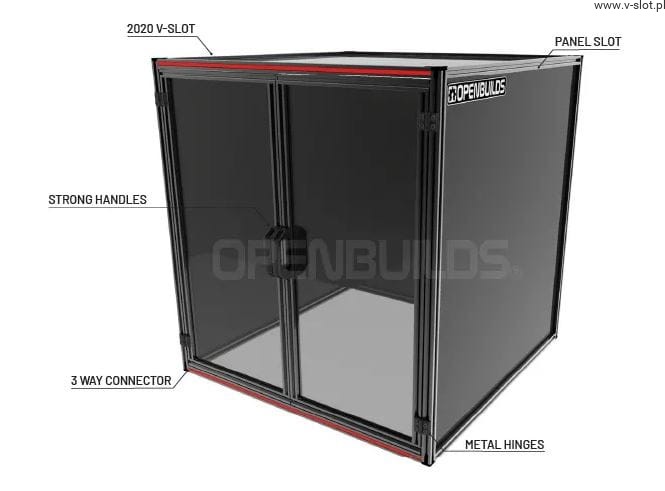

The simple and universal design using V-SLOT structural aluminum profiles allows for structural modifications and quick installation of additional accessories such as LED lighting inside the housing, temperature sensors, switches, and similar elements.
Enclosures made of aluminum profiles will allow you to increase protection against dust, noise, drafts, or vapors! An additional advantage of this product is the ability to combine individual segments into larger segments using OpenBuilds accessories available in our store!
- Easy to assemble
- Possibility of joining into larger segments
- Possibility of modification and extension
- Universal design
What is included in the kit?
- T-NUT grooves (2 packs) (LINK)
- Silver L-type single corner (4 pcs) (LINK)
- Internal hidden corner (8 pcs) (LINK)
- Door handle (2 pcs) (LINK)
- 90-degree connection plate (6 pcs) (LINK)
- M5x8mm flat head screws (2 packs) (LINK)
- Self-tapping screws (4 pcs) (LINK)
- Door hinges (4 pcs) (LINK)
- Three-sided inner connector (8 pcs) (LINK)
- Silver aluminum profiles V-SLOT 2020, cut to size (13.5 meters in total) (LINK)
You can also order individual elements available on our website to expand or create a housing according to your own needs!

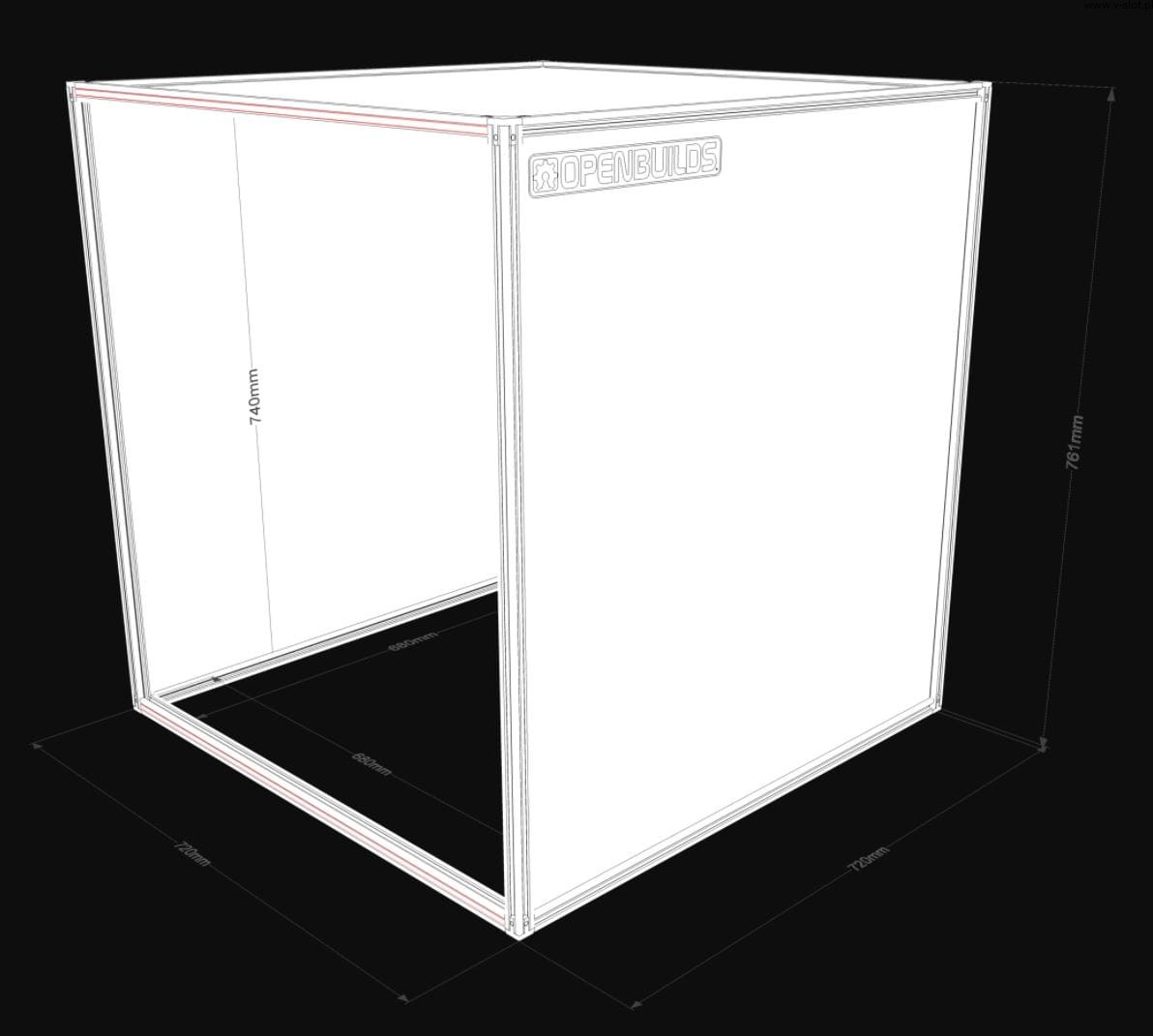

- Inner dimension: 680 mm x 680 mm x 740 mm
- Outer dimensions: 720 mm x 720 mm x 761 mm
What you should buy on your own:
- Elements to filling the casing frame with an optimal thickness in the range of 5-6 mm (MDF board / acrylic board / OSB board / aluminum board / others
- The profile groove in which the wall should be placed is approx. 6mm wide
The profile groove in which the wall should be placed is approx. 6mm wide. Suggested dimensions of filling walls (file with exact dimensions for download):
