AM8 3D Printer Extrusion Profile Metal Frame - Full Kit for Anet A8 upgrade (All Black) (1)
product unavailable
Description

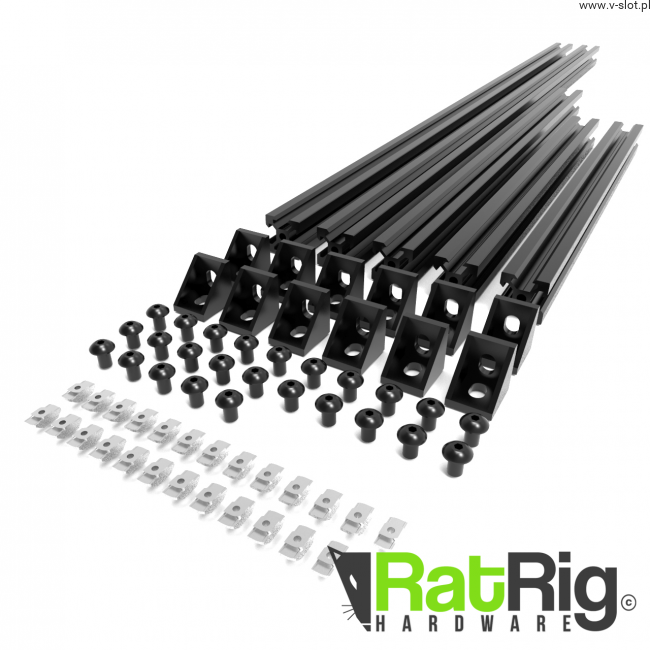

Strengthening kit for the CR-10 3D printer. Z axis strengthening kit in the CR-10 printer. The simple installation process guarantees a great improvement in the durability of the printer.
Kit includes:
- 2 x V-SLOT 2020 profiles - BLACK anodized 600mm
- 2 x V-SLOT 2020 profiles - BLACK anodized 270mm
- 1 x V-SLOT 2020 profile - BLACK anodized 360mm
- 12 x corner 90º - black anodized
- 25 x M5x8mm - spherical head screws
- 25 x T-nuts
https://sklep763467.shoparena.pl/power-supply-Weho-350Watt-12V
Weho power supply - 350Watt 24V
MODULAR POWER SUPPLY IP20 with a working voltage of 24V and a current of 14.5A at 350W
Technical parameters:
- Output power at 24V - 350W
- Output current at 24V - 14.5A
- Efficiency 80%
- AC input voltage range 170-264VAC, 47 ~ 63Hz
- Input current 2.8A / 230V
- AC Inrush current 50A / 230V
- Leakage current 3.5mA / 240VAC
- DC Adjustment range ± 10%
- 105 ~ 150% overload protection
- Over voltage protection 115-135%
- Overheating protection ≥90
- Voltage withstands:
- I / P-O / P: 1.5KvAC 1minute
- I / P-FG: 1.5KvAC 1minute
- O / P-FG: 0.5KvAC 1minute
- Working temperature -10 ° ~ + 60 ° C / 20% ~ 90% RH (no frost)
- Storage temperature -40 ° ~ 85 ° C / 10% ~ 95% RH (no frost)
https://www.v-slot.pl/orbiter-1.5-LDO
LDO Orbiter v1.5 Dual Drive Direct Extrude
LDO Orbiter 1.5 - Extruder for a 3D printer
Motorized extruder (LDO36STH20-1004AHG (XH) motor for 1.75mm filament. The unit has a high extraction speed (60mm / s) and a maximum extrusion force equal to 110 kg. Orbiter 1.5 offers an acceleration of 600mm / s2. The weight of this extruder is only 150g. The gear ratio is 7.5; 1.
Specification:
- Housing and latch made of glass-fiber reinforced nylon
- DuPont Derlin planetary gears
- LDO HT motor (LDO-36STH20-1004AHG) withstands 180 °C temperature and allows for quick acceleration
- Weighs only about 150g, thanks to which you can significantly increase the printing speed without reduction in the print quality
Suggested software configuration:
- Acceleration: 600mm / s ^ 2
- Steps: 650-700 steps / mm (at 16 microsteps)
- Maximum (momentary) speed change (jerk): 300mm / min (RRF), 5 (Marlin)/li>
- Maximum speed: 3600mm / min
- Reverse speed: 55-60mm / s
- Motor current: 1A (peak)
Compatibility:
- CR10 / 10S PRO
- Ender 3
- Ender 3PRO
- Ender 5
