Frame Full Bear Upgrade Prusa i3
product unavailable
Description

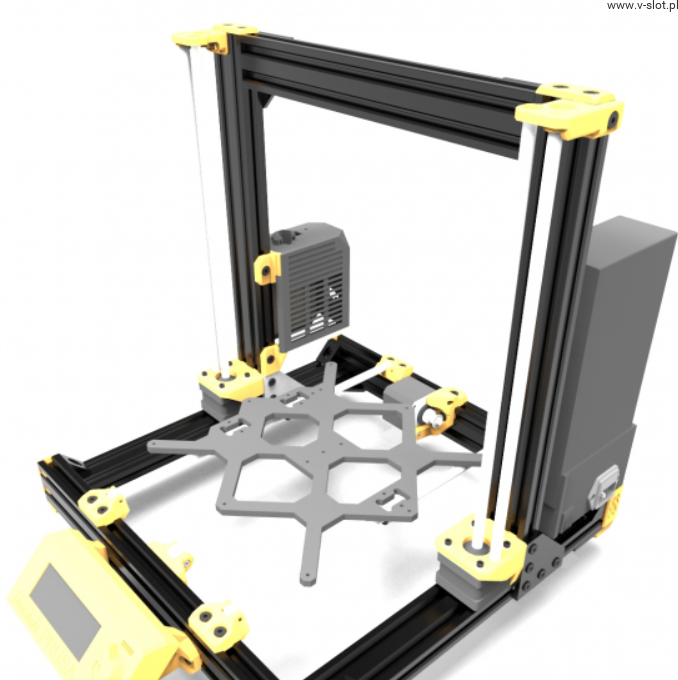

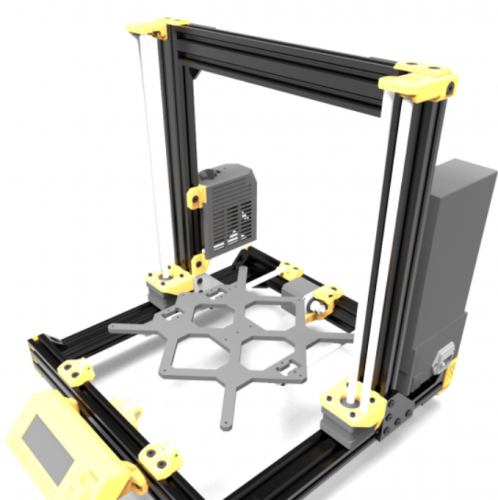

Full Bear Upgrade Prusa i3 frame
Full Bear Upgrade Prusa i3 MK3 - A set of aluminum V-SLOT 2040 profiles and accessories

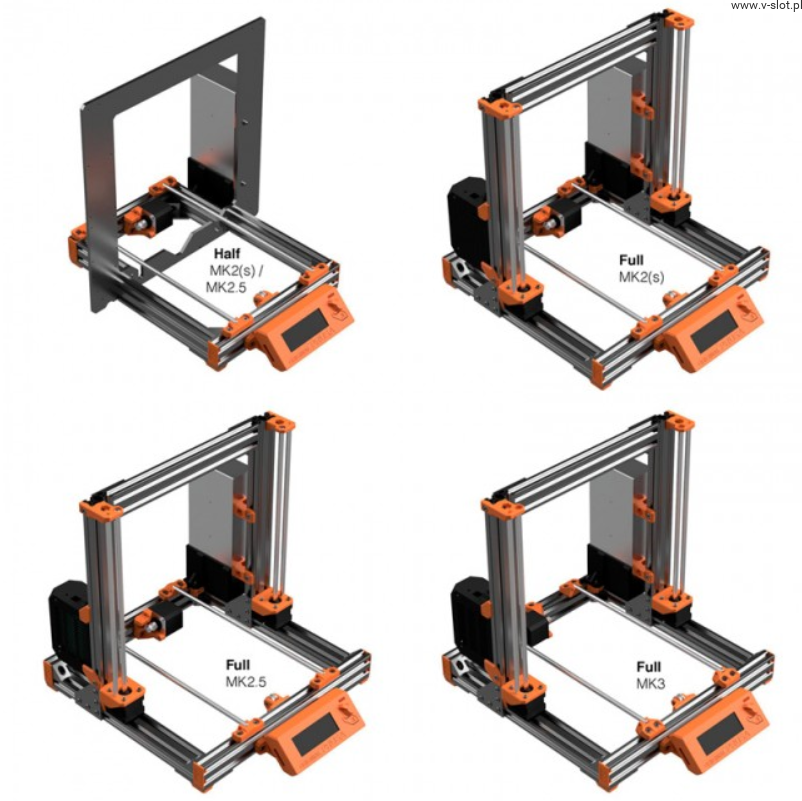

The kit is an aluminum frame conversion for Prusa i3 MK2, MK2s, MK2.5 and MK3. Another Modification of the Prusa i3 frame allows the use of as many original parts as possible. The kit is compatible with MK2, MK2s, MK2.5, MK3. The frame is very easy to assemble - the kit includes all the necessary profiles, corners, connection plates and screws!

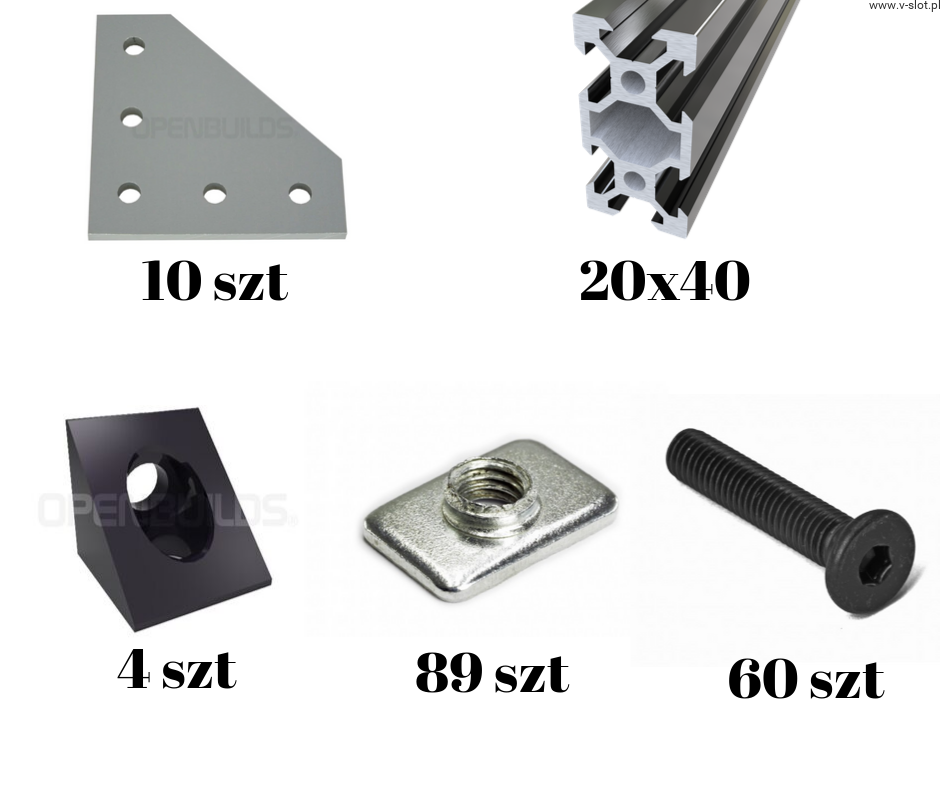

The kit includes :

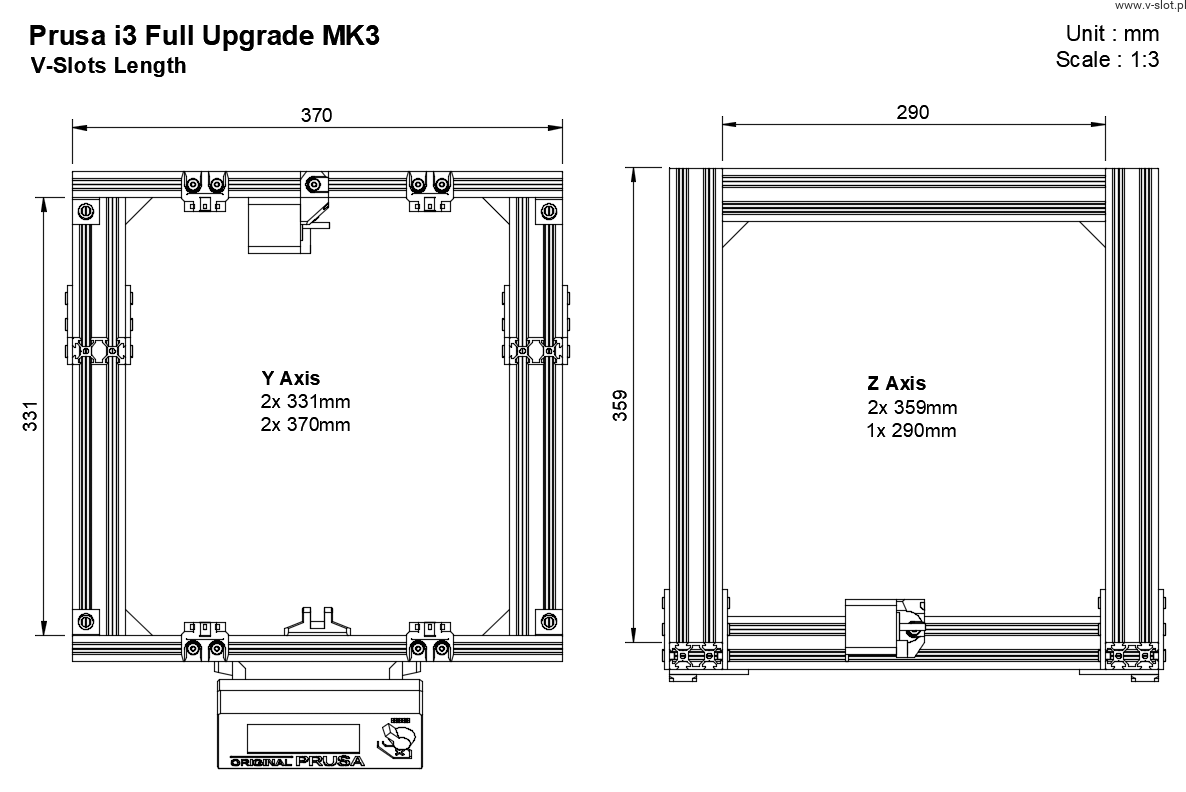

- V-SLOT aluminum profile 20x40, BLACK, 331 mm x 2 pcs
- V-SLOT aluminum profile 20x40, BLACK, 359 mm x 2 pcs
- V-SLOT aluminum profile 20x40, BLACK, 370 mm x 2 pcs
- V-SLOT aluminum profile 20x40, BLACK, 290 mm x 1 pc
- Black full corners, 4 pcs
- 90-degree corner joint plate, silver, 10 pcs
- 5 T-NUT grooves, 89 pcs
- Low head screws M5 x 8 mm, 12 pcs
- Low head screws M5 x 10mm, 63 pcs
- Low head screws M5 x 12mm, 14 pcs
Frame model, profile length and accessories are based on the G. Saunier project: https://github.com/gregsaun/prusa_i3_bear_upgrade/tree/master/full_upgrade
