Hypercube Evolution Frame Kit

Availability: A lot
Dispatched within: 10 working days
Price: €303.46 303.46
quantity szt.
add to wish list
Rating: 5
Vendor: OpenBuilds
Product code: HW1384GK

Description

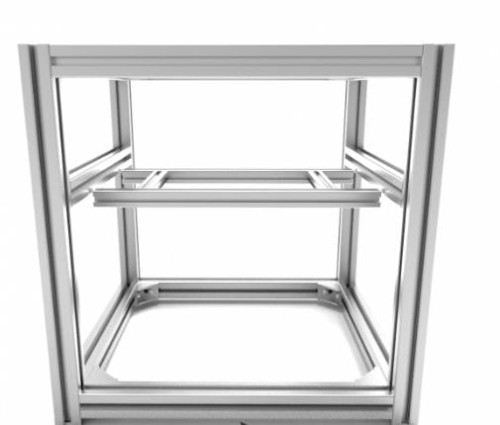

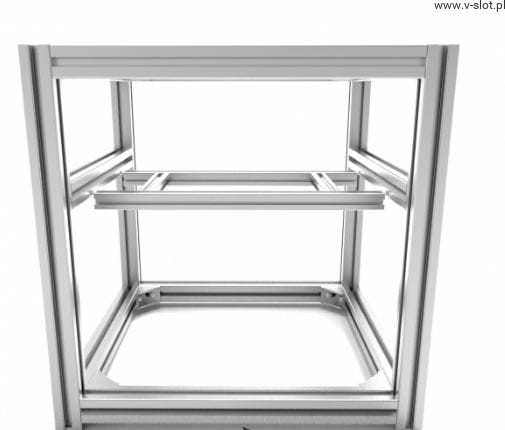

Hypercube Evolution Frame Kit

A complete frame for one of the most popular designs - Hypercube Evolution 3D printers, a treat for every DIY enthusiast.

This kit contains all the profiles, connectors and nuts needed to build a HEVO!

It is based on various constructions, from which we have picked up the best solution.

Kit includes:

  • 4 x 3030 T-Slot X Frame extrusion 420mm (Black Anodized)
  •  6 x 3030 T-Slot Y Frame extrusion 410mm (Black Anodized)
  • 4 x 3030 T-Slot Z Frame extrusion 500mm (Optional @ 600mm/700mm/800mm) (Black Anodized)
  • 2 x 2020 V-Slot Bed frame extrusion 255mm (Black Anodized)
  • 2 x 2020 V-Slot Bed frame extrusion 415mm (Black Anodized)
  • 20 x Inside Hidden Corners for 3030(with set screws)
  • 12 x Cast Corner Brackets for 3030
  • 24 x Button Head M6 x 10mm Screws (For cast brackets)
  • 24 x M6 Drop In Hammer T-Nuts for 3030 (For cast brackets)
  • 8 x Inside Hidden Corners for 2020(with set screws)


- 100 x M5 Drop In Hammer T-Nuts for 2020
- 100 x M5 Drop In Hammer T-Nuts for 3030
- 100 x Button Head M5 x 10mm Screws
- 20 x socket Head Screw M3x20
- 20 x Socket Head Screw M3x10
- 25 x Socket Head Screw M3x12
- 20 x Socket Head Screw M3x14
- 20 x Socket Head Screw M3x16
- 20 x Socket Head Screw M3x25
- 20 x Socket Head Screws M3x30
- 20 x M3 Nuts
- 20 x M3 Washers

- 100 x M3 5x5 Brass knurled insert
