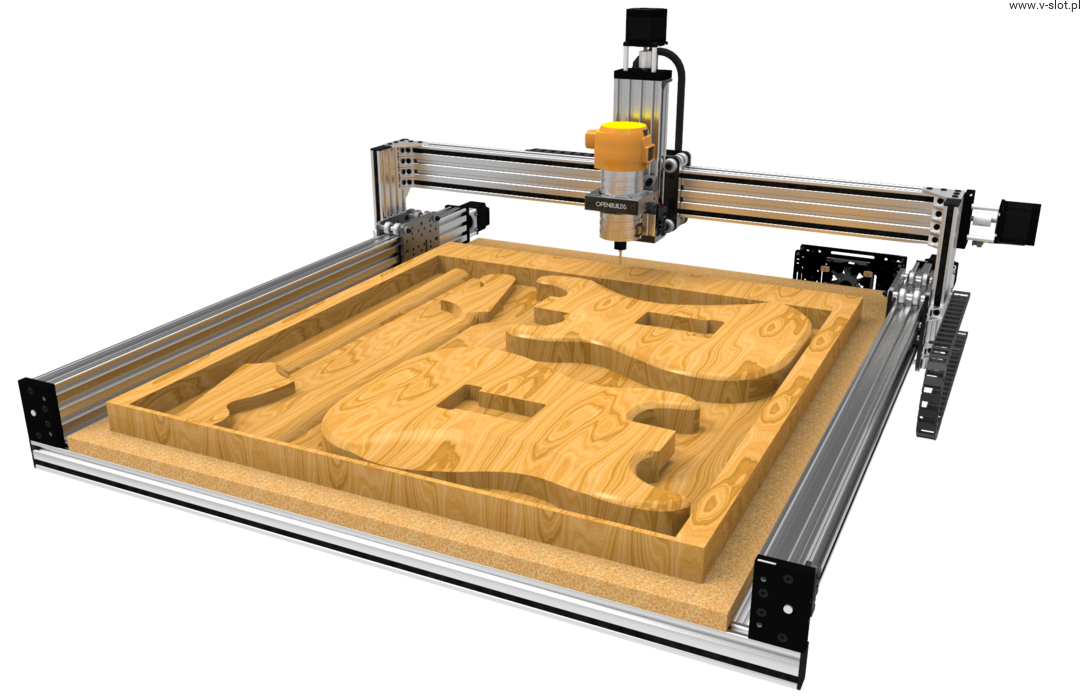

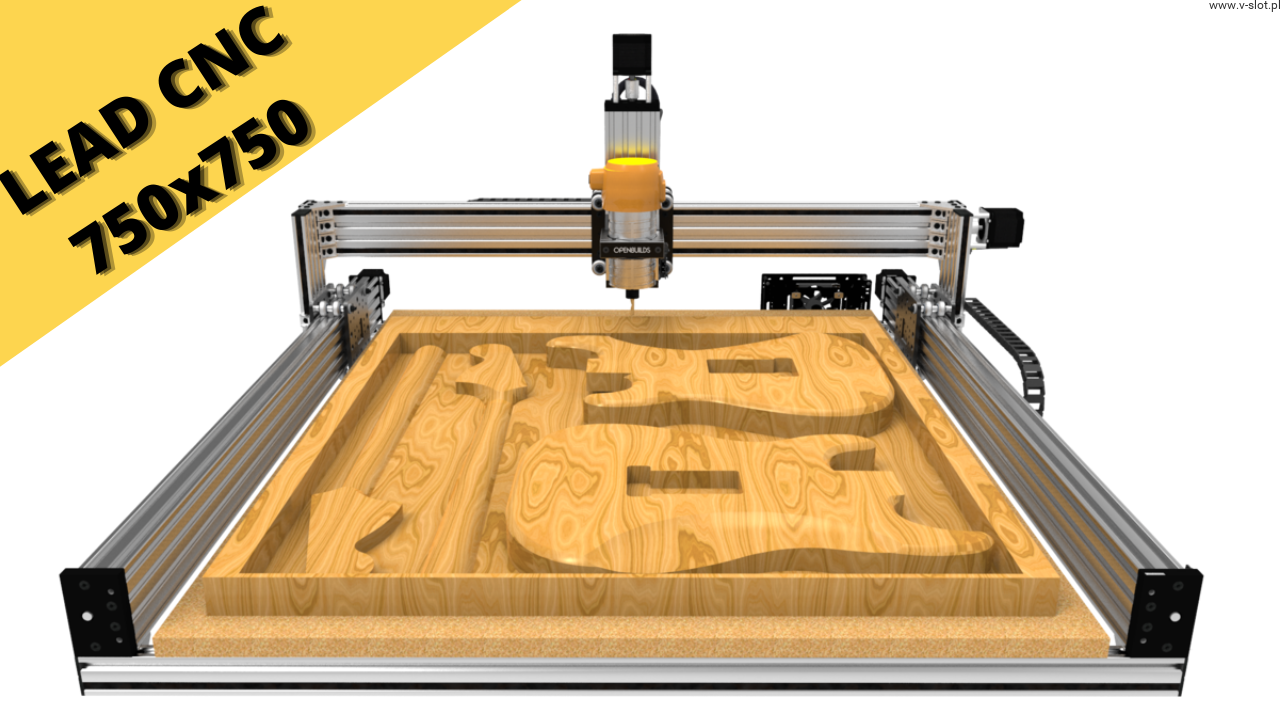

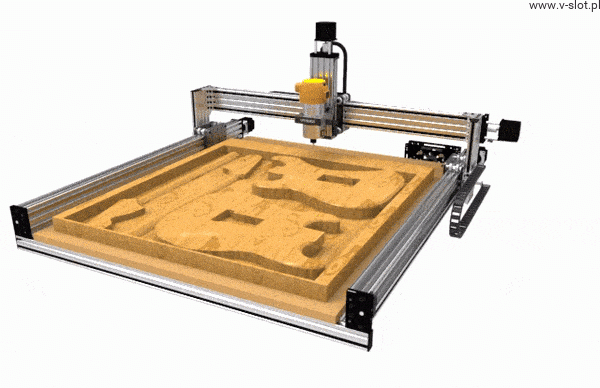

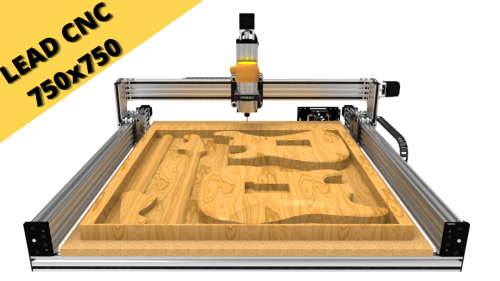

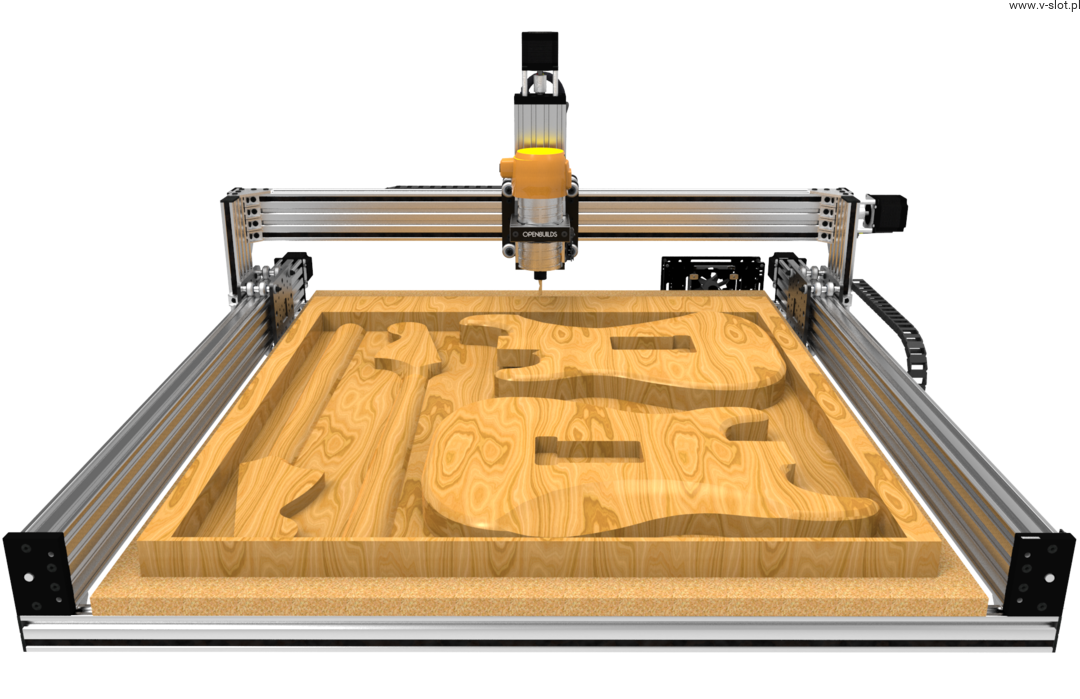

LEAD CNC 75 milling machine

LEAD CNC milling machine - good and fully efficient CNC construction. The LEAD CNC milling machine series is one of the best and most refined designs based on the OpenBuilds system.

One of the most popular models of the LEAD series is the 1010 version, which has long been recommended by our company due to its exceptionally good price-quality ratio and working area.

The LEAD CNC 75 is the equivalent of larger models, which has been reduced in size, so that people and companies that do not have enough space to set up a larger device do not have to give up having this type of devices.

BASIC TECHNICAL DATA:

• Model: LEAD CNC 75
• External dimensions (X / Y) of the base: 750x750mm
• External dimensions with motors: approx. 900 x 900 mm
• Working area: X: 480mm x Y: 560mm x Z: 90mm
• Maximum height of the processed material: 45mm
• Axle drive type: ACME 8mm screw
• Working precision: 0.05-0.25mm *
• Maximum speed: 3500 mm / min (when using NEMA 23 with BlackBox and 24V power supply)

* The precision of work depends on the type of material in which the unit works, carefully selected motors, controller, power supply, spindle, and the selection of cutters.

AS ADDITIONAL OPTIONS **:

• ENGINES: 4x NEMA 23 (23 kg cm or 12.9 kg cm)
• POWER SUPPLY: 24V / 350W
• SPINDLE: DeWalt D26200
• SAFETY SWITCH: YES
• LIMIT SWITCHES: YES
• CONTROL BOARD: BlackBox
• CONTROL PROGRAM: YES, if BlackBox was purchased. OpenBuilds Control
• AXIS SENSOR Z: YES

** Options paid additionally (select at the price)

EXTREMELY GOOD RATIO OF PRICE TO QUALITY AND AREA WORKING!

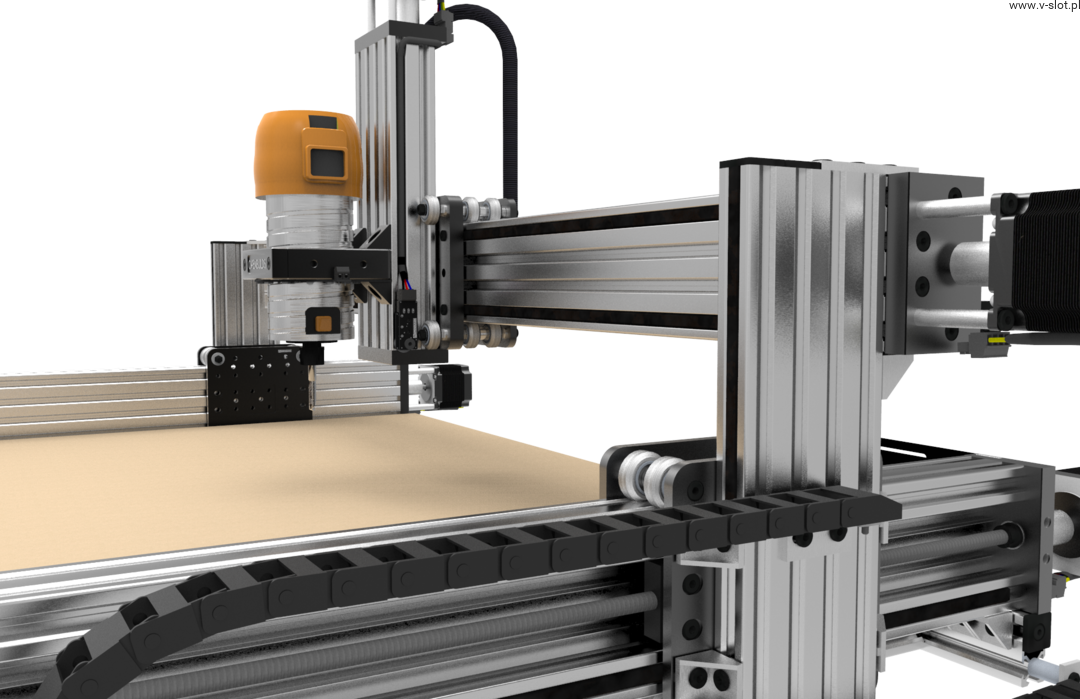

The LEAD CNC series offers good value for money. The Model 75 uses all the components used in the larger 1010 model.

The devices offered in our store are made of elements made mainly of aluminum, which provide the stability of the entire structure.

The use of the V-SLOT, C-BEAM system and OpenBuilds accessories allowed to achieve very good parameters at a reasonable price!

WE LEAVE THE CONFIGURATION AND THE CHOICE IN YOUR HANDS!

In the V-SLOT store you will find many devices.

We want to leave you the opportunity to expand and configure the machine according to your needs, budget and already owned components.

For this reason, the LEAD 75 milling machine can be purchased in various configurations!

Basic price, includes a set of parts for the construction of the structure, but does not include additional accessories such as electronics, spindles, cables, power supply, etc.

Assembled or in parts?

Before buying, you can decide on the form in which you will receive the device.

- In parts - for self-assembly

The option is aimed at DIY enthusiasts and people who have previously assembled a similar structure.

ATTENTION! The assembly instruction is available only in English as a video available on the YouTube channel.

- Unit assembled by V-SLOT

Our company V-SLOT offers the possibility of purchasing a complex device, which will be ready for operation immediately after receiving it!

As one of the few companies in the world, we have been offering the assembly and calibration service of the device for over 3 years.

This option is intended for all those who want to get started quickly. Those clients will be additionally covered by technical support or basic training in the use of the machine!

WITH OR WITHOUT MOTORS

NEMA 23 motors are dedicated one to the LEAD 75 milling machine.

The device can be purchased with motors adapted to the design, which will ensure stable operation.

If you already have drives in your workshop, you can purchase the construction without this component.

BLACKBOX DRIVER OR OWN DRIVER

We recommend usage of the unique BlackBox OpenBuilds driver, which comes with the OpenBuilds Control software. BlackBox device is a control board dedicated to CNC devices that allows you to operate drives (X / Y / Z), limit switches and additionally has many other connectors that will allow you to expand the device!

BlackBox is equipped with, among others, 0-10V connectors, relay, connector for the Z axis sensor and others. If in the future you will need to connect a laser, plasma control of another device, BlackBox will not limit you!

More about BlackBox at: https://www.v-slot.pl/pl/p/BlackBox-OpenBuilds-sterownik-CNC/903

However, if you have your own driver, you can opt out of purchasing that driver.

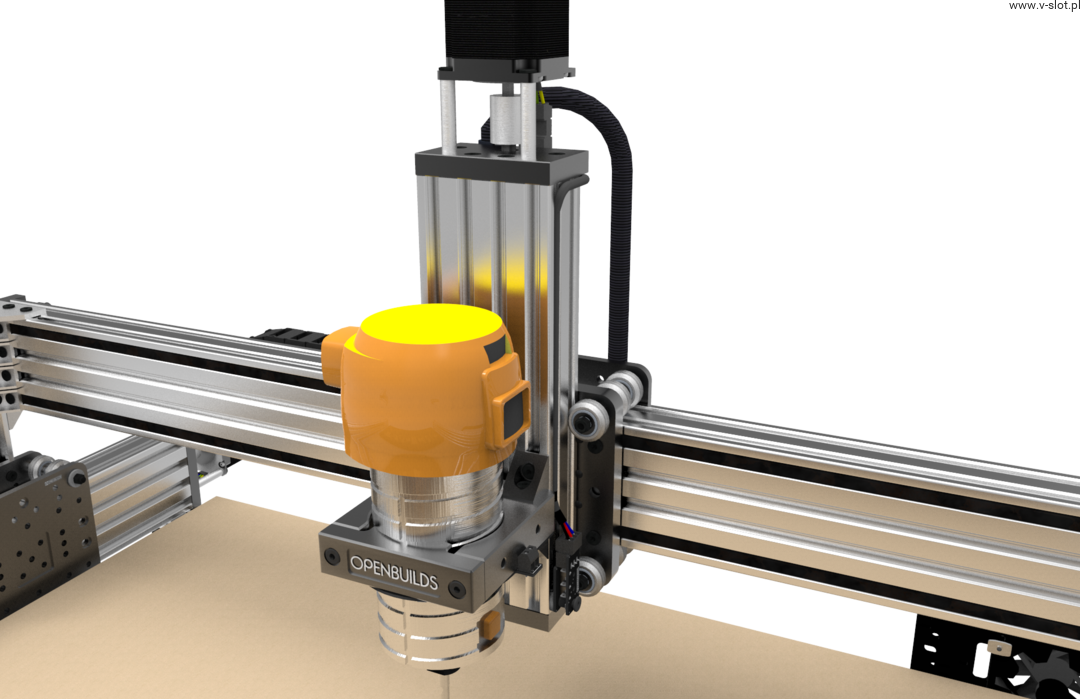

DEWALT D26200 SPINDLE OR ROUTER 11 OR NO SPINDLE

The milling machine can be purchased together with a DeWalt D26200 spindle or a RoutER11 spindle, which allows you to work in many different materials.

The DeWalt D26200 is supplied with a sleeve that allows the installation of 8mm shank cutters, and for an additional fee you can buy 3.175mm or 6mm sleeves. DeWalt will allow you to regulate the speed in the range from 16,000 to 27,000 rpm.

RoutER11 is a spindle dedicated by OpenBuilds USA, which offers reasonable parameters for an optimal price. The great advantage of the spindle is a set of sleeves that allows the assembly of cutters with a diameter of 3.175, 3mm, 6mm and 6.35mm!

People who have their own spindle can purchase a LEAD CNC 75 milling machine without a spindle. LEAD 75 is equipped with a handle enabling the assembly of a spindle with a diameter of approx. 70 mm. However, if you require a handle of a different diameter, please contact us directly.

INFORMATION ON DeWalt CAN BE FOUND ON THE WEBSITE: https://www.v-slot.pl/pl/p/DEWALT-D26200/452

INFORMATION ABOUT ROUTER 11 CAN BE FOUND ON THE WEBSITE: https://www.v-slot.pl/wrzeciono-cnc-routER11/a>

ADDITIONAL ACCESSORIES:

In order for the unit to be complete and the work with the device to be pleasant and safe, we offer you the option of purchasing additional accessories.

The set of accessories includes:

• MDF board as the base on which the material to be processed is placed
• Z axis position sensor
• 3 pcs of limit switches (1 for each axis)
• Additional LED ring that illuminates the area near the spindle
• Safety only
• A full set of cables for connecting stepper motors, limit switches, safety cassettes, lighting.
• 24V / 350W power supply

WE ARE HERE TO HELP YOU!

We are aware that each of you has different needs.

We also know that a CNC milling machine can be something new for many people. We know that choosing the right unit can be quite a challenge. Therefore, if you have questions, V-SLOT employees will be happy to help.

People who decide to purchase a fully configured device with a folding service can count on training in the use of the machine, e.g., when collecting the device.

If you are thinking about buying, but before making a purchase decision, you would like to see the devices we offer - no problem!

Our store and one of the workshops are located in Wroclaw, where, upon prior appointment, it is possible to watch the device live, test the unit on your materials and also undergo initial training!

ADDITIONALLY, YOU CAN CHECK OUR YOUTUBE CHANNEL

We are often separated by a distance that makes it impossible to make a decision.

Sometimes there are questions to which the best answer can be found in video that will explain and illustrate a given aspect. For this reason, we run a channel on YouTube where you will find presentations of various machines, constructions, and guides on the use of CNC machines available in the V-SLOT Polska store!
