Description

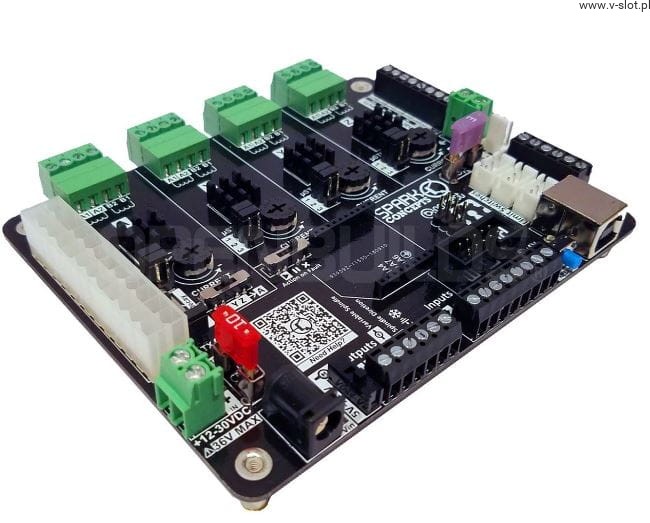

CNC xPRO Driver for stepper motor

The XPRO V4 controller is a controller that has all the necessary functions to quickly start up the system to operate such devices as CNC milling machines.

CNC xPRO v4 is a unit developed by OpenBuilds in the USA. The electronics have been refined to be compatible with most of the offered CNC equipment in our shop. Fast installation, simplicity of connection and versatility make the xPro v4 CNC controller worth attention despite its price. Recommended for all CNC machines based on C-Beam and V-Slot profiles in the v-slot.poland.com shop.

The V4 model has a new Dirver Mider logic. Constantly monitors the status of each engine, while looking for faults. If the fault occurs, action can be taken to prevent the fault:

  • Pause to remedy the fault
  • Stop - Immediate stop and reset
  • Ignore the faultCNC xPRO v4



  • The installation of the controller using plug-and-play interfaces is a process that takes an average of 5 minutes.
  • Three ways of power supply (2. 5x5. 5mm DC plug or 2-core power supply or via ATX computer power supply
  • The possibility of choosing a range of output voltages for the spindle: 0-5V or 0-10V (compatible with a large number of lasers, spindles, etc. )
  • Screw connectors for external STEP/DIR controllers allows for quick expansion
  • LEDs which signal, among other things, about errors and make it easier to determine the error

The kit inludes:
1 CNC xPro V4 Driver

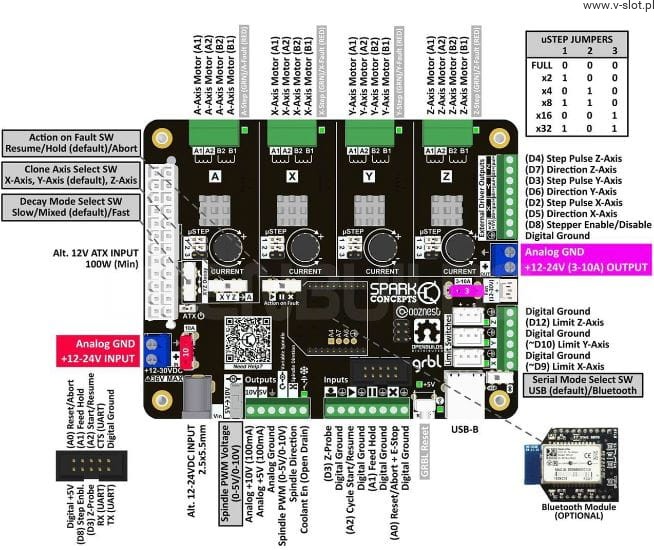

Product Specifications:

  • Pre-loaded latest stable version of GRBL
  • Possibility to power an ATX power supply or a 12/24V 2-wire power supply or a power supply with DC socket
  • Control of 4 motors with DRV8825 - 2. 5A at 1. 75RMS with max. 1/32 micro-step
  • 1 driver can clone the movement of the X, Y or Z axis - Support for hardware via USB or wirelessly e. g. XBee
  • 12V and 5V outputs for peripheral equipment (fans, pumps, lighting, vacuum cleaners)
  • Screw connections for stepper motors and ends

sterownik cnc xpro v4



SOFTWARE:

OpenBuilds offers free software that allows you to run and work with controllers such as CNC xPRO v4 very quickly. The software is available for free on the manufacturer's website and on our website.
Downloadable softwares under the link: https://www.v-slot.pl/pl/i/Oprogramowanie-OpenBuilds/18

 cnc soft openbuilds free



SHOWCASE (source OpenBuilds YouTube):
