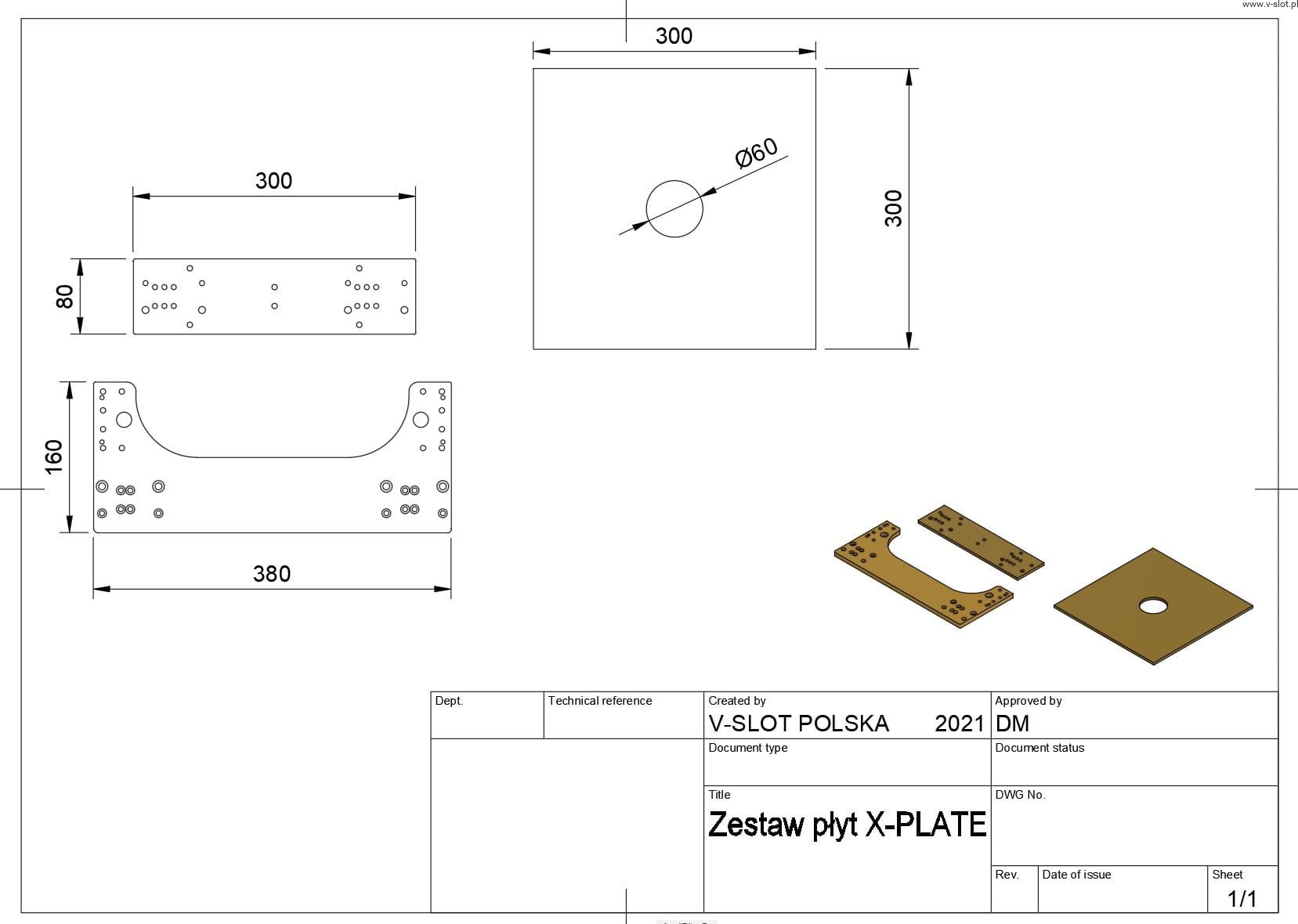

X-PLATE SET
The X-PLATE plate set is complete kid of aluminum plates designed by V-SLOT POLSKA. This set was created especially by us in order to build various types of structures that facilitate the construction of units used for home purposes or in carpentry workshops.
The boards are used to build structures that we share with you in, among others, in our articles or video tutorials. The X-PLATE SET can be also used to build a wood planner in the V-PLAN v2 version.

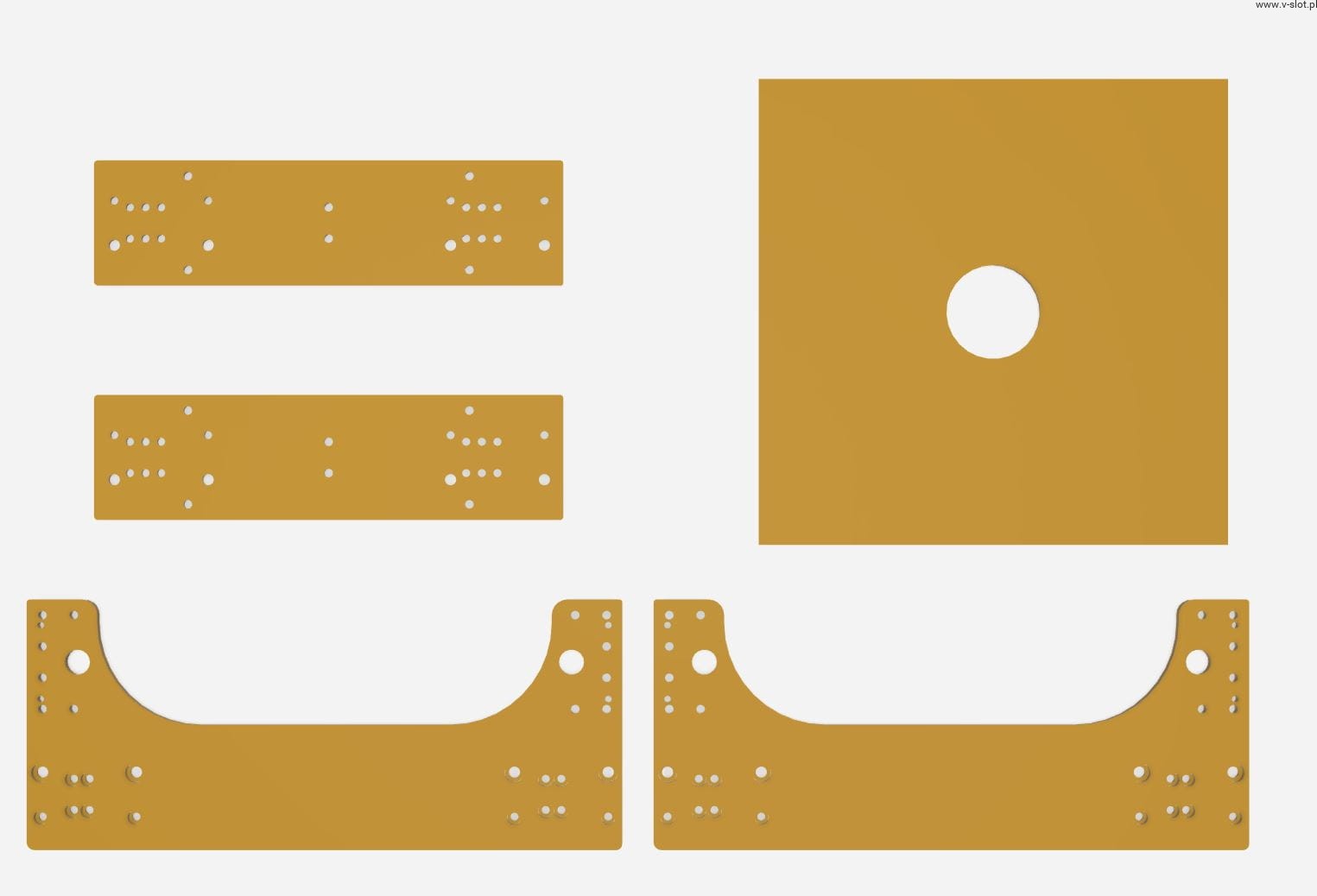

WHAT'S INCLUDED IN THE X-PLATE SET:
- X-PLATE front plate, 2 pcs
- X-PLATE sideboard, 2 pcs

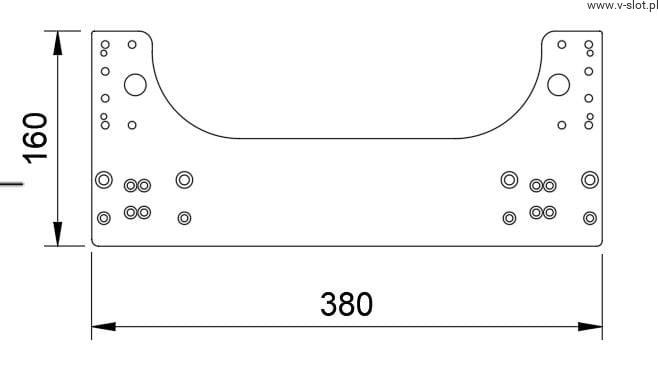

Technical data of X-PLATE front::
- Material: Aluminum
- Thickness: 10mm
- Finish: Raw aluminum covering or optional anodized gold
- Holes: Partly drilled M5, threaded part M5, part for bearings, part for eccentricities, chamfered part
- Dimensions: 160 x 380mm

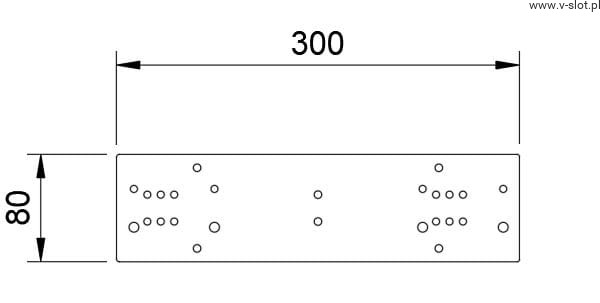

Technical data of X-PLATE side:
- Material: Aluminum
- Thickness: 6mm
- Finish: Raw aluminum covering or optional anodized gold
- Holes: Partly drilled M5, threaded part M5, part for bearings, part for eccentricities, chamfered part
- Dimensions: 300x80mm

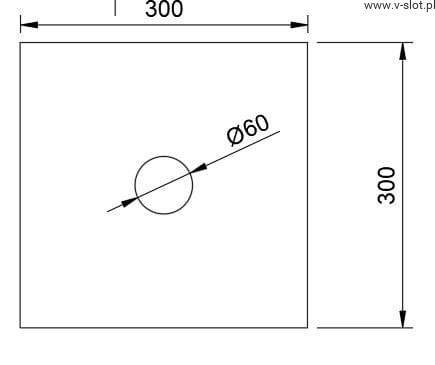

Technical data of the X-PLATE base (as an option to the set):
- Material: Aluminum
- Thickness: 6mm
- Finish: Raw aluminum covering or optional anodized gold
- Holes: M5 partially drilled for mounting under the trolley, central hole fi 60mm
- Dimensions: 300x300mm
