X-PLAN: Set of parts to build a guide

X-PLAN: Set of parts to build a guide

Availability: out of stock
Vendor: V-Slot
Product code: X-PLAN
Rating: 5
Price: €264.36 264.36
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €214.93
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

X-PLAN: Set of parts to build a guide

A set of V-SLOT elements for the construction of the  X-PLAN linear guide.
The X-PLAN linear guide is a structure that can be used in many various solutions. The set of X-PLAN parts in combination with the C-BEAM and V-SLOT aluminum profiles will enable to construct a structure that will be a stable 1-axis guide.
This guide can be used as a tool supporting work in a home workshop or in an enterprise.
The set of parts was created to facilitate the construction of this type of solutions, which, depending on the needs, can perform many functions.

A correctly assembled set can be used, for example, for:

  • Guides the circular saw in a straight line
  • Guides the spindle in a straight line
  • Guide other cutting tools in a straight line
  • Construction of a 2-axis wood planner (V-PLAN V2))

An example of the use of parts can be found in the article:
https://www.v-slot.pl/diy-prowadnica-pily-x-plan

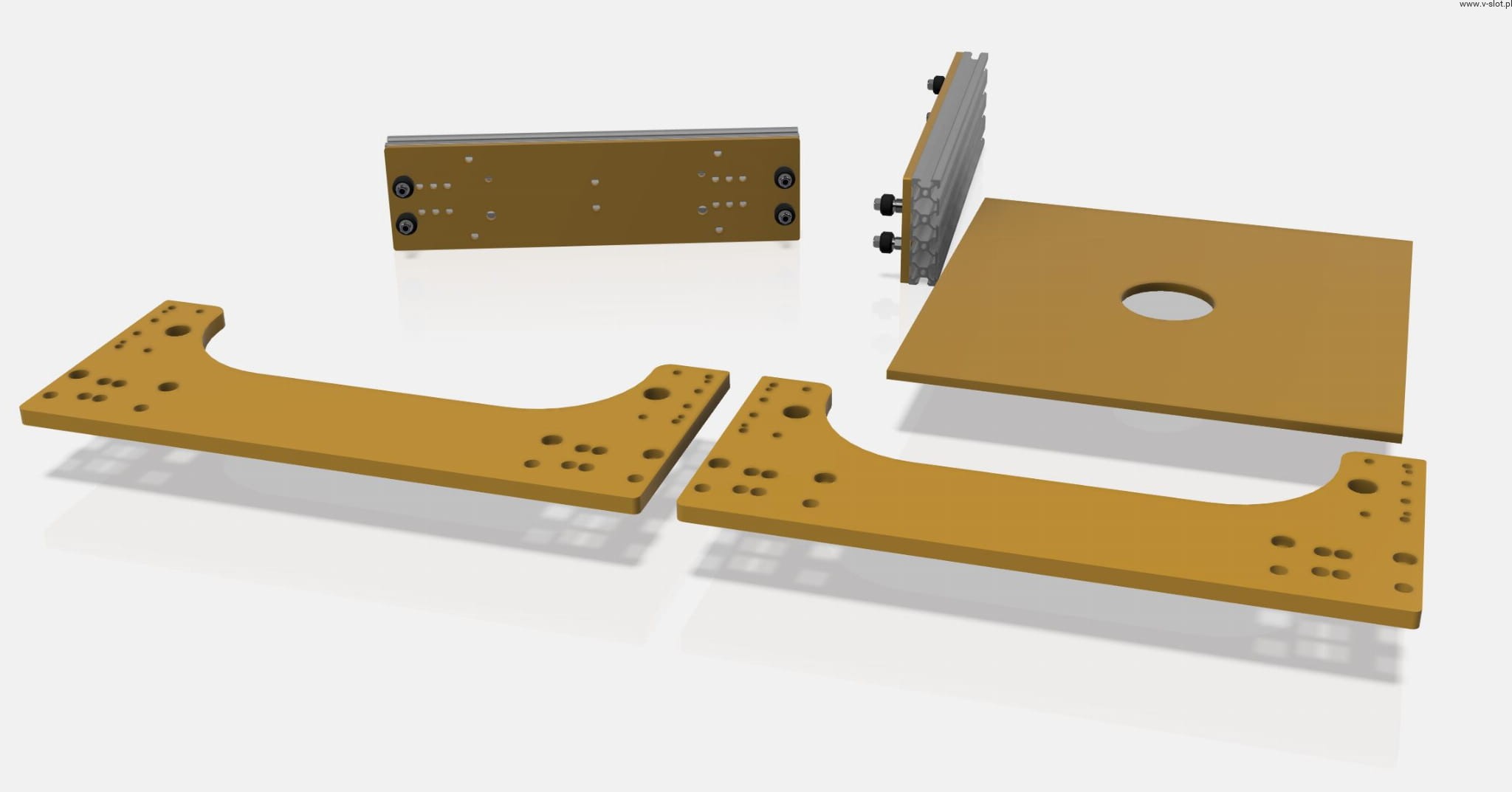

WHAT'S IN THE X-PLAN KIT:

  1. 1x V-PLATE SET
    - V-PLATE faceplate, 2 pcs
    - Assembled plate of the V-PLATE trolley with additional accessories, 2 pcs
    (As accessories: mini-V-Wheel rollers (8 pcs), 6mm aluminum spacers, eccentrics, screws, T-NUT.)
  2. 2x ALUMINUM PROFILE V-SLOT 2080, 300mm
  3. 75 pcs T-NUT M5 OpenBuilds
  4. 75 pcs of T-nuts M5
  5. 175 pcs M5x8mm low head screws
  6. 25 pcs of M5x20mm low head screws
  7. 25 pcs of M5x15mm low head screws
  8. 10 pcs of L-type triple corners
  9. Optionally available for selection at the price: Aluminum plate in size 6mm 300x300mm
