Mini V Wheel Kit
Mini V Wheel Kit
0
product unavailable
Description
Mini V Wheel Kit
The Mini V roller set is ideally suited for connection to the Mini V tile. small size linear guideway.
The Mini V can be used in many different projects and is ideal for use with V-Slot profiles. Each element is carefully made which guarantees high precision of work.
Product specifications:
- Material - Delrin (black)
- Dimensions 15.23 OD x 9.974 +/- 0.026 ID x 8.8 'thick'
- Rockwell Hardness M80
- Compressive Strengh 63Mpa

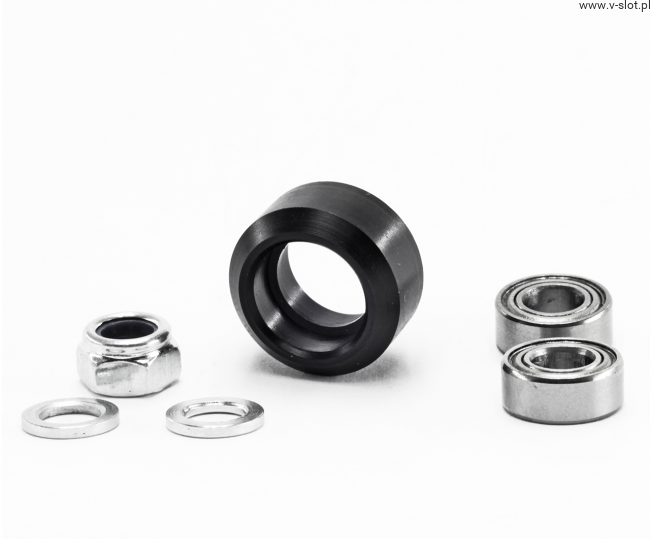

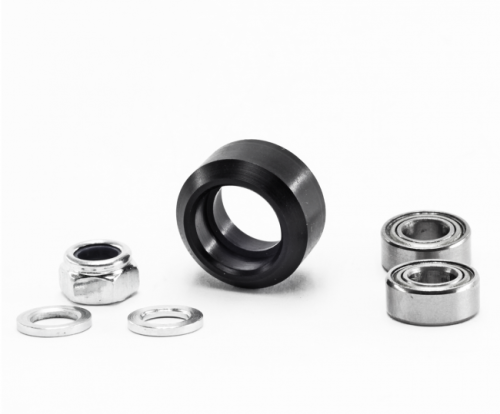

Kit includes:
- (1) Mini V Wheel
- (2) Mini V Bearings (V3)
- (2) Mini V 1mm Precision Shim
- (1) M5 Nylon Lock Nut
Remember to download the screws and spacer sleeves of your choice:
- Low Profile Screw (25mm for use with 1/8" Plate and 30mm for 1/4" Plates with the exception of the C-Beam Gantry Plate & Mini V Plate which uses 25mm)
- Aluminum Spacers (choose between 6mm and 1/4")
- Eccentric Spacers (choose between 6mm and 1/4")
Note: Usually two eccentric spacers and two aluminium spacers are required for a standard Gantry board.
