Solid V Wheel Kit (OPENBUILDS)

Zestaw rolka: Solid V Wheel Kit (ORYGINAŁ OPENBUILDS)

Solid V Wheel Kit (OPENBUILDS)

Availability: A lot Dispatched within: 3 working days

Vendor: OpenBuilds

Product code: HW1212WK-OBR

Kod EAN: 6276108244910

Rating:

Price: €9.29 9.29

Gross price

incl. 23% TAX, excl. shipping costs

Net price: €7.56

excl. 23% TAX, excl. shipping costs

quantity szt.

product unavailable

Description

Solid V Wheel Kit (OPENBUILDS)

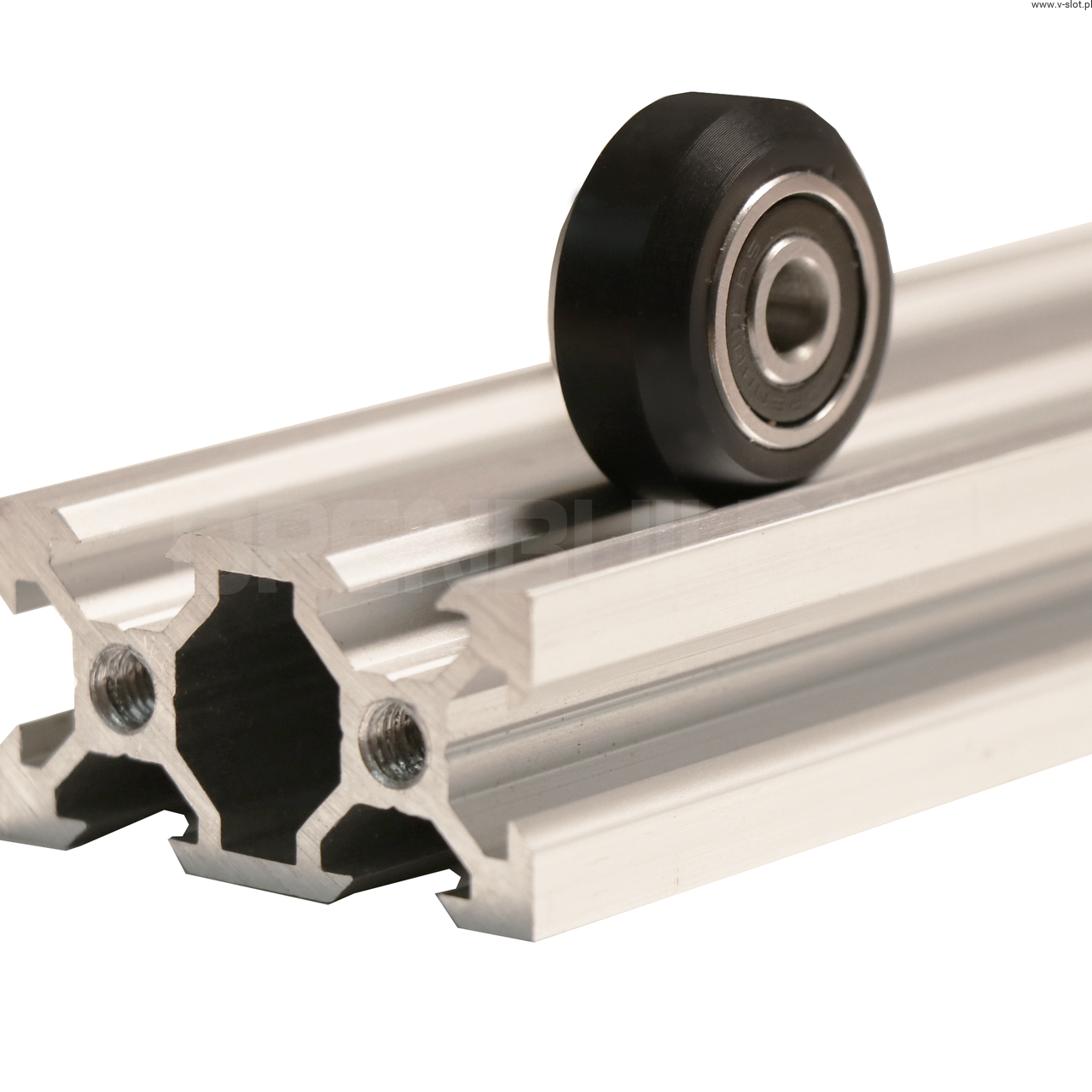

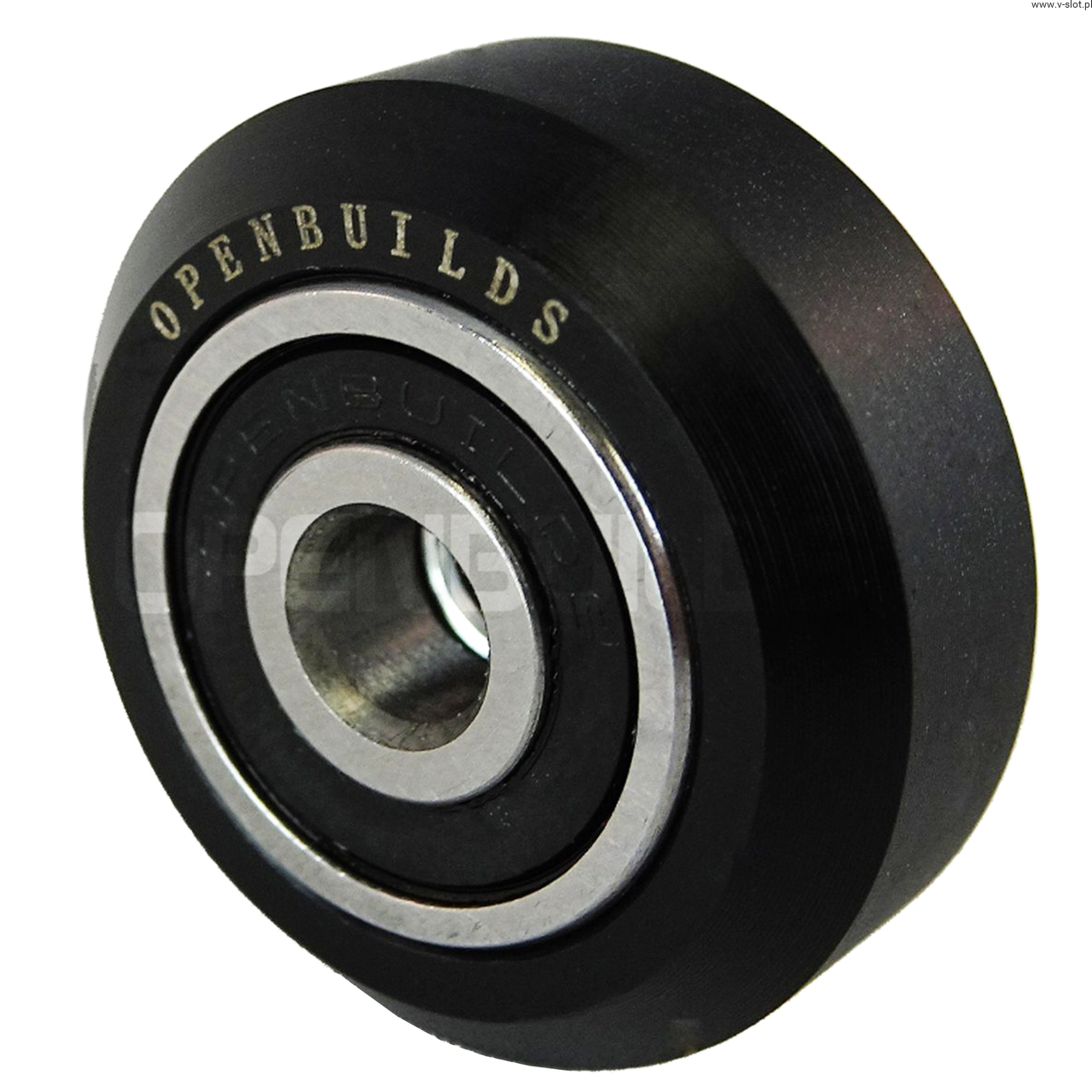

OpenBuilds Solid V rollers/wheels are very durable components resistant to deflection.

This model is ideal for structures with higher loads. This is an element used in structures where the pressure should be evenly distributed. As with all OpenBuilds elements, the rollers are carefully made, which guarantees high quality work with the element.

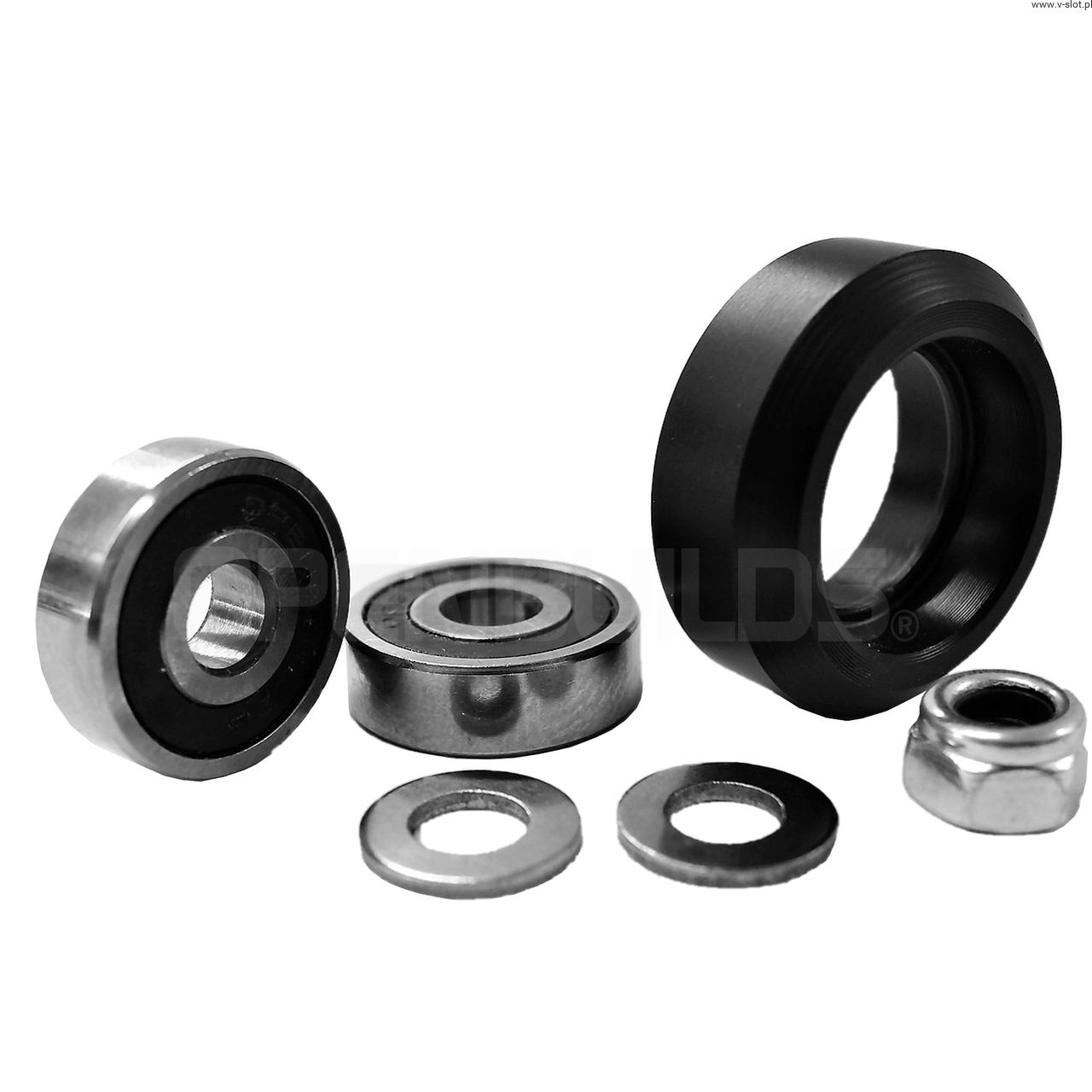

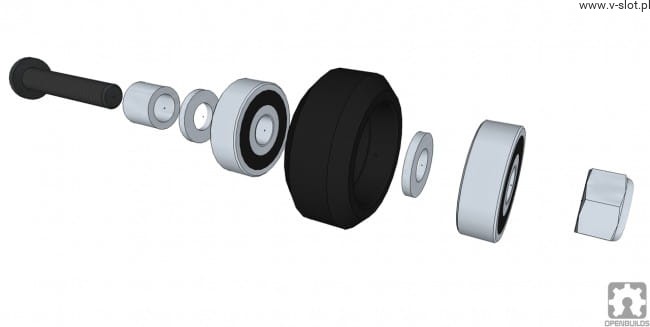

Wheel Kit includes:

(1) OpenBuilds Solid V Wheel
(2) Ball Bearings - 625 2RS
(2) 5mm Precision Shim
(1) Lock Nut with Nylon Insert

Also, remember to grab the screws and spacer sleeves of your choice:

Low Profile Screw (25mm for use with 1/8" Plate and 30mm for 1/4" Plates)
Aluminum Spacers (choose between 6mm and 1/4")
Eccentric Spacers (choose between 6mm and 1/4")

Note: Usually two eccentric spacers and two aluminium spacers are required for a standard Gantry board.

Product specifications:

Material - Delrin (black)
Dimensions 23.90 OD x 16 ID x 10.23 'thick'
Rockwell Hardness M80
Compressive Strengh 63Mpa
