Xtreme Solid V Wheel

Availability: average quantity Dispatched within: 48 h

Vendor: OpenBuilds

Product code: HW1150WC

Kod EAN: 6276108245047

Rating:

Price: €1.84 1.84

Gross price

incl. 23% TAX, excl. shipping costs

Net price: €1.50

excl. 23% TAX, excl. shipping costs

quantity szt.

product unavailable

Description

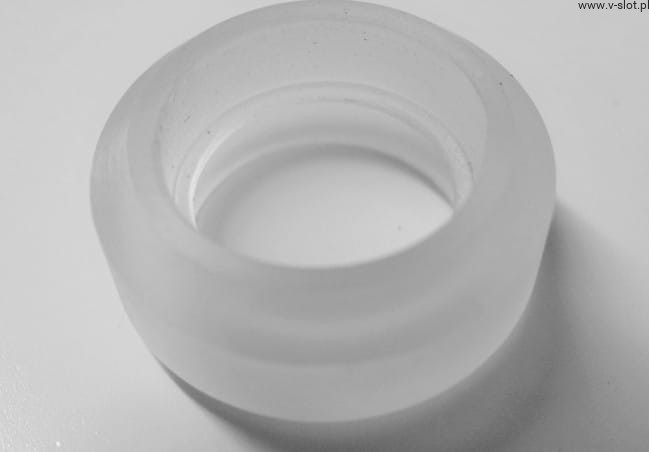

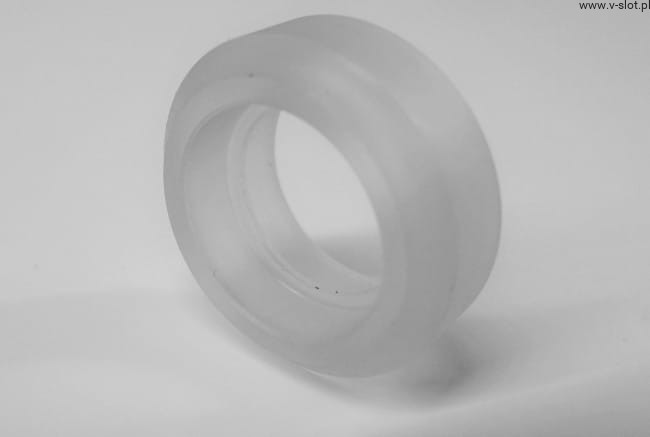

Xtreme Solid V Wheel

OpenBuilds Solid V Xtreme Wheel is a series of very robust Xtreme product lines. This type of products was created to work in the most demanding projects.

The robust Xtreme V roller series is made of very hard polycarbonate material. This material is resistant to compression and wear and this ensures better precision and durability of your structures.

The Xtreme V series is an alternative to Delrin V rollers in applications such as CNC milling machines where there are high pressures.

The OpenBuilds team tested these rollers at a load of 25kg/ wheel! - there was no noticeable deflection.

Many of these wheels can be added to the crane to allow the load to be evenly distributed over them.

Each wheel is carefully manufactured to ensure high precision and tolerance.

Sales apply only to the Xtreme Solid V Wheel.

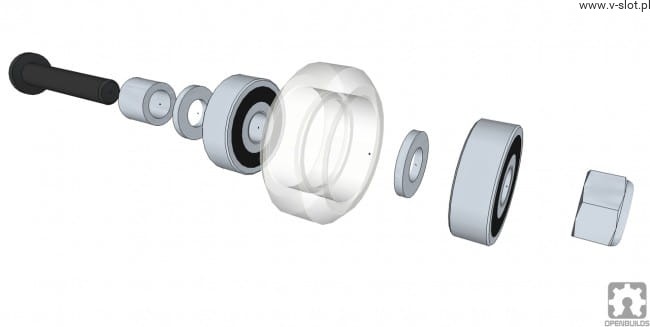

To build a full set you still need it:

(2) Ball bearings 625 2RS
(2) Precision 5 mm washers
(1) Locking nut with nylon insert

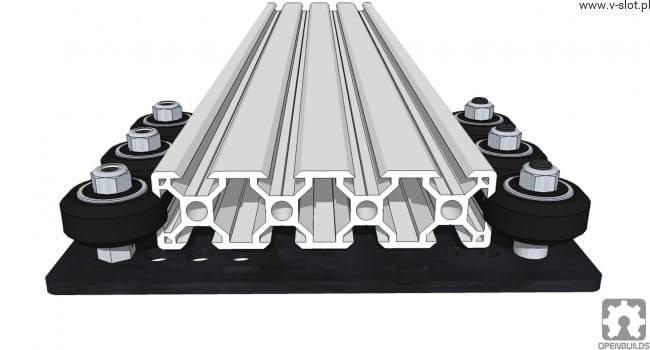

Note: Usually two eccentric spacers and two aluminium spacers are required for a standard Gantry board.

Product specifications:

Rockwell Hardness: M75
Compression Strength: 86MPA
OD: 23.90mm
ID: 15.974mm +/- 0.026mm
Thick: 10.23mm
Material: Polycarbonate
Color: Clear
Recommended Lubricant: Silicone

WARNING Use only silicone if necessary to lubricate these polycarbonate wheels.

Do NOT use synthetic lubricating or cutting oils.
