Dual V Wheel Kit
The OpenBuilds Dual V Wheel kit is ideal for use with any V-Wheel linear guidance system and is compatible with V-Slot and OpenRail.
This wheel has a double v shape that allows you to drive on V-Slot™ as well as OpenRail.
The elements are carefully manufactured, ensuring high precision and tolerance.

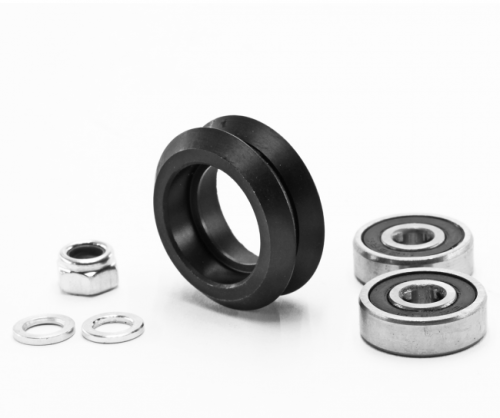

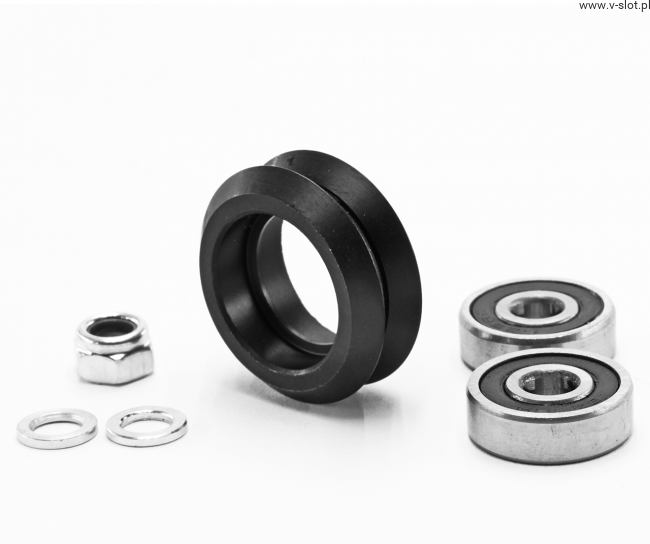

Each Wheel Kit Includes:
- (1) Delrin V Wheel
- (2) Ball Bearings - 625 2RS
- (2) 5mm Precision Shim
- (1) Lock Nut with Nylon Insert

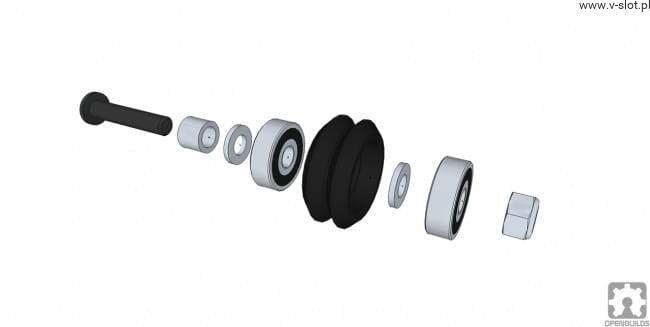

Remember to buy the screws and spacer sleeves:
- Low Profile Screws (25mm for use with 1/8" Plate and 30mm for 1/4" Plates)
- Aluminum Spacers (choose between 6mm and 1/4")
- Eccentric Spacers (choose between 6mm and 1/4")
Note: Usually two eccentric spacers and two aluminium spacers are required for a standard Gantry board.
Product specifications:
- Material - Delrin (black)
- Dimensions 24.39 OD x 15.974 +/- 0.026 ID x 10.23 'thick'
- Rockwell Hardness M80
- Compressive Strength 63Mpa
