Complete XLarge C-Beam
Complete XLarge C-Beam
0
product unavailable
Description
Complete, assembled stroller compatible with C-BEAM profiles.
The construction of this trolley allows for use in very demanding sets that are used, among the others, in our CNC milling machines.

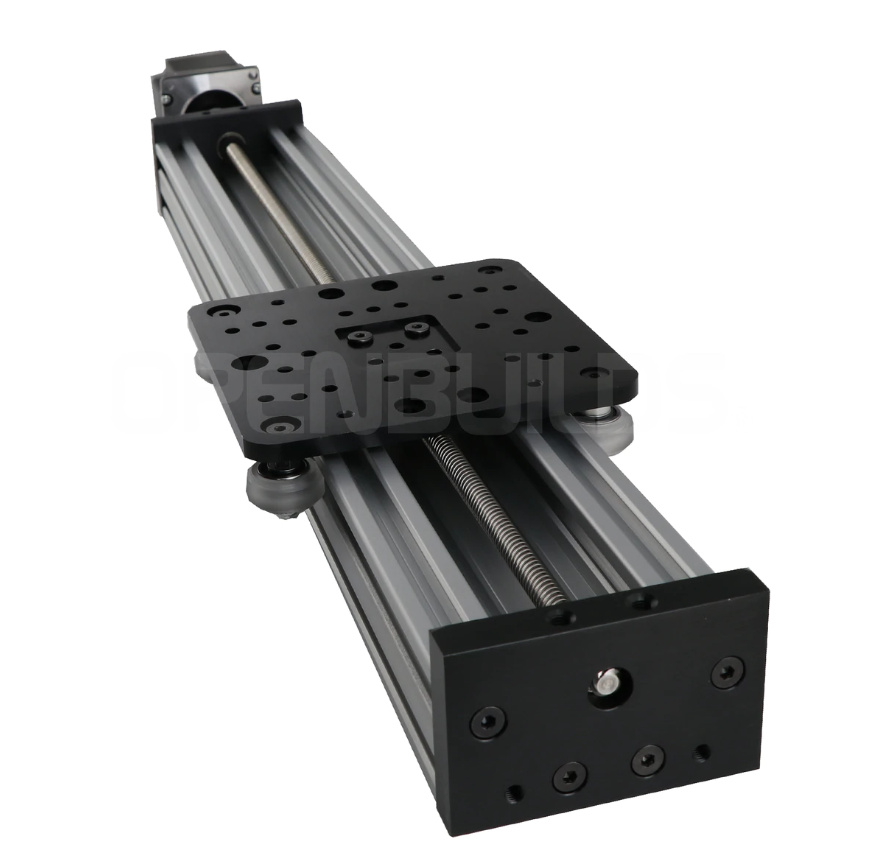

It is an ideal trolley that can be installed on the C-BEAM aluminum profile and create a stable linear guide. The trolley can be driven with the ACME screw - for this purpose, the trolley should be equipped with additional
an anti-backlash nut with accessories (Distance 3mm x 2pcs, M5 x 25mm flat head screw).

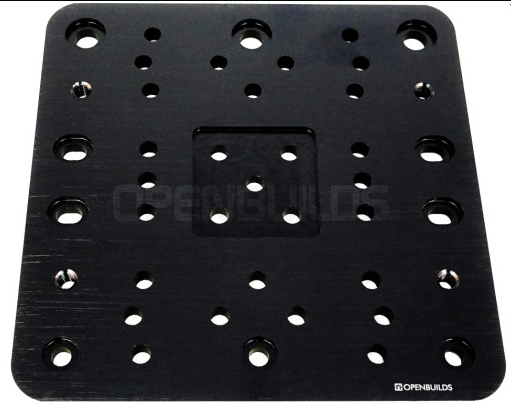

Board dimensions: 125 x 125 mm

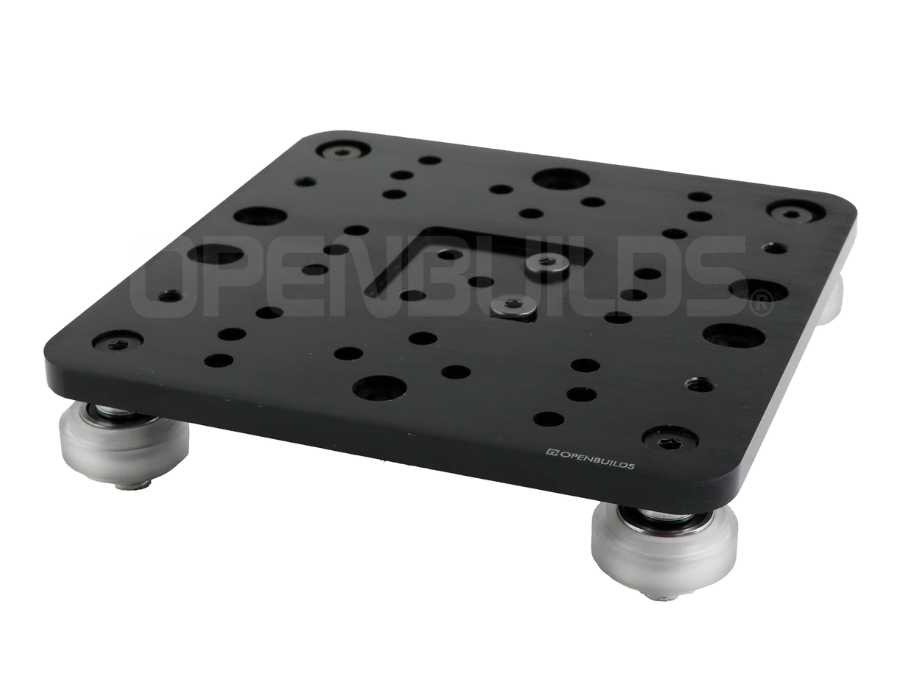

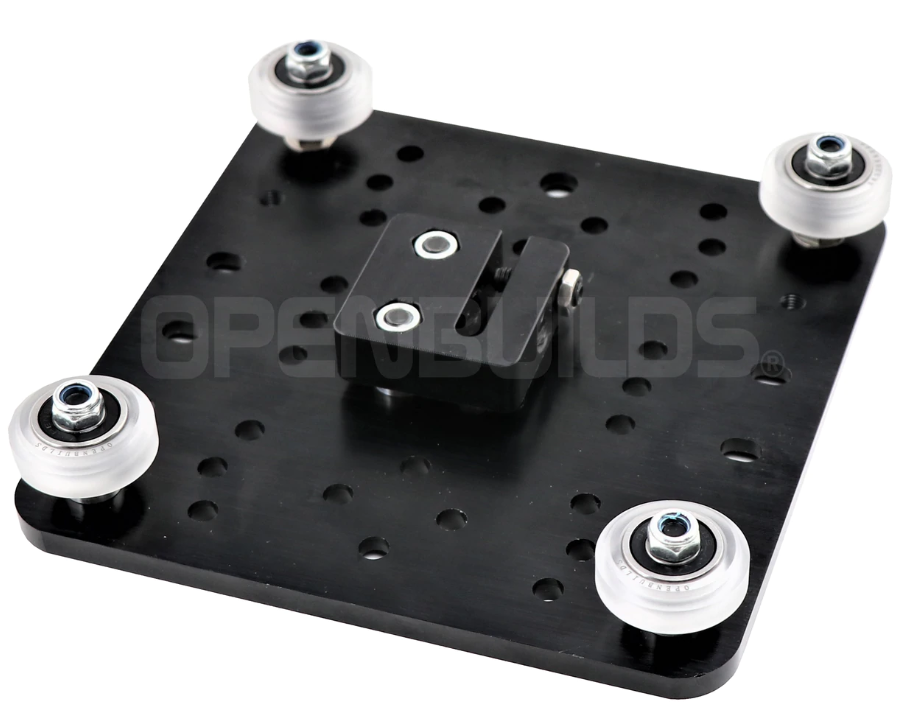

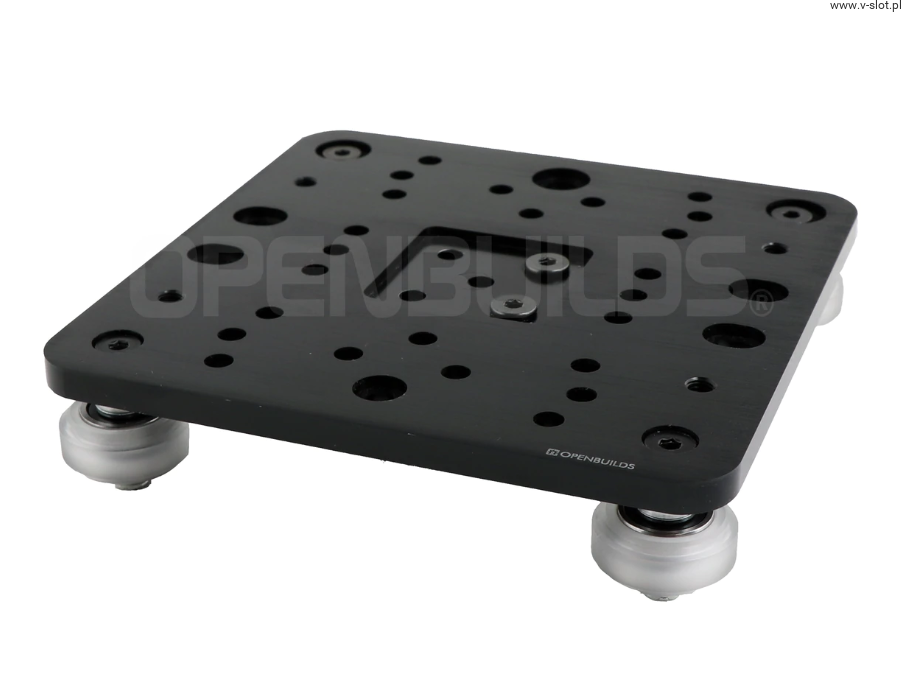

Set contains:
- C-BEAM XLarge
- Xtreme Solid 4 rolls
- 2 eccentric nuts
- 2 6mm spacers
- Pads
- Screws
- Nuts

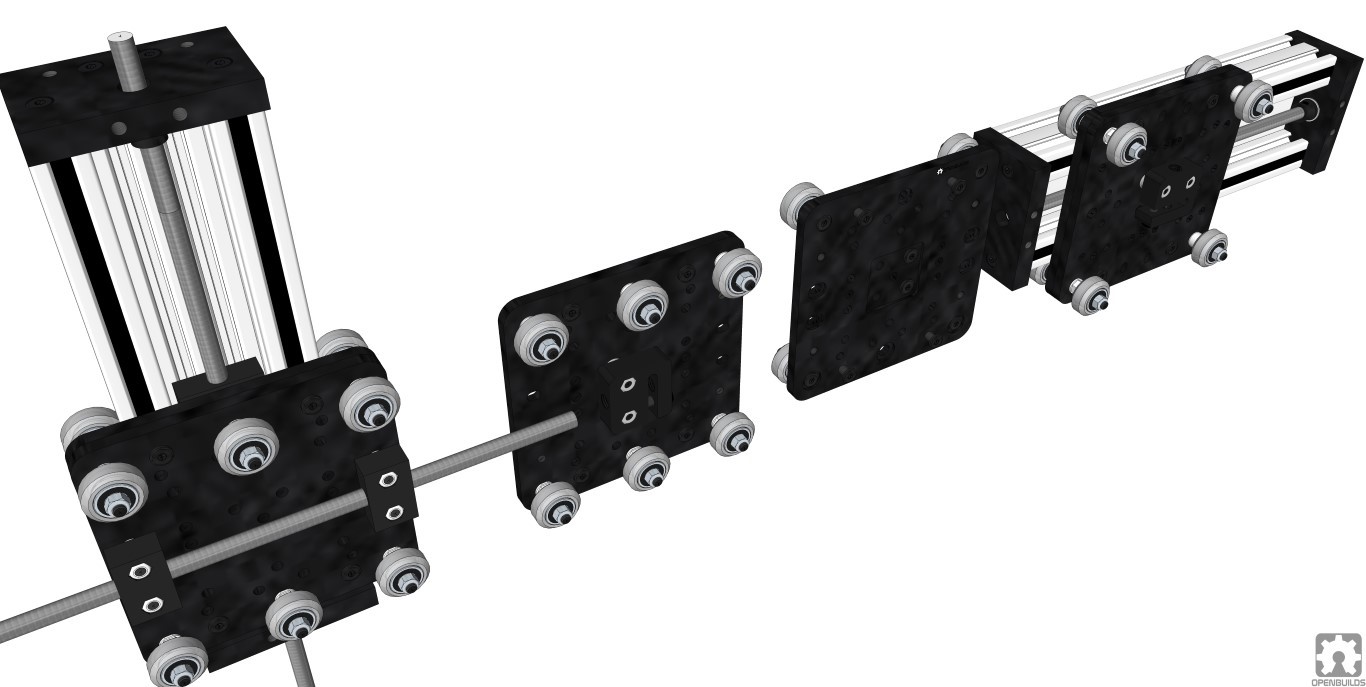

EXAMPLE OF APPLICATION OF THE TROLLEY:
