GANTRY PLATE - XLARGE + END MOUNT UNIVERSAL MOUNTING PLATE FOR TOOTHED BELT
GANTRY PLATE - XLARGE + END MOUNT UNIVERSAL MOUNTING PLATE FOR TOOTHED BELT
0
product unavailable
Description

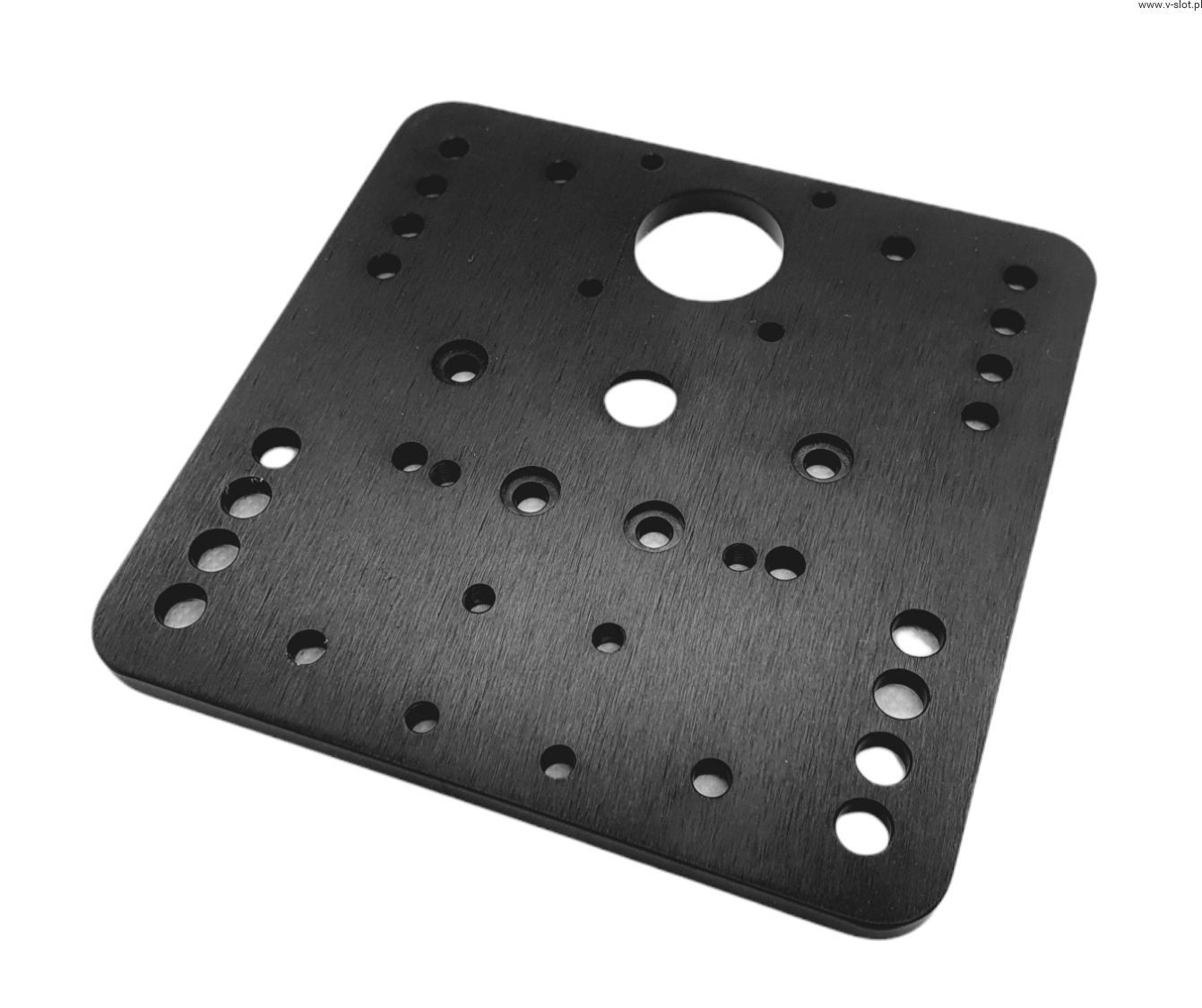

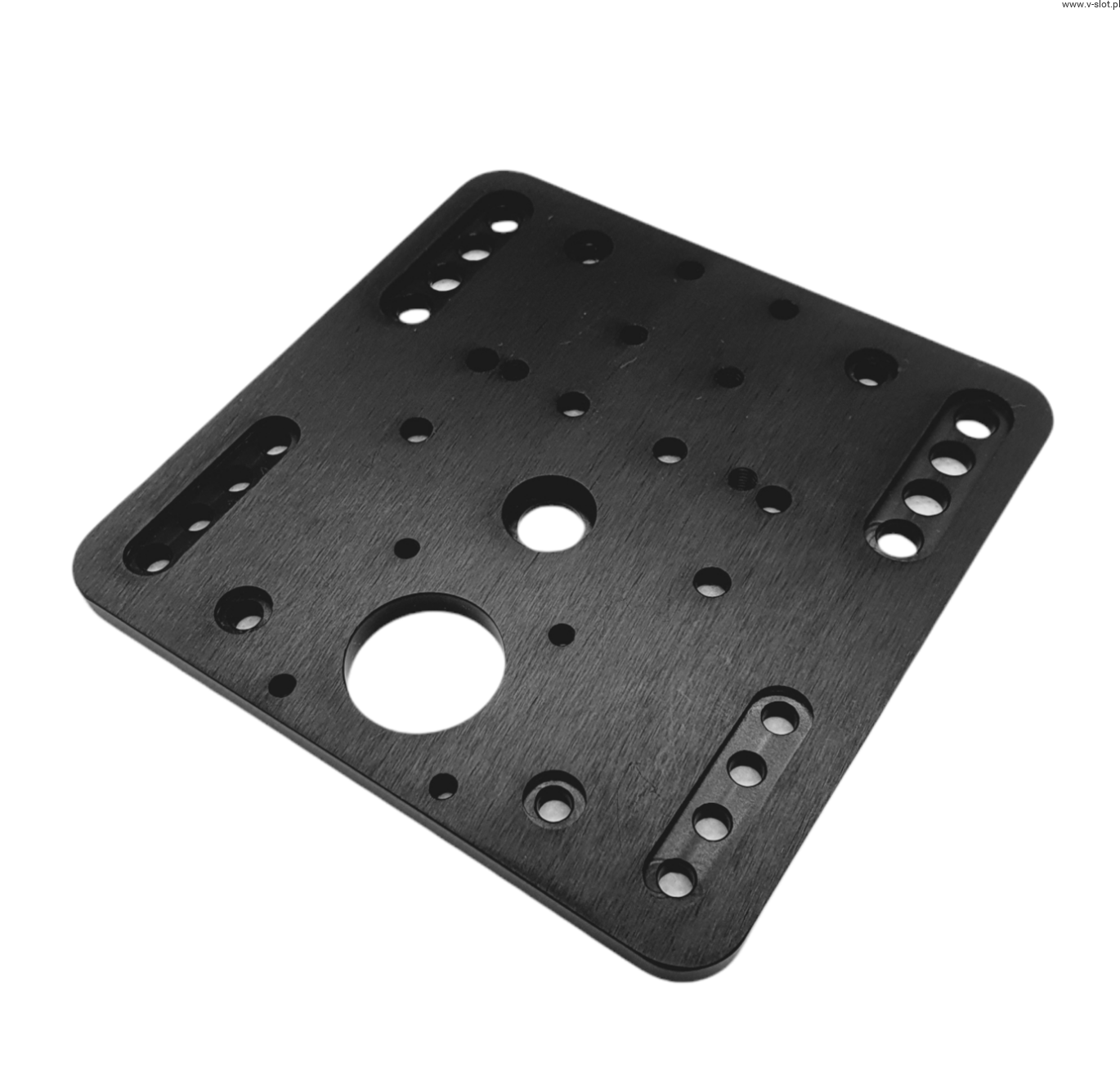

XL Mounting Plate: C-Beam ™ Gantry Plate - XLarge + End mount for toothed belt
The board is designed as a universal solution that has many applications:
Suitable for all V-Slot profiles - 20x20 20x40 20x60 20x80 and C-Beam
Allows you to build a linear guide on a belt with a Nema 17 motor
Perfect for connecting linear guides at an angle of 90º
Thanks to additional holes, it can be used as an end mount plate

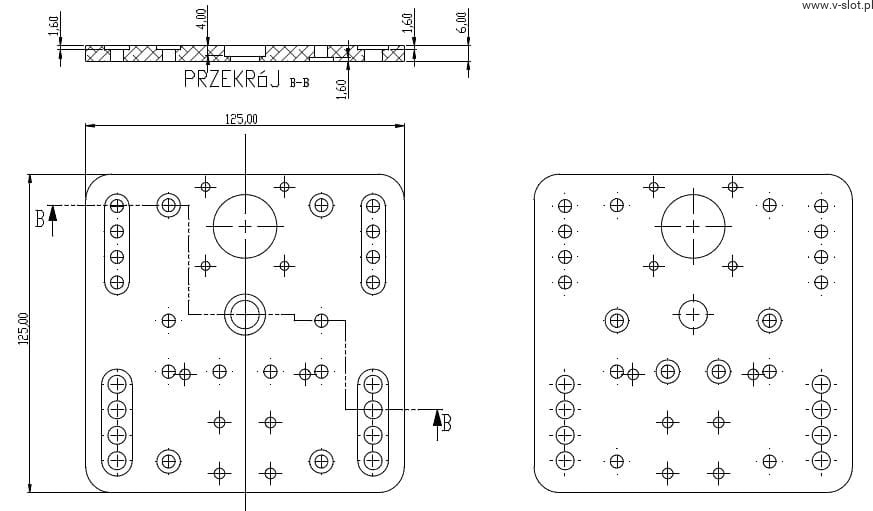

Technical data:
Quantity: 1
Material: Aluminum 6061 - T6
Width: 125mm
Length: 125mm
Thickness: 6 mm
Mounting holes with threaded holes
Adjustable end holes make it possible to create a very accurate and reliable system
Multiple rollers can be installed for safe and precise movement
Black color (anode)
Construction of the basic C-BEAM XLarge
The trolley can be built on the basis of 4 Solid Wheel or Xtreme Solid Wheel. The plate has many holes that allow the installation of rolls under each V-Slot profile.
Thanks to special holes, it can be used as an end element of the C-Beam profile with a screw drive.
Mount the Nema 17 motor and use it as a linear guide on your belt!
Attention!
For a linear guide on the profiles 20x60, 20x80 and C-Beam, use an additional mounting plate NEMA 17 HW1102PC
