C-Beam Linear Actuator Bundle 1000 Silver

C-Beam Linear Actuator Bundle 1000 Silver

Availability: A lot Dispatched within: 5 working days
Vendor: V-Slot
Product code: HW1539GK
Kod EAN: 6276108245412
Rating: 0
Price: €178.37 178.37
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €145.02
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

* - Field mandatory

Description

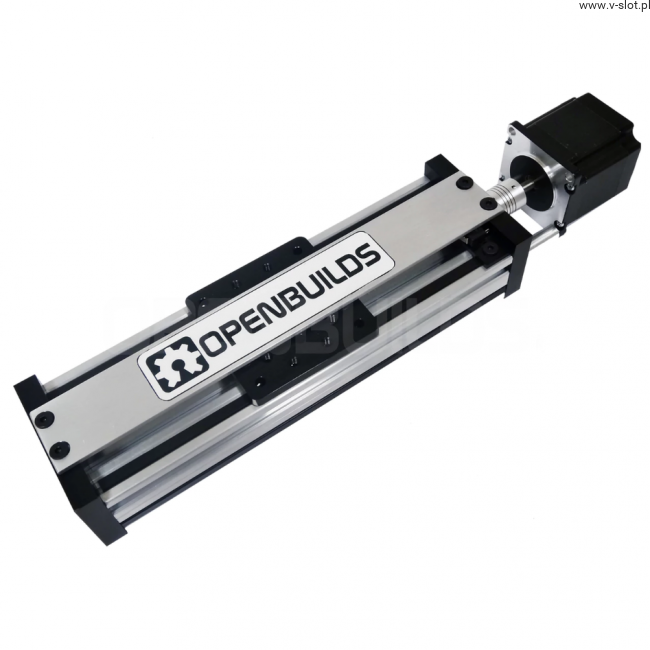

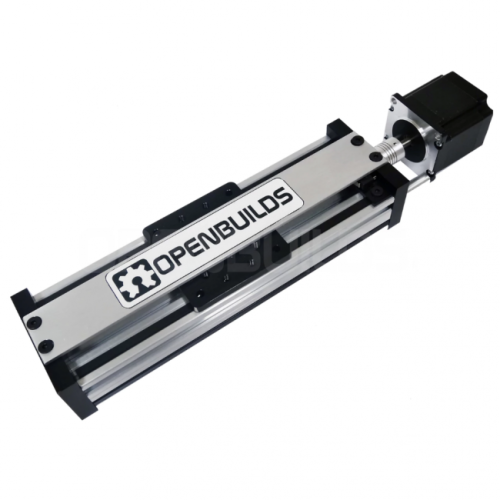

C-Beam Linear Actuator Bundle 1000mm

The finished linear guide will provide a stable and strong axis for more than one construction. The C-Beam aluminium profile guide can be used for CNC milling machines, 3D printers and many other structures.

Different lengths of guides are available in our shop.


Product specifications :
Used profile: C-Beam
Colour: Silver
Lenght : 1000 mm
Table movement : 900 mm
Motor: optional
C-beam Shield: optional

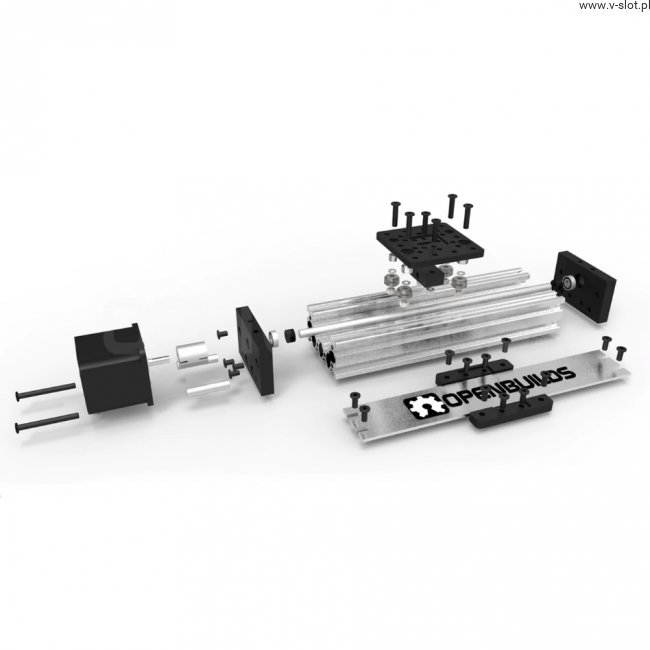

Component parts:

Number Part name:

4 Low Profile Screws M5 – 25mm
10 Low Profile Screws M5 - 20mm
2 Low Profile Screws M5 - 55mm
2 Aluminum Spacers - 6mm
2 Aluminum Spacers - 40mm
1 1/4" x 8mm Flexible Coupling
2 Aluminum Spacers - 3mm
2 Eccentric Spacer - 6mm
2 Ball Bearing 688Z 8x16x5
2 8mm Shim
2 Lock Collar - 8mm
4 Xtreme Mini V Wheel Kit
2 C-Beam End Mount
1 C-Beam Gantry Plate
1 Anti-Backlash Nut Block
1 C-Beam Linear Rail
1 8mm Metric Acme Lead Screw
1 NEMA 23 Stepper Motor (do wyboru)
