SwitchBox Blebox 230V
SwitchBox Blebox 230V
0
product unavailable
Description

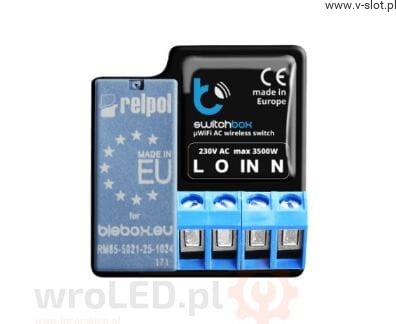

SwitchBox Blebox 230V
It is a relay that allows you to operate 230V solutions with a power of up to 3kW. operation is possible thanks to a smartphone application - anywhere on earth if you have access to the Internet.
It is also possible to configure with an ordinary web browser.
The Blebox switchbox is equipped with screw terminals for mounting cables. The device is extremely small - it can be installed in a fi60 jungle.
Specification:
- Supply voltage: 230V AC (network)
- Energy consumption: less than 1W
- Number of outputs: 1
- The type of control outputs: relay
- Load current consumption: up to 16 A
- Load power: up to 3500 In
- Number of inputs: 1
- Input type: logical, bridged to the line N of voltage of AC power
- Connection standard: µWiFi, compatible with 2.4 GHz Wi-Fi
- Type of transmission: two ways, encrypted
Switchbox details:
size: 39 x 47 x 23 mm
Casing: polyurethane composition, self-extinguishing for thermal class B (130 deg C)
IP rating: IP20
Installation: In a flush-mounted box, in the receiver's housing, e. g. lamps, heaters, etc.
Communication:
- Connection standard: µWiFi, compatible with 2.4 GHz Wi-Fi
- Type of transmission: two ways, encrypted
- Mode of operation
- direct connection (as Access Point),
- wi-fi connection through a standard router
- connection with access from anywhere via the Internet
- Compatible devices: iPad, iPad Mini, Android, Iphone, computers and mobile devices with HTML5 support
If we want to pair the module with the WiFi network, we first have to connect the computer to the WiFi network provided by the Switchbox Blebox product. Then start your web browser and enter the address of the device: http://192.168.4.1
The next step is to work with the instructions on the configuration page, you need to select the local network (home/office) and then enter the password to access this network.
