VACUUM TABLE 300x200x30 PRO series
VACUUM TABLE 300x200x30 PRO series
0
product unavailable
Description
VACUUM TABLE 300x200x30 PRO series
- Material: Aluminum
- Thickness: 30mm
- Threads: M5 side
- Folding base supports: YES, 4 pcs

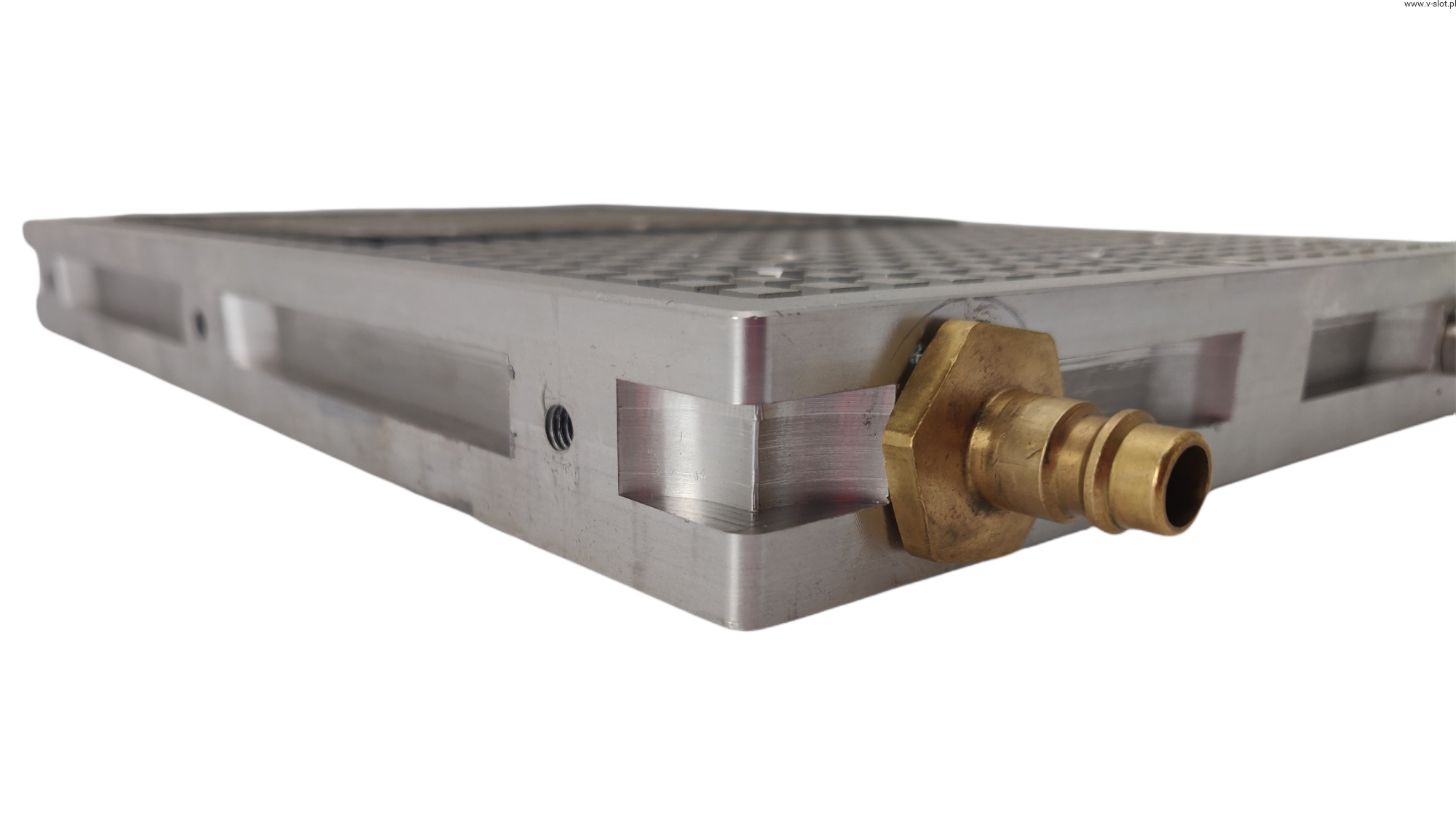

- Number of connection inputs / outputs: 2 pcs (1x input / 1x output)
- Thread diameter for connection connector: 1/8 inch
- Number of sections: 9

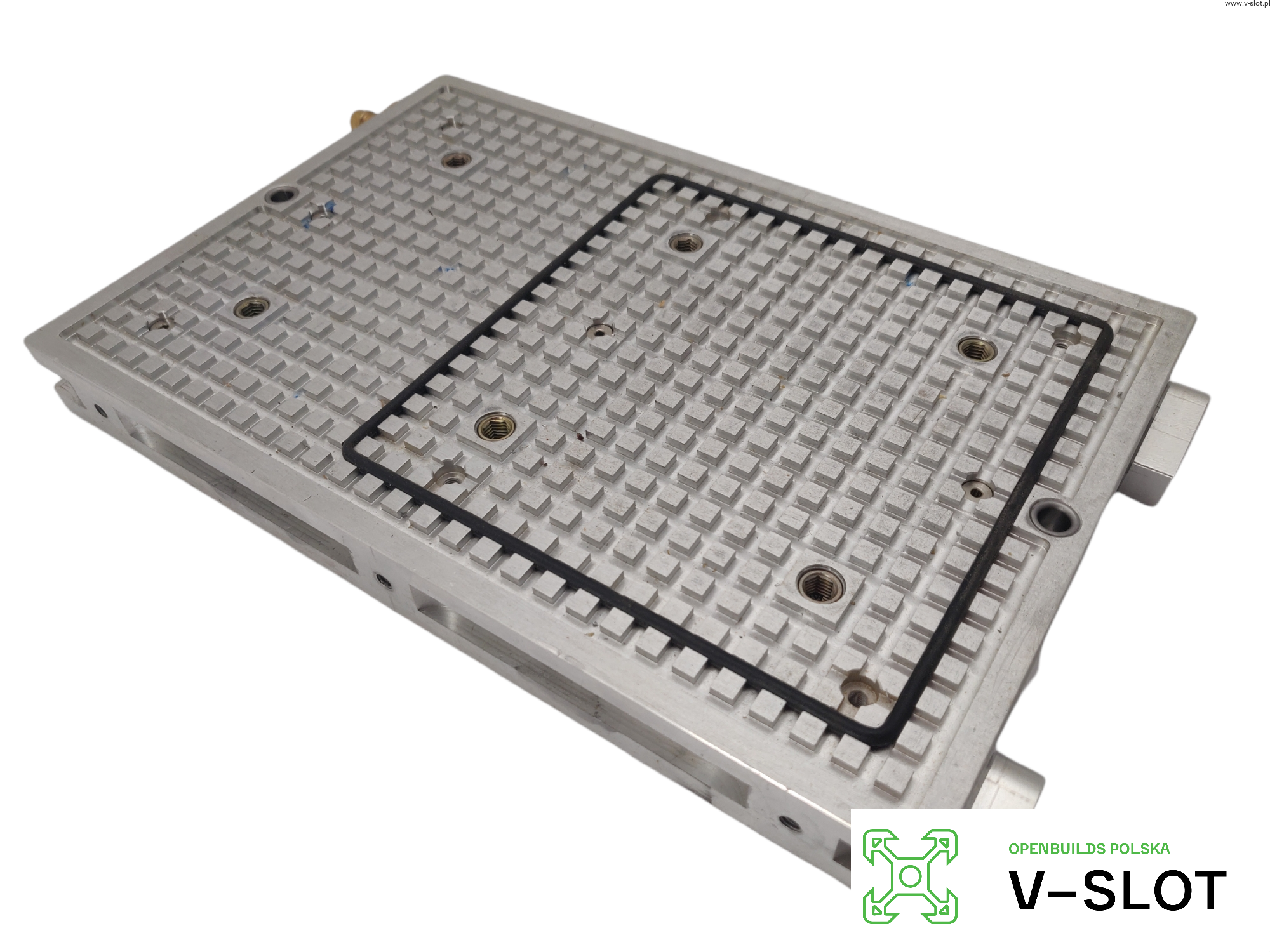

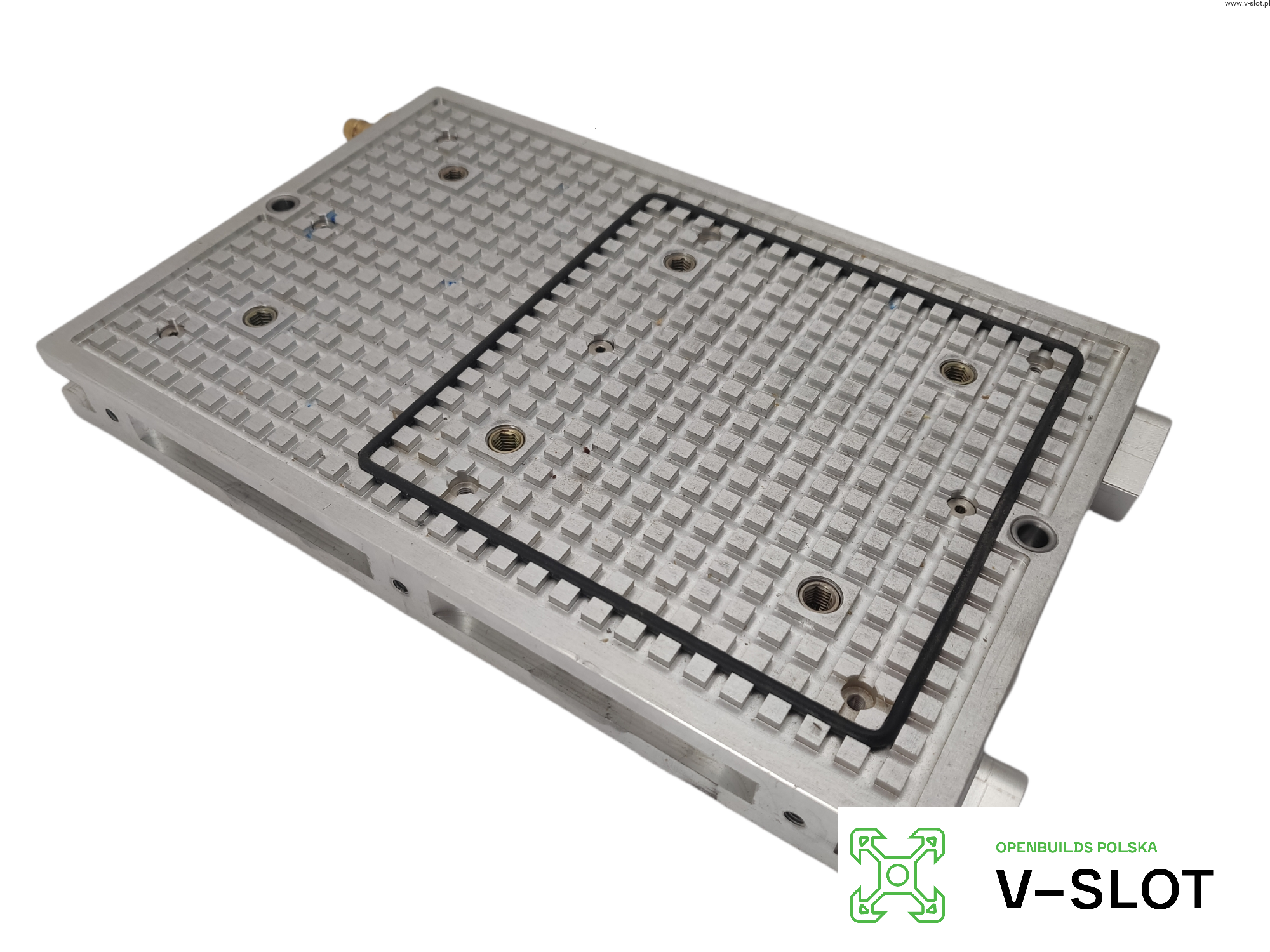

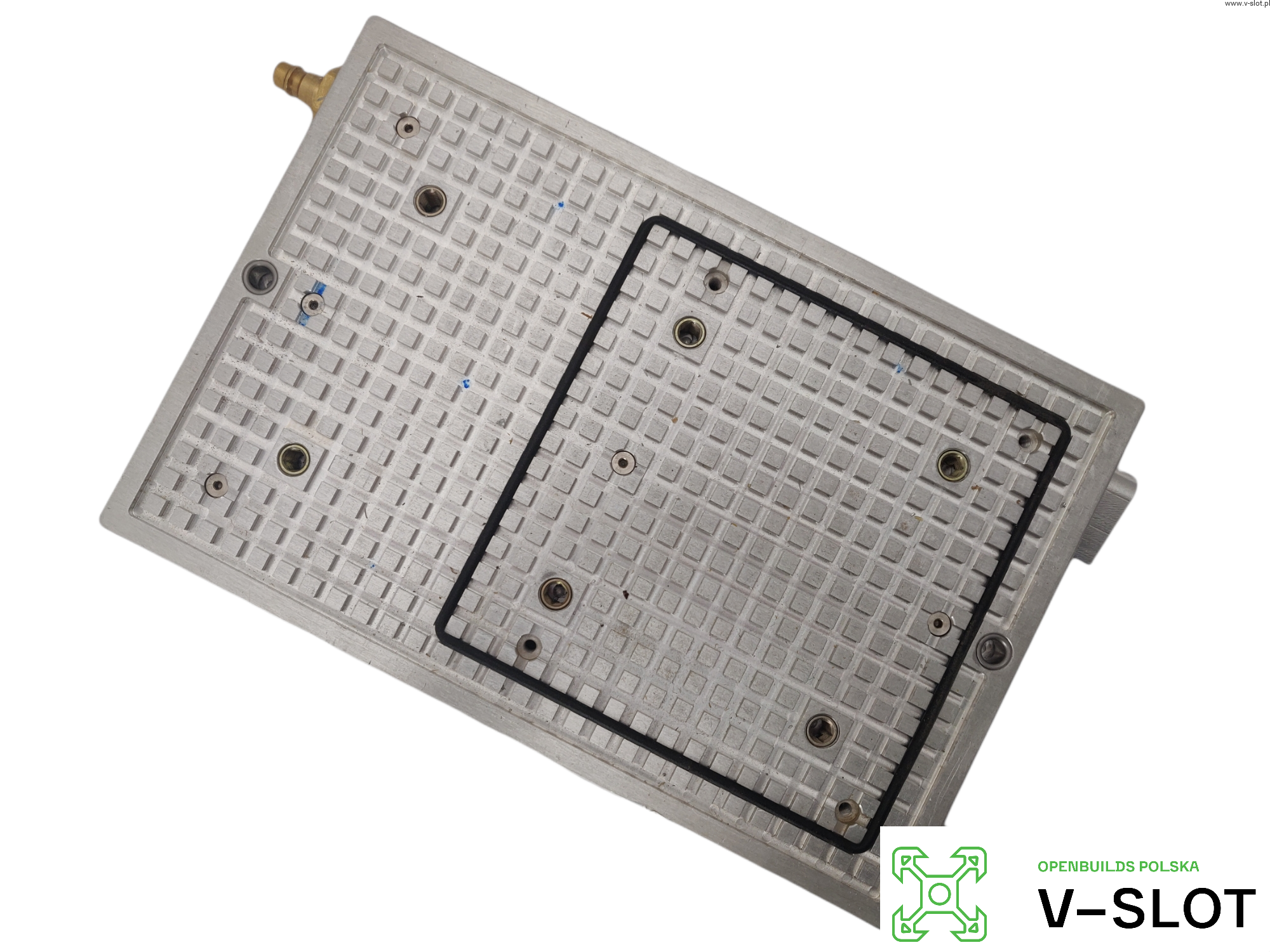

Raster vacuum table of the PRO series 300x200x30 mm made of aluminum.
Vacuum table intended mainly for processing elements that do not require cutting or through drilling. Ideally suited for work such as engraving or selecting pockets.
The table facilitates the assembly of many different raw materials:
- Aluminum
- From synthetic materials
- MDF
- Wood
- Styrodur
- other impermeable materials
The table facilitates the processing in raw materials on milling machines offered by V-SLOT Polska and other CNC machines.
- 30 mm thick for good heat dissipation when machining aluminum

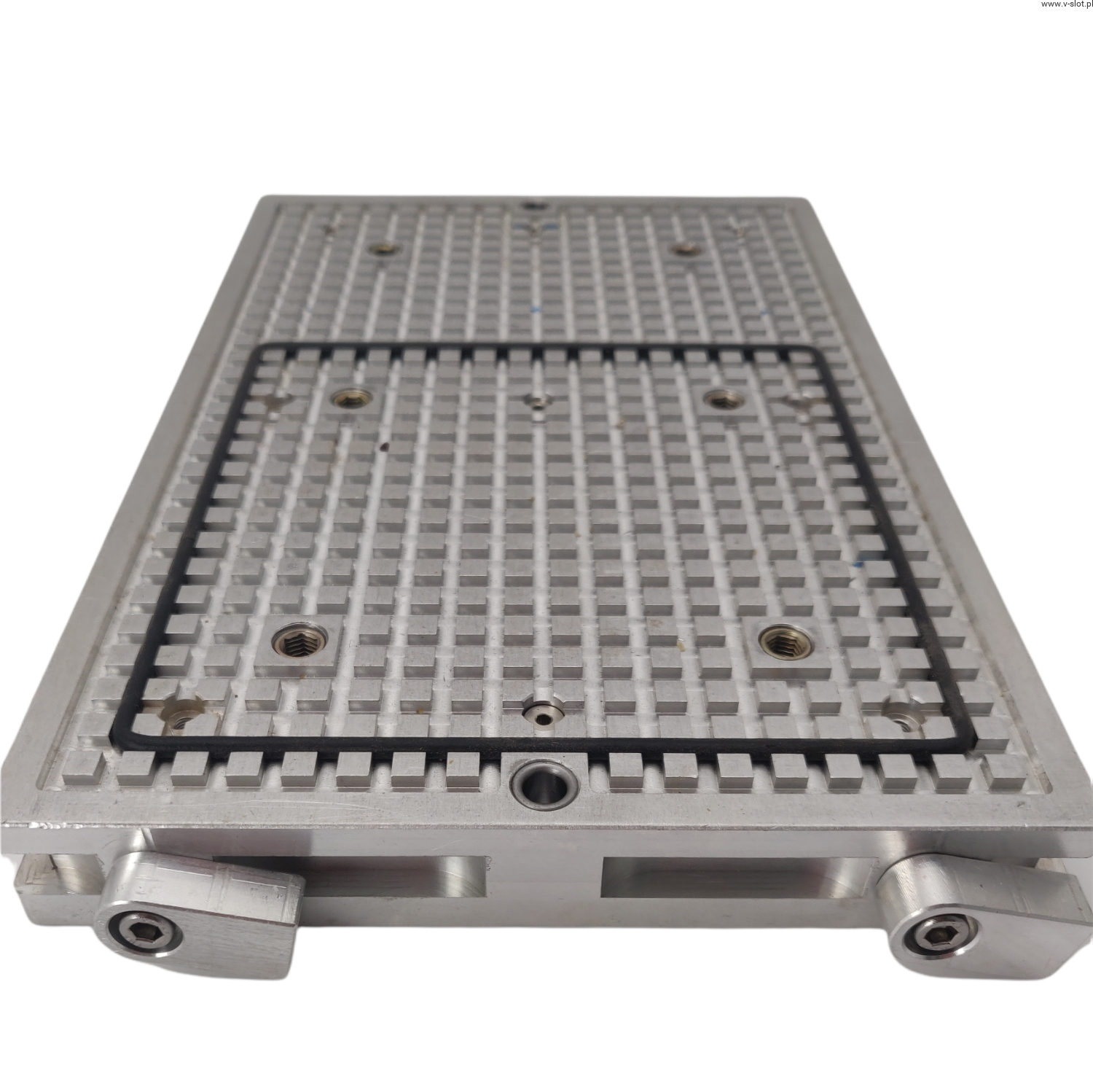

- The homing supports facilitate the homing
- M5 threads allow the use of additional mounting lugs and bumpers
The raster vacuum table is designed for fixing elements with regular, rectangular shapes. It is important that the surface of the raw material is flat and airtight.
The recommended vacuum expense is approx. 7 m3 for the entire working surface of the table. (approx. 25 / 30m3 per 1m2)
WHAT IS INCLUDED IN THE PRICE:
- 1 pc vacuum raster table 300x200x30 mm
- 4 pcs of supporting supports
FOR THE TABLE SHOULD BE ADDITIONALY BOUGHT:
- Round sealing profile fi 4mm
- 1/8 "pneumatic connection
