Timing Belt Pulley 3414 Series (14mm bore, 24 teeth)
product unavailable
Description

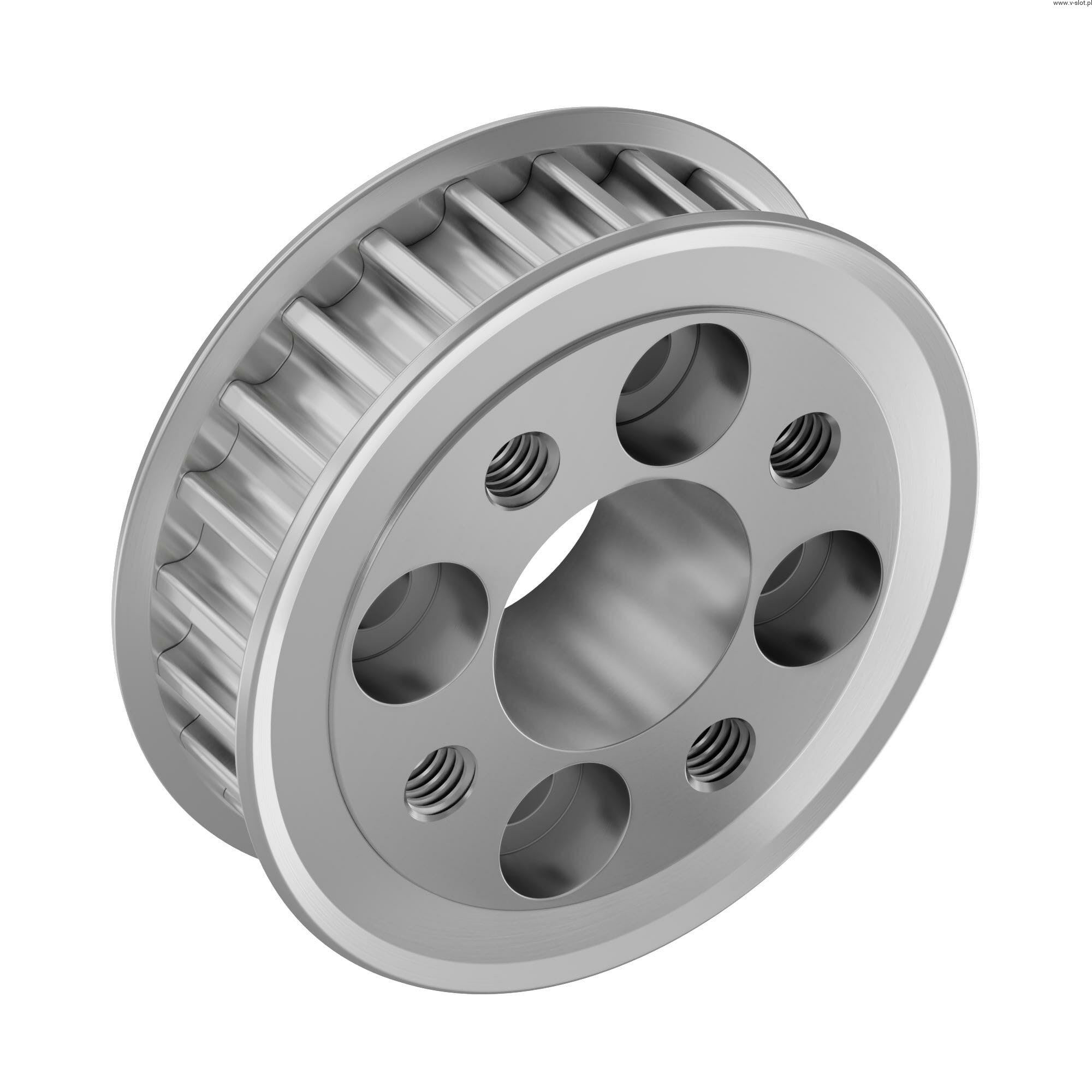

Timing Belt Pulley 3414 Series (14mm bore, 24 teeth)

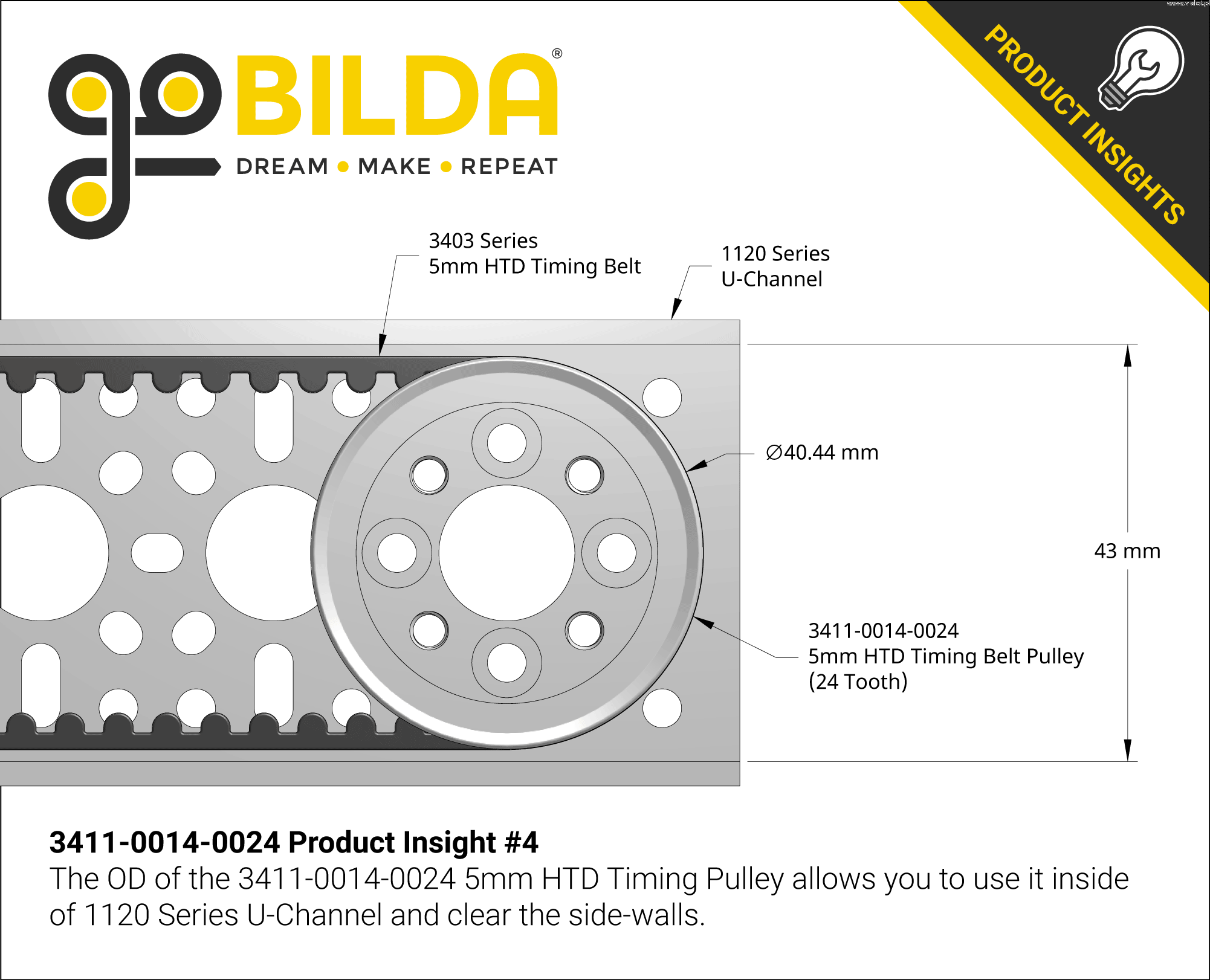

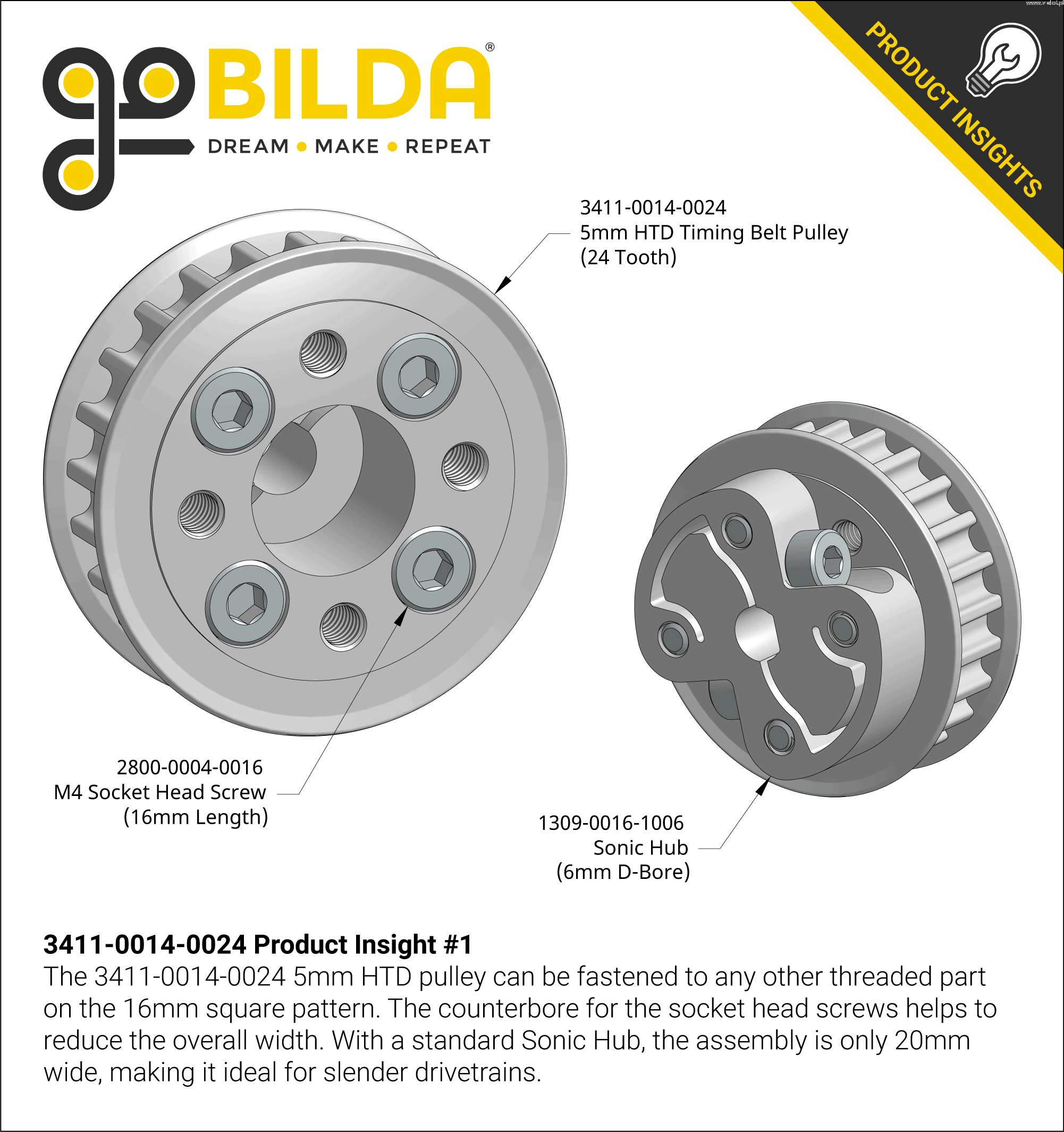

This pulley is able to accommodate and work with a 9mm wide toothed belt with a 5mm pitch between the flanges. It is the pulley with the largest diameter equal to 5mm that can run in the 1120 series U channel while providing enough clearance for the belt. The 14mm bore is surrounded by the standard 16mm goBild pattern, so you can easily install this hub pulley on your hub.

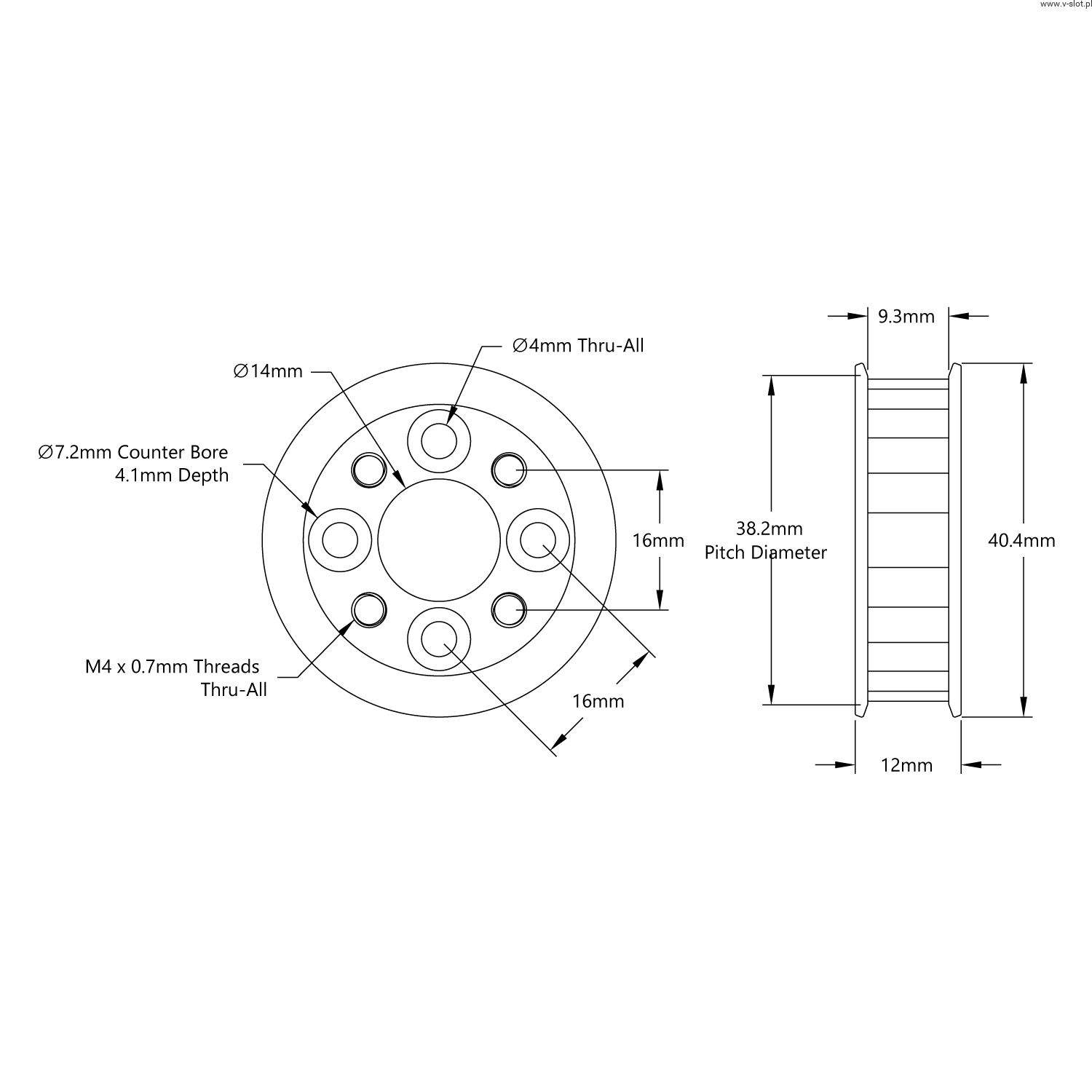

Specification:
- Weight: 23g
- Material: Aluminum material
- Finishing: Anodized finish
- Number of teeth: 24
- Stroke: 5mm (HTD)
