The Strafer Chassis Kit V4
The Strafer Chassis Kit V4
0
product unavailable
Description

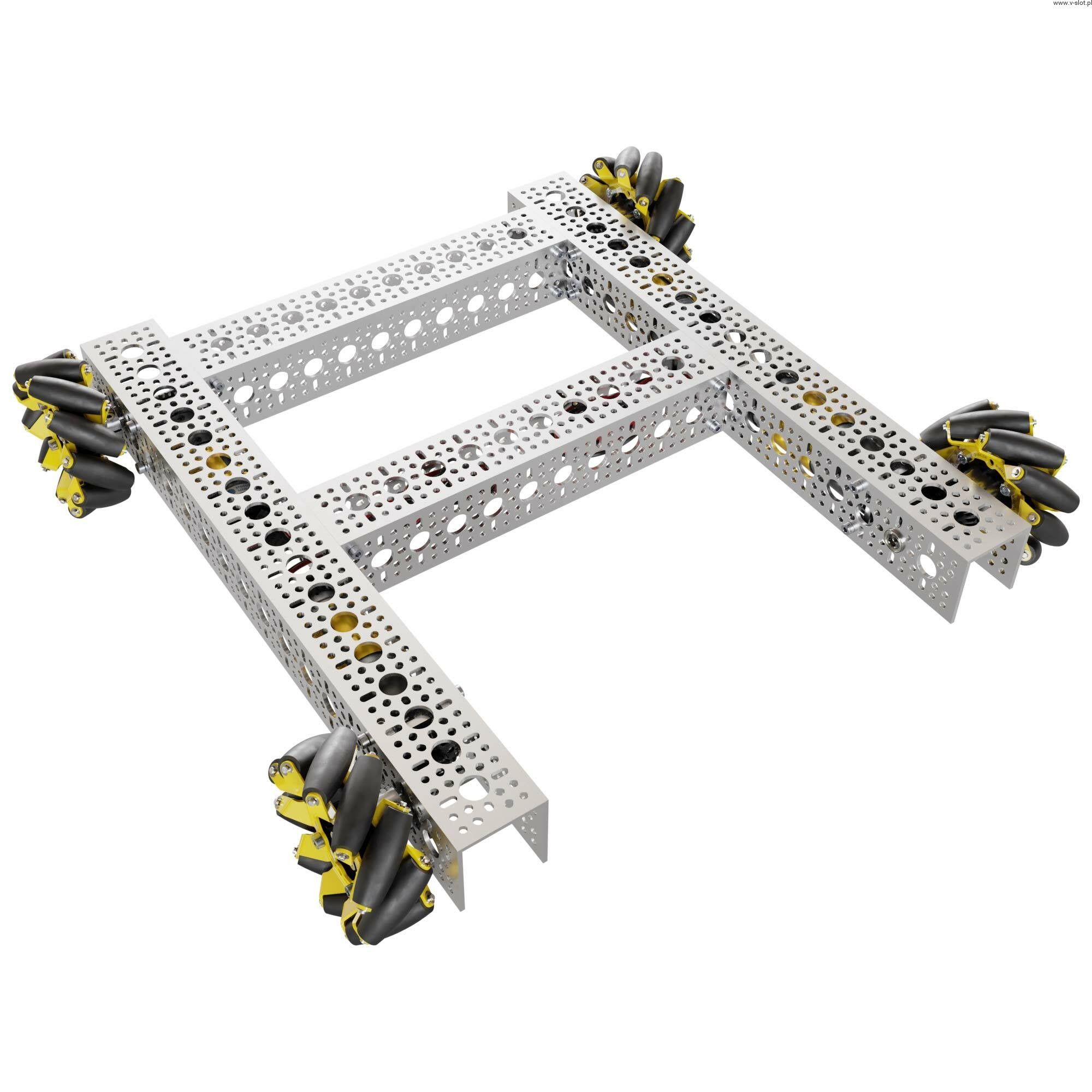

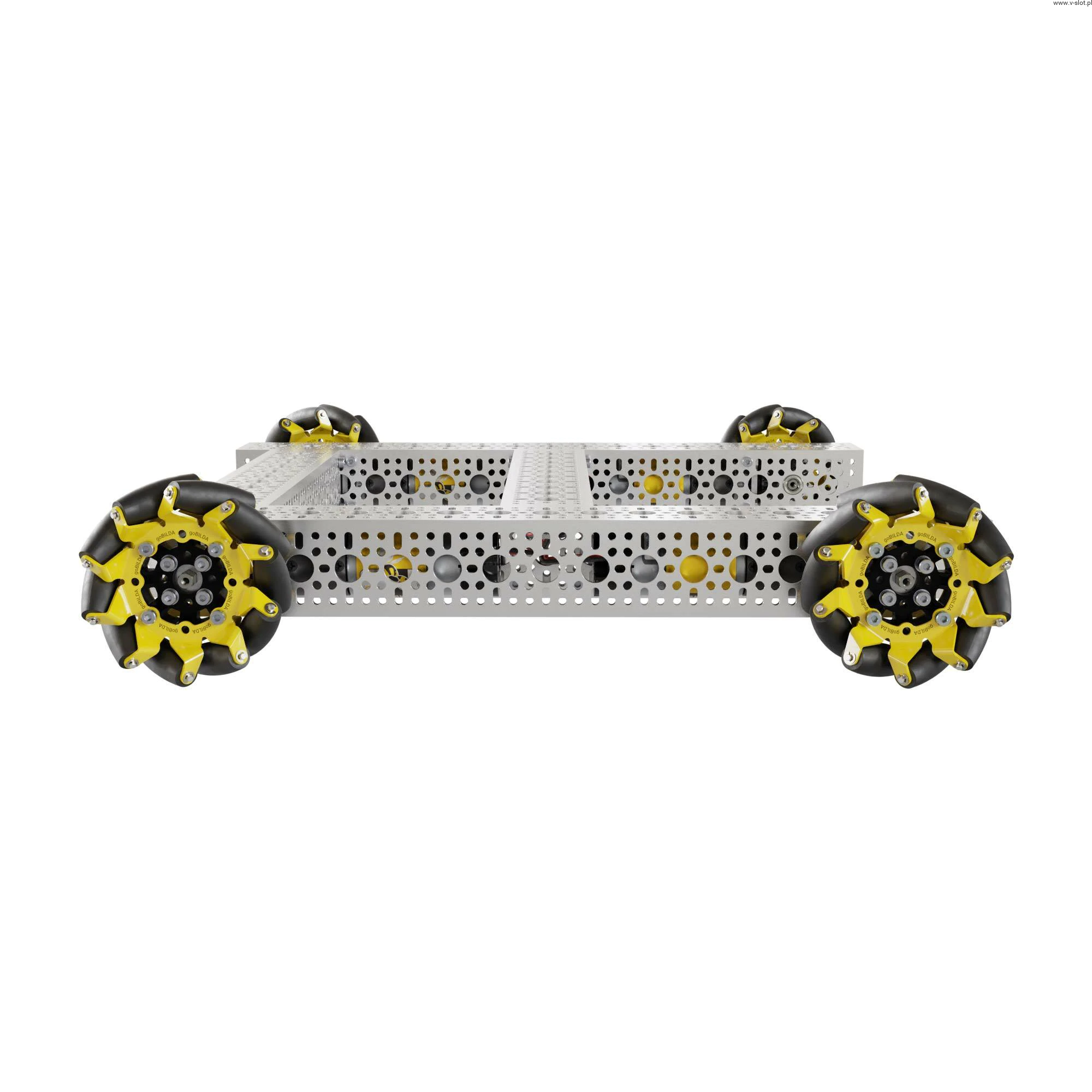

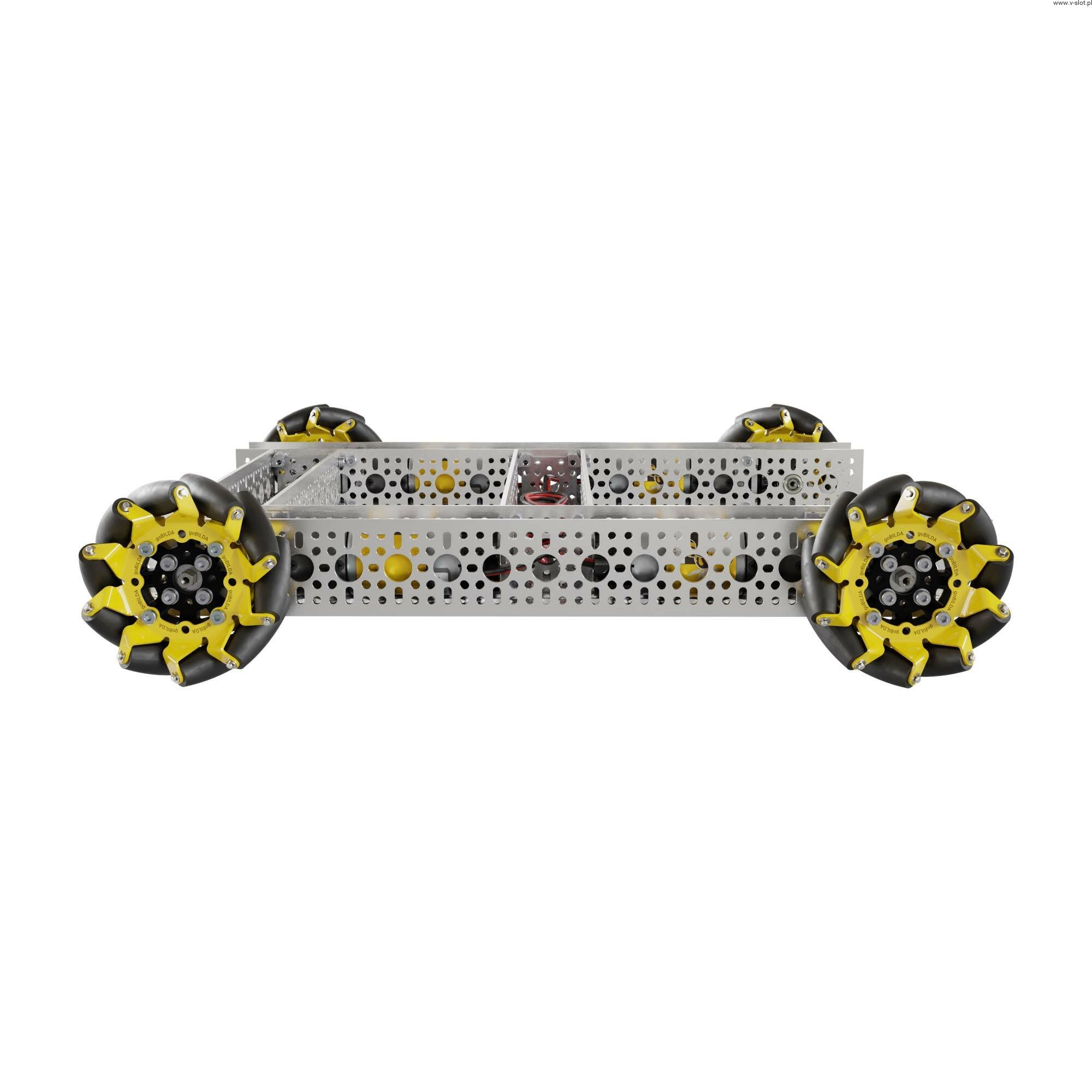

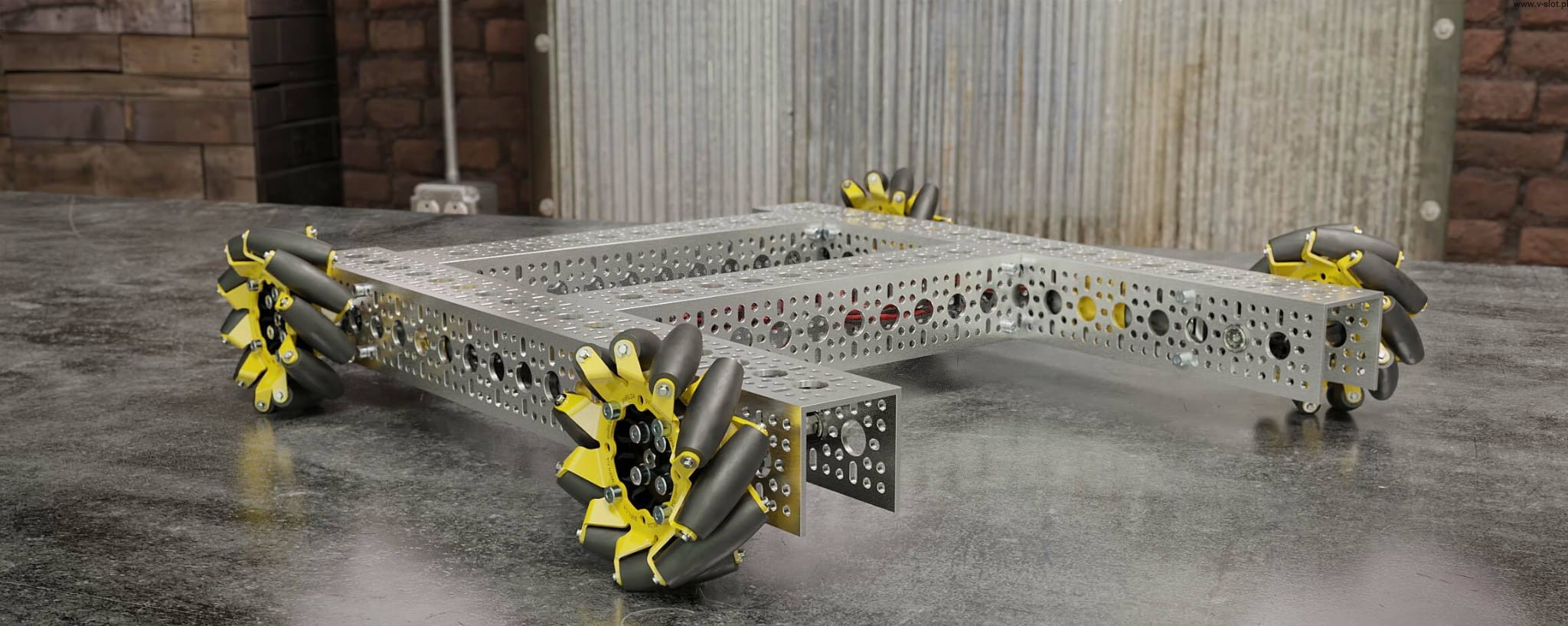

The Strafer Chassis Kit V4
The Strafer Chassis Kit is a stiff, low-profile chassis that includes high torque 312RPM planetary motors, mecanum wheels with ball bearings, and a customizable chassis, which obviously can be customized to your liking.

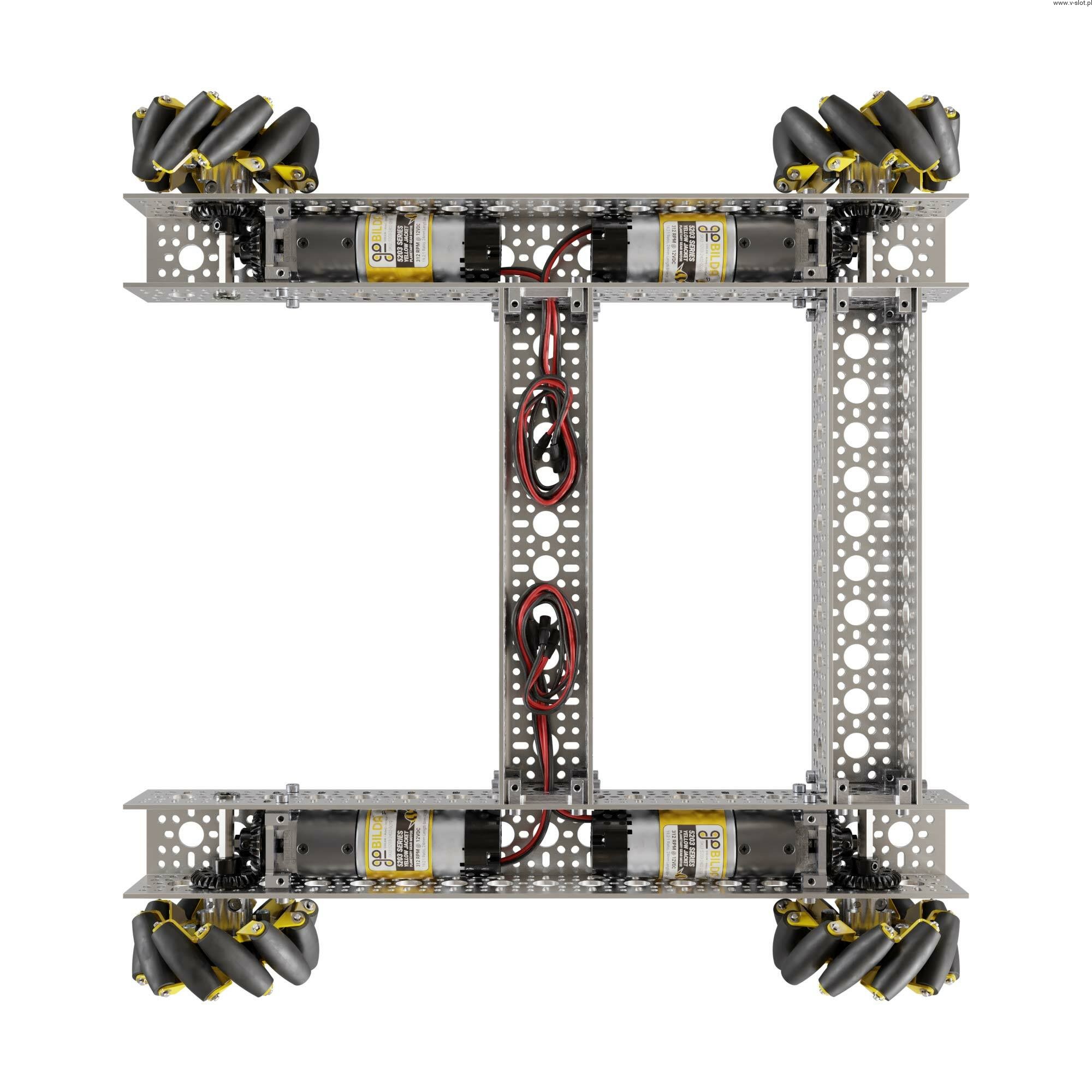

Motors

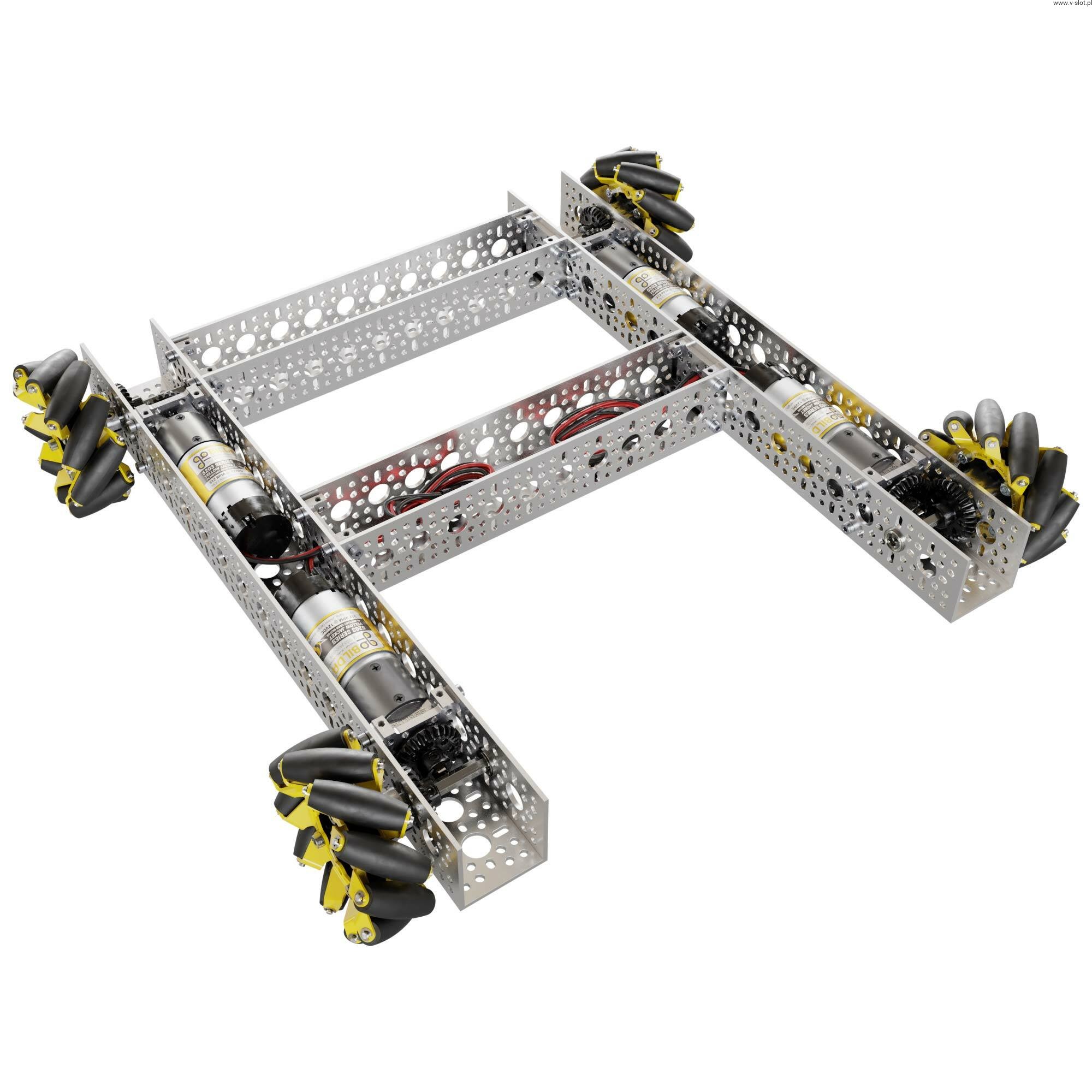

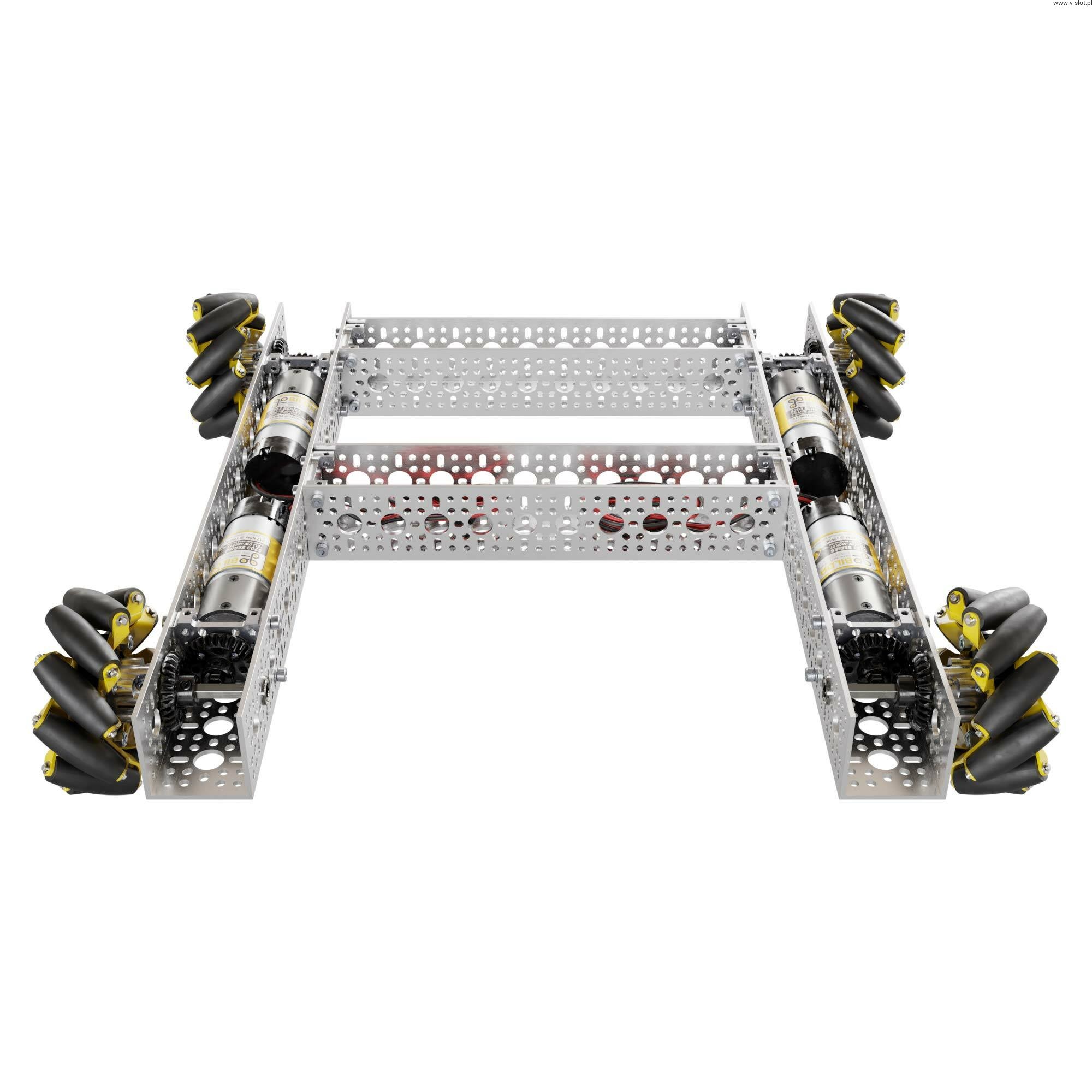

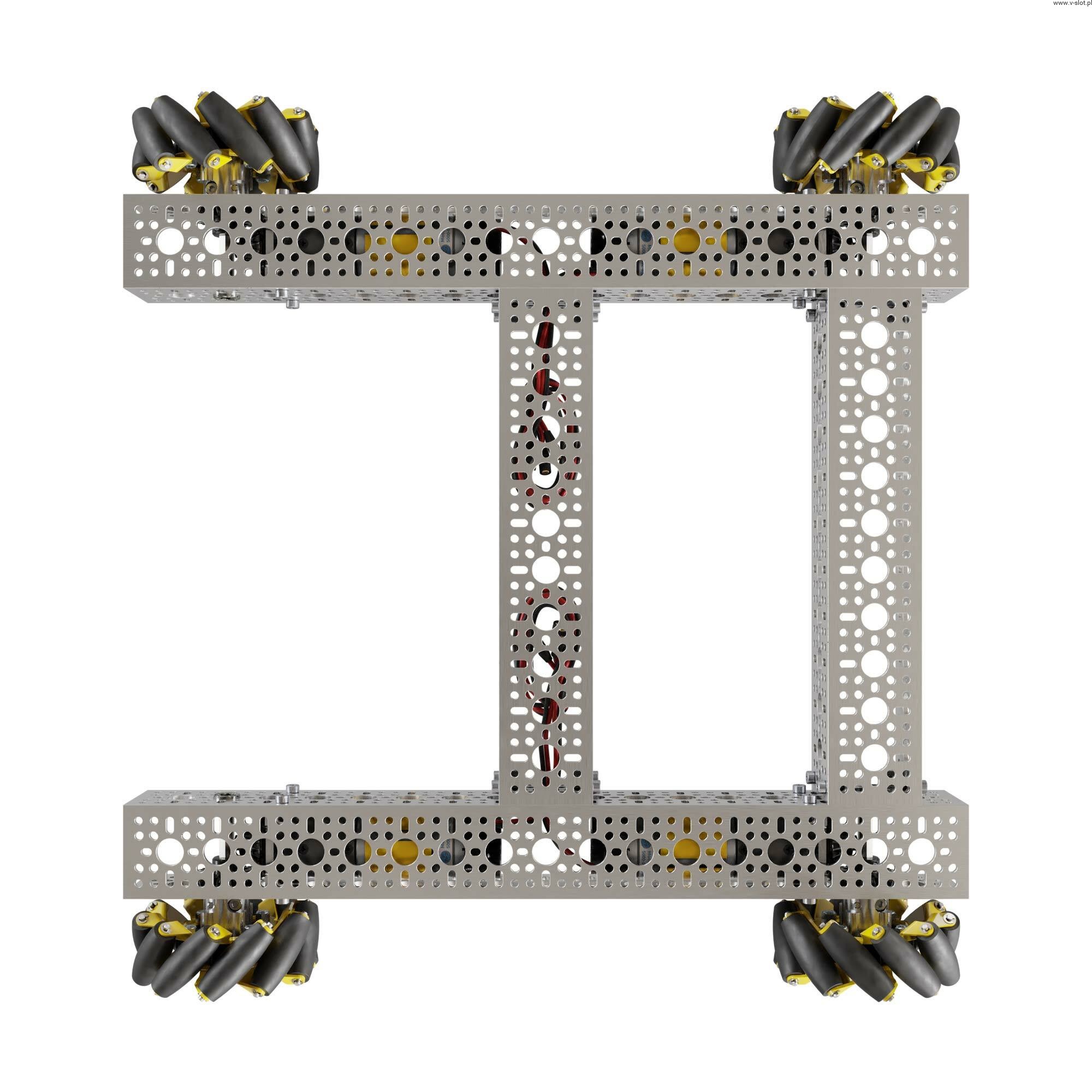

At first glance, you may be wondering where are the engines? Turn it over and you will notice the 312RPM 5203 series planetary gear motors are hidden away. Coupled with 96mm wheels, they give a theoretical speed of over 1.5m / s. These motors drive all steel gears, heavy duty hubs and ball bearings, ready for action with low friction!

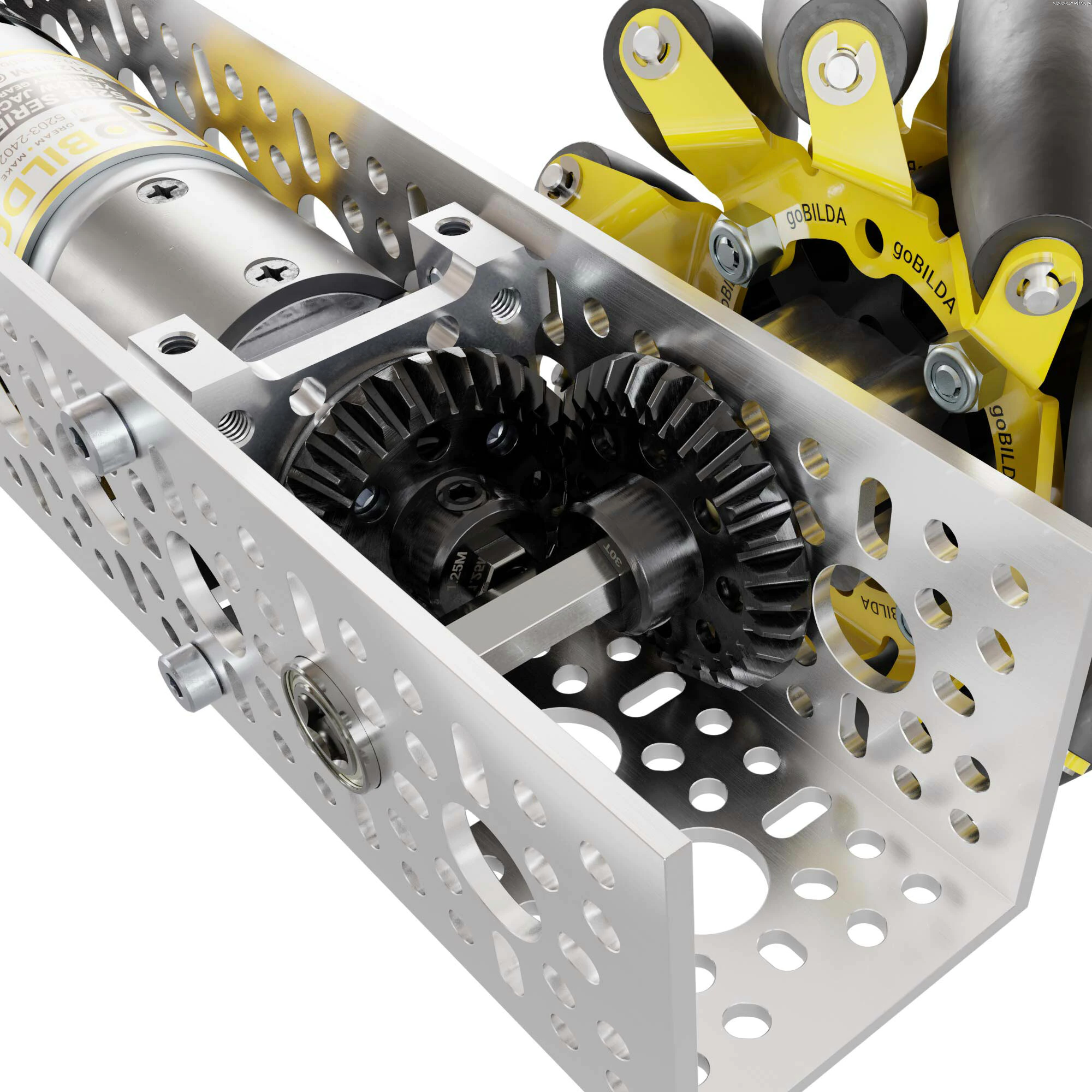

Angular gears
Bevel gears, located near each of the four corners of the housing, create a 90 ° drive, allowing motors to be mounted in the 1120 series U-profile.
Shafts
All bars (including motor bars) are made of 8mm REX for maximum strength.

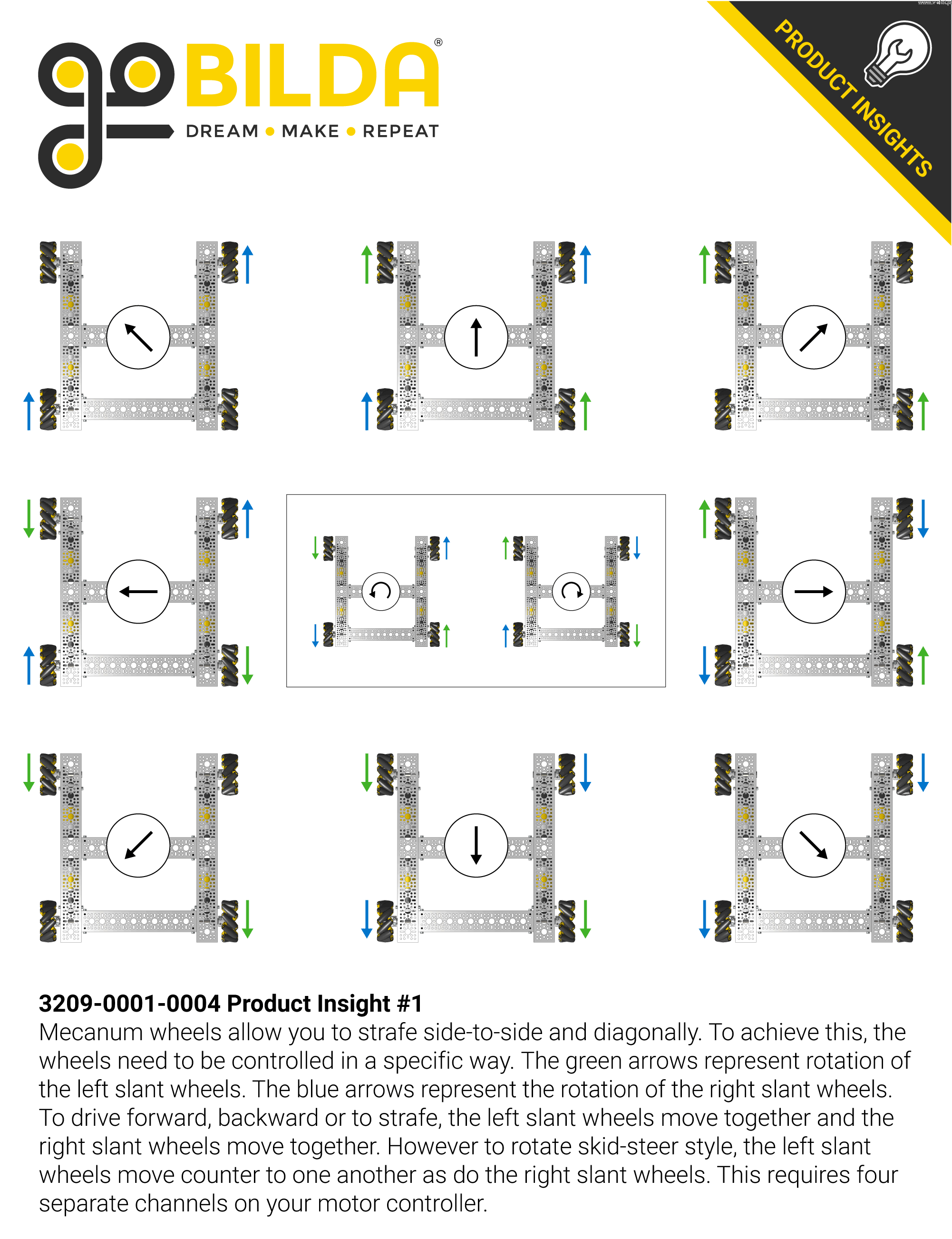

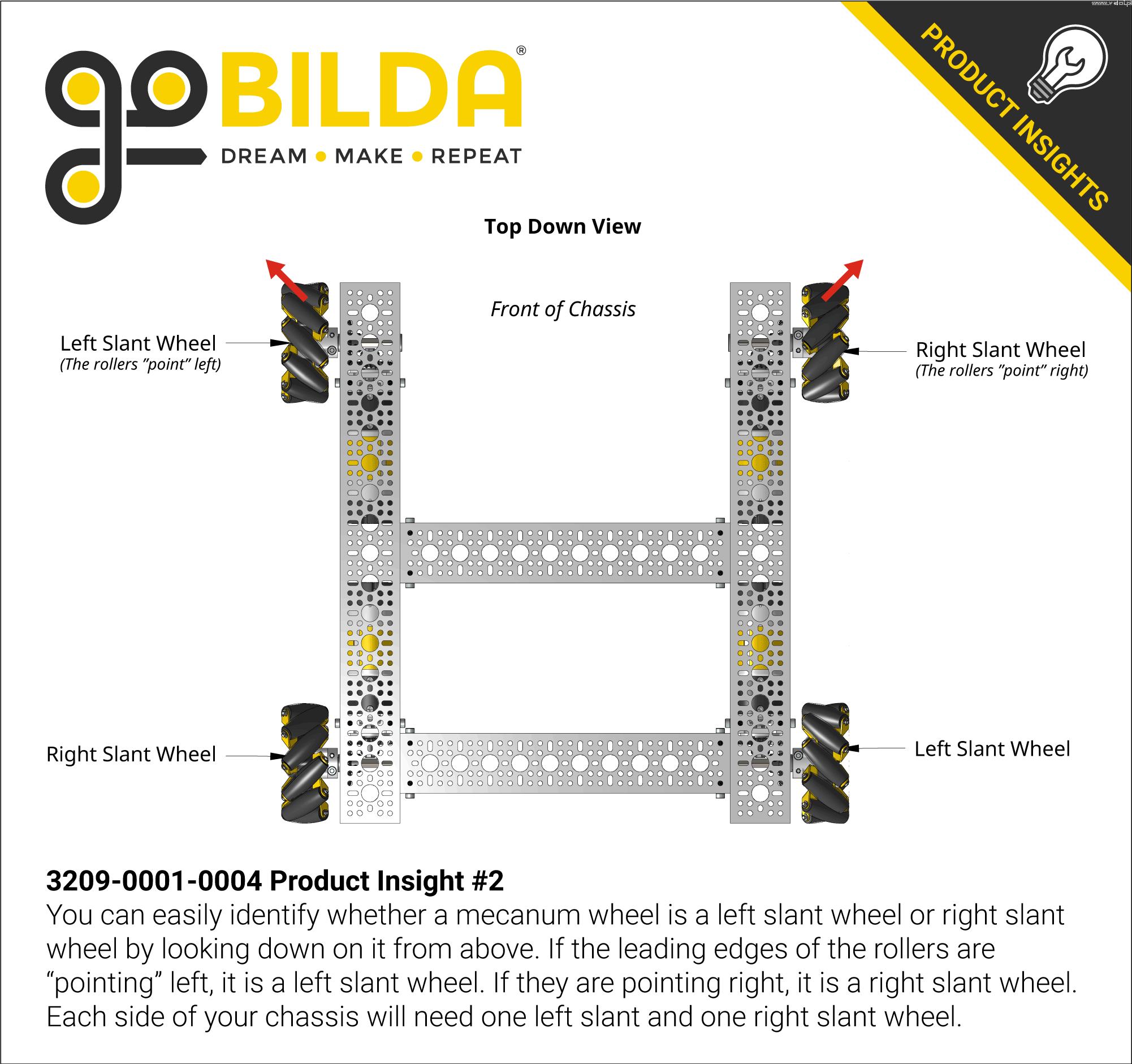

Wheels
GoBilda Mecanum wheels have a diameter of 96 mm, rollers on ball bearings, a narrow profile and steel side plates. Each wheel is only 207g - much smaller than the competition. Reduced rotating mass ensures faster acceleration with less encumbrance on the motors.

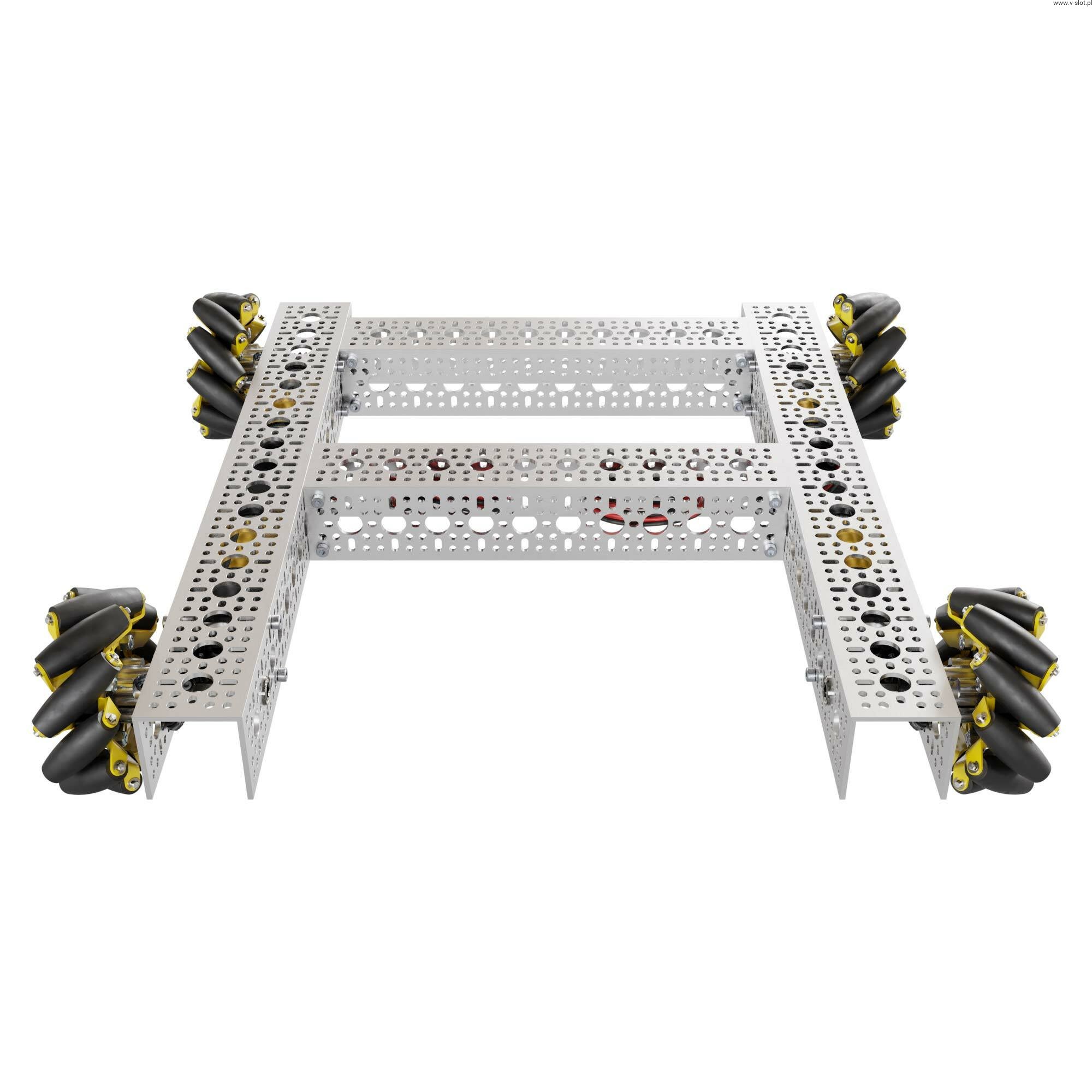

Frame

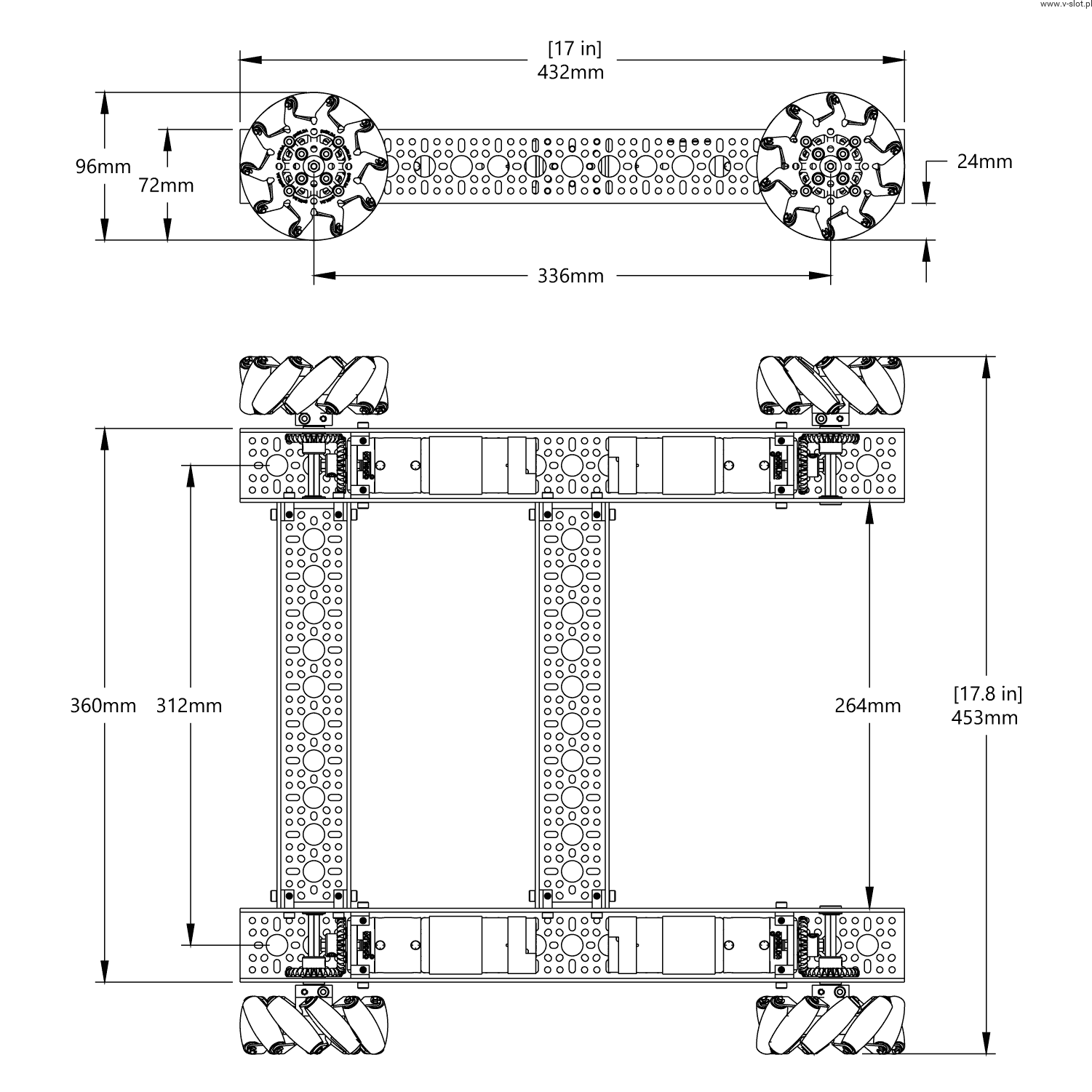

The structure of the profile allows all these high-quality elements to be placed without the need for external cladding, as is the case with some frames. They are customizable - move the center profiles, adjust the track width and more, all with the same parts we provide.
Set contains:
| Pcs. | SKU | Product |
| 2 | 1120-0010-0264 x 2 |
U-Profile 1120 series (10 holes, length 264 mm) |
| 2 | 1120-0017-0432 x 2 |
U-profile 1120 series (17 holes, length 432 mm) |
| 8 | 1201-0043-0002 x 8 |
Four-thread mounting series 1201 (43-2) |
| 4 | 1310-0016-4008 x 4 |
Hyper Hub 1310 Series (8mm REX bore) |
| 4 | 1504-0032-0025 x 4 | Spacer with 32mm OD Series 1504 (2.5mm Length) |
| 8 | 1611-0514-4008 x 4 |
Flange Ball Bearing 1611 Series (8mm REX ID x 14mm OD, 5mm Thickness) - 2 pcs |
| 8 | 1613-0516-0008 x 8 |
Thrust Ball Bearing 1613 Series (8mm ID x 16mm OD, 5mm Thickness) |
| 4 | 2106-4008-0800 x 4 |
Stainless steel REX shaft Series 2106 (diameter 8 mm, length 80 mm) |
| 8 | 2315-4008-0030 x 8 |
Steel, MOD 1.25 bevel gear 2315 series (bore 8 mm REX, 30 teeth) |
| 25 | 2800-0004-0008 x 1 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 8 mm) - 25 pcs |
| 50 | 2800-0004-0011 x 2 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 11 mm) - 25 pcs |
| 50 | 2800-0004-0016 x 2 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 16 mm) - 25 pcs |
| 25 | 2801-0004-0008 x 1 |
Galvanized steel washer 2801 series (4mm ID x 8mm OD) - 25 pcs |
| 12 | 2807-0811-0500 x 1 | Stainless steel washer series 2807 (ID 8 mm x OD 11 mm, thickness 0.50 mm) - 12 pcs |
| 12 | 2911-0014-0001 x 1 |
Plastic Grommet (14-1) - 12 pcs |
| 4 | 3213-3606-0002 x 1 |
Mecanum wheel set 96mm (rollers with 70A hardness bearing) |
| 4 | 3801-0613-0100 x 4 | JST VH Adapter 2-position [MH-FC] to 3.5mm jack [MH-FC] (length 100mm) |
| 1 | 4200-0090-0025 x 1 | 2.5mm Allen key |
| 1 | 4201-0090-0030 x 1 |
3mm Allen key with ball end |
| 4 | 5203-2402-0019 x 4 |
5203 series yellow shield planetary gear motor (19.2: 1 gear, 24mm length, 8mm REX shaft, 312rpm, 3.3-5V encoder) |
Specification:
- Weight: 4966g
- Version: 4.1
