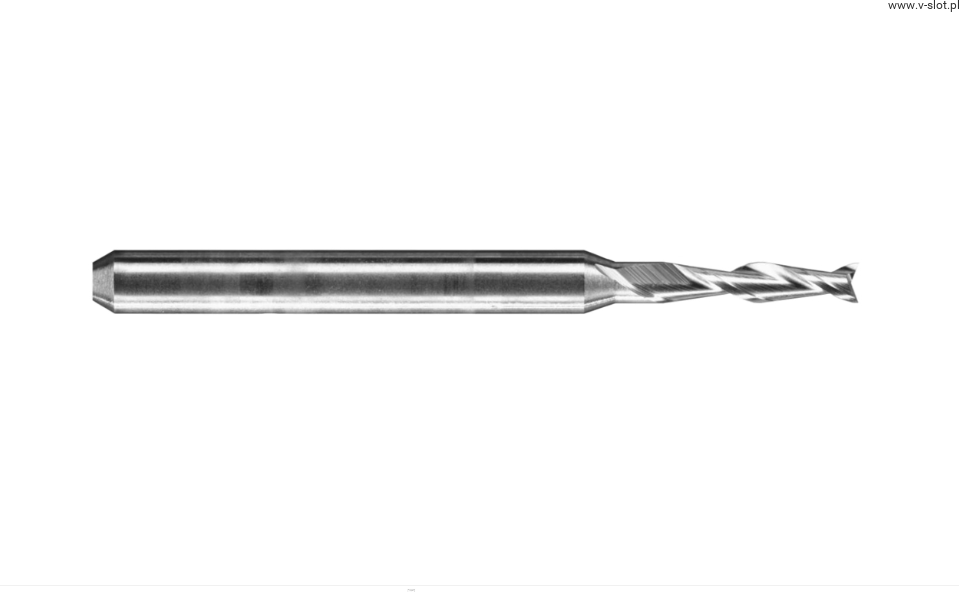

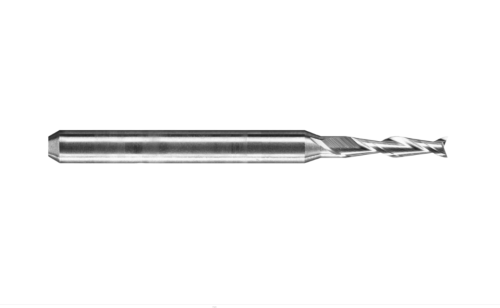

Solid carbide milling cutter, 2-flute (two cutting edges), "fish tail" face, shank 3.175 mm (1/8 ")
Solid carbide milling cutter, 2-flute (two cutting edges), "fish tail" face, shank 3.175 mm (1/8 ")
Availability:
out of stock
Vendor:
-
Product code:
4854045564-826
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€5.23
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Solid carbide milling cutter, 2-flute (two cutting edges), "fish tail" face, shank 3.175 mm (1/8 ")

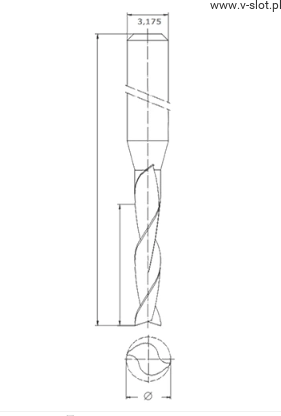

Specification:
- Geometry: 2 blades forehead "fish tail"
- Material: cemented carbide
- Country of origin: Germany
- Overall length: 38,1 mm
- Diameter of the spindle (chuck): 3,175 mm
- Type: 826 (forehead "fishtail" right-handed)
- Diameter of the working part (blade) Ø: nominal
- Length of the working part (blades) L: nominal
Characteristics:
- Long service life
- Very high-performance milling cutters for the most modern CNC machines
- A specially shaped flute and angle of its inclination facilitate chip evacuation
- Outstanding quality of milled edges
Applications:
- For milling internal and external contours
- Materials: laminate (PCB) FR 4, mineral materials, synthetic materials, glass and carbon fibers, wood (MDF)
- For soft and flexible materials (plastics, films, plexiglass, PE, PTFE, PMMA, polyamide)
- Possible applications: soft metals such as aluminum, copper, silver, gold, or platinum
