Servo gear (25 spline teeth, 20 teeth)
Servo gear (25 spline teeth, 20 teeth)
Availability:
out of stock
Vendor:
goBilda
Product code:
2305-0025-0024
Kod EAN:
841298114198
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€23.61
excl. 23% TAX, excl. shipping costs
product unavailable
Description

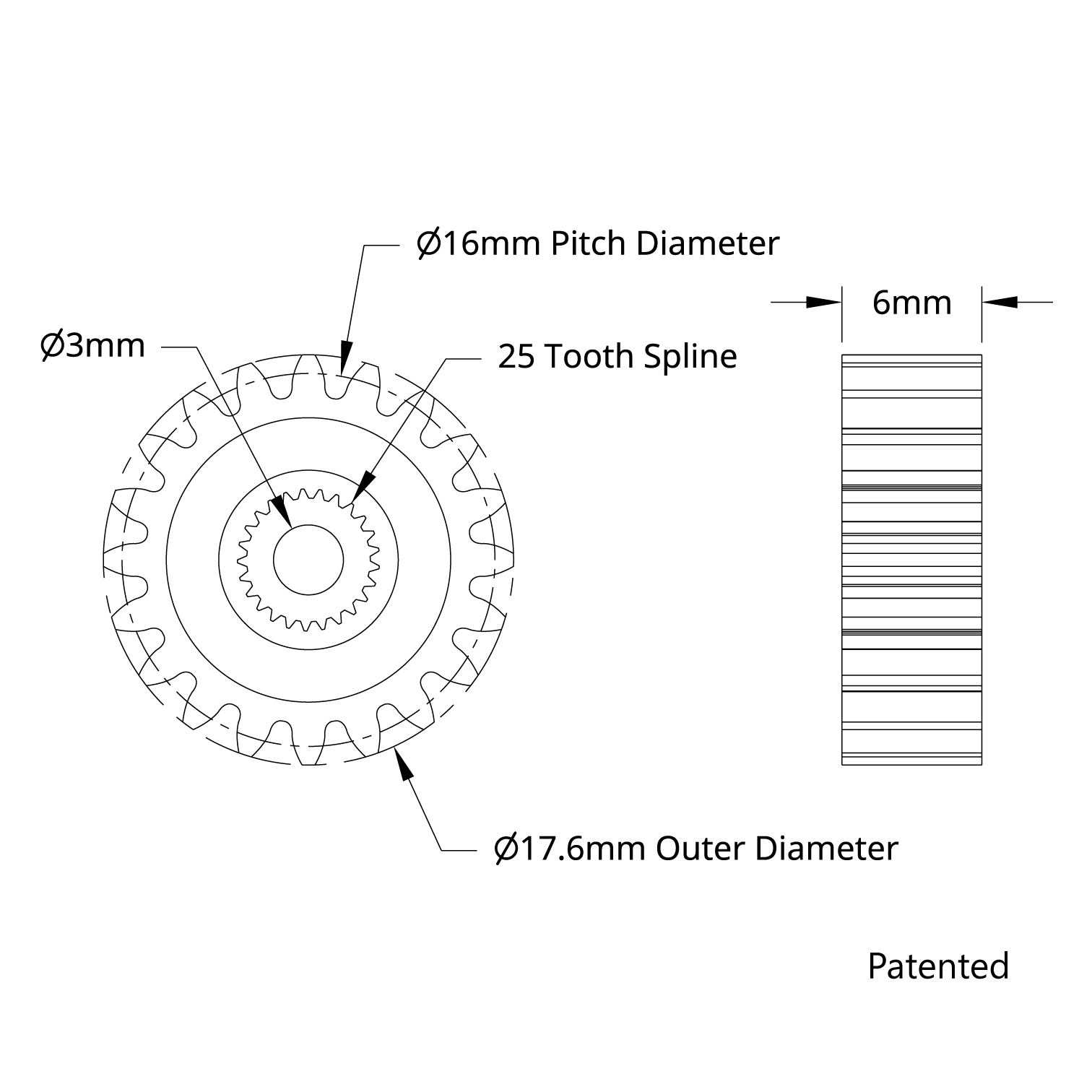

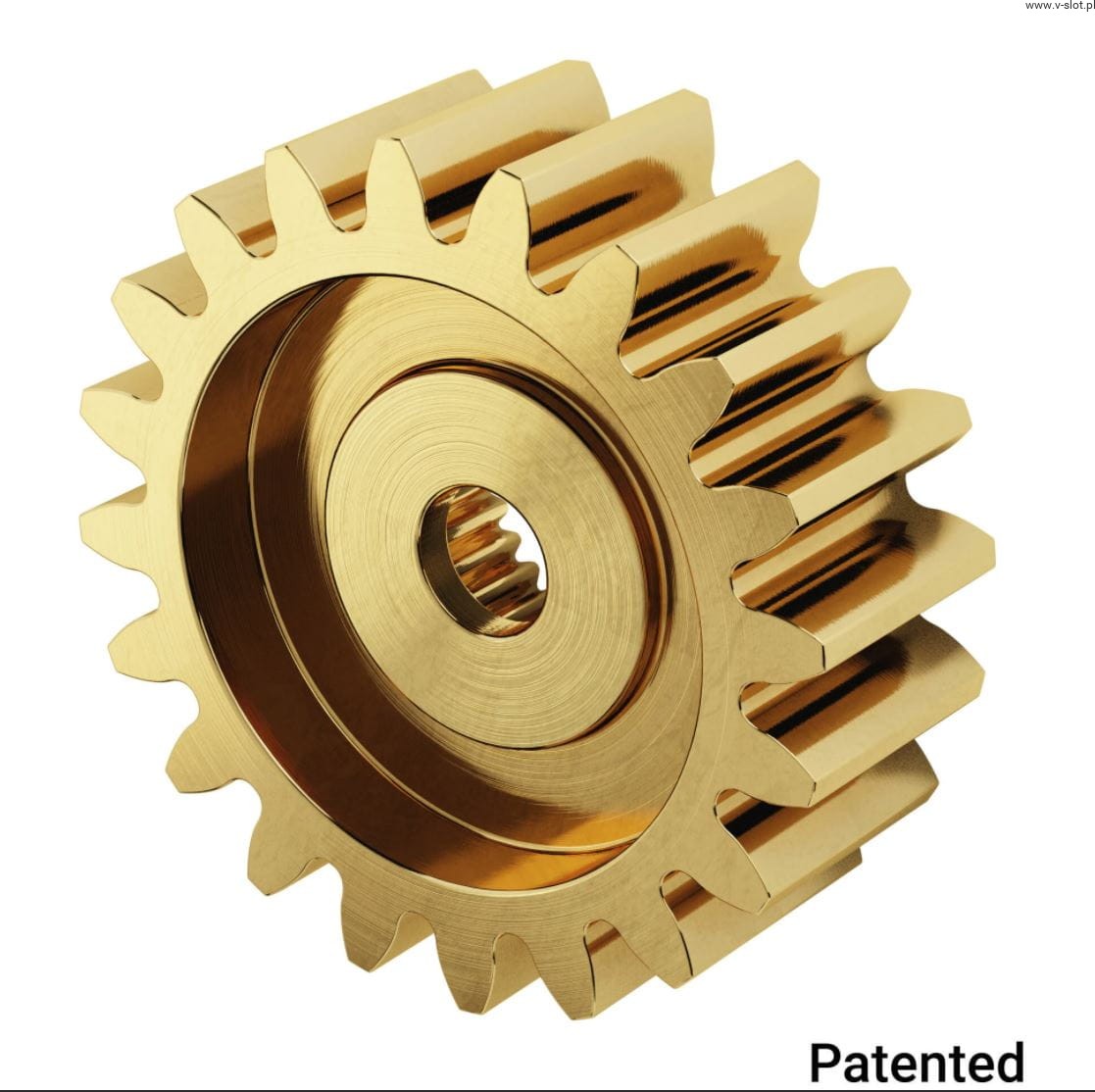

Servo gear (25 spline teeth, 20 teeth)
This 20-tooth servo gearbox is most commonly used to drive a 100-tooth hub, 48mm apart, for an enormous 5:1 gear ratio.
This gear reduction will increase the torque on the gear of the hub to 5 times that produced by the servo. The sacrifice will be to reduce the range of motion and speed by a ratio.
- Material: Brass
- Number of teeth: 20
- Pressure angle: 20 degrees
