Servo gear (25 spline teeth, 15 teeth)
product unavailable
Description

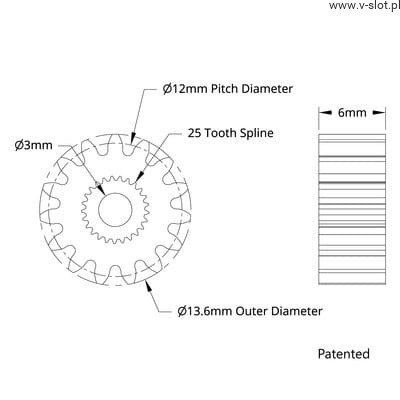

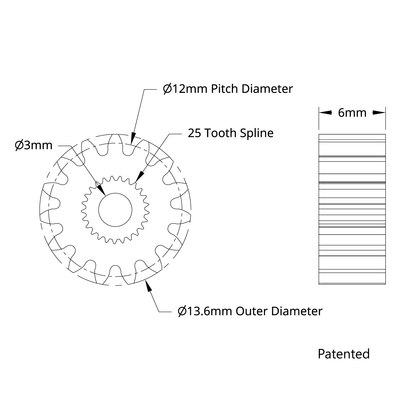

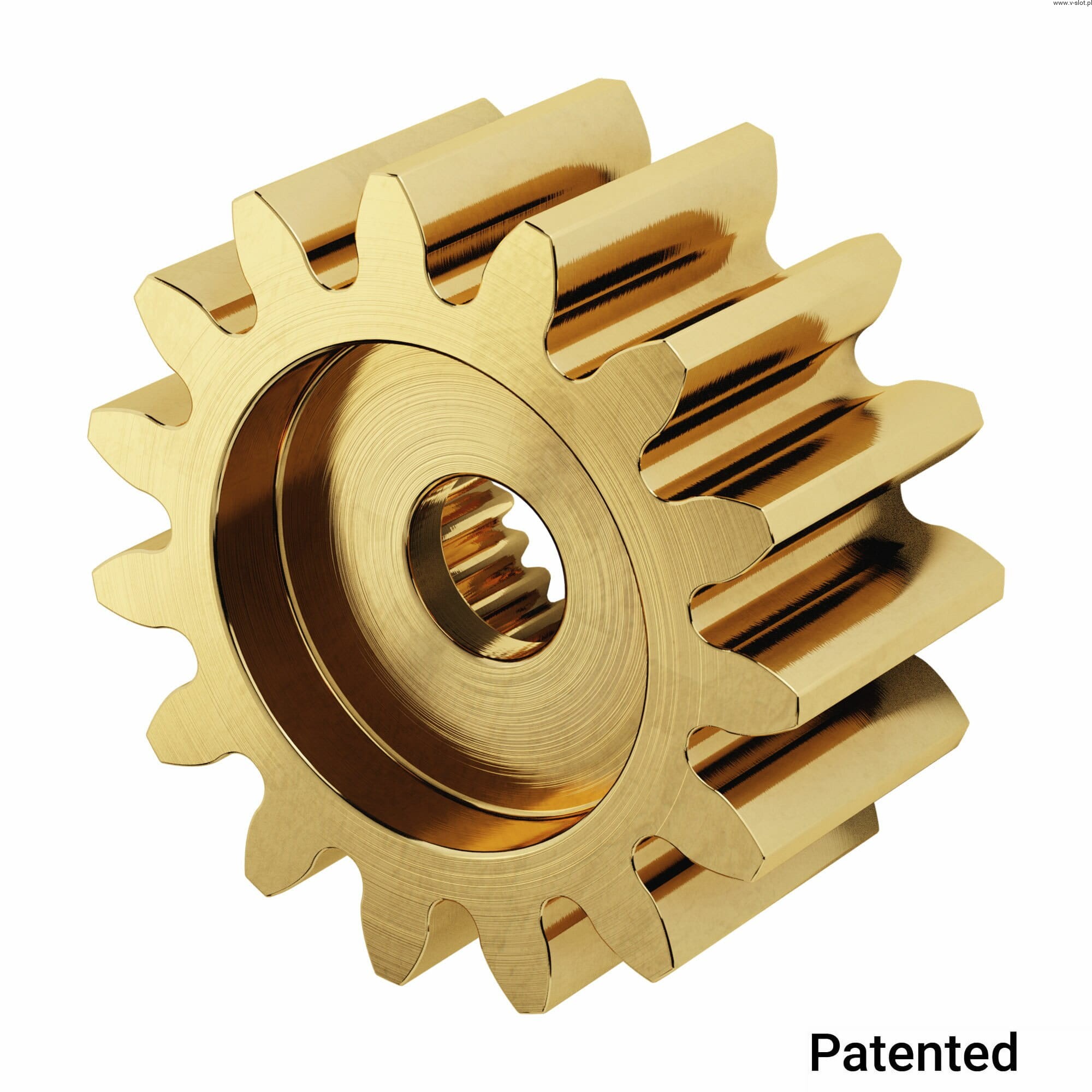

Servo gear (25 spline teeth, 15 teeth)
This 15-tooth servo gearbox is most commonly used to drive a 105-tooth hub, 48mm apart, for an enormous 7:1 gear ratio.
This gear reduction will increase the torque on the gear of the hub to 7 times that produced by the servo. The sacrifice will be to reduce the range of motion and speed by a ratio.
- Material: Brass
- Number of teeth: 15
- Pressure angle: 20 degrees
