Servo gear (24 spline teeth, 15 teeth)
Servo gear (24 spline teeth, 15 teeth)
Availability:
out of stock
Vendor:
goBilda
Product code:
2305-0024-0015
Kod EAN:
841298114112
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€23.61
excl. 23% TAX, excl. shipping costs
product unavailable
Description

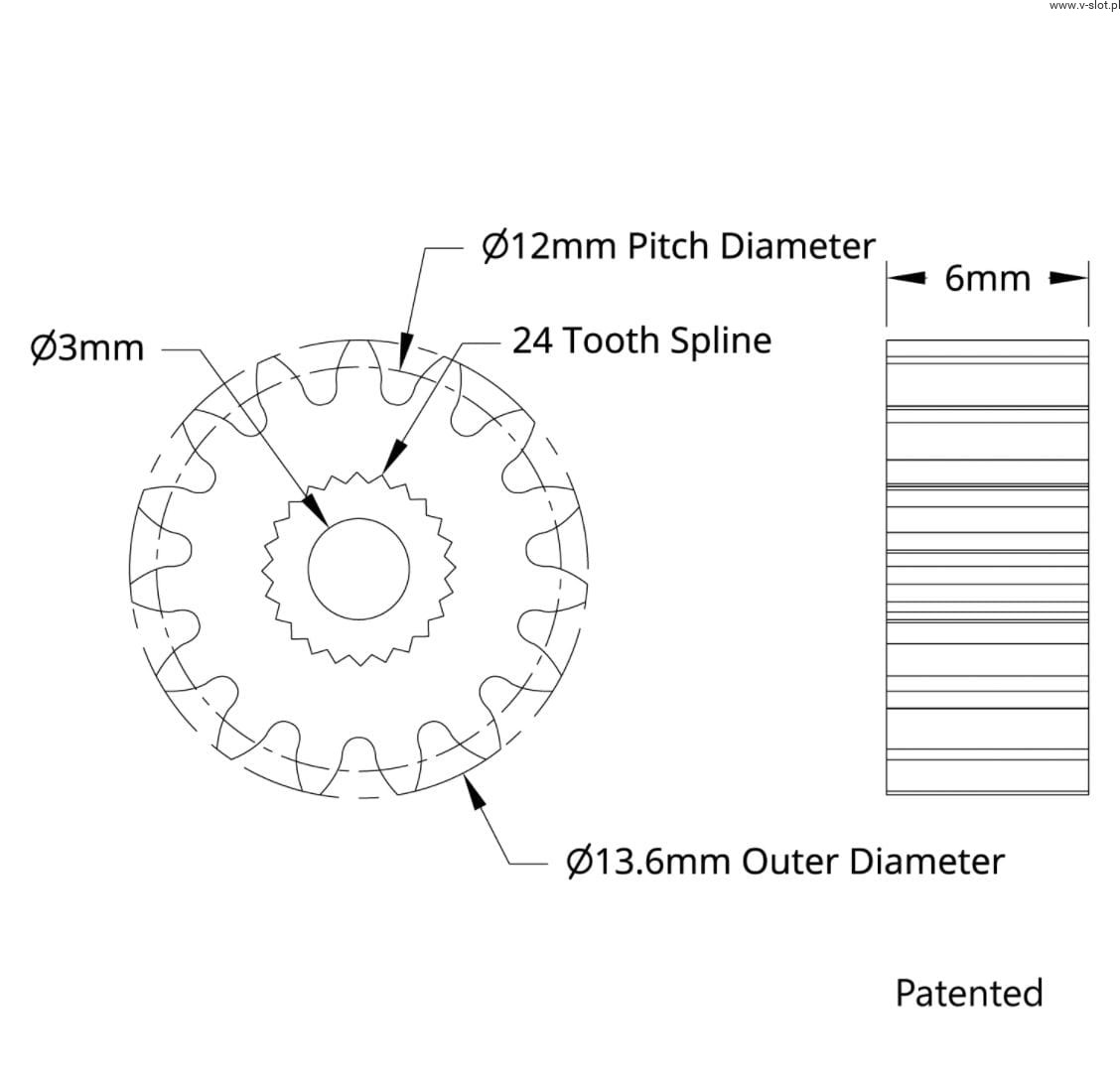

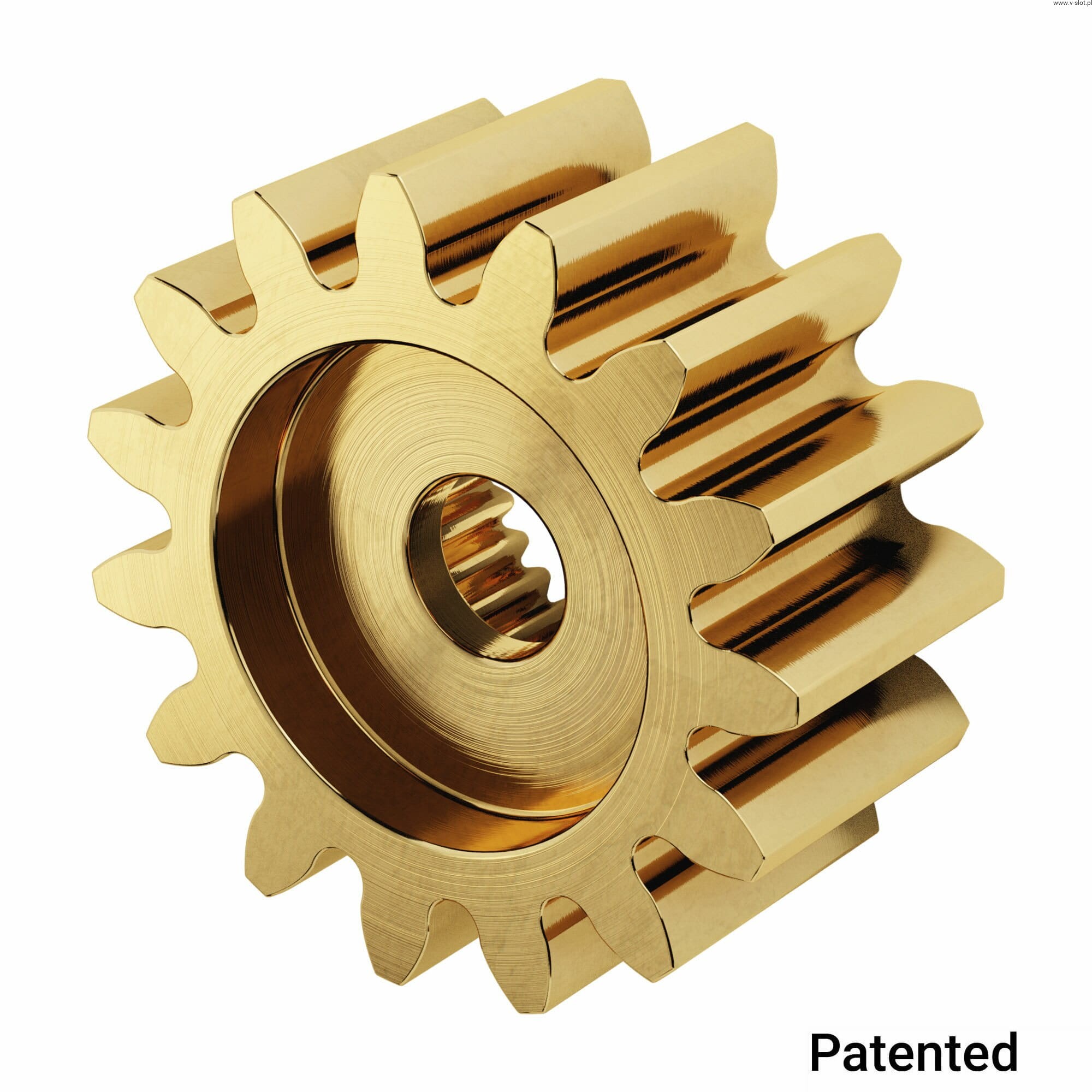

Servo gear (24 spline teeth, 15 teeth)
This 15-tooth servo gearbox is most commonly used to drive a 105-tooth hub, 48mm apart, for an enormous 7:1 gear ratio.
This gear reduction will increase the torque on the gear of the hub to 7 times that produced by the servo. The sacrifice will be to reduce the range of motion and speed by a ratio.
- Material: Brass
- Number of teeth: 15
- Pressure angle: 20 degrees
