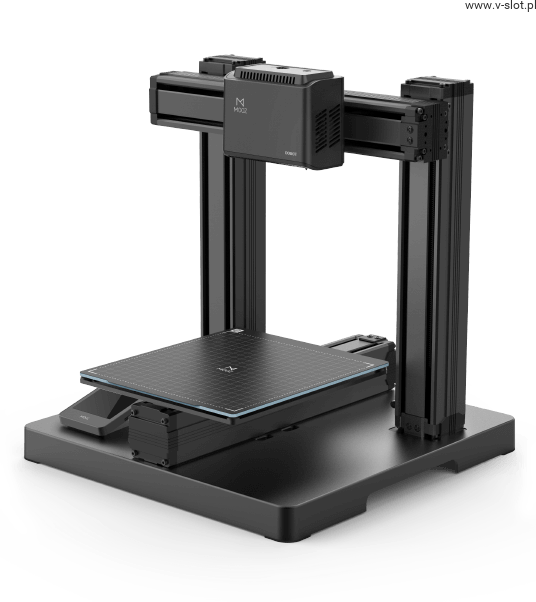

Robot MOOZ-2 PLUS
product unavailable
Description
DOBOT MOOZ, an industrial, transformable metal 3D printer that combines an all-in-one design with interchangeable heads for 3D printing, laser engraving and CNC carving. Industrial grade linear guide rail, stepper motor and CNC machined body ensure MOOZ stability and high precision equla to 0.02mm. Quick installation, a protective case, an easy-to-use controller, and an intuitive guide make MOOZ unit suitable for beginners, creators, and teachers.
MULTIFUNCTIONAL MODULAR 3D PRINTER
DOBOT MOOZ has won the Red Dot Award and the iF Design Award, two of the most important design awards in the world.
RICH INDUSTRIAL EXPERIENCES WITH GUARANTEED QUALITY
Shenzhen Yuejiang Technology Co., Ltd. (DOBOT) is the world's leading technology solutions provider for the robotics industry, focusing on the development of intelligent robotic arms that integrate perception and interaction. DOBOT has been recognized by CB Insights as one of the 80 most valuable robotic companies in the world; was among the 100 most valuable New Star Enterprises Hurun in China and the 80 best AI companies in 2018. DOBOT has extensive experience in the smart equipment industry and has over 260 intellectual property rights in the robotics field. Selling its products to more than 100 countries and regions. DOBOT has also completed collaborative projects with Volkswagen, Tencent Cloud and Alibaba in smart factories, robots, and artificial intelligence, respectively.
ALUMINUM BODY
MOOZ is cast from aviation aluminum alloys, which not only adds elegance and beauty, but also increases its stability and reduces vibration during operation.
LINEAR GUIDE, MORE ACCURATE REPEATABILITY
MOOZ uses industrial linear guide, stepper motor and screw to ensure the accuracy of every tiny movement. The repeatability of the MOOZ position is up to 0.02mm, which fully meets your printing requirements.
UNIQUE MODULAR DESIGN, EASY TO OPERATE AND MAINTENANCE
Thanks to the modular design of the MOOZ, it only takes 10 minutes to install and start working with it. In addition to saving money, the modular design makes it much easier to operate, maintain and develop.
EASY-TO-USE CONTROLLER, START CREATING WITH ONE CLICK
MOOZ is equipped with a microcomputer controller with a screen display. When MOOZ 3D printer is connected to a flash drive or SD card, you can directly use the controller to operate MOOZ unit and start printing, saving you the hassle of connecting device with your computer.
VERSATILE SAFETY MEASURES
For the laser engraving kit, MOOZ provides a professional box and protective glasses that 100% guarantee your safety.
Specification:
Model | DT-MZ-2ZSG-03C |
Shipping Size | X460 * Y425 * Z510mm |
Dimensions | 355 * 355 * 390mm |
Number of modules | 4 |
Molding size | 200 * 200 * 190mm |
Frame material | Aluminum alloy |
Control panel | 3.5-inch color touchscreen |
Input adapter | 100-240V, 50 / 60Hz, 1.8Amax |
Adapter output | 12V ~ 10A, 120W |
PC software | MOOZ Studio / Cura |
Protective cover | Standard |
3D printing:
Nozzle diameter | 0.4 mm |
Layer resolution | 0.05~0.3 mm |
Auxiliary materials | 1,75 mm PLA, TPU, PETG and flexible materials |
Effective printing speed | 0 ~ 80mm/s |
Nozzle temperature | 250℃ Max. |
Heating bed temperature | 80 ℃ Max. (25 ℃ ambient temperature) |
Heating bed material | Glass platform + Flexible steel printing plate |
Printing size | X200 * Y200 * Z190mm |
Supported file types | STL, OBJ, JPEG, JPG, PNG, etc. |
Working environment conditions | 10 ~ 40 ° C, 10 ~ 90% RH non-condensing |
Filament runout sensor | Mechanical switch built inside the 3D printing module |
Leveling | Automatic Z axis compensation, with magnetic independent auto leveling module |
Power outage recovery | Supported |
Laser engraving:
Working area | X200 * Y200mm |
Laser power | 1.6W |
Laser class | 4 |
Laser life | of 4000 hours (discontinuous use) |
Auxiliary materials | wood, bamboo, leather, paper, plastic, fabric, and opaque acrylic |
Supported file types | JPEG, JPG, PNG, SVG, etc. |
CNC carving:
Spindle speed | 8000rpm Max |
CNC chuck clamping range | 0~4mm |
Standard Bit Size of CNC Cutter | 3.175mm * 0.3mm * 30 ° V; 1.5 mm spiral cutter |
Auxiliary materials | wood, bamboo, acrylic, PCB, carbon fiber sheet, plastic, etc. |
Working area | X200 * Y200mm |
