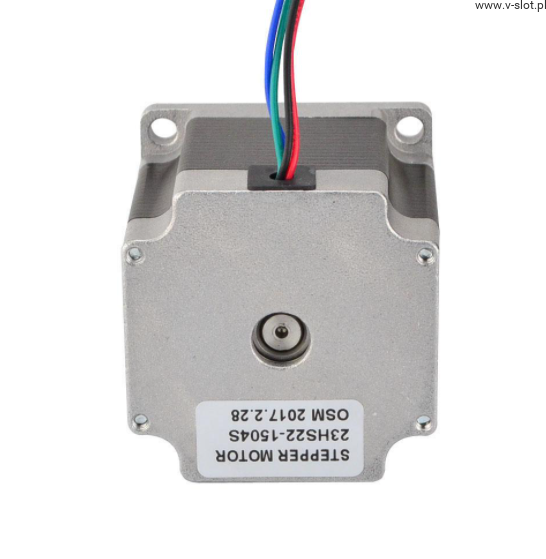

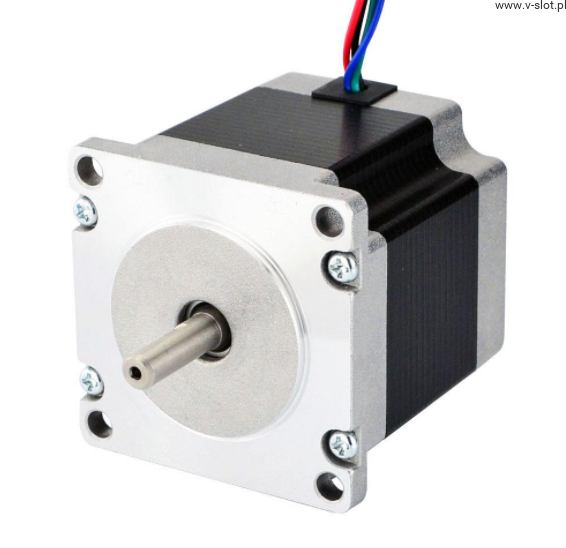

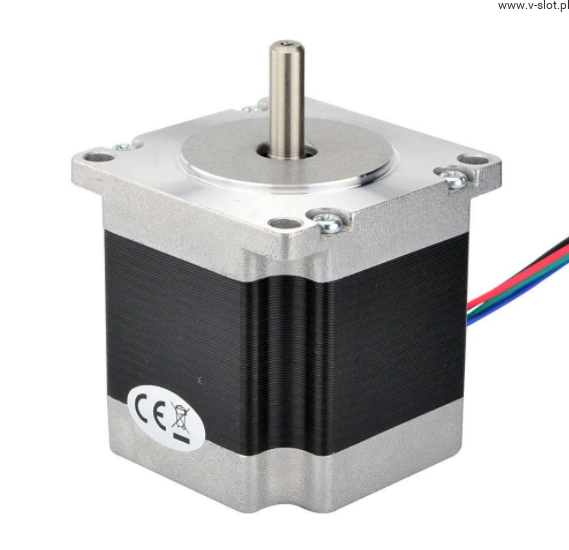

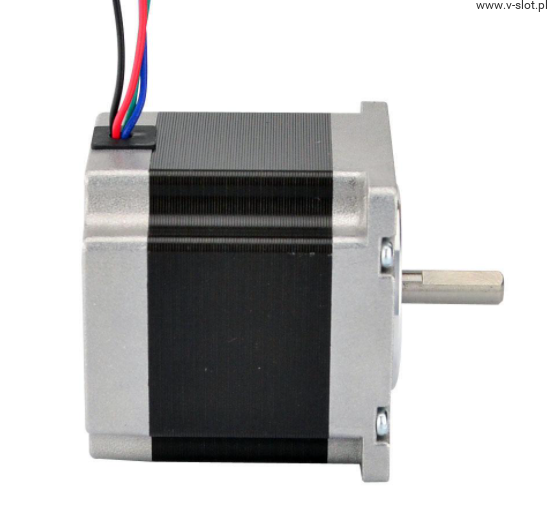

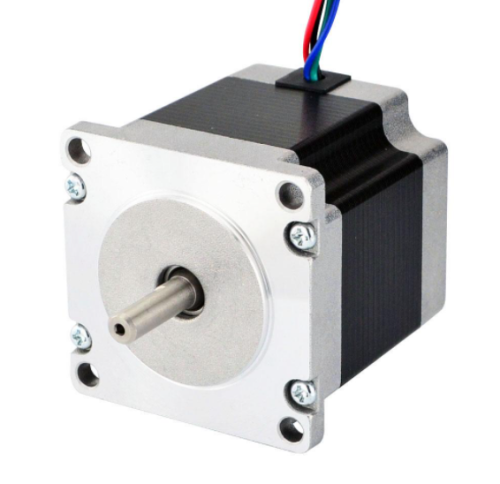

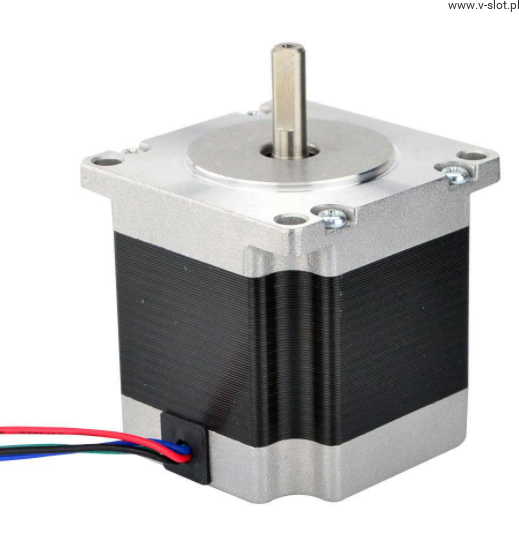

Nema 23 Bipolar 1.8deg 1.16Nm (164.3oz.in) 1.5A 5.4V 57x57x56mm 4 Wires

Availability: out of stock

Vendor: STEPPERONLINE

Product code: 23HS22-1504SEN

Rating:

Price: €56.94 56.94

Gross price

incl. 23% TAX, excl. shipping costs

Net price: €46.30

excl. 23% TAX, excl. shipping costs

quantity szt.

product unavailable

Description

Nema 23 Bipolar 1.8deg 1.16Nm (164.3oz.in) 1.5A 5.4V 57x57x56mm 4 Wires

This bipolar Nema 23 stepper motor with step angle 1.8deg and size 57x57x56mm. It has 4 wires, each phase draws 1.5A, with holding torque 1.16Nm (164.3oz.in).

Electrical Specification

Manufacturer Part Number: 23HS22-1504S
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 1.16Nm(164.3oz.in)
Rated Current/phase: 1.5A
Voltage: 5.4V
Phase Resistance: 3.6ohms
Inductance: 13mH ± 20%(1KHz)

Physical Specification

Frame Size: 57 x 57mm
Body Length: 56mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.7kg

Połączenie:
