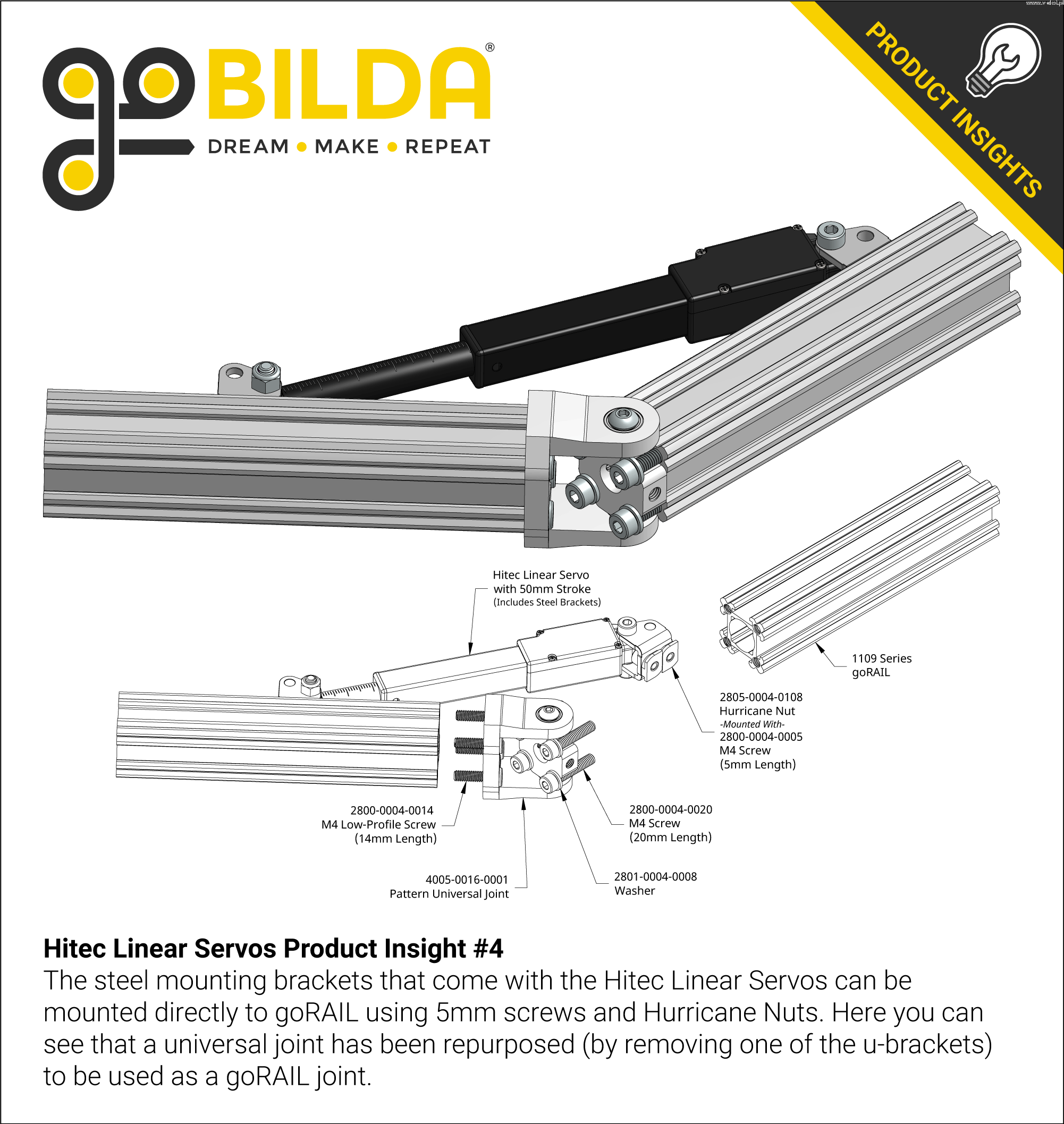

Linear servo Hitec (stroke 50 mm, 4,1 mm/s, thrust 22,2 kg)

Serwo liniowe Hitec

Linear servo Hitec (stroke 50 mm, 4,1 mm/s, thrust 22,2 kg)

Availability: average quantity Dispatched within: up to 21 business days
Vendor: goBilda
Product code: HLS12-50380-6V
Rating: 0
Price: €231.29 231.29
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €188.04
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

Linear servo Hitec (stroke 50 mm, 4,1 mm/s, thrust 22,2 kg)

Specifications:

  • Weight: 39g
  • Stroke: 50mm
  • No load speed (6.0 V): 3,3 mm/s
  • No load speed (7.4 V): 4,1 mm/s
  • Thrust (6.0 V): 18,0 kg
  • Thrust (7.4 V): 22,2 kg
  • Gear ratio: 380:1
  • Voltage range: 4.8 - 7.4 VDC
  • Maximum PWM range: 900 - 2100μsec
  • Working temperature: -10 °C ~ + 50 °C
  • Motor type: Brushed DC
  • Feedback Type: Digital
  • Cable length: 160mm
  • Connector Type: TJC8 3 Position Servo Connector [MH-FC]
  • Current consumption at 6.0 V DC: 500mA
  • Current consumption at 7.4 V DC: 620Ma
