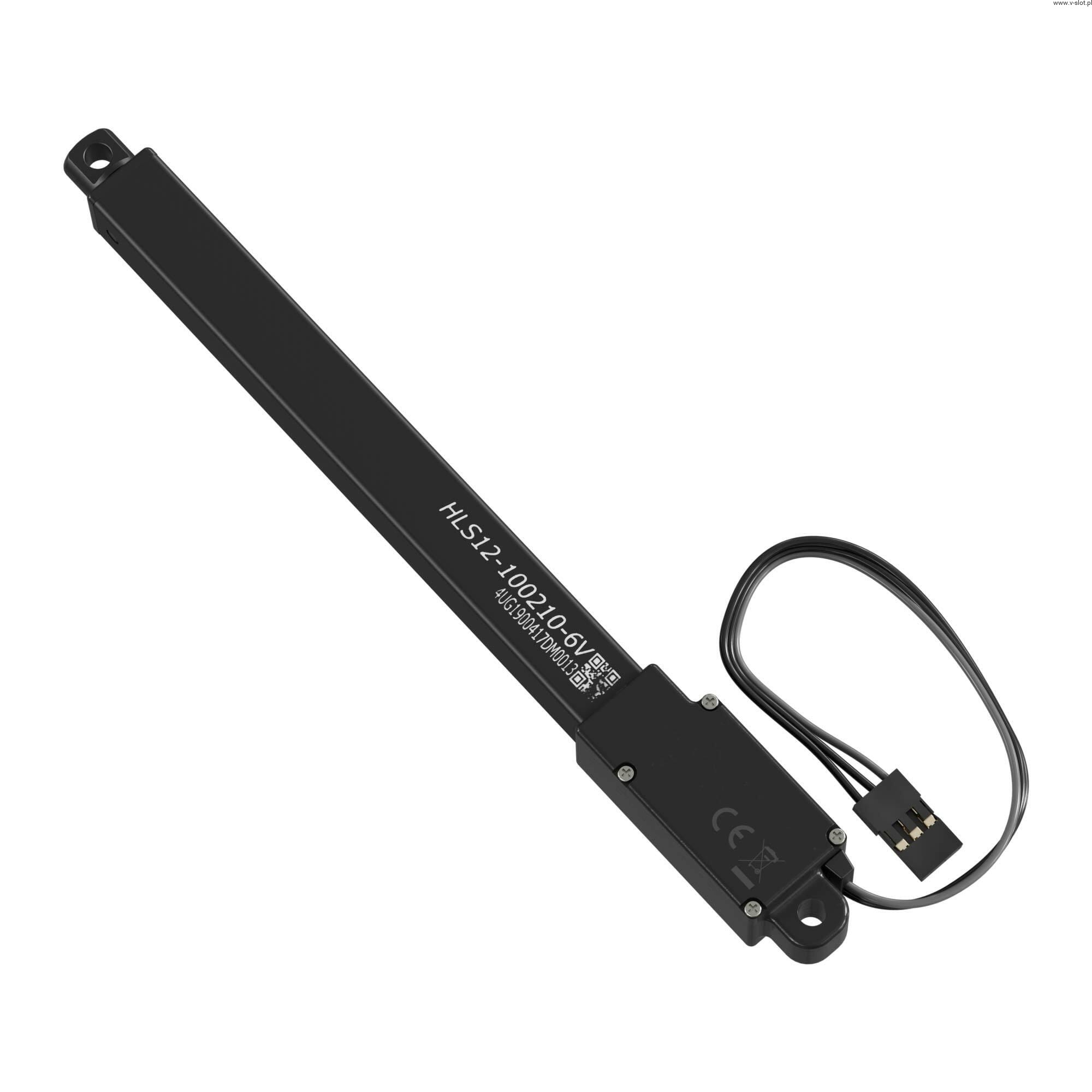

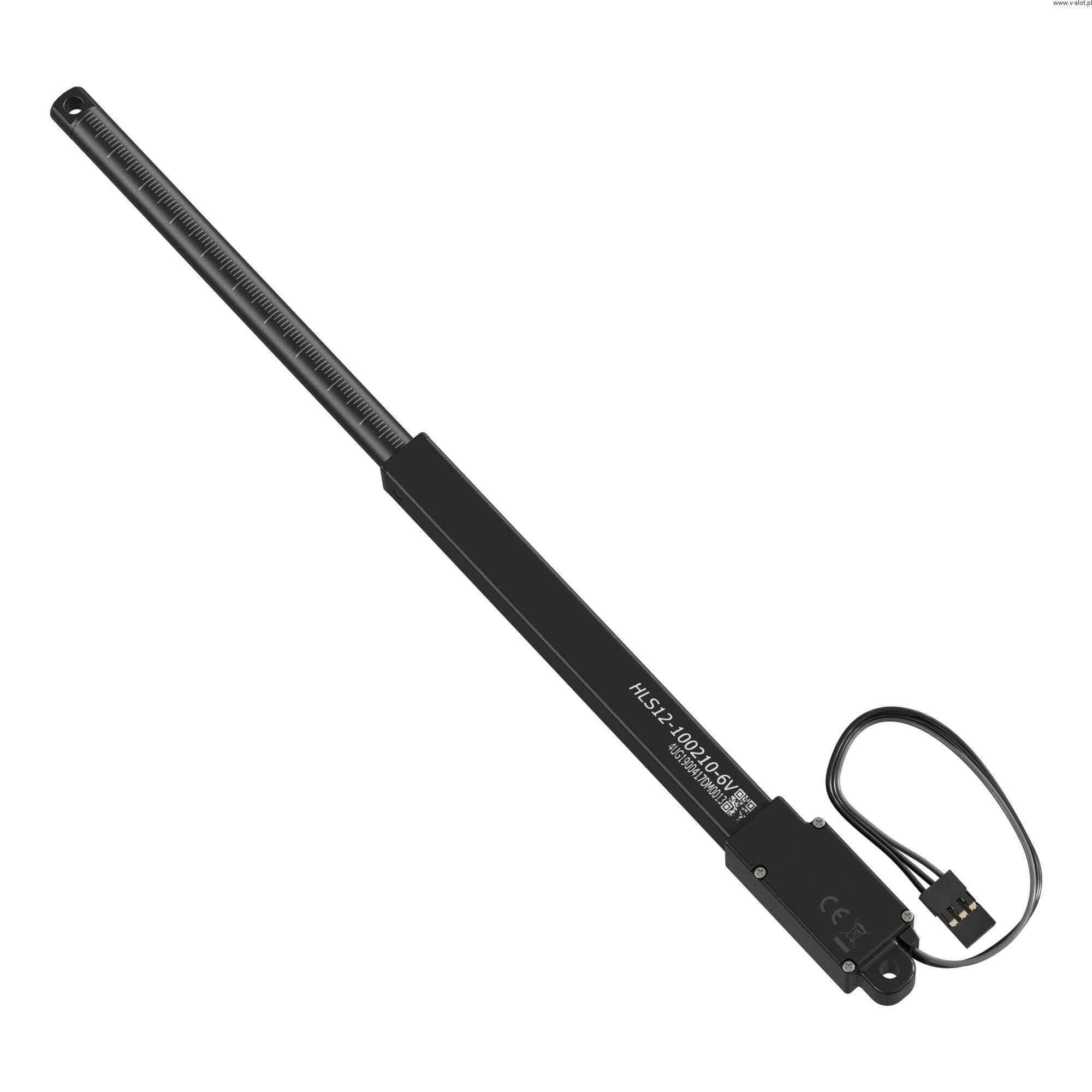

Linear servo Hitec (stroke 100 mm, 7,5 mm/s, thrust 12,4 kg)
product unavailable
Description
Linear servo Hitec (stroke 100 mm, 7,5 mm/s, thrust 12,4 kg)
Specifications:
- Weight: 54g

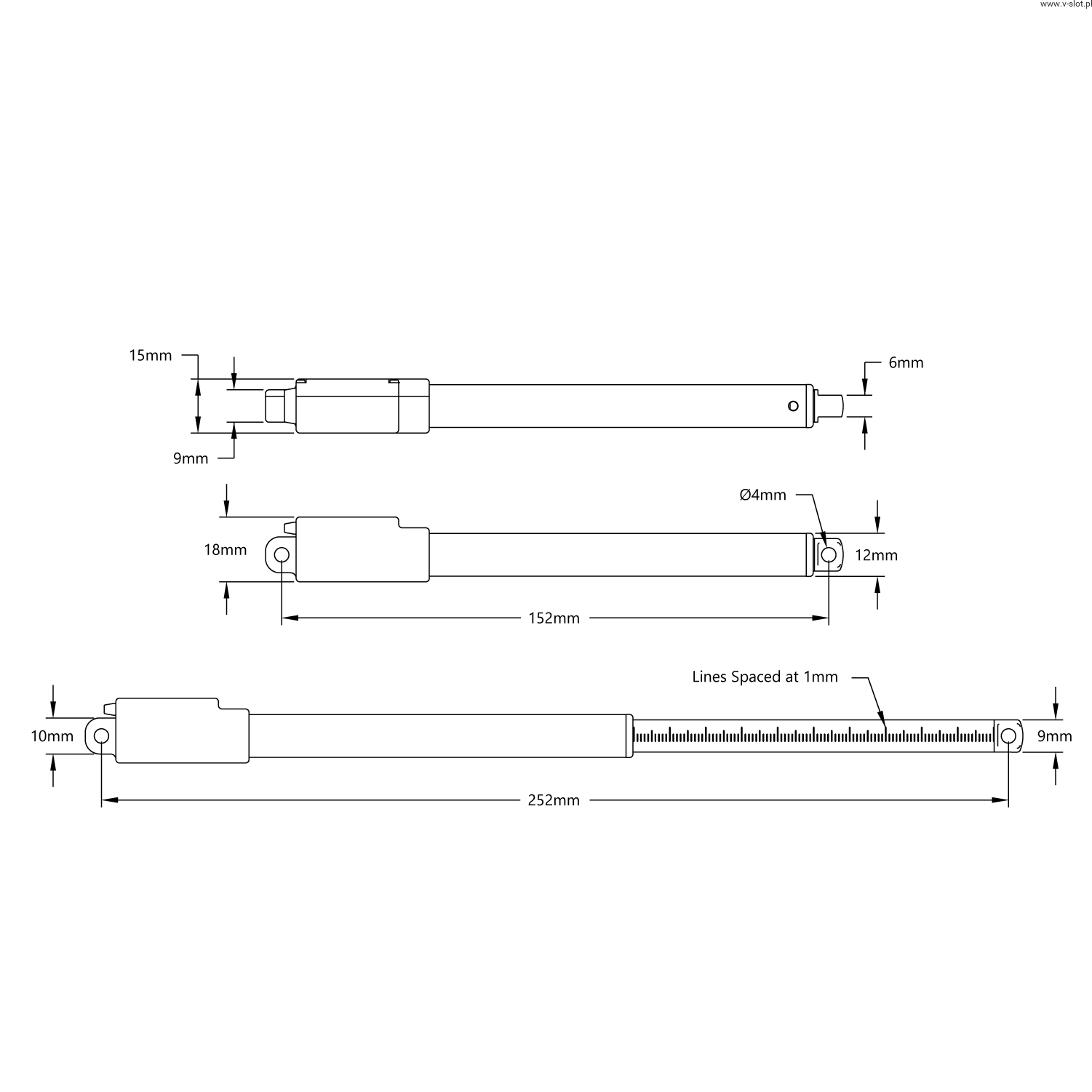

- Stroke: 100mm
- No load speed (6.0 V): 6,1 mm/s
- No load speed (7.4 V): 7,5 mm/s
- Thrust (6.0 V): 10,0 kg
- Thrust (7.4 V): 22,2 kg
- Gear ratio: 210:1
- Voltage range: 4.8 - 7.4 VDC
- Maximum PWM range: 900 - 2100μsec
- Working temperature: -10 °C ~ + 50 °C
- Motor type: Brushed DC
- Feedback Type: Digital
- Cable length: 160mm
- Connector Type: TJC8 3 Position Servo Connector [MH-FC]
- Current consumption at 6.0 V DC: 500mA
- Current consumption at 7.4 V DC: 620Ma
