LM16OP, LM 16 OP - Linear Line Łozsko
LM16OP, LM 16 OP - Linear Line Łozsko
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€2.89
excl. 23% TAX, excl. shipping costs
product unavailable
Description

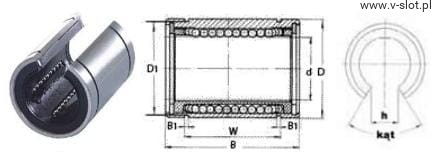

Linear bearing open open LM 16 op
LEM16OP line bearing
For shaft fi 16 mm
>
Properties:
• Maximum sliding speeds 3-5m/s
• operating temperature range -20 ° C to 80 ° C
• friction factor 0.001-0.005
• Tolerance of mounting holes H7
The guide is massive, has bilateral seals, Japanese dimensional standard.
Type LM ... OP:
Open line bearings have wide use in linear movement technique.
The outer coat is made of placental steel. A basket made of plastic. The bearings have a bilateral sealing in the form of a touched ring of a gathering ring, which prevents the accumulation of various types of dirt on the bearing paths. This bearing is usually used for shafts on the support. This placenta can be mounted to the SME..op housing, or two bearings enter the SME..LOP housing. Rollers that cooperate with linear bearings should be made in H6 tolerance, 60HRC hardness and surface roughness at least 0.30um RA
Bearing before installing must be lubricated with bearing grease.
LEM16OP line bearing
For shaft fi 16 mm
>
Properties:
• Maximum sliding speeds 3-5m/s
• operating temperature range -20 ° C to 80 ° C
• friction factor 0.001-0.005
• Tolerance of mounting holes H7
The guide is massive, has bilateral seals, Japanese dimensional standard.
Type LM ... OP:
Open line bearings have wide use in linear movement technique.
The outer coat is made of placental steel. A basket made of plastic. The bearings have a bilateral sealing in the form of a touched ring of a gathering ring, which prevents the accumulation of various types of dirt on the bearing paths. This bearing is usually used for shafts on the support. This placenta can be mounted to the SME..op housing, or two bearings enter the SME..LOP housing. Rollers that cooperate with linear bearings should be made in H6 tolerance, 60HRC hardness and surface roughness at least 0.30um RA
Bearing before installing must be lubricated with bearing grease.
