Flexible Shaft Coupler 4002 Series (5mm Round Hole To 5mm Round Hole)
product unavailable
Description

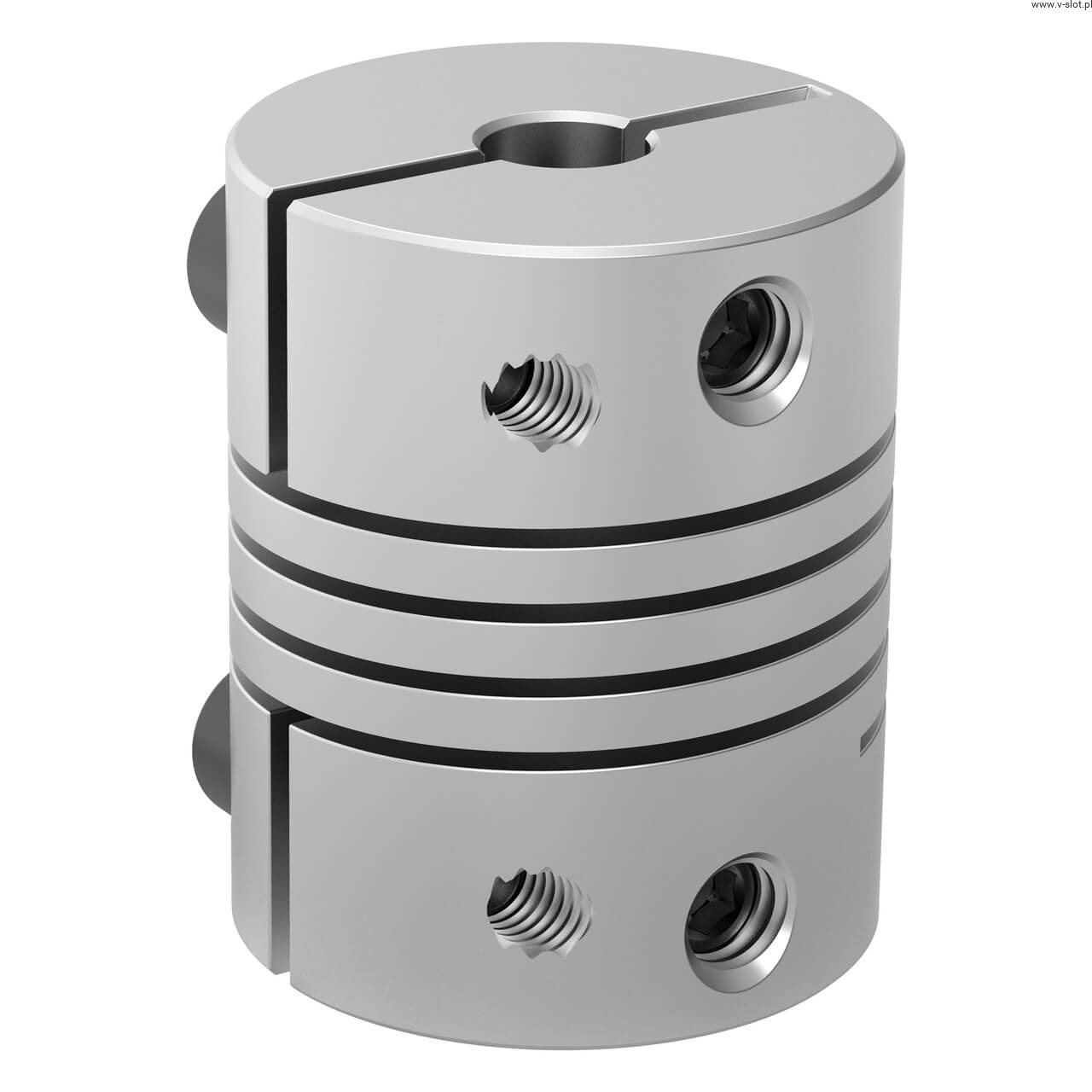

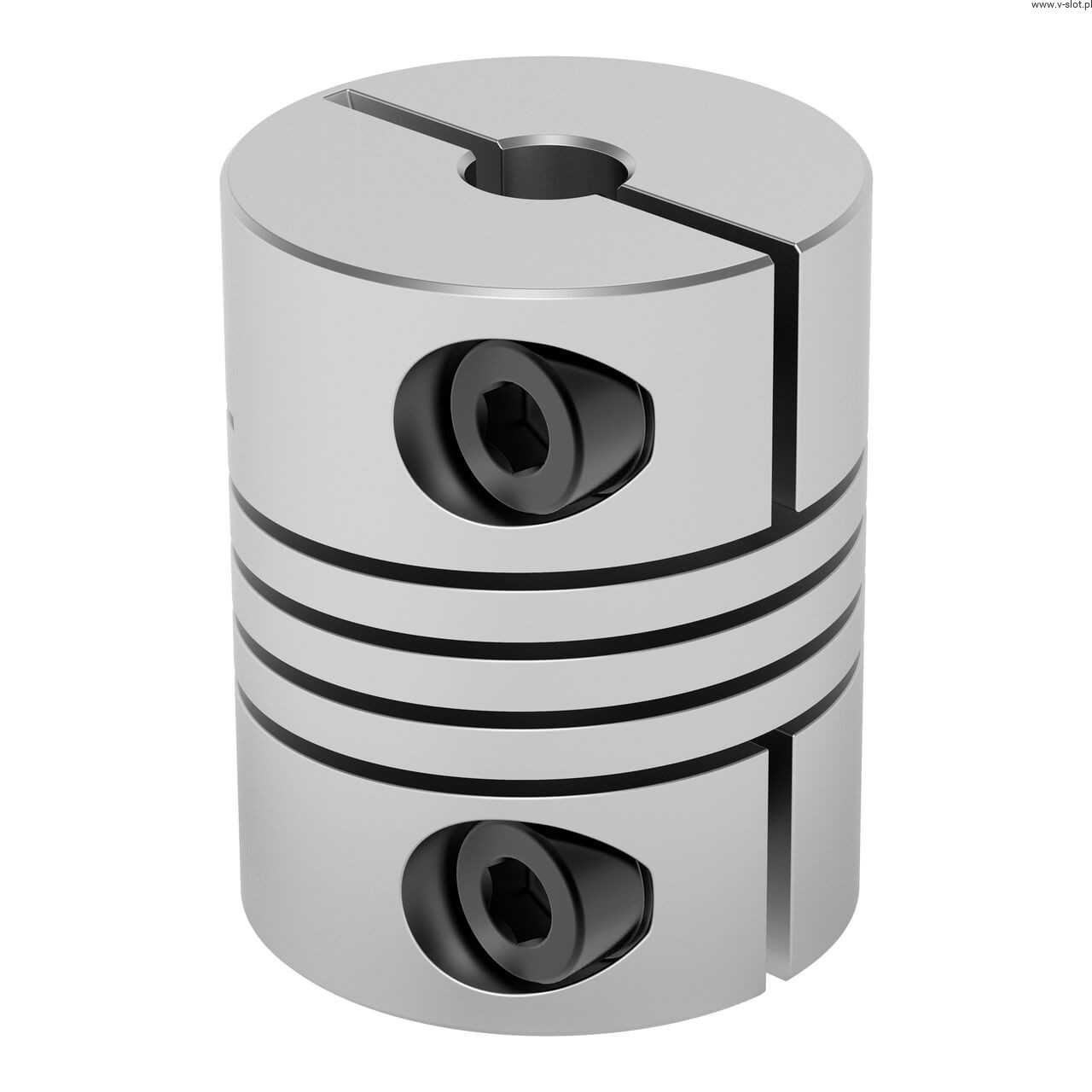

Flexible Shaft Coupler 4002 Series (5mm Round Hole To 5mm Round Hole)
Flexible pinch shaft couplings provide an excellent means of transmitting rotational motion between two shafts which can result in slight misalignment. These fasteners not only tighten around the shaft but also have a set screw for added security. The design of the flexible pinch shaft couplings provides excellent accuracy because no play is introduced into the system. They are perfect for high precision projects using stepper motors or motors with encoders.

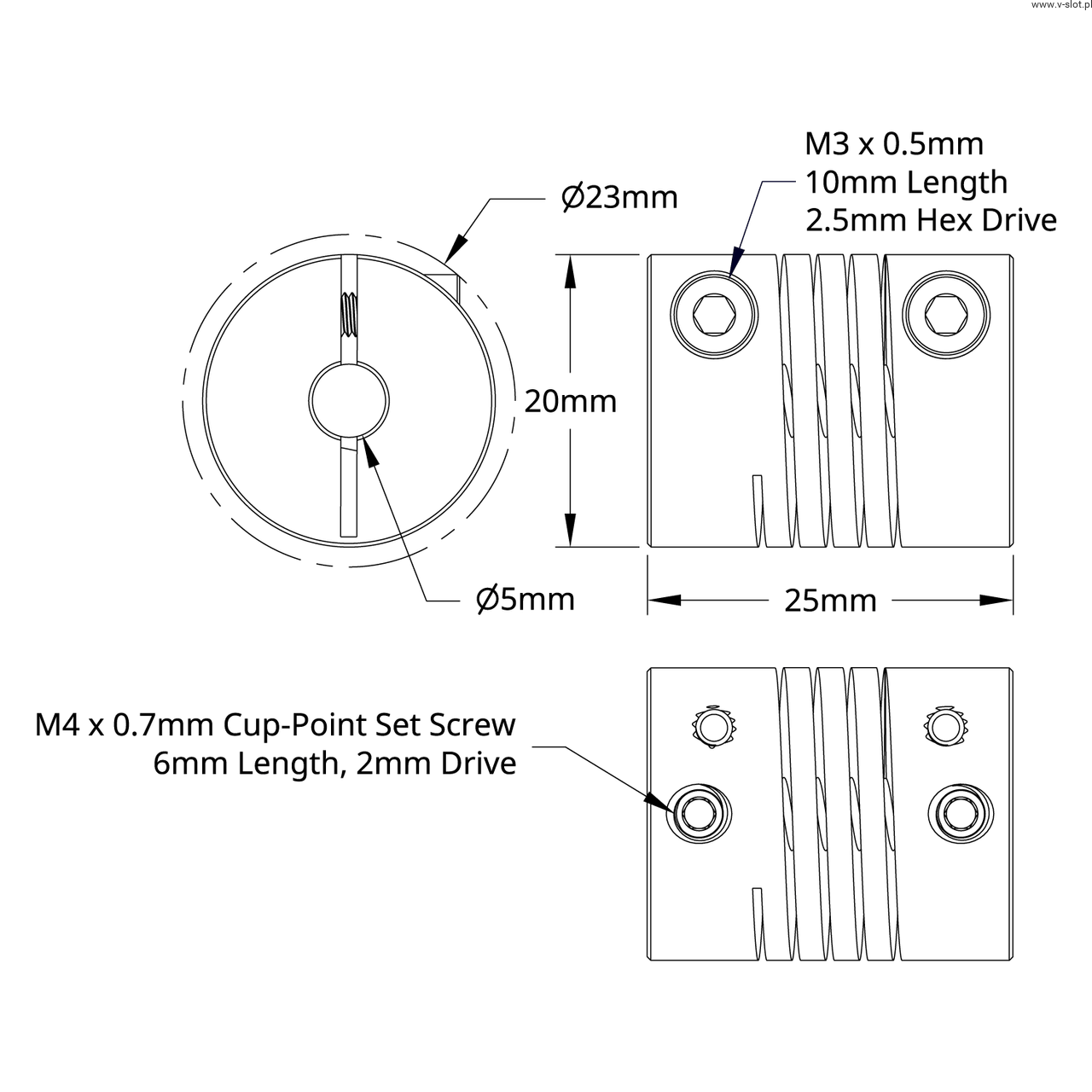

Specification:
- Weight: 18g
- Material: Aluminum
- Finishing: Anodized
- Hole A: 5mm
- Hole B: 5mm
