Dolly V-Guide lead screw kit
Dolly V-Guide lead screw kit
0
product unavailable
Description

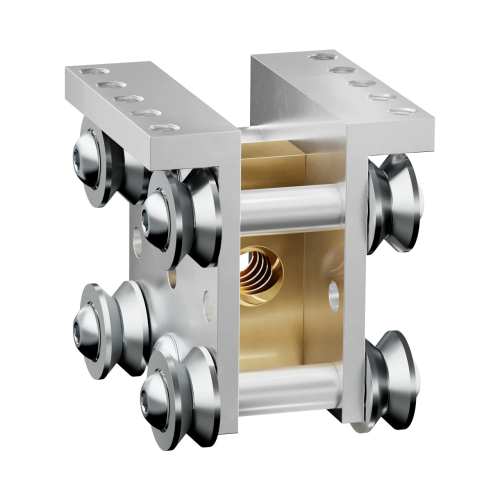

Dolly V-Guide lead screw kit

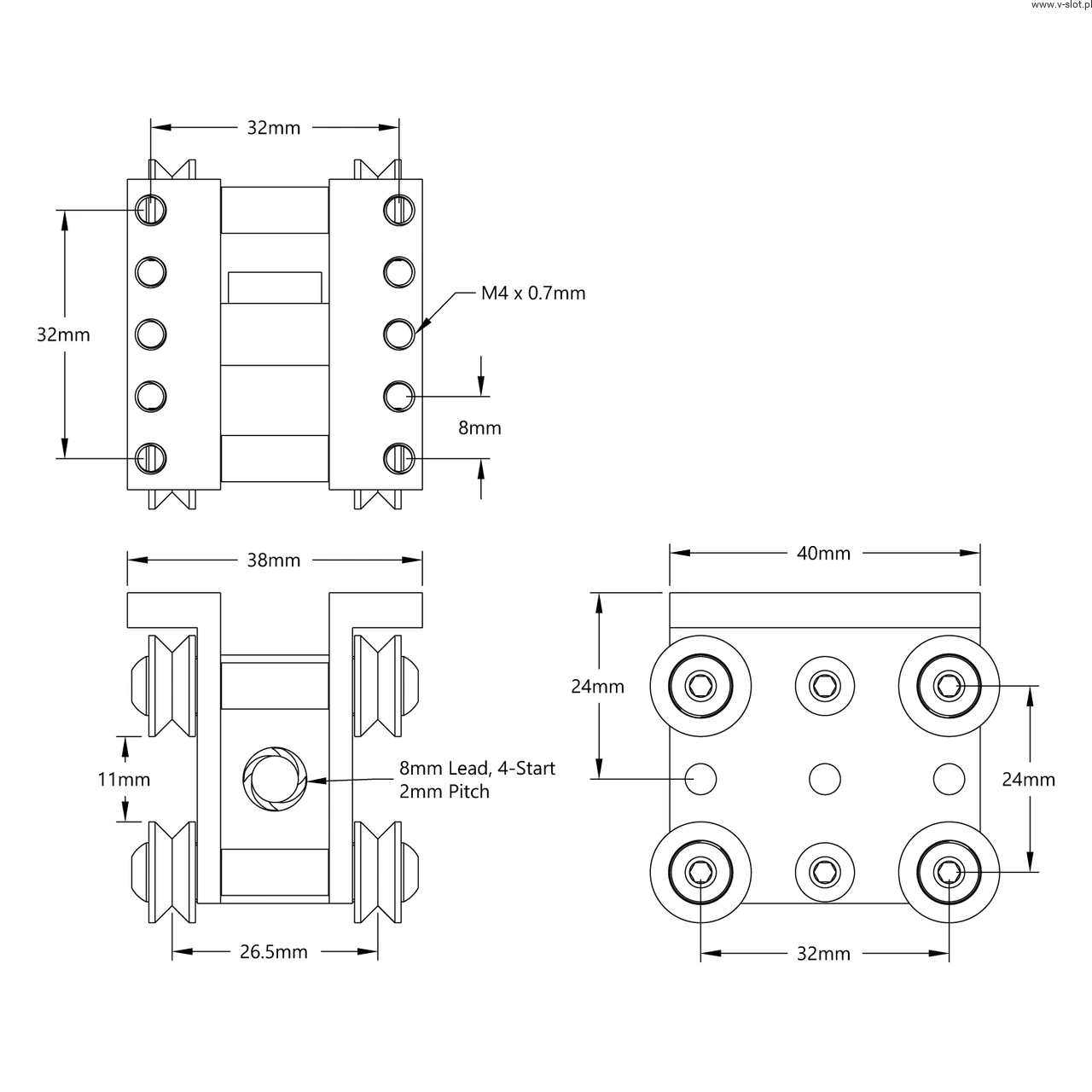

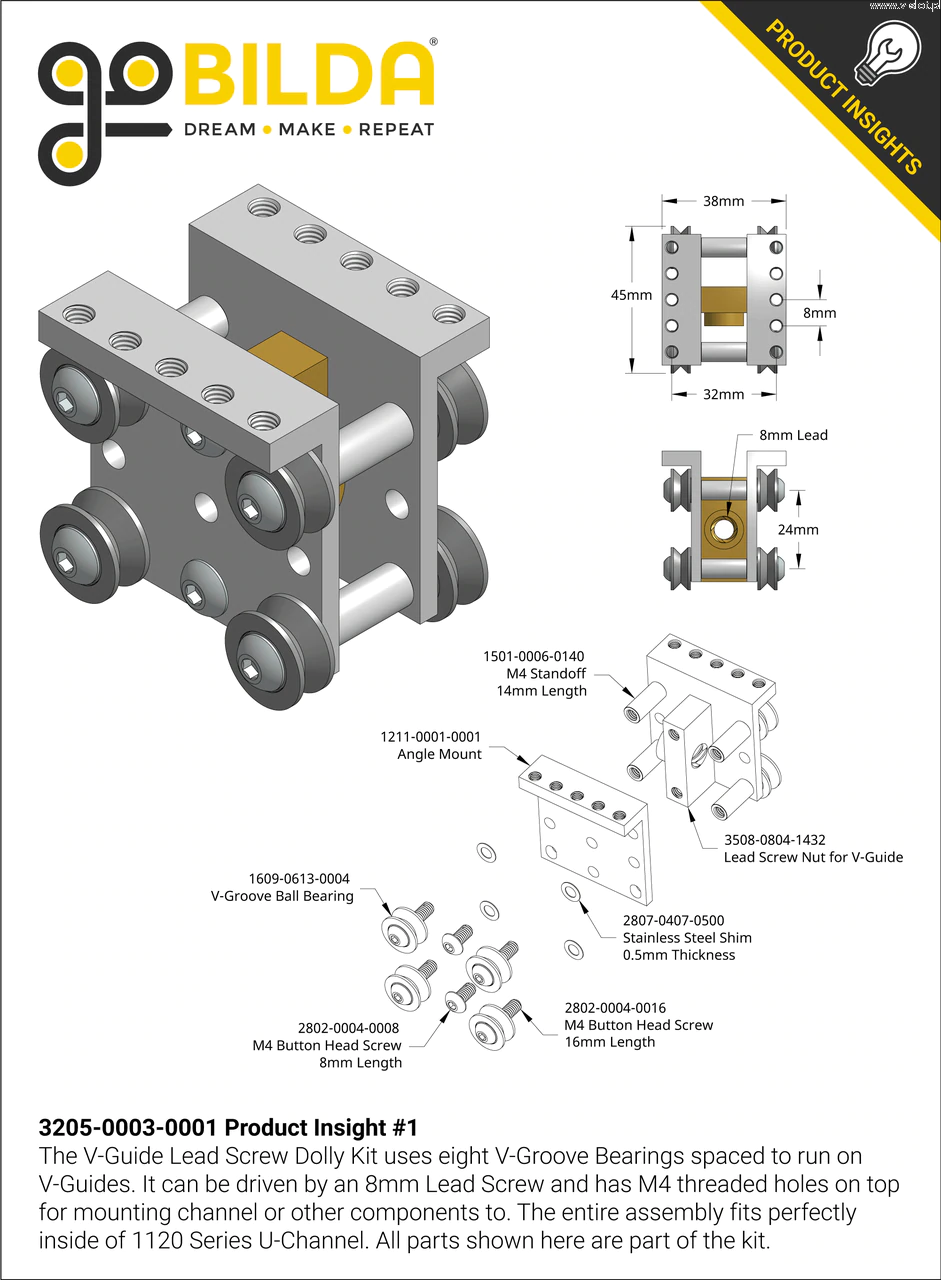

This Dolly kit is specially built for the V-track. Four V-groove bearings are mounted on each side of the aluminum plates and are properly spaced to fit a V-track mounted inside the 1120 series channel. These bearings are designed to support the load allowing the lead screw nut inside the carriage to create a linear motion without having to support the load. The lead screw nut has a pitch of 8mm which is compatible with any 3501 series 8mm lead screw. The threaded holes in the top of the aluminum angle brackets make it child's play to attach the duct and other components.

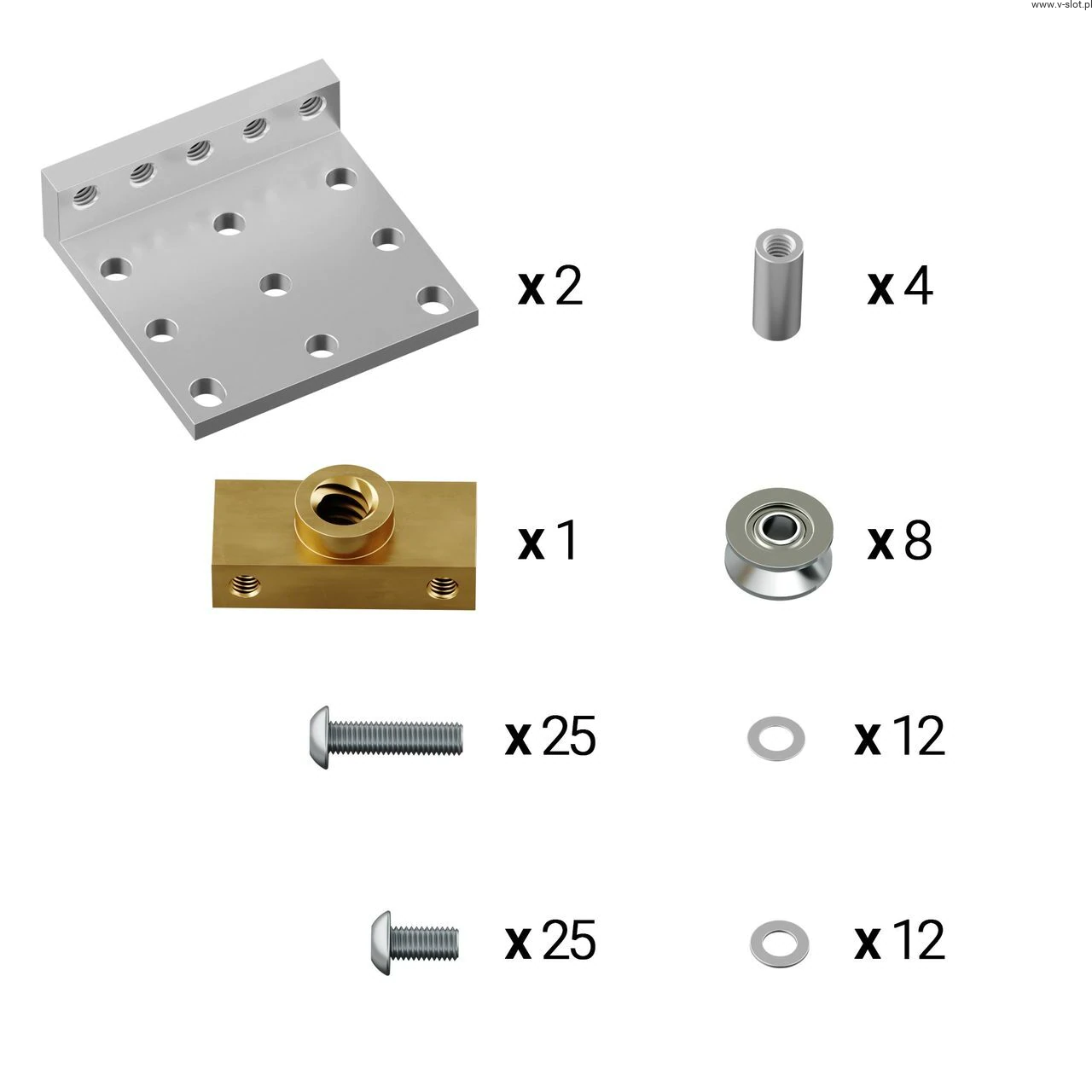

Set contains:
| SKU | Pcs. | Product |
|---|---|---|
| 1501-0006-0140 | 1 | Spacer M4 x 0.7mm series 1501 (6mm OD, 14mm length) - 4 pcs. |
| 2807-0407-0250 | 1 | Stainless steel washer Series 2807 (4mm ID x 7mm OD, 0.25mm thickness) - 12 pcs. |
| 2807-0407-0500 | 1 | Stainless washer series 2807 (4mm ID x 7mm OD, 0.50mm thickness) - 12 pcs. |
| 1609-0613-0004 | 4 | V Groove Bearing 1609 Series (4mm ID x 13mm OD, 6mm Thickness) - 2 pcs. |
| 2802-0004-0016 | 1 | Zinc Plated Ball Screw Series 2802 (M4 x 0.7mm, 16mm Length) - 25 pcs. |
| 2802-0004-0008 | 1 | Zinc Plated Ball Screw Series 2802 (M4 x 0.7mm, 8mm Length) - 25 pcs. |
| 1211-0001-0001 | 2 | Angle mount series 1211 (1-1) |
| 3508-0804-1432 | 1 | Lead Screw Nut for V Guide Series 3508 (8mm Cord, 4 Start, 14mm Width, 32mm Height) |
