Clamp of toothed belt 3mm HTD (1-1) - 2 pieces
Clamp of toothed belt 3mm HTD (1-1) - 2 pieces
product unavailable
Description

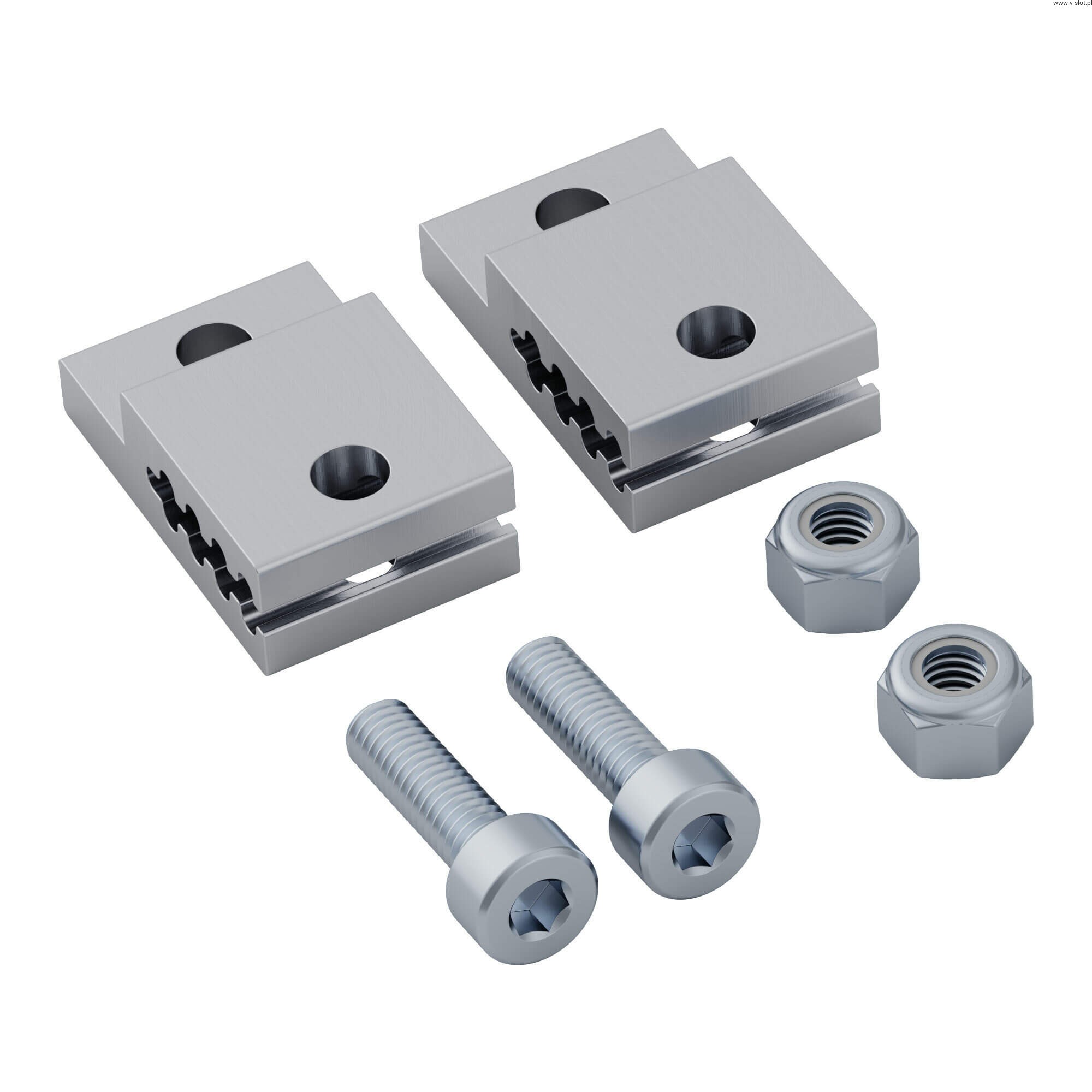

Clamp of toothed belt 3mm HTD (1-1) - 2 pieces

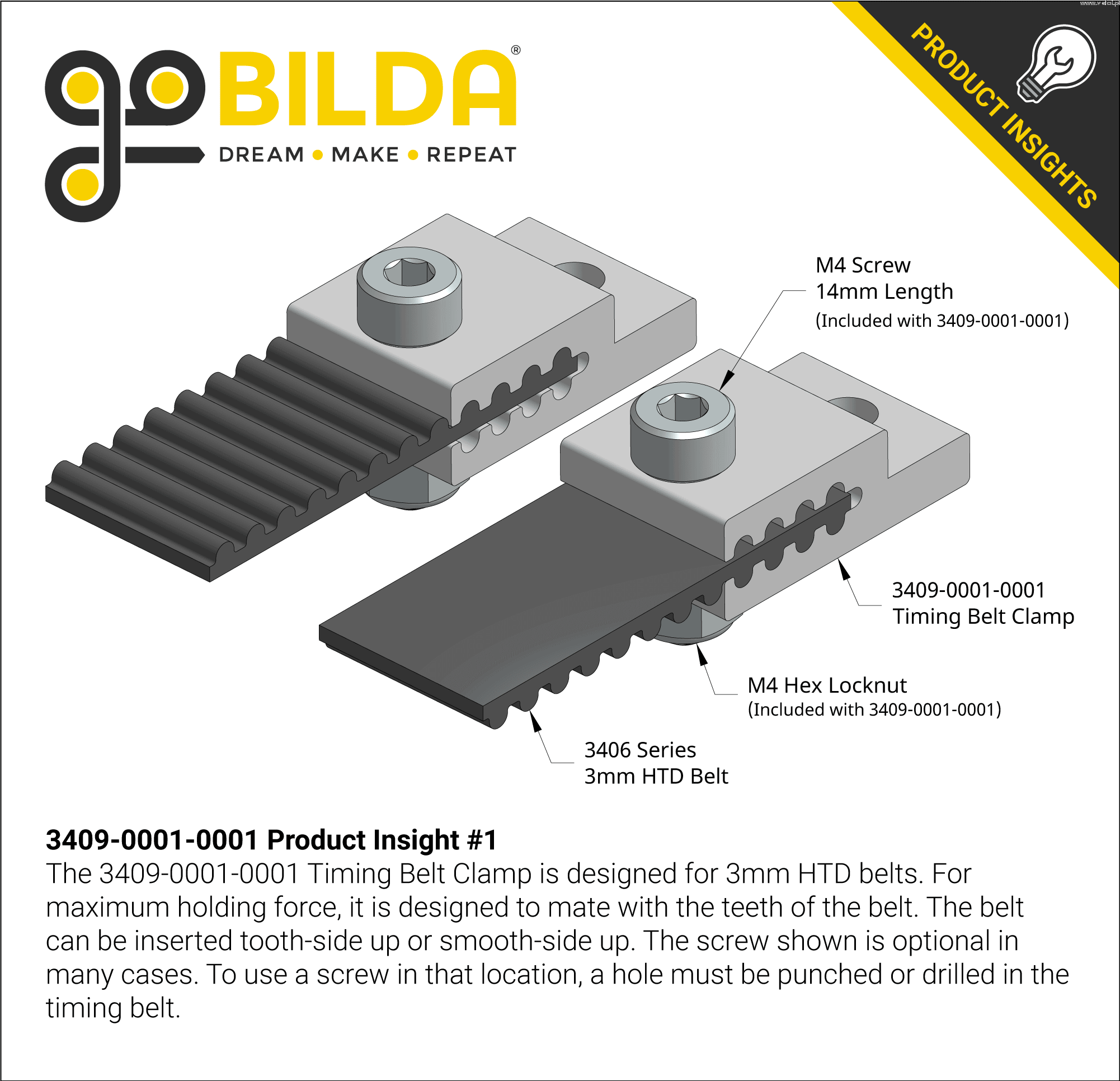

Toothed belt clamps are great for attaching a severed belt to get your construction moving. Sections of shortened lanes, as opposed to continuous lanes, are typically used in applications that do not require running over a pulley. For example, the XY table may be driven by a pulley and a cut section of belt. To create the movement, the belt will need to be properly tightened and attached to the chassis. The clamps will fit a 3mm HTD timing belt inserted in any orientation. For added security, make a 4mm hole in the belt, insert the supplied 14mm M4 socket head bolt through the belt clip, and tighten the M4 locknut for an extra solid connection.
Specification:
- Weight: 8,2g each
- Material: Aluminium
- Color: Anodised
- Stroke: 3mm (HTD)
