CNC oil nozzle kit with accessories

Availability: out of stock
Vendor: V-Slot
Product code: CNC-nozzle-Z1
Rating: 0
Price: €61.51 61.51
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €50.01
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

CNC oil nozzle kit with accessories

The CNC oil nozzle kit allows you to expand the LEAD CNC milling machines and many others with an oil nozzle with a hose and a valve. The solution enables cooling with both air and oil mist (air + liquid). The set includes additional accessories that facilitate the installation of the system.

The most important information:

  • The length of the segmented hose (with main line and nozzle) is approximately 35 cm
  • Length of transparent tubing (approximately 100 cm) ended with a filter
  • 8mm air connection
  • Pressure gauge for pressure regulation

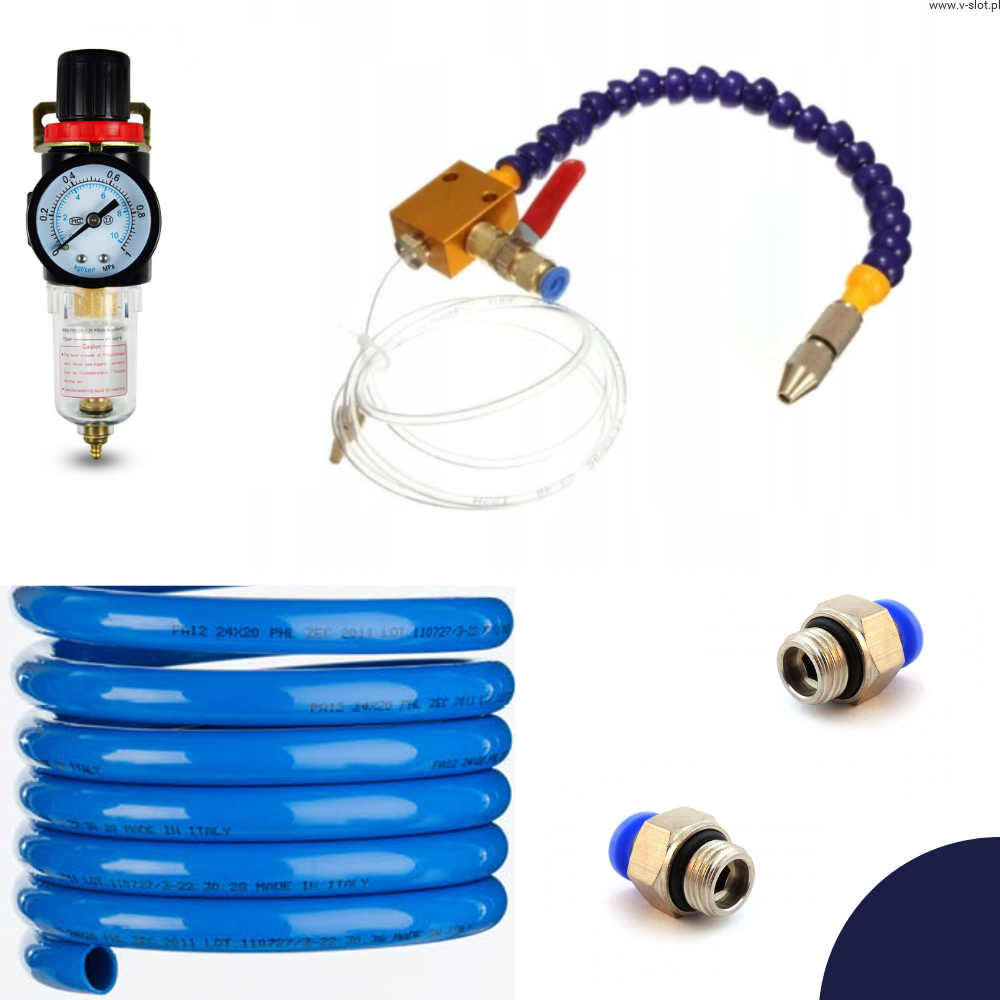

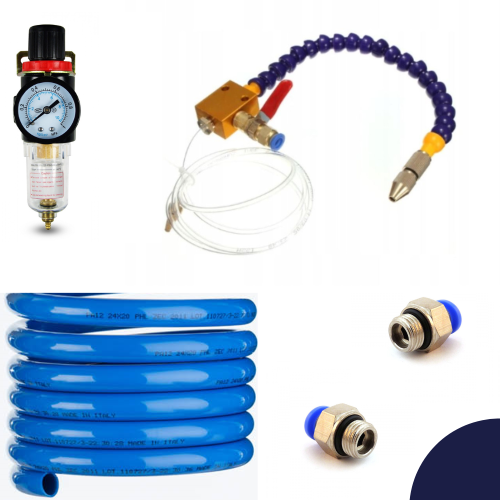

SET CONTENTS:

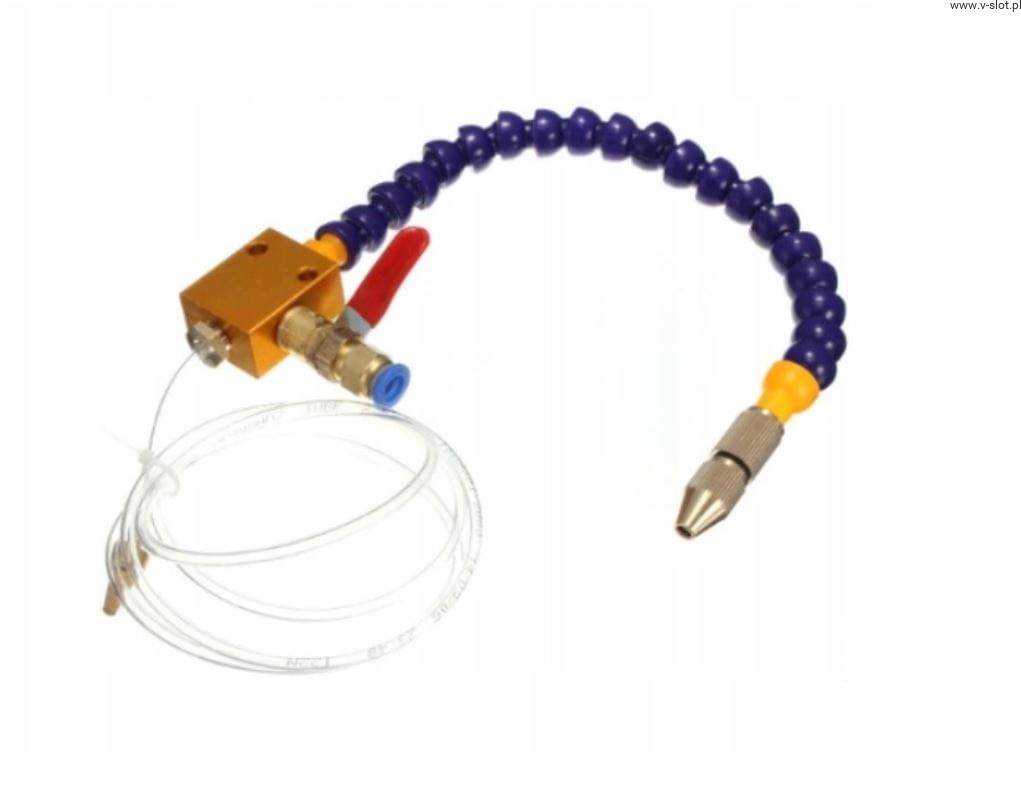

  1. Spray block with fluid hose and valve, 1 pc

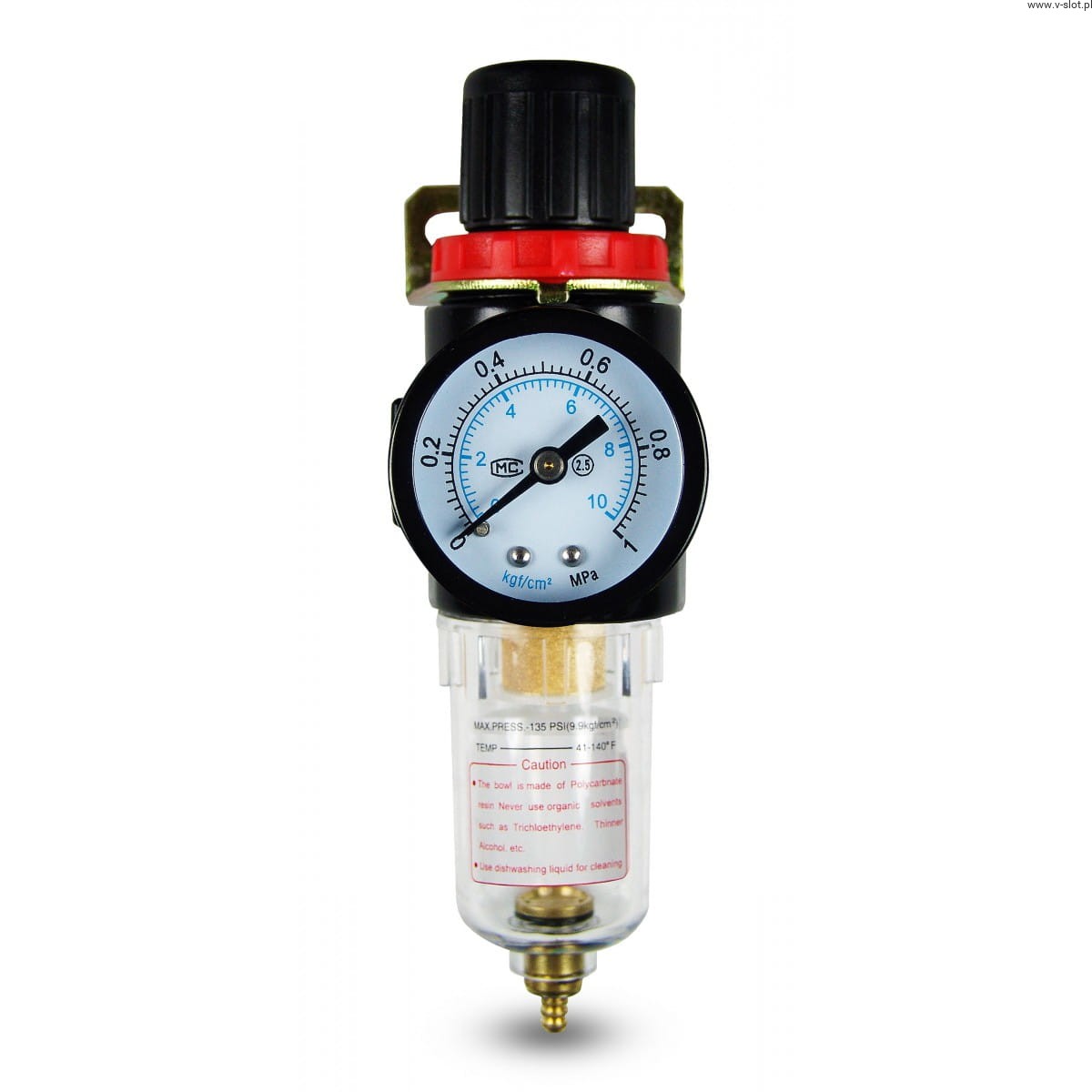

  2. Pressure gauge (drain / reducer) 1/4-inch, 1 pc
    • Working pressure: 0.5 - 8.5 bar
    • Max. flow: 650 l / min
    • Temp. work: 0-65 C
    • Connections 1/4 "internal thread

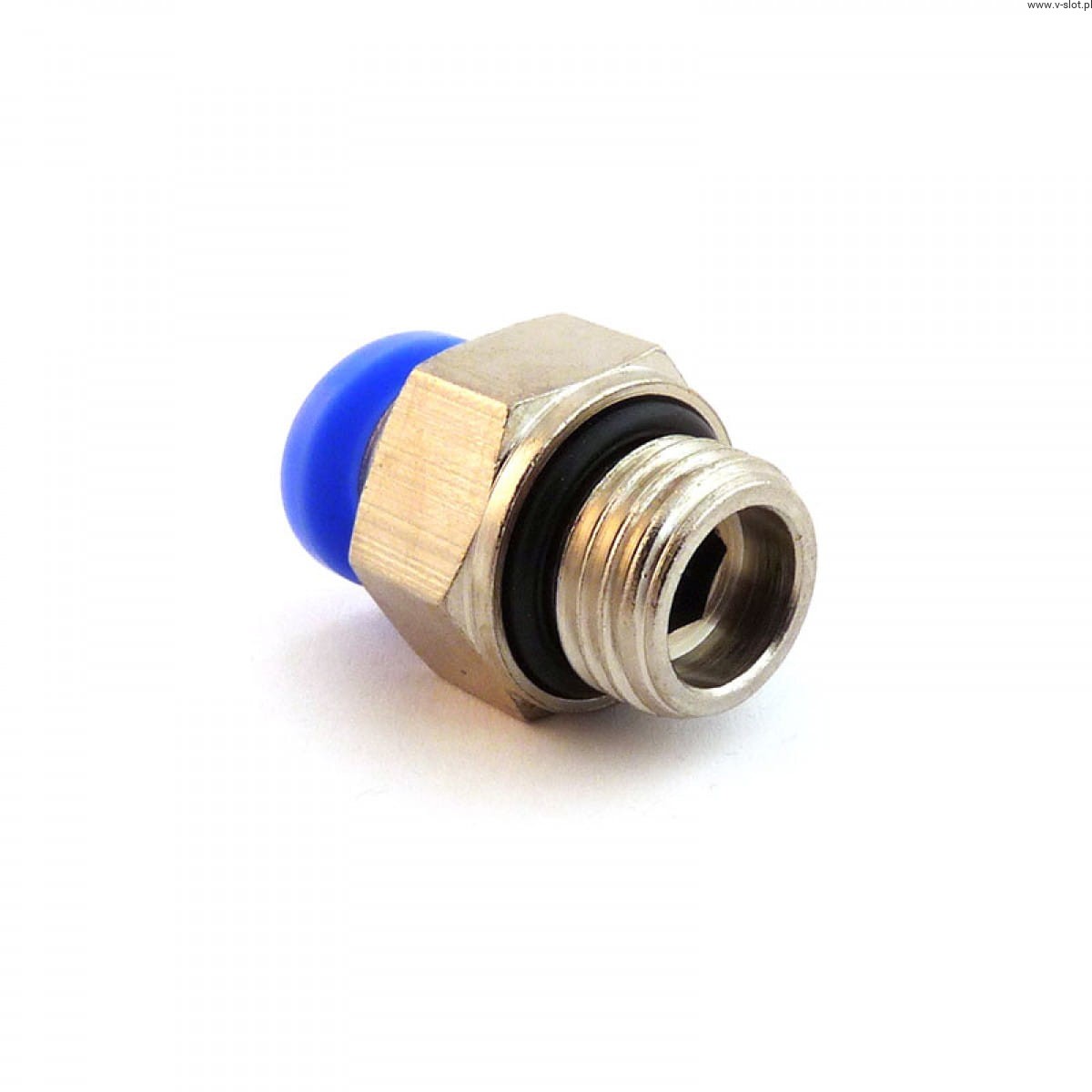

  3. 1/4 "straight plug connectors for fi 8 hose, 2 pcs
    • Max pressure: 10 bar
    • Temp. work: 0-60 C

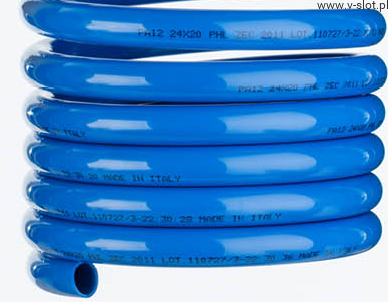

  4. 10 meters of pneumatic hose fi 8
