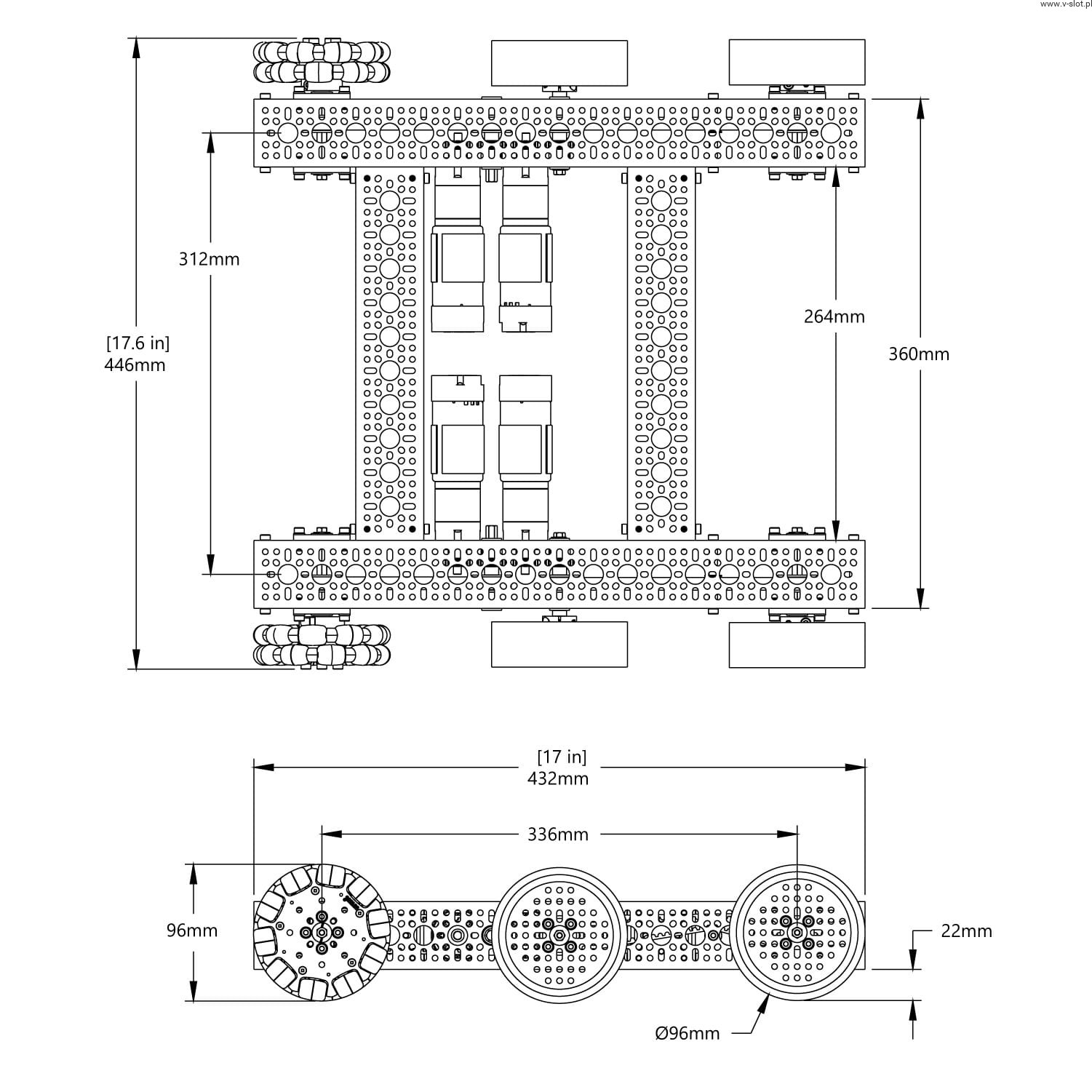

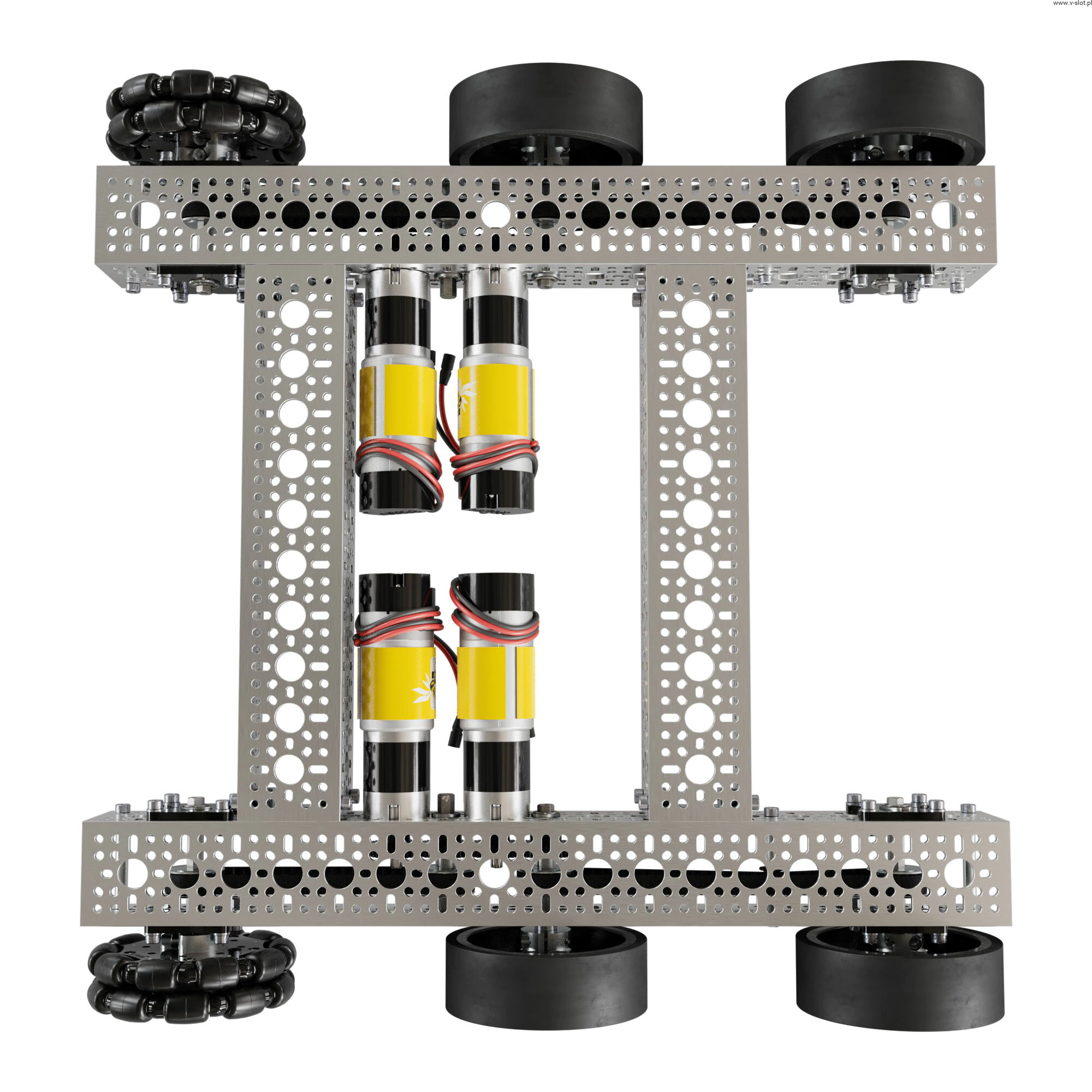

Beeline Chassis Set

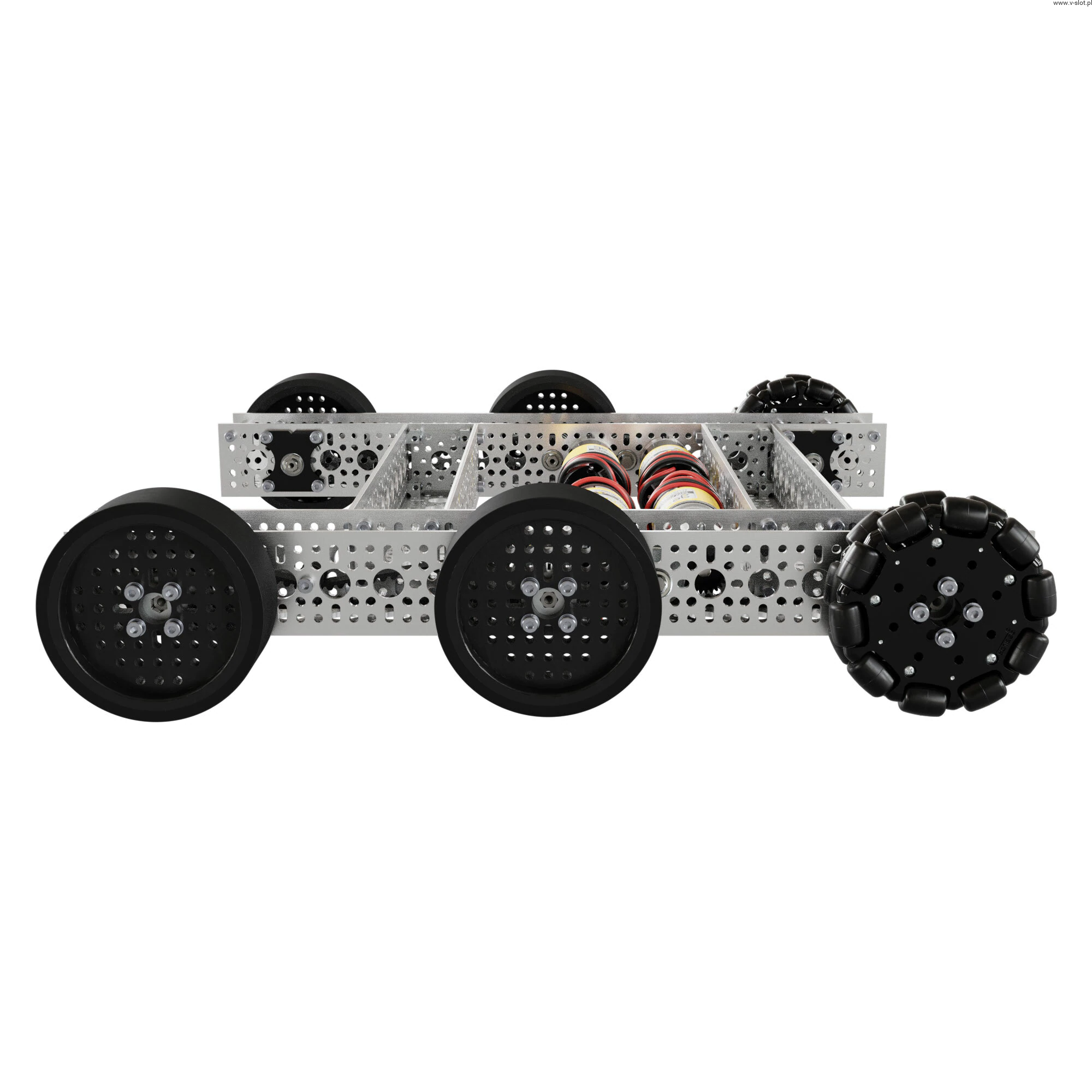

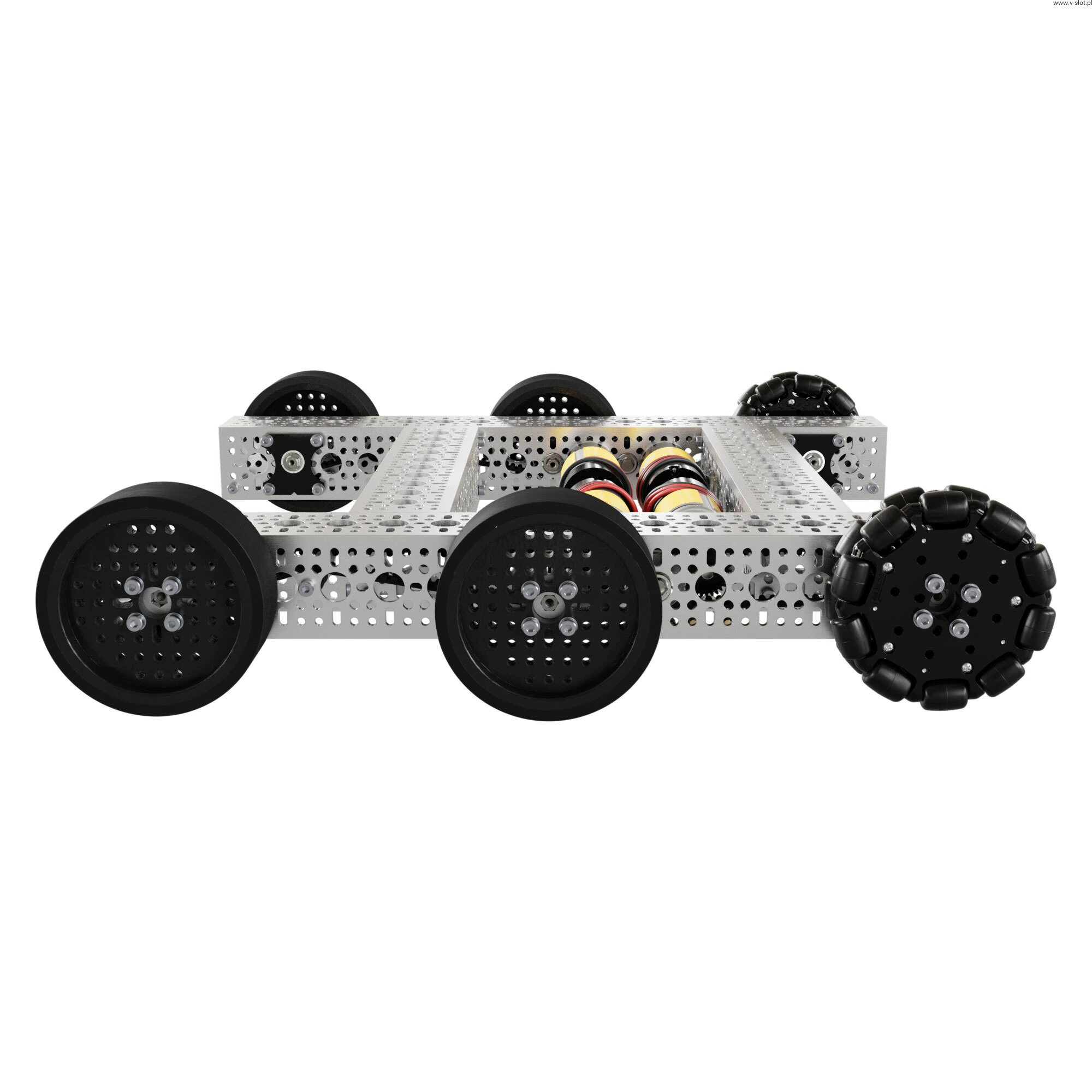

The Beeline Chassis Kit with 4 motor and 6-wheel drive ready for Your setup!
Many chassis are designed to be agile, but thus give up grip. Others have excellent grip but are weaker when it comes time to maneuver quickly. Beeline Chassis kit is handy in both operations! Considering that each side is equipped with two 96mm Rhino wheels, the ground contact area has been maximized. The omni wheels on the rear edge of the chassis, combined with the slightly raised axle positions at each end of the chassis, allows to turn at significantly higher speeds compared to other 6-wheel drivetrains!
This type of chassis is very easy to operate.

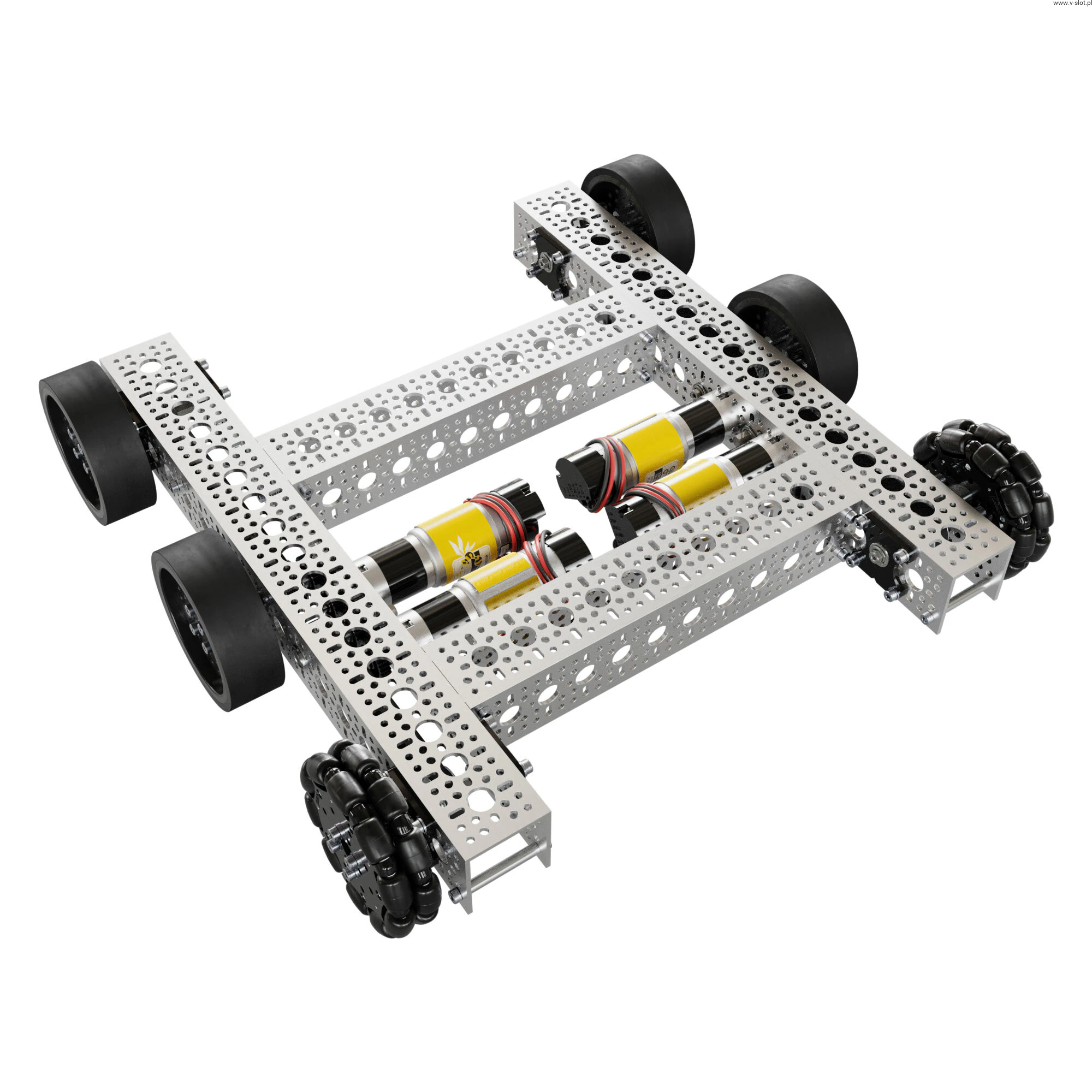

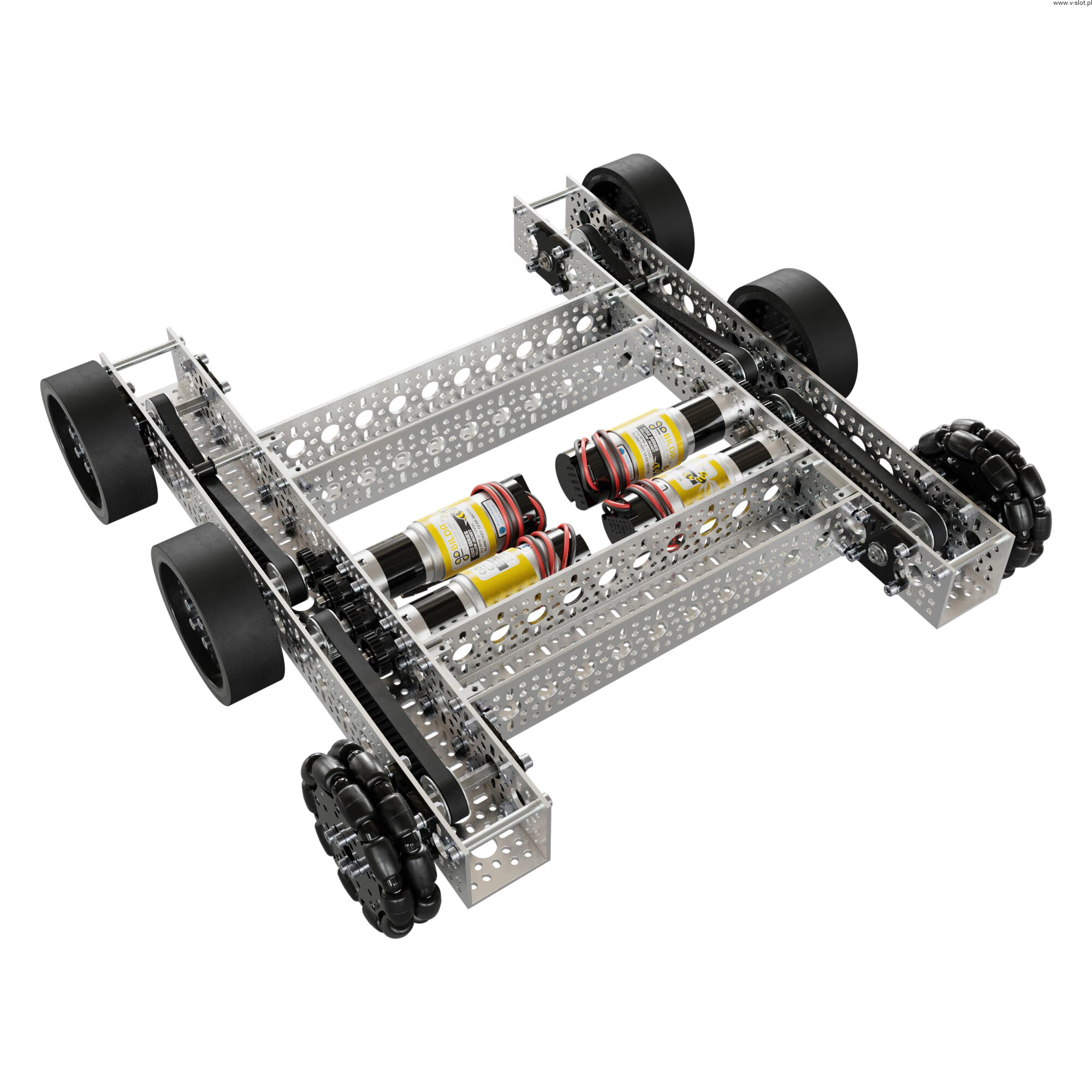

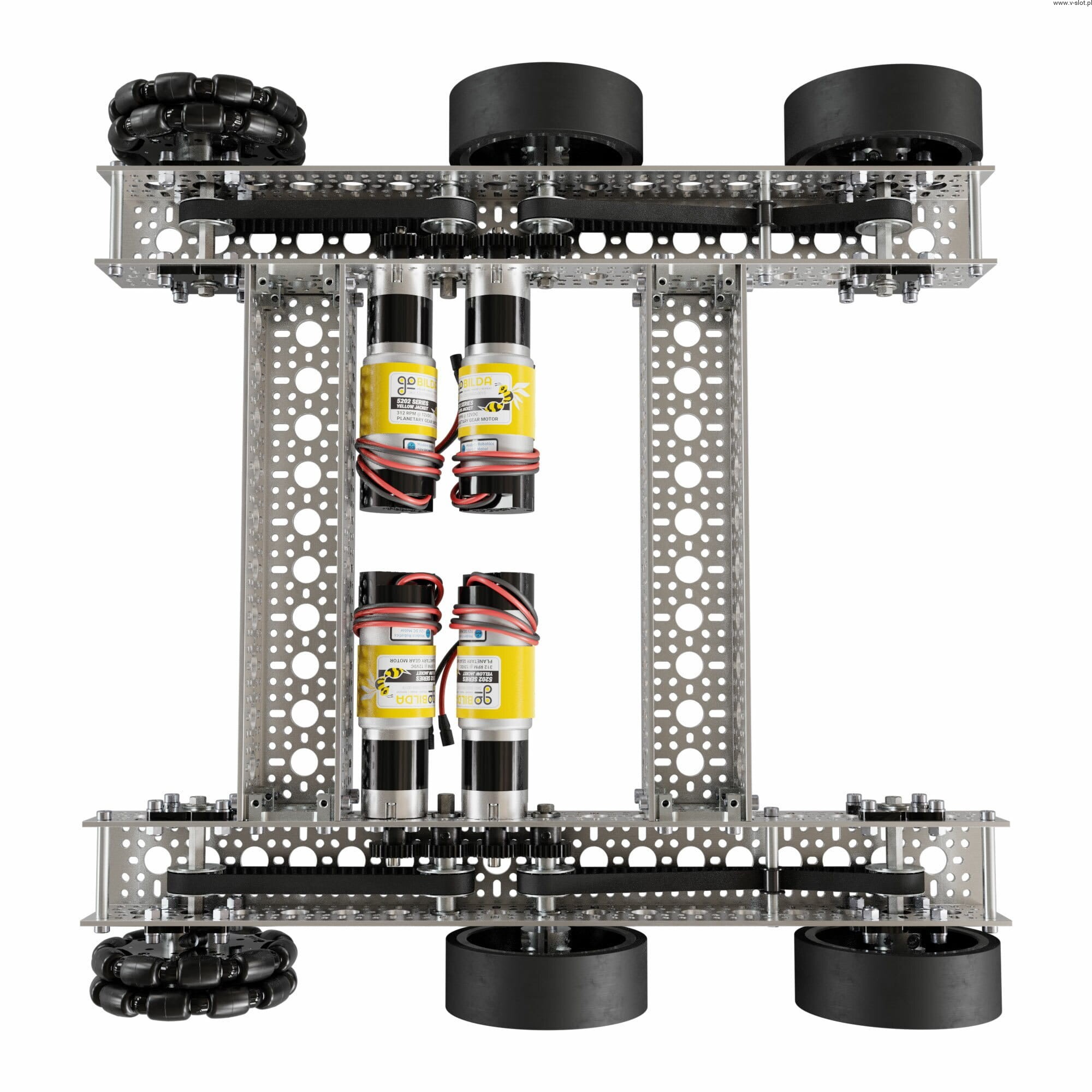

Beeline has four engines: two on the left and two on the right side. The left motors will work together so do the right ones too thanks to presence the direct connection they have together via steel gears.
If you are competing in the FTC, you will be using a REV hub which will require each motor to be connected to a separate channel. If you have engine controllers, a dual-channel engine controller and multiple Y-beams at your disposal, this kit will get you to start.

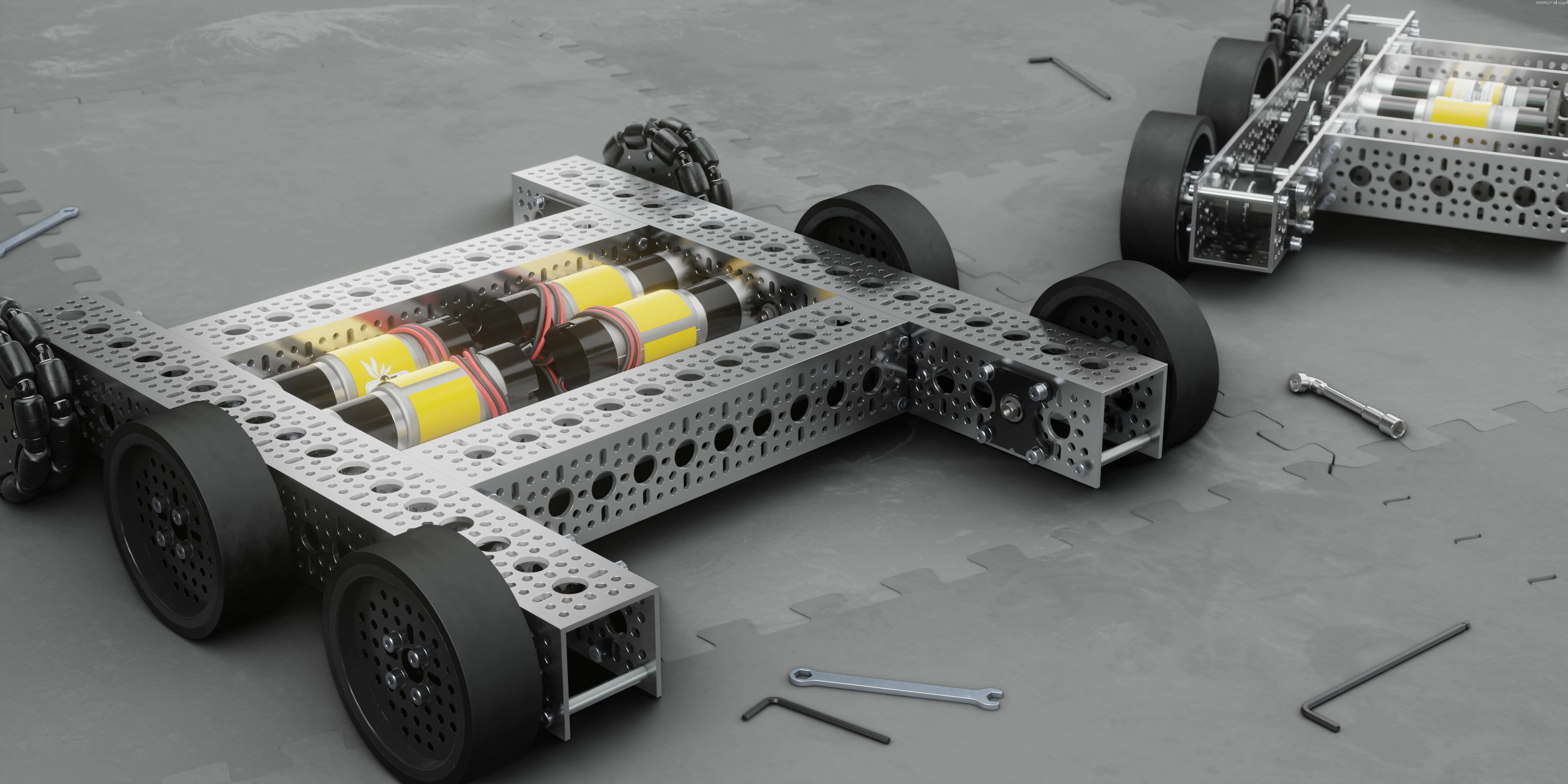

You do not need to fumble through the toolbox to find the right assembly tools - they are included in the set, to get started using the unit quickly. Thanks to the easy-to-follow instructions, even those who are just starting their adventure with robotics will be able to accurately assemble the BeeLine chassis.

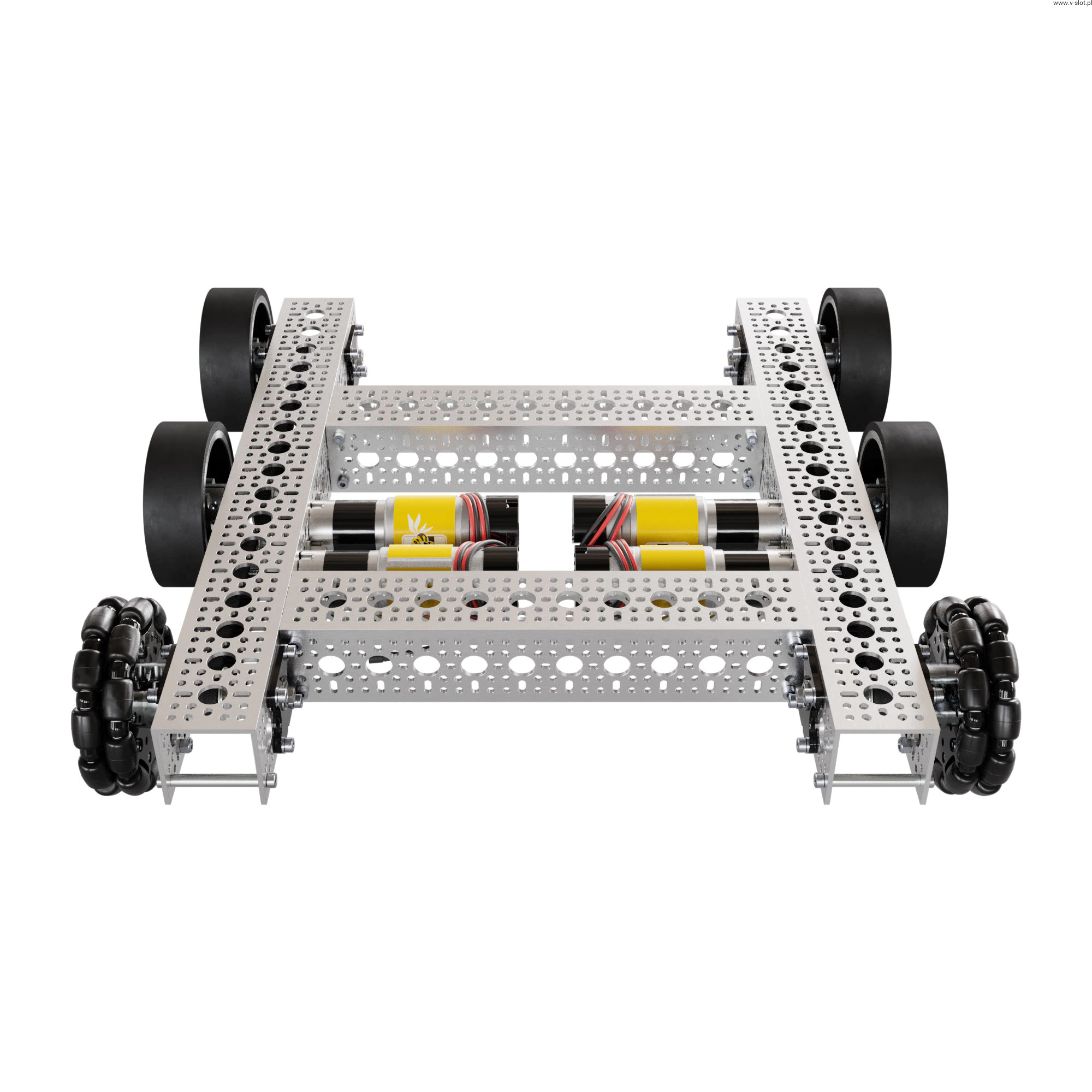

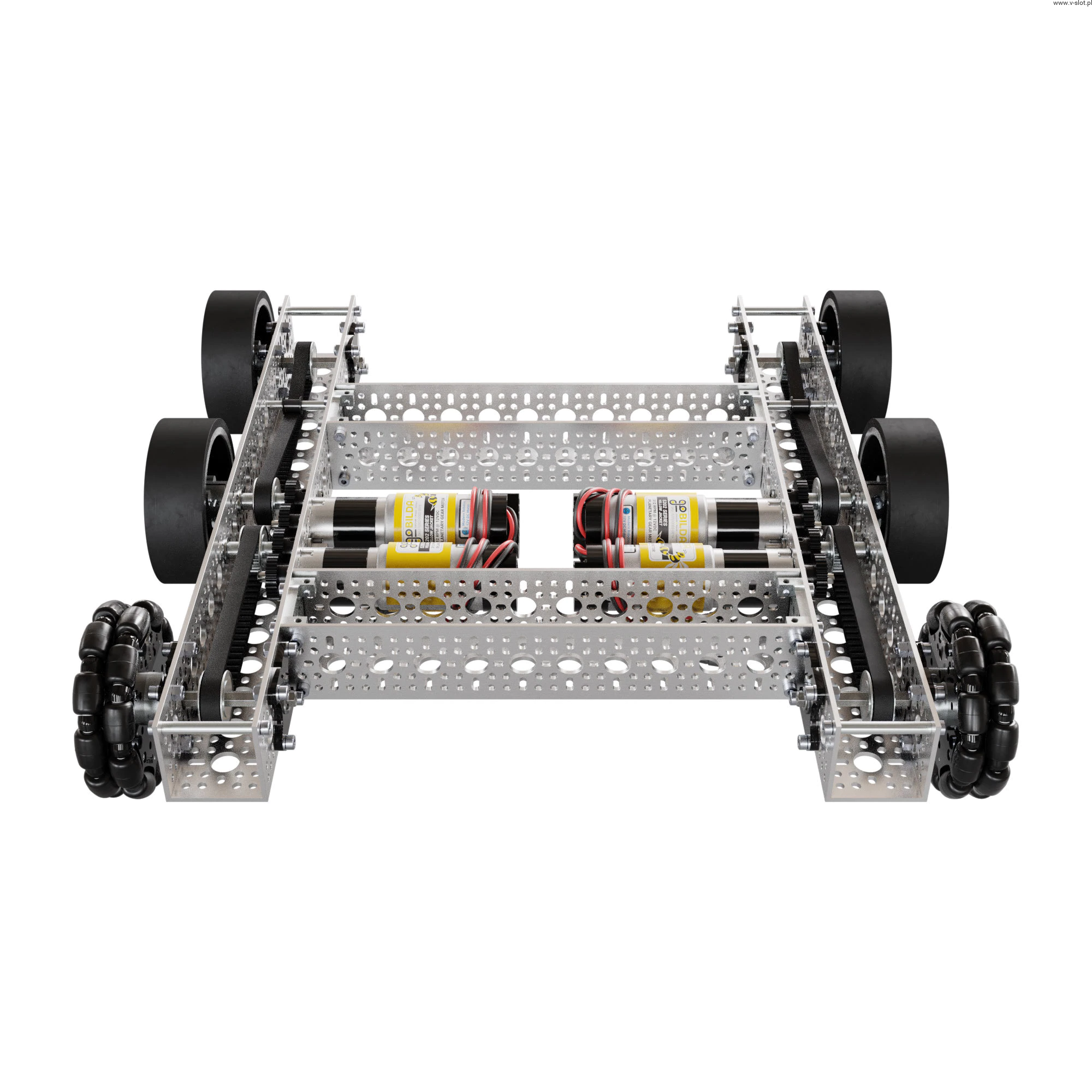

The upper part of the BeeLine frame is ready to begin the construction. The profile has many holes that are easily accessible, so you can easily do quick assembly, add firing mechanisms, jacks, or arms. The profile that goes from one side to the other can be moved back and forth to accommodate additional mechanisms.
Set includes:
| Pcs. | SKU | Product |
| 2 | 1120-0010-0264 x 2 |
U-profile 1120 series (10 holes, length 264 mm) |
| 2 | 1120-0017-0432 x 2 |
U-profile 1120 series (17 holes, length 432mm) |
| 4 | 1201-0043-0002 x 4 |
Four-thread mounting series 1201 (43-2) |
| 2 | 1309-0016-4008 x 2 |
Sonic Hub 1309 Series (8mm REX bore) |
| 4 | 1310-0016-4008 x 4 |
Hyper Hub 1310 Series (8mm REX bore) |
| 8 | 1501-0006-0430 x 2 |
Distance M4 x 0.7 mm series 1501 (outer diameter 6 mm, length 43 mm) - 4 packs |
| 2 | 1504-0032-0040 x 2 |
Spacers with 32mm OD Series 1504 (4mm length) |
| 4 | 1514-0010-0040 x 1 |
Spacer 8 mm series 1514 (outer diameter 10 mm, length 4 mm) - 4 pcs |
| 4 | 1514-0010-0060 x 1 |
Spacer 8 mm series 1514 (outer diameter 10 mm, length 6 mm) - 4 pcs |
| 4 | 1514-0010-0080 x 1 | Spacer 8 mm series 1514 (outer diameter 10 mm, length 8 mm) - 4 pcs |
| 16 | 1611-0514-4008 x 8 |
Flanged Ball Bearing 1611 Series (8mm REX ID x 14mm OD, 5mm Thickness) - 2 pcs |
| 8 | 1616-0032-0002 x 2 |
Middle bearing plate type 1616 (32 mm pattern, 2 mm drop) - 4 pcs |
| 2 | 2102-0008-0060 x 2 |
Stainless steel REX shaft Series 2102 (diameter 8 mm, length 60 mm) |
| 6 | 2106-4008-0880 x 6 |
Stainless steel REX shaft Series 2106 (diameter 8 mm, length 88 mm) |
| 4 | 2303-1006-0030 x 4 |
Steel MOD 0.8 sprocket 2303 series (6 mm D bore, 30 teeth) |
| 4 | 2303-4008-0030 x 4 |
Steel, MOD 0.8 sprocket 2303 series (8 mm REX bore, 30 teeth) |
| 25 | 2800-0004-0008 x 1 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 8 mm) - 25 pcs |
| 50 | 2800-0004-0011 x 2 | Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 11 mm) - 25 pcs |
| 50 | 2800-0004-0014 x 2 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 14 mm) - 25 pcs |
| 25 | 2800-0004-0018 x 1 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 18 mm) - 25 pcs |
| 25 | 2800-0004-0030 x 1 |
Hexagon socket head cap screw 2800 series (M4 x 0.7 mm, length 30 mm) - 25 pcs |
| 75 | 2801-0004-0008 x 3 |
Galvanized steel washer 3 2801 series (4mm ID x 8mm OD) - 25 pcs |
| 12 | 2807-0811-1000 x 1 |
Stainless steel washer series 2807 (ID 8 mm x OD 11 mm, thickness 1 mm) - 12 pcs |
| 50 | 2812-0004-0007 x 2 |
Zinc-plated steel lock nut Series 2812 (M4 x 0.7 mm, hexagonal 7 mm) - pack of 25 |
| 2 | 3412-0009-0320 x 2 |
Timing belt 5 mm pitch HTD series 3412 (width 9 mm, pitch length 320 mm, 64 teeth) |
| 2 | 3412-0009-0420 x 2 |
Timing belt with 5 mm pitch HTD series 3412 (9 mm width, 420 mm pitch length, 84 teeth) |
| 2 | 3413-0001-0001 x 1 |
Acetal Timing Belt Tension Pulley (6mm ID x 12mm OD, 12mm Width, 1-1) - 2pcs |
| 8 | 3414-4008-0016 x 8 |
Timing Belt Pulley with HTD 5mm pitch bolt 3414 series (8mm REX bore, 16 teeth) |
| 4 | 3601-0014-0096 x 4 |
Rhino wheel 3601 series (14mm bore, 96mm dia) |
| 4 | 3604-0014-0096 x 4 |
Omni Wheel 3604 series (14mm bore, 96mm dia) |
| 4 | 3801-0613-0100 x 4 |
JST VH Adapter 2-position [MH-FC] to 3.5mm jack [MH-FC] (length 100mm) |
| 1 | 4200-0090-0025 x 1 | 2.5mm Allen key |
| 1 | 4200-0090-0030 x 1 | 3mm hexagon wrench |
| 1 | 4206-0070-0001 x 1 |
Screwdriver for combination nuts 7 mm |
| 4 | 5202-0002-0019 x 4 |
Planetary gear motor with yellow cover 5202 series (ratio 19.2: 1, length 24 mm, shaft D 6 mm, 312 rpm, encoder 3.3 - 5 V) |
Specification:
- Weight: 5220g
