Ball bearing guide rail kit for lower U profile series 1121
Ball bearing guide rail kit for lower U profile series 1121
0
product unavailable
Description

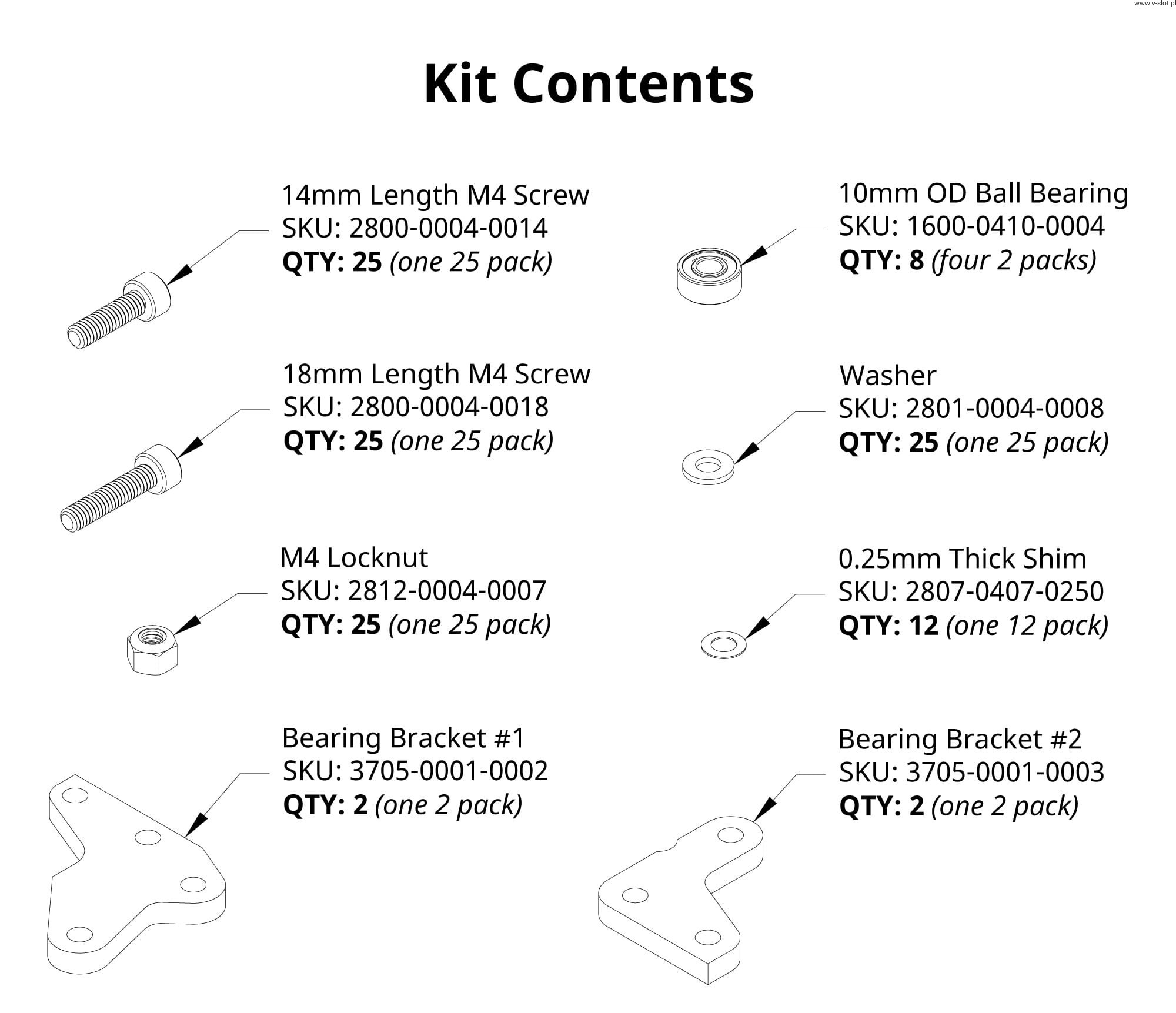

Ball bearing guide rail kit for lower U profile series 1121

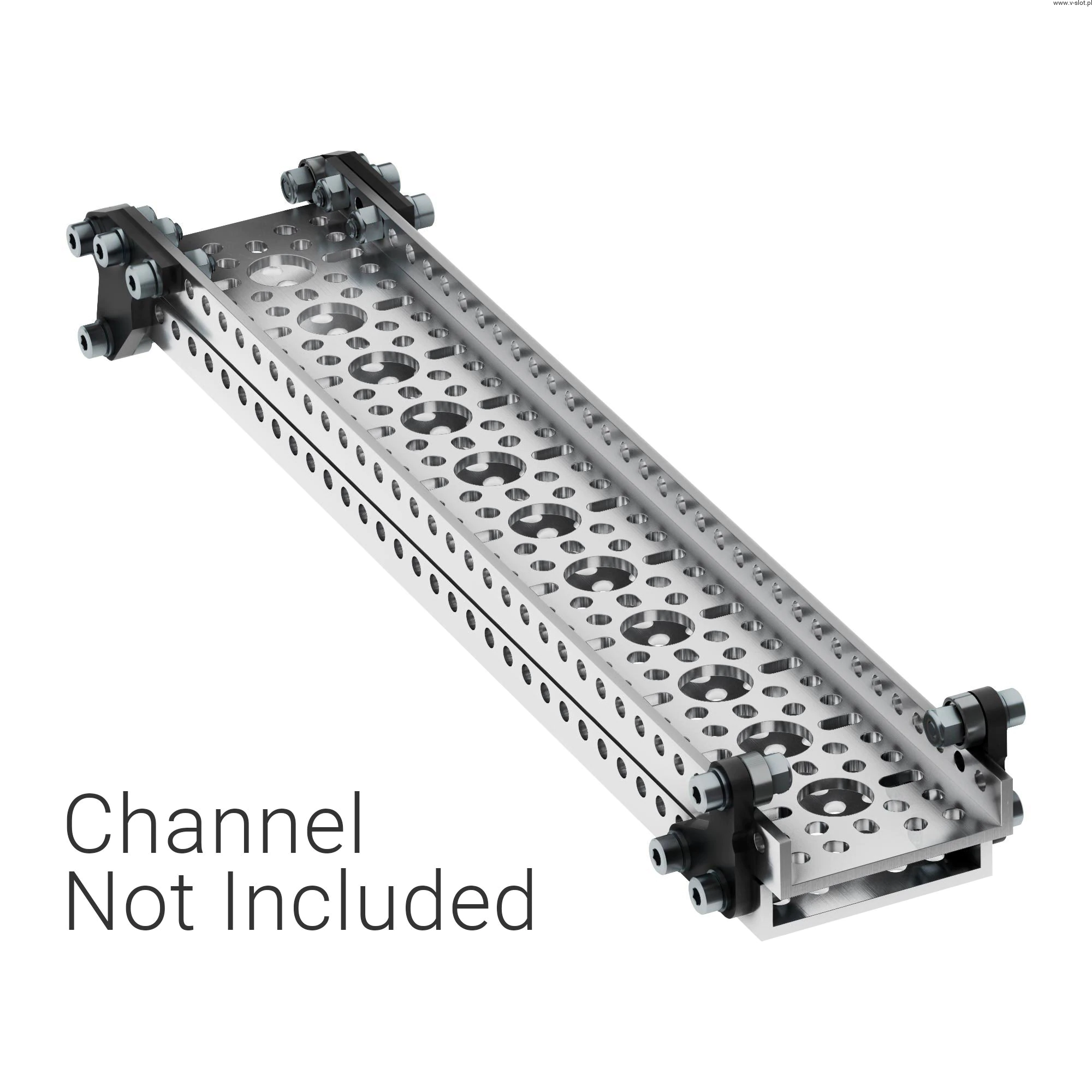

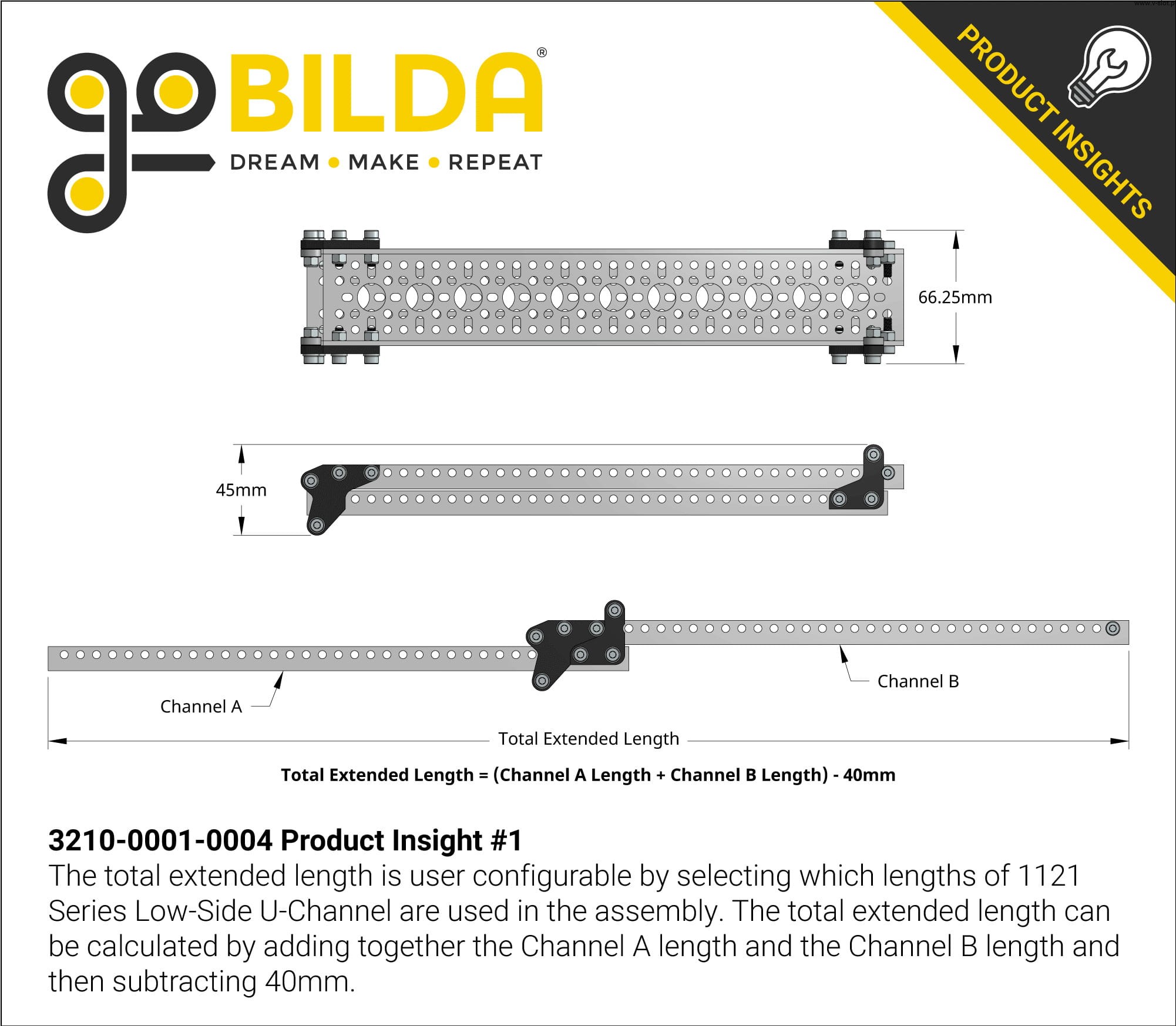

This little set of parts gives you plenty of building options! The slide kit includes all the necessary parts to make one cascade over the other with the 1121 series bottom U-profile, similar to the sliding ladder. Each end contains four bearings so that the two selected profiles are locked and support each other. When rolled up, the layout adds only 8 mm to the total length of two profiles with equal length (for example, a folded length using 288 mm profiles is 296 mm). The length of the full extension will be 40 mm less than the sum of the two profiles (extended 288 mm profiles will give a length of 536 mm)!
