Angled gear (D 6 mm bore, 30 teeth)
Angled gear (D 6 mm bore, 30 teeth)
0
product unavailable
Description

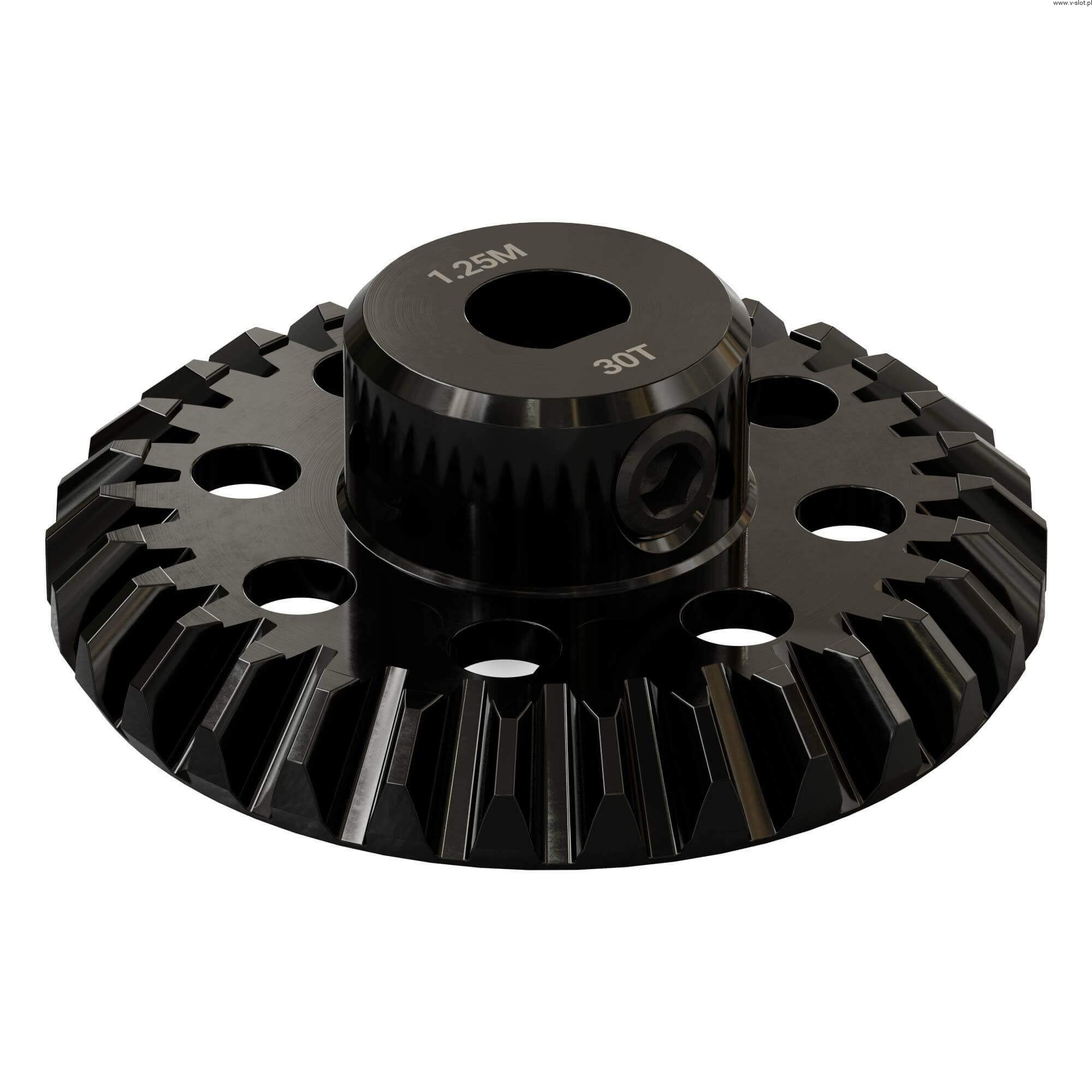

Angled gear (D 6 mm bore, 30 teeth)

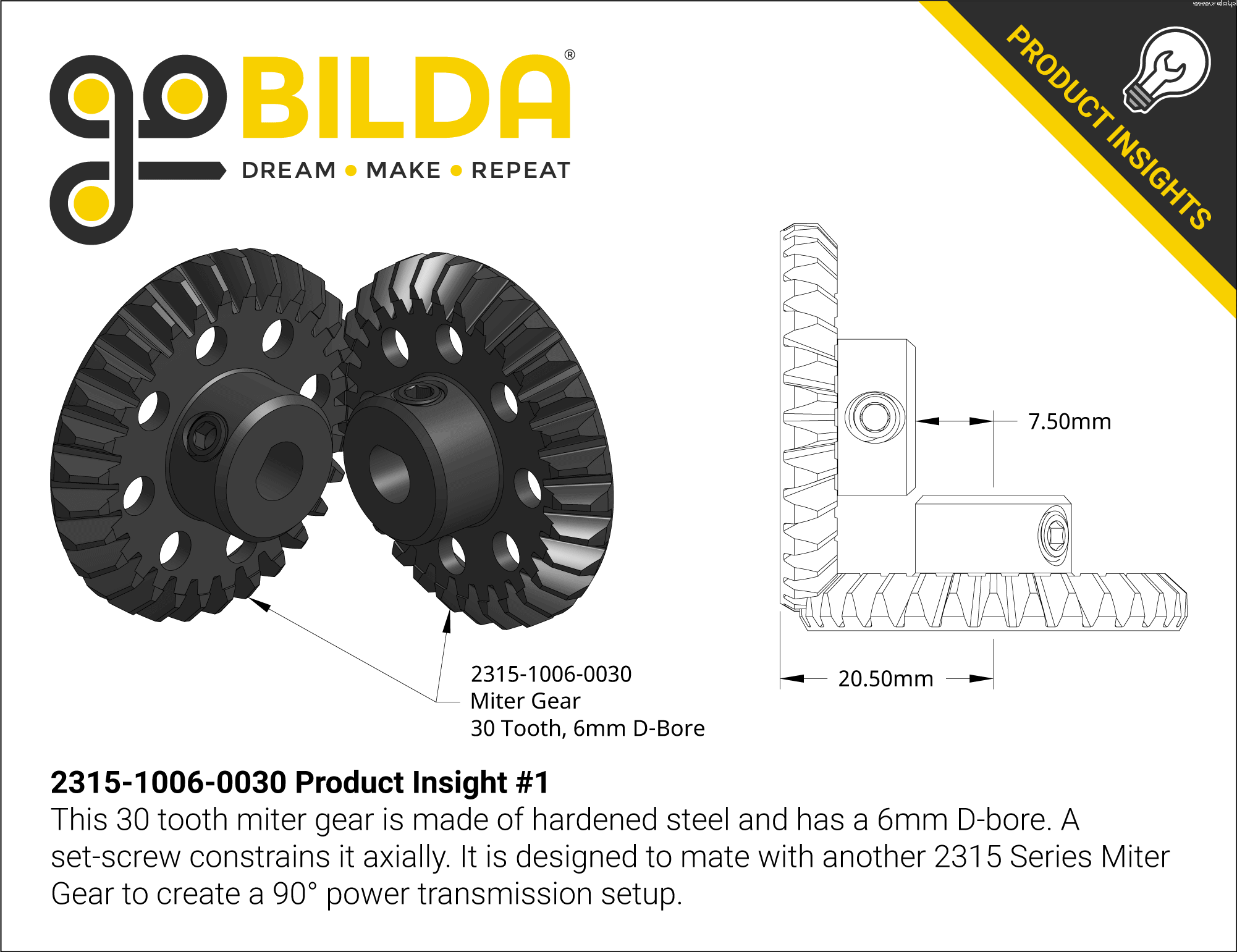

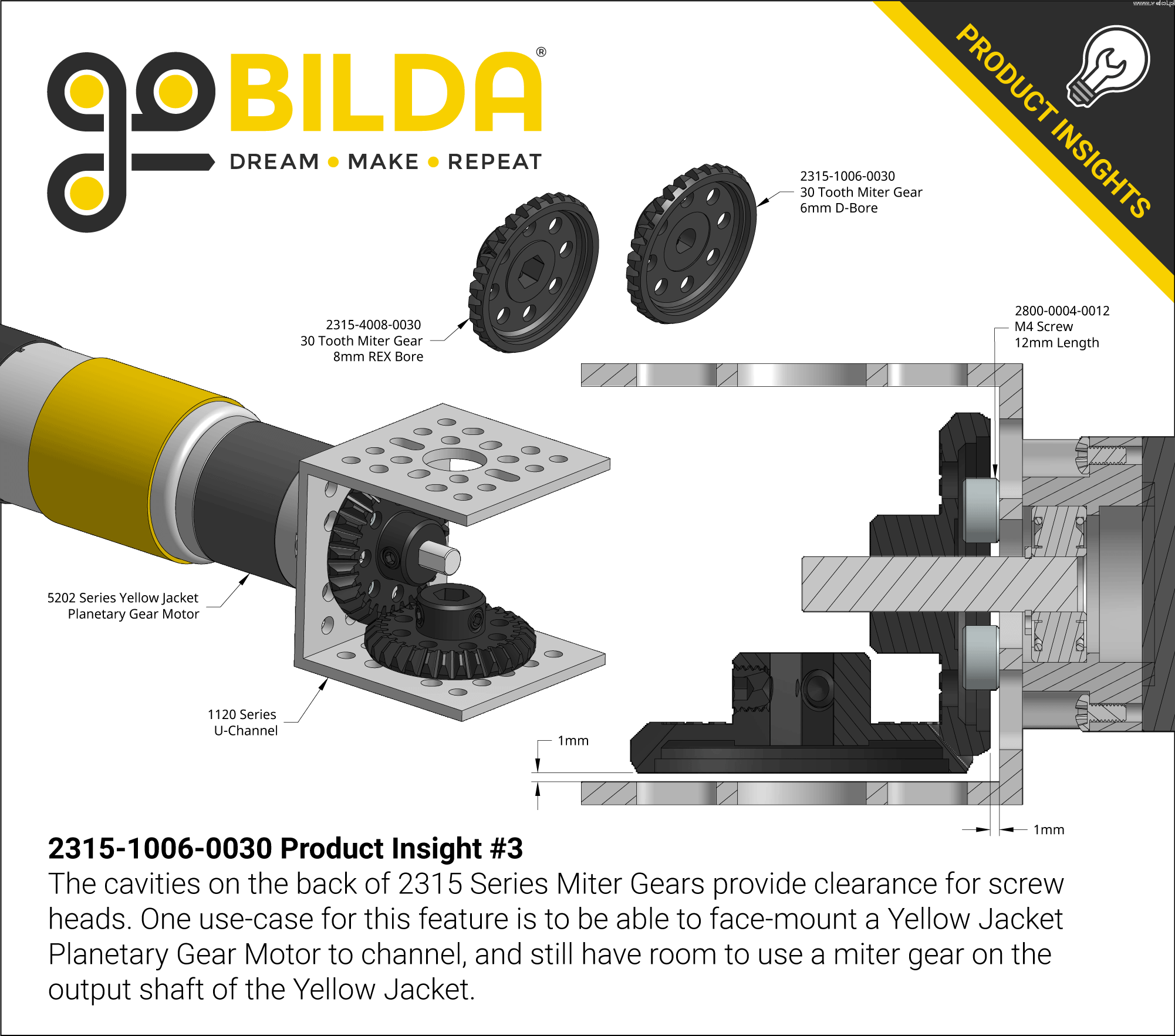

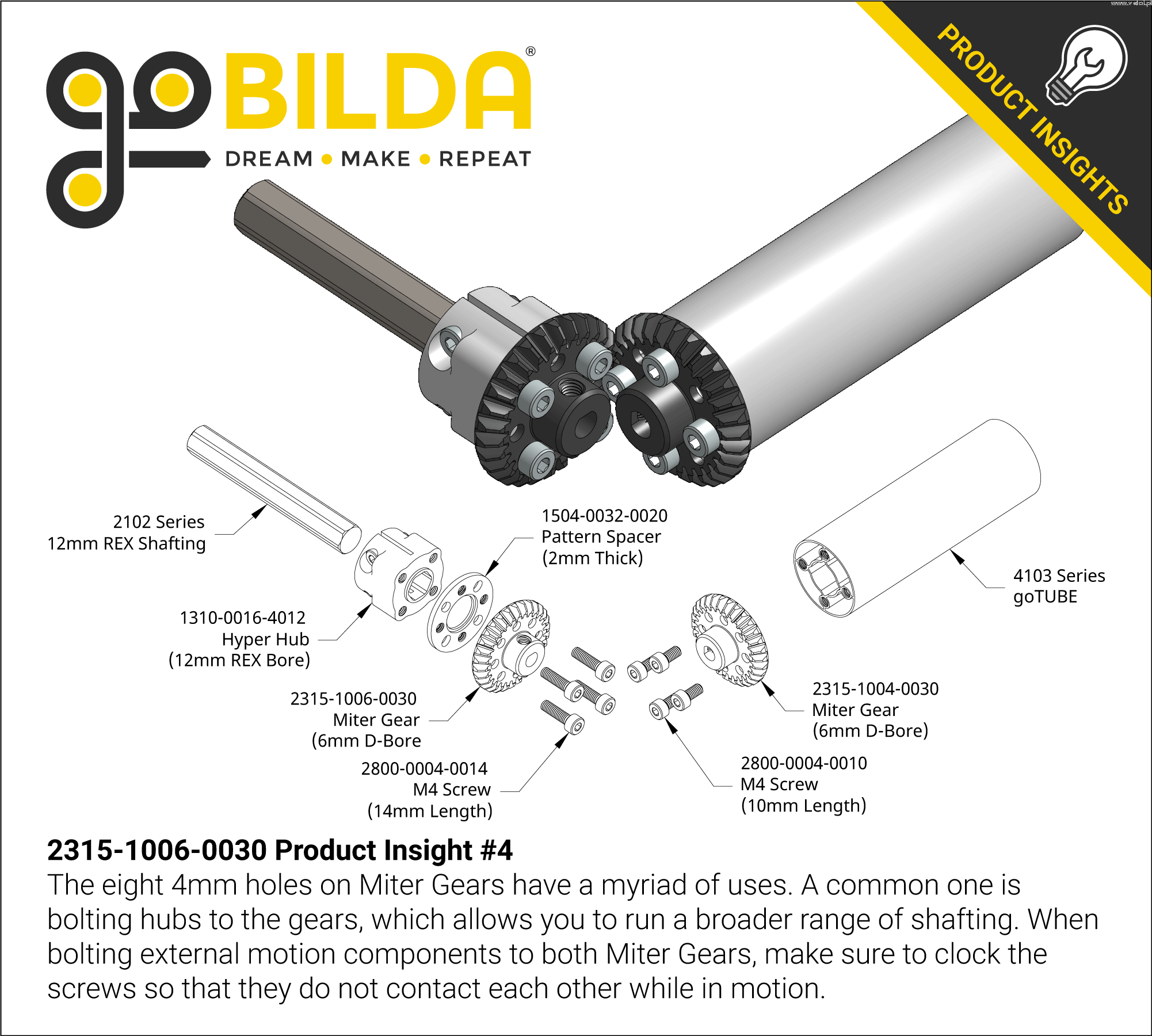

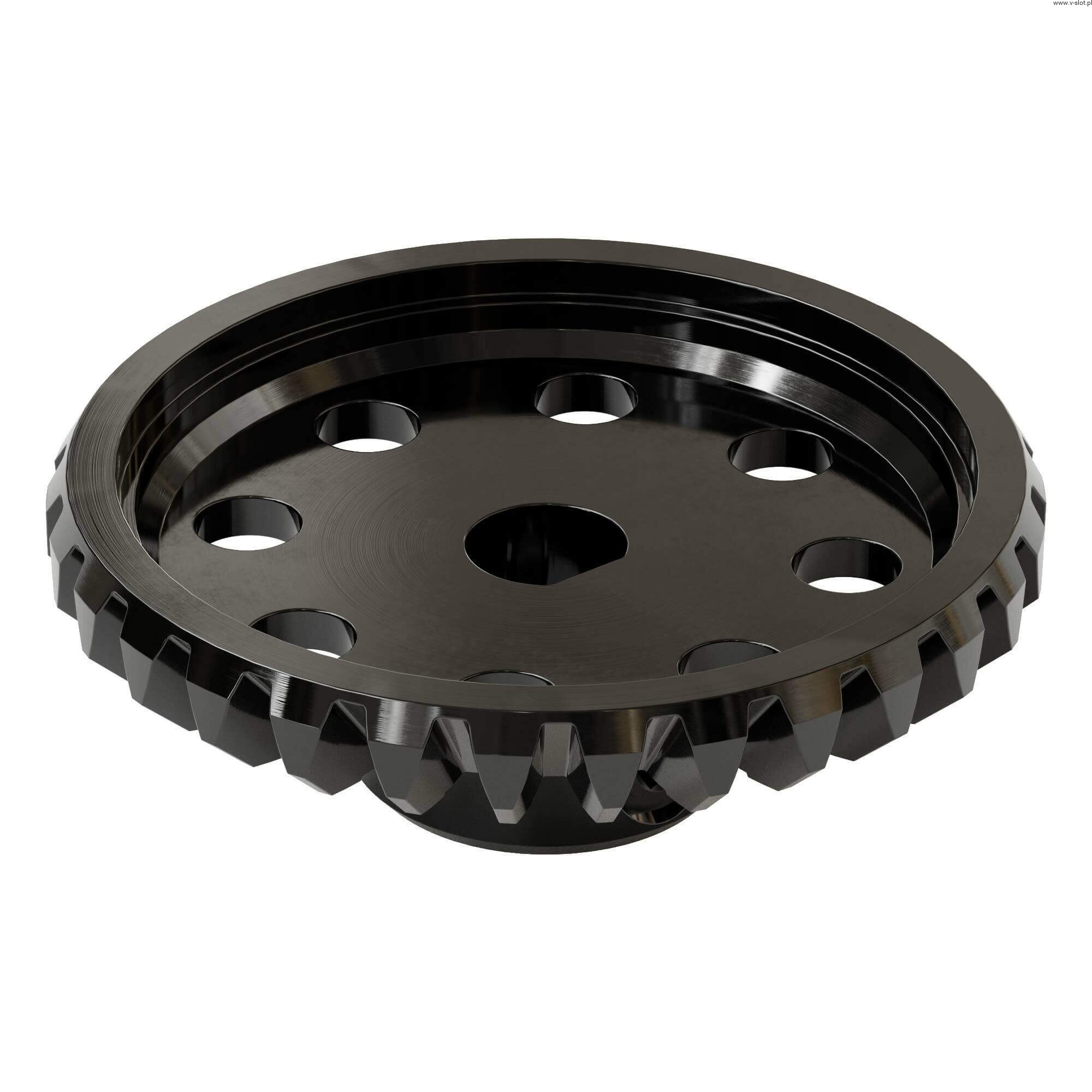

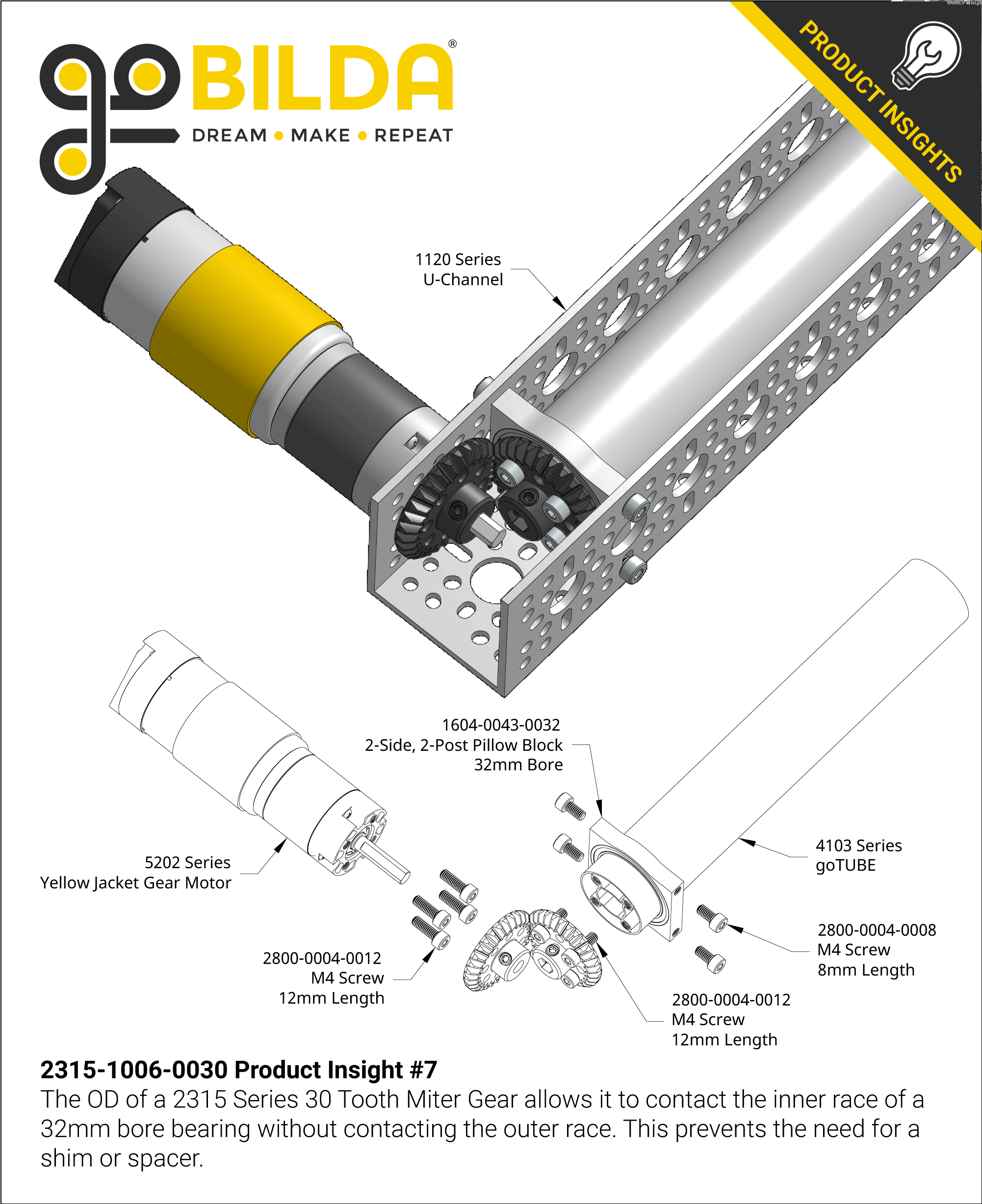

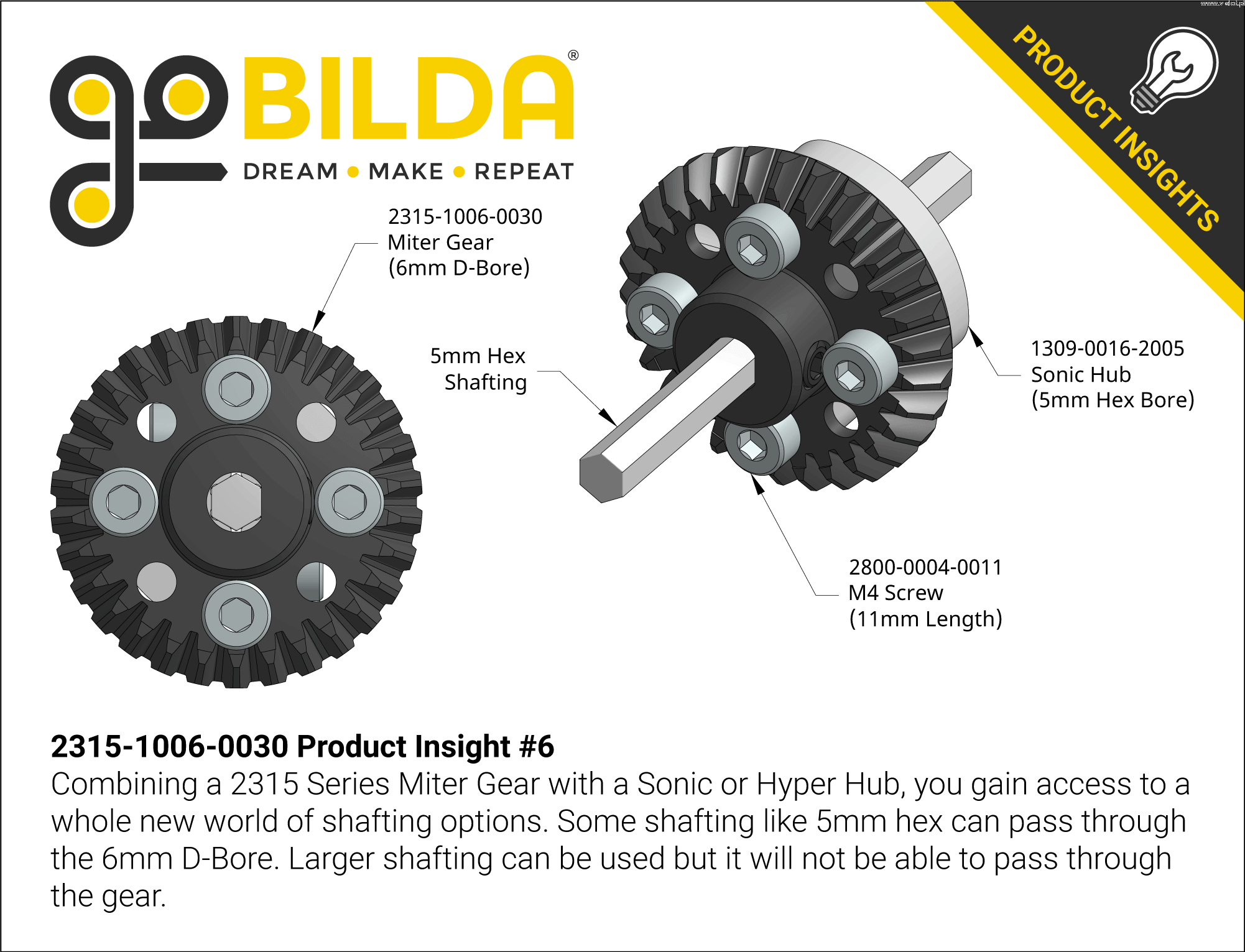

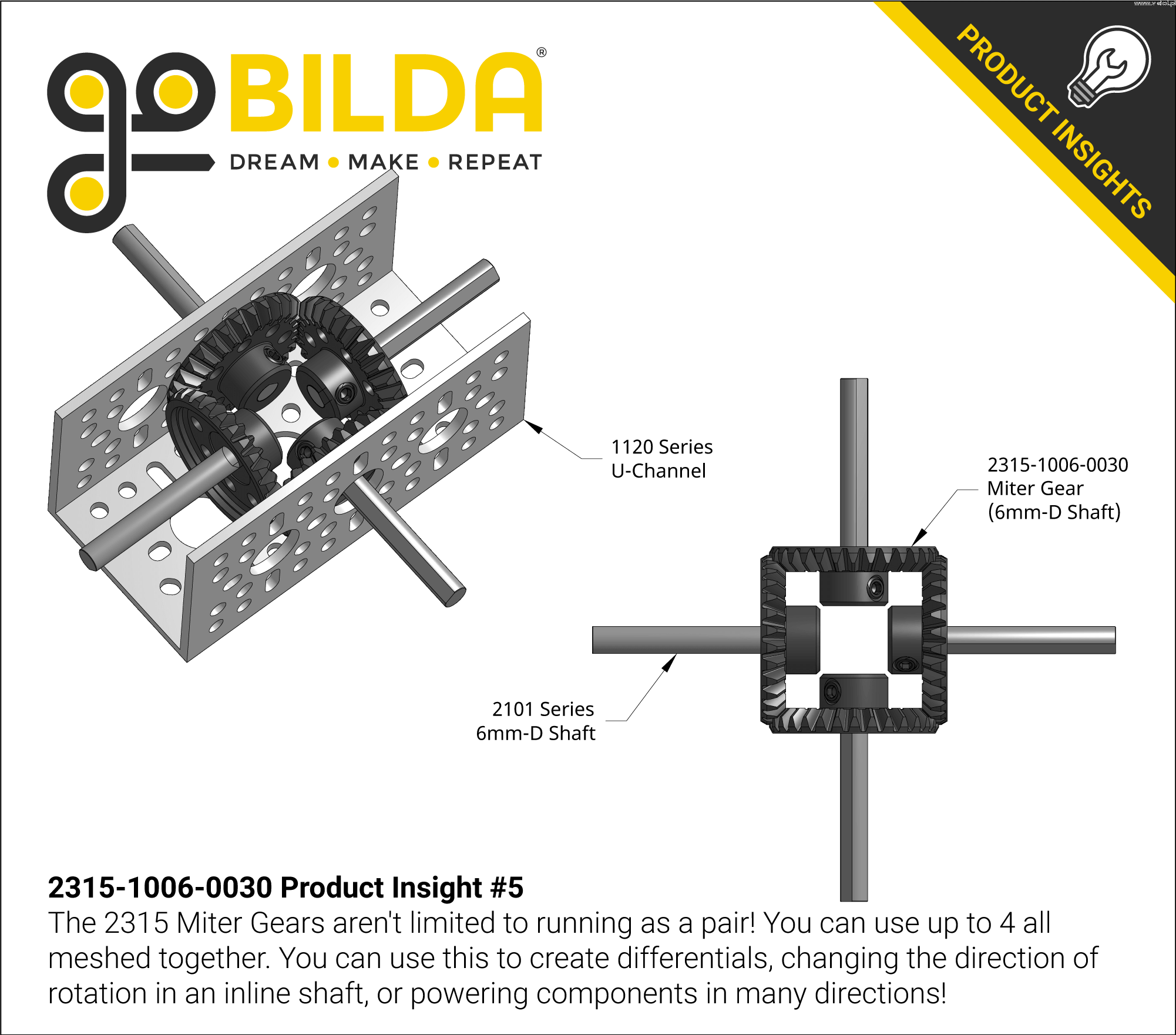

This 6mm D-Bore bevel gear can mate with any other bevel gear in the 2315 series. The angular gear is a specific type of bevel gear. Two mating bevel gears create a 1: 1 ratio and transmit power at a 90-degree angle thanks to the 45-degree cone angle. The underside of this gear has been extended to allow the thrust bearing to position the gear (relative to the inner wall of the 1120 series U channel) and counter potential propagation forces in the most extreme applications. Additionally, the 32mm rear shelf will allow a 32mm element such as a goRAIL, goTUBE or Sonic hub to be inserted into the recess and secured with M4 socket head screws.

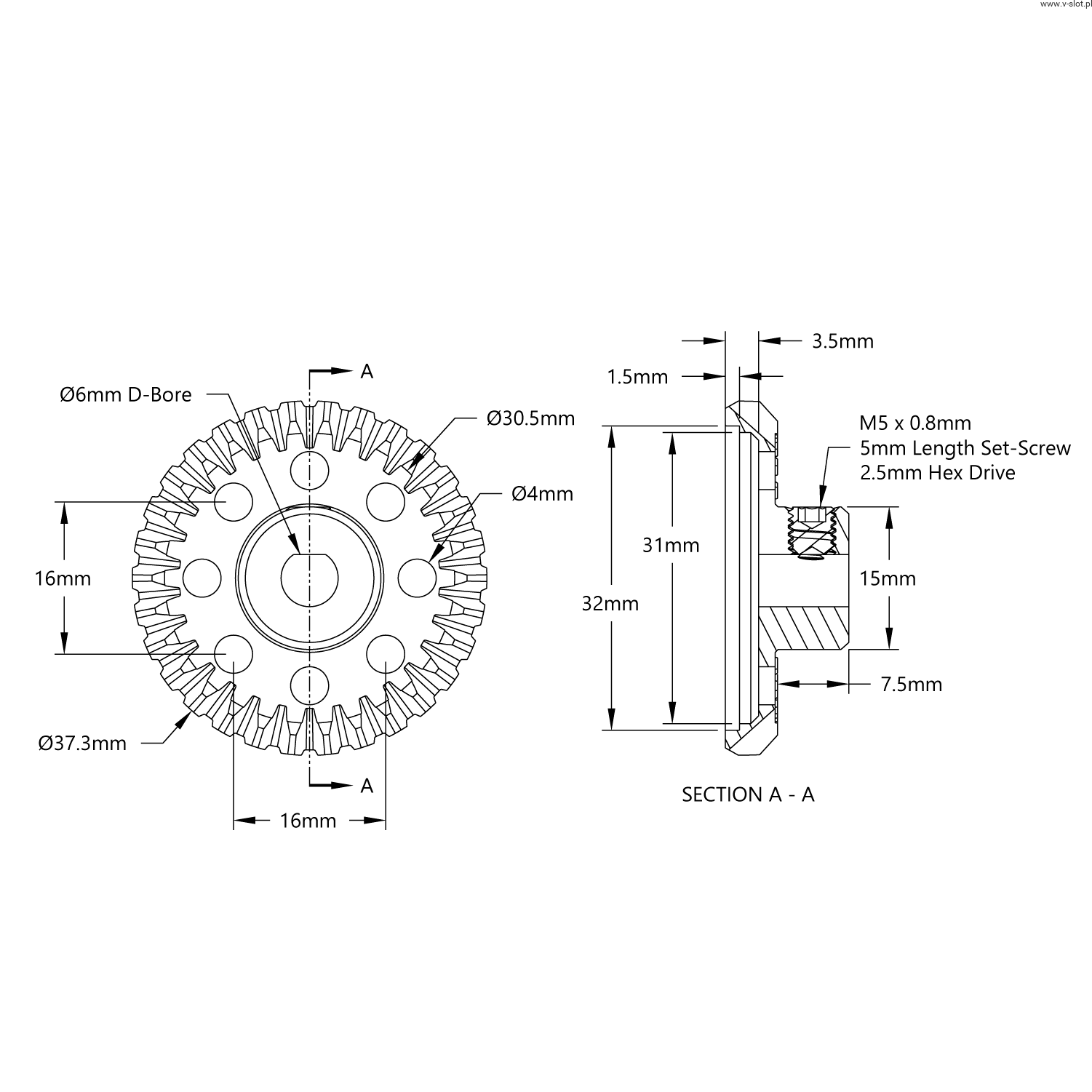

Specification:
- Weight: 24g
- Material: Steel
- Finish: Galvanized
- Pressure angle: 20 °
