Aluminum chain wheel for mounting on a 3310 series hub with 8 mm travel (14 mm bore, 14 teeth)
Aluminum chain wheel for mounting on a 3310 series hub with 8 mm travel (14 mm bore, 14 teeth)
Availability:
out of stock
Vendor:
goBilda
Product code:
3310-0014-0014
Kod EAN:
841298114242
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€16.52
excl. 23% TAX, excl. shipping costs
product unavailable
Description
Aluminum chain wheel for mounting on a 3310 series hub with 8 mm travel (14 mm bore, 14 teeth)

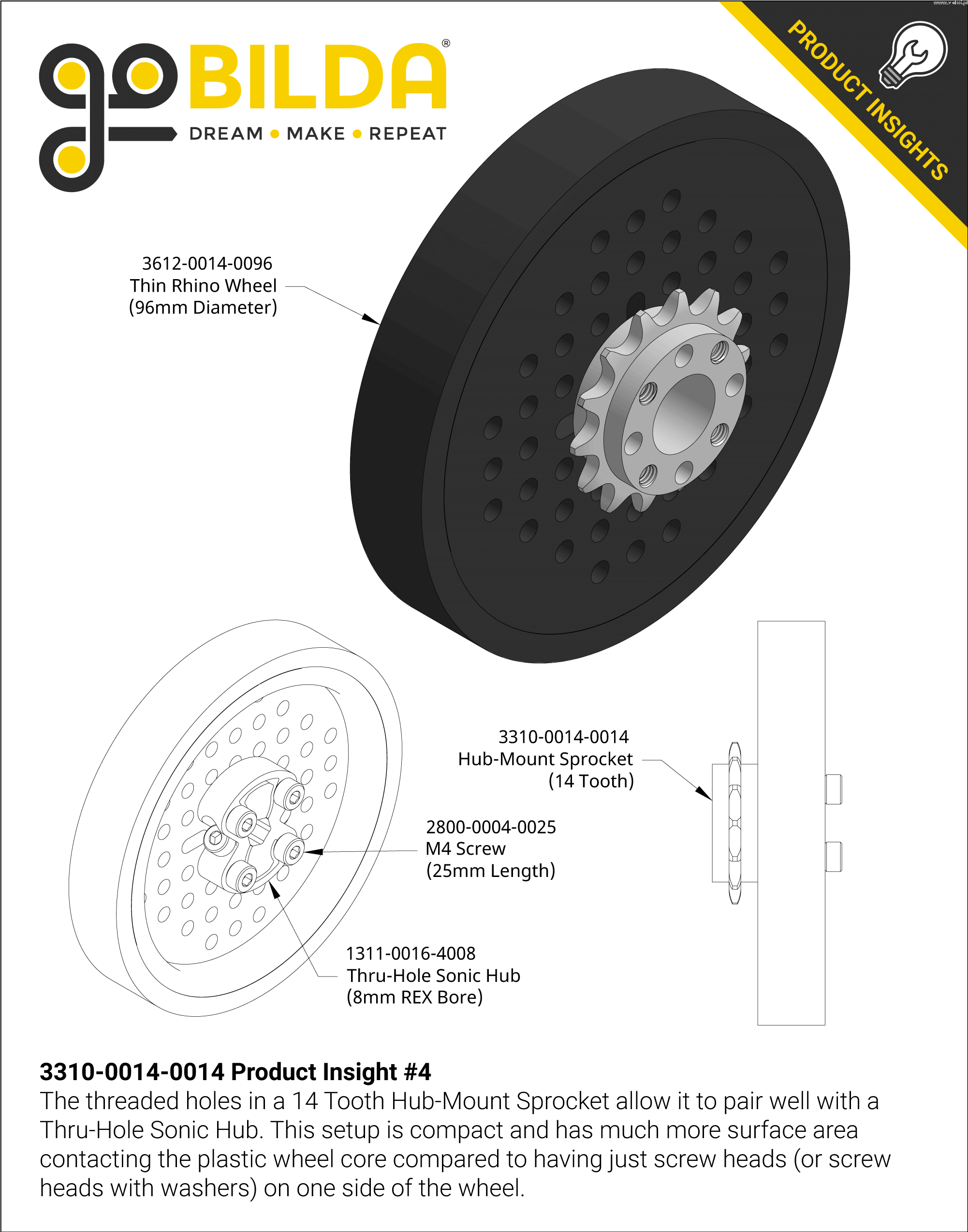

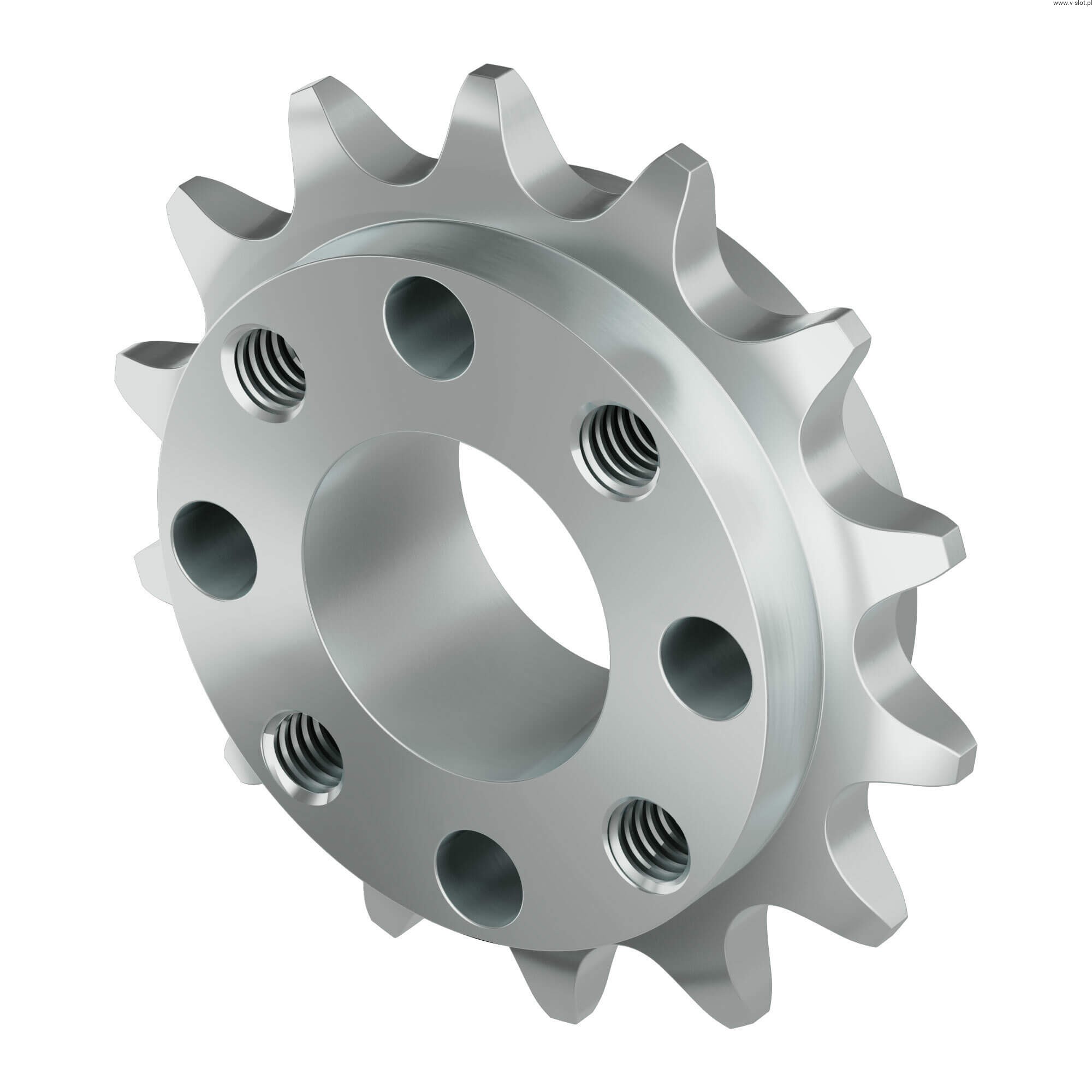

The 14-tooth sprocket is the smallest number of teeth that will fit on a 16mm hub design. The ridge on each side provides room for the chain links to pass through without making contact with the hub to which is fitted to. The threaded holes allow attachment to components with through holes, while the through holes allow the gear to be attached to threaded components.

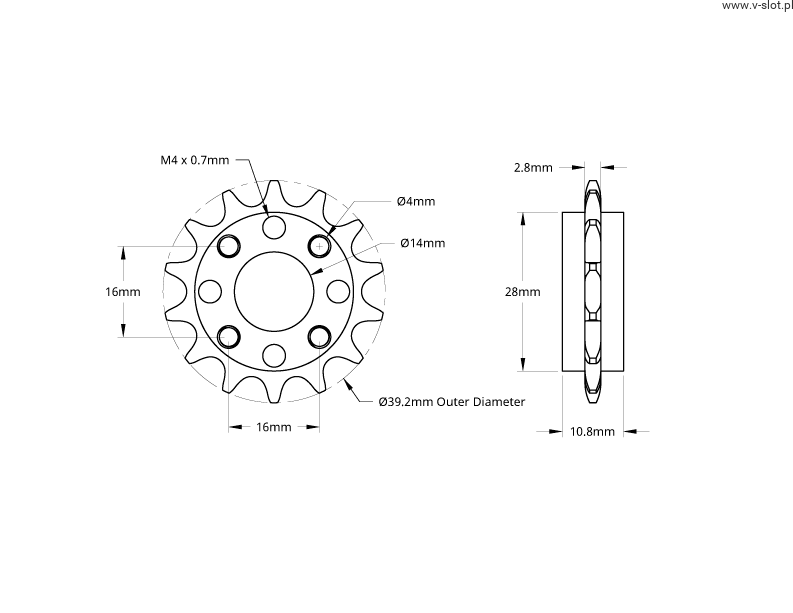

Specification:
- Weight: 13g
- Material: Aluminum
- Finishing: Anodized
- Stroke: 8mm (05B)
