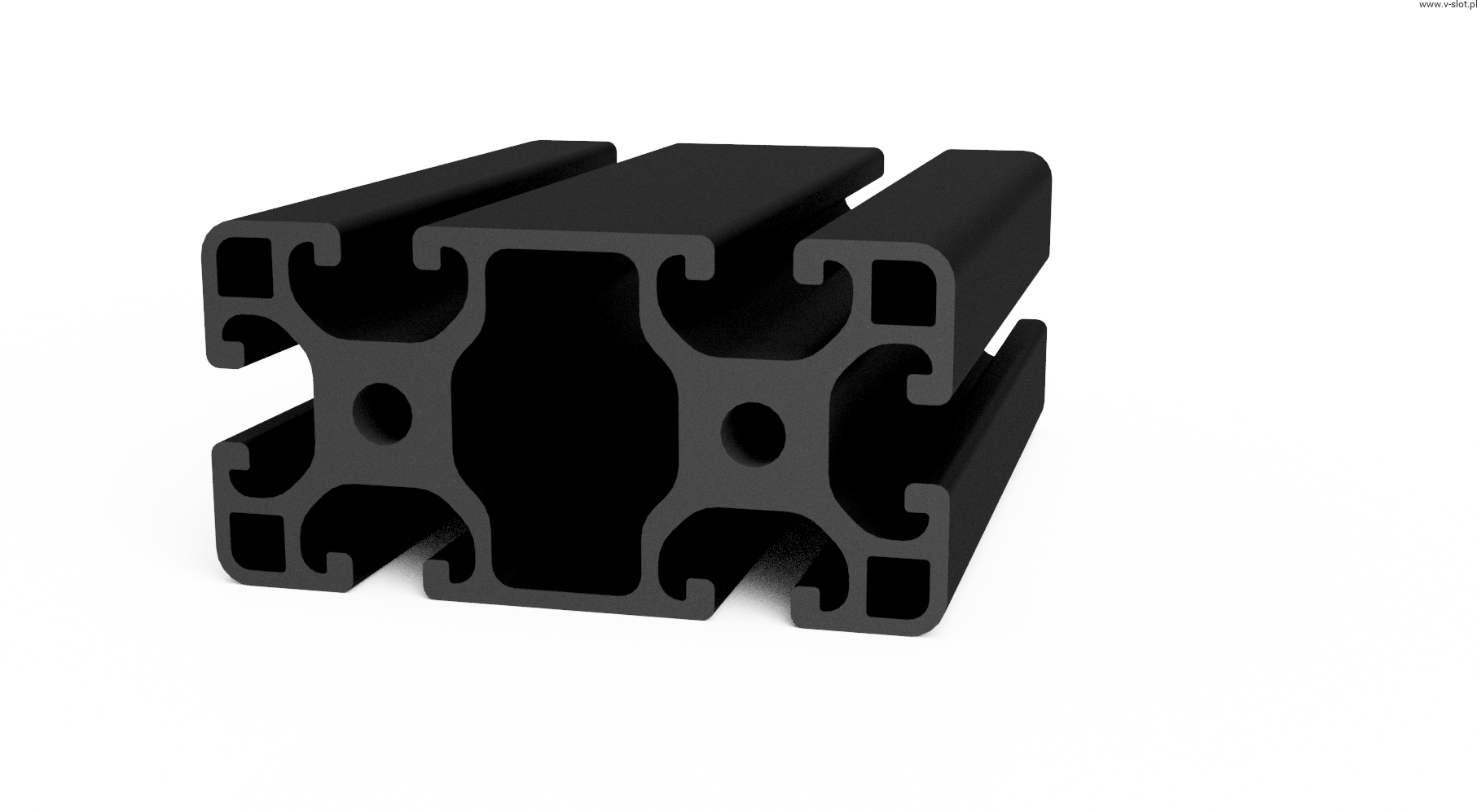

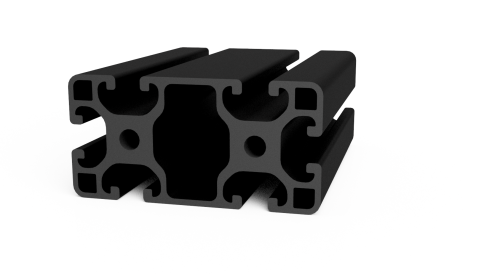

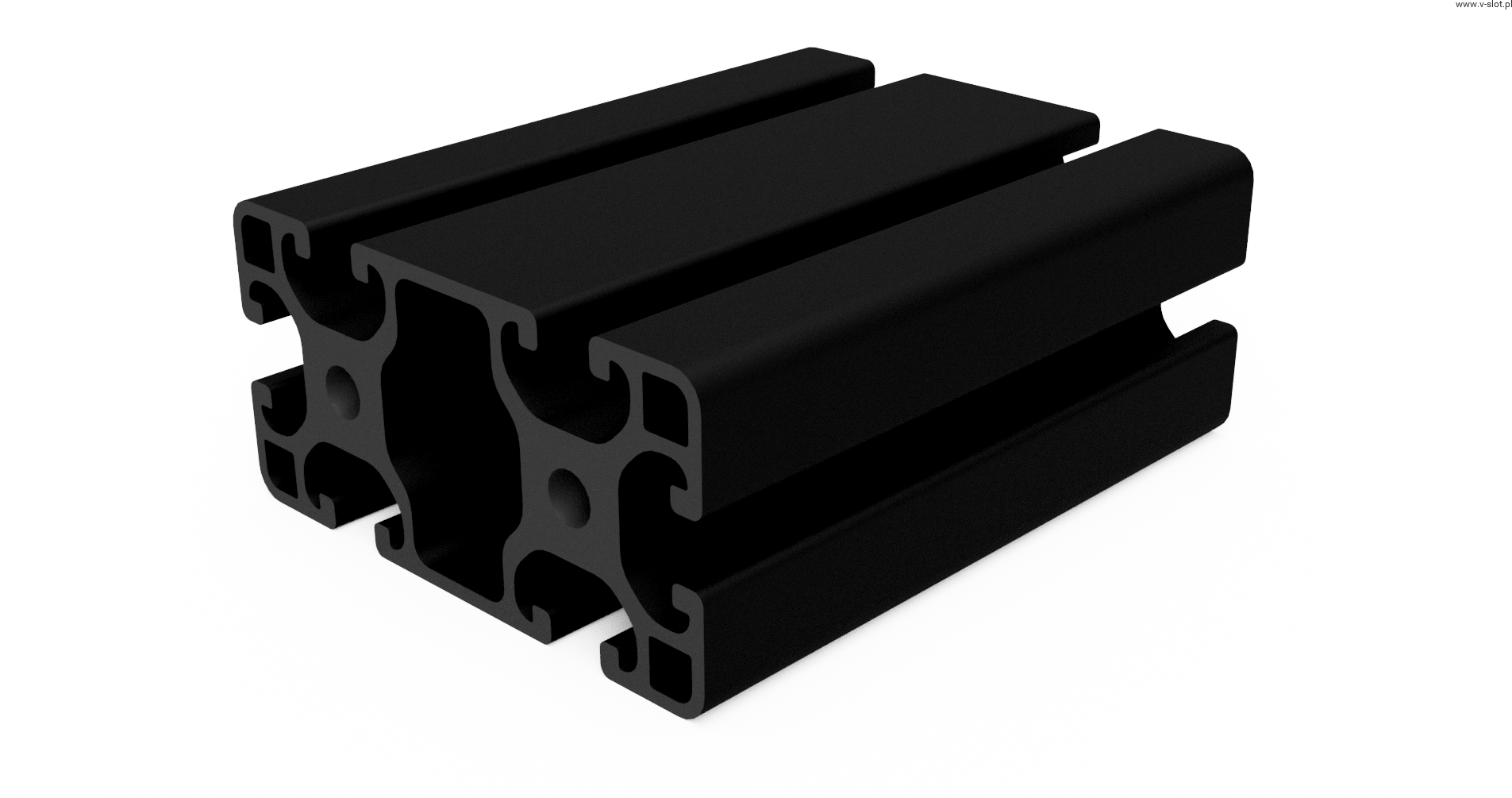

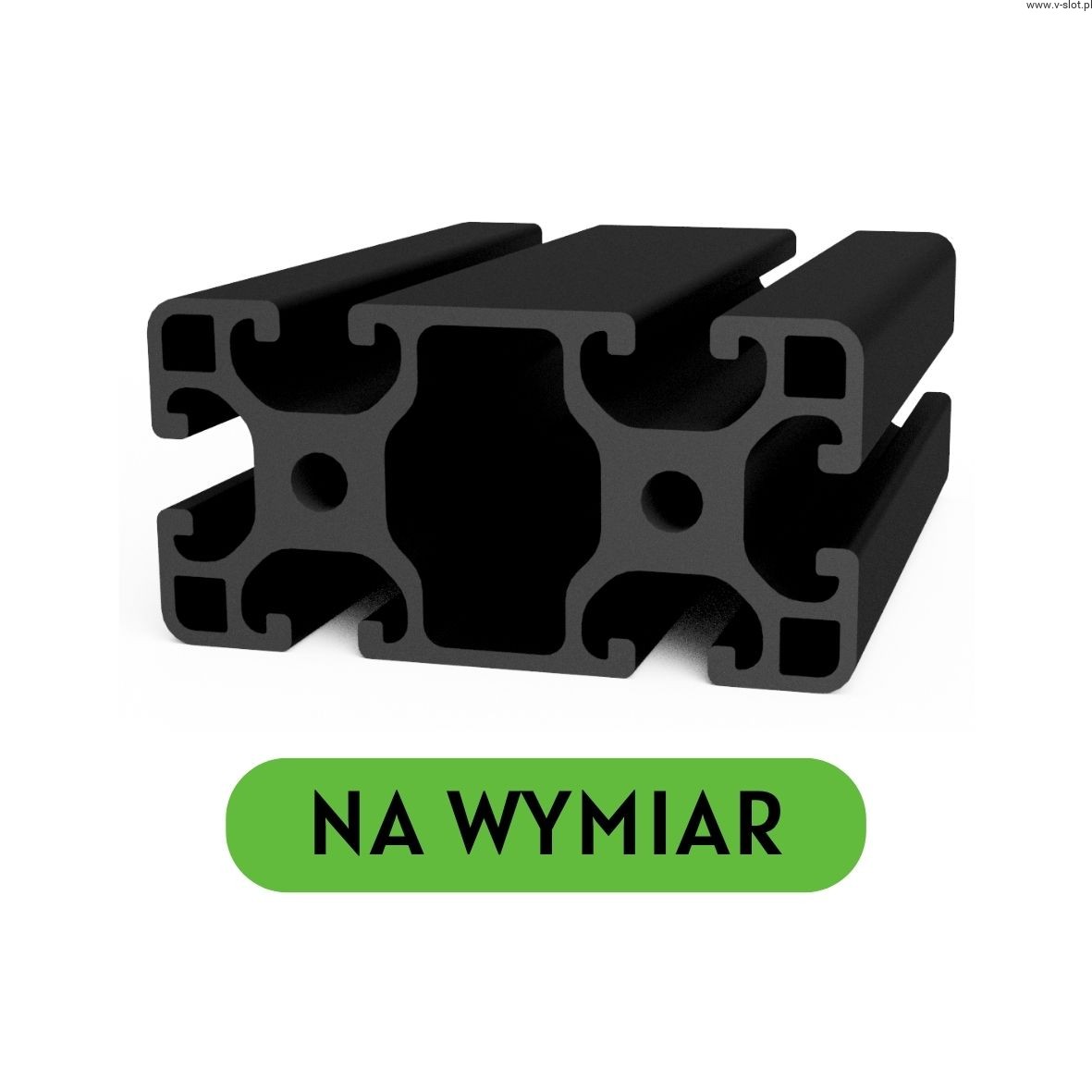

ALUMINIUM CONSTRUCTION PROFILE 40X80 GROOVE 8 MM (cut to size) (1)

Aluminiowy Profil Konstrukcyjny 40x80 T8

discount
new

ALUMINIUM CONSTRUCTION PROFILE 40X80 GROOVE 8 MM (cut to size) (1)

Availability: A lot Dispatched within: 3 working days

Vendor: V-Slot

Product code: 40X80-V-CZ-PL

Rating:

Price: €12.23 ~~€12.87~~ 12.23

Gross price

incl. 23% TAX, excl. shipping costs

Net price: €9.94 ~~€10.47~~

excl. 23% TAX, excl. shipping costs

* Select the length range:

* Enter the exact size in cm::

quantity szt.

product unavailable

* - Field mandatory

Description

ALUMINIUM CONSTRUCTION PROFILE 40X80 GROOVE 8 MM (cut to size)

Construction profiles have already found their place in all areas of business and have a significant impact on innovative and standard projects. There are no major constraints on design.

Technical data:

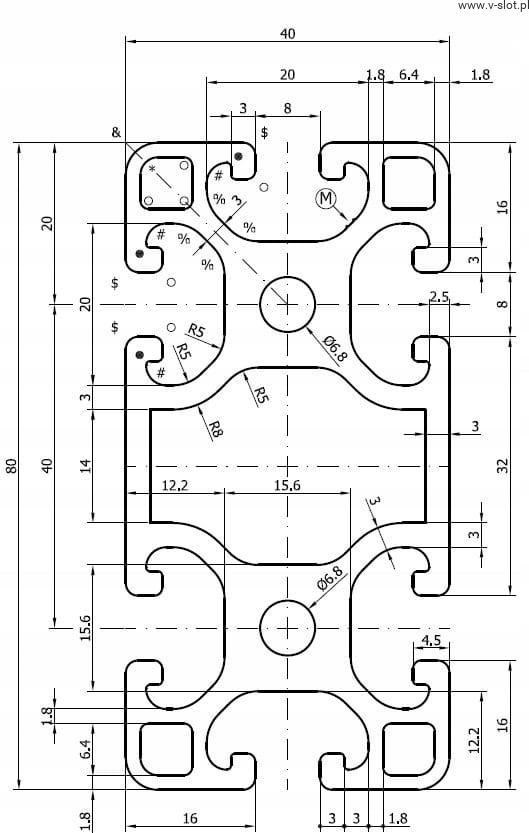

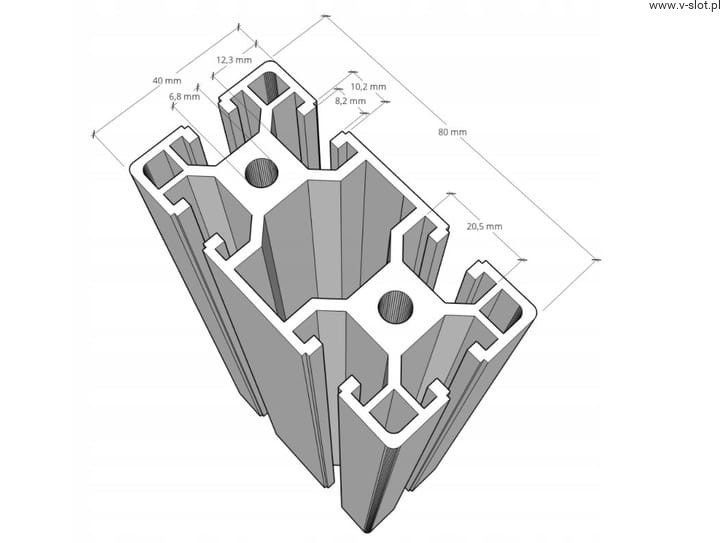

Size: 40x80 mm
Material - Aluminium alloy (6063-T5)
Colour: Silver
Working groove version - T-slot
Working groove - T8
Manufacturer: V-SLOT
Weight [kg/m] - 3.2
Moment of inertia of the surface about the x-axis [cm4] - 78.8
Moment of inertia of the surface about the y-axis [cm4] - 21.6
X-axis drag moment [cm3] - 17.4
Y-axis drag moment [cm3] - 8.7
Tensile strength [Mpa] - 180
Mechanical force [Mpa] - 127
Mechanical elasticity [N/mm2] - 68600
Hardness [HB] - 62
Anodizing-anode thickness [um] - 12

Pros:

Weight reduction (aluminium as a equivalent to steel)
Easy to install (practical accessories for joining)
Each project can be modular (easy disassembly)
Functionality (wide range during construction)
High load capacity (impressive endurance characteristics)
Design

Profile types:

Series 20 (20x20, 20x40, 20x80) helps CNC machine builders;
Series 30 (30x30, 30x60, 30R) used for simulators and safety cages.
Series 40 (40x40, 40x80, 40R) displaces steel structures at production lines.

Attention!

Profiles are cut by our company on professional automatic saws, they cut at right angles with an accuracy of +/- 0.75mm.
