A set of bevel gears with a ratio of 2: 1 (gear wheel with hole D 6mm)
A set of bevel gears with a ratio of 2: 1 (gear wheel with hole D 6mm)
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€54.04
excl. 23% TAX, excl. shipping costs
product unavailable
Description
A set of bevel gears with a ratio of 2: 1 (gear wheel with hole D 6mm)

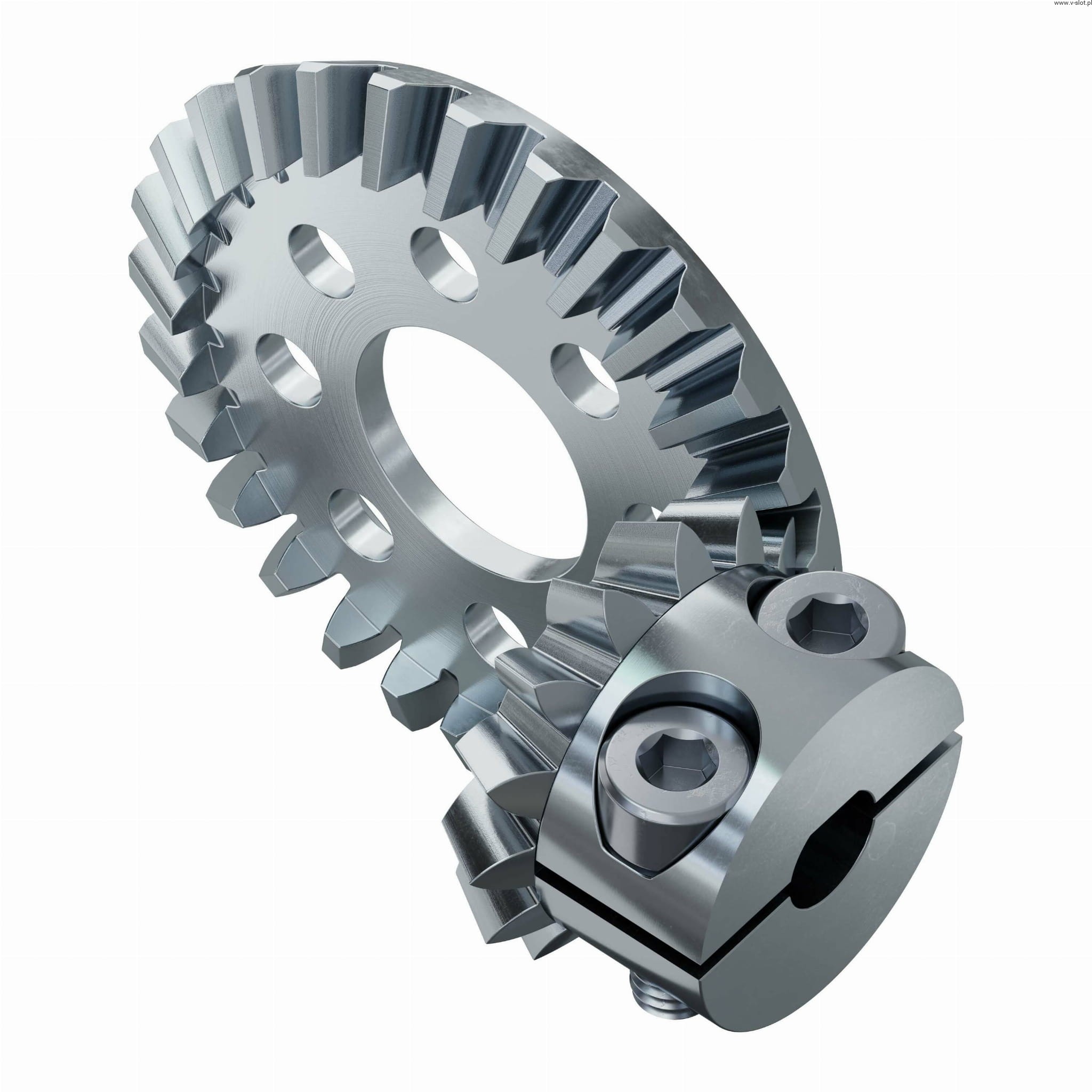

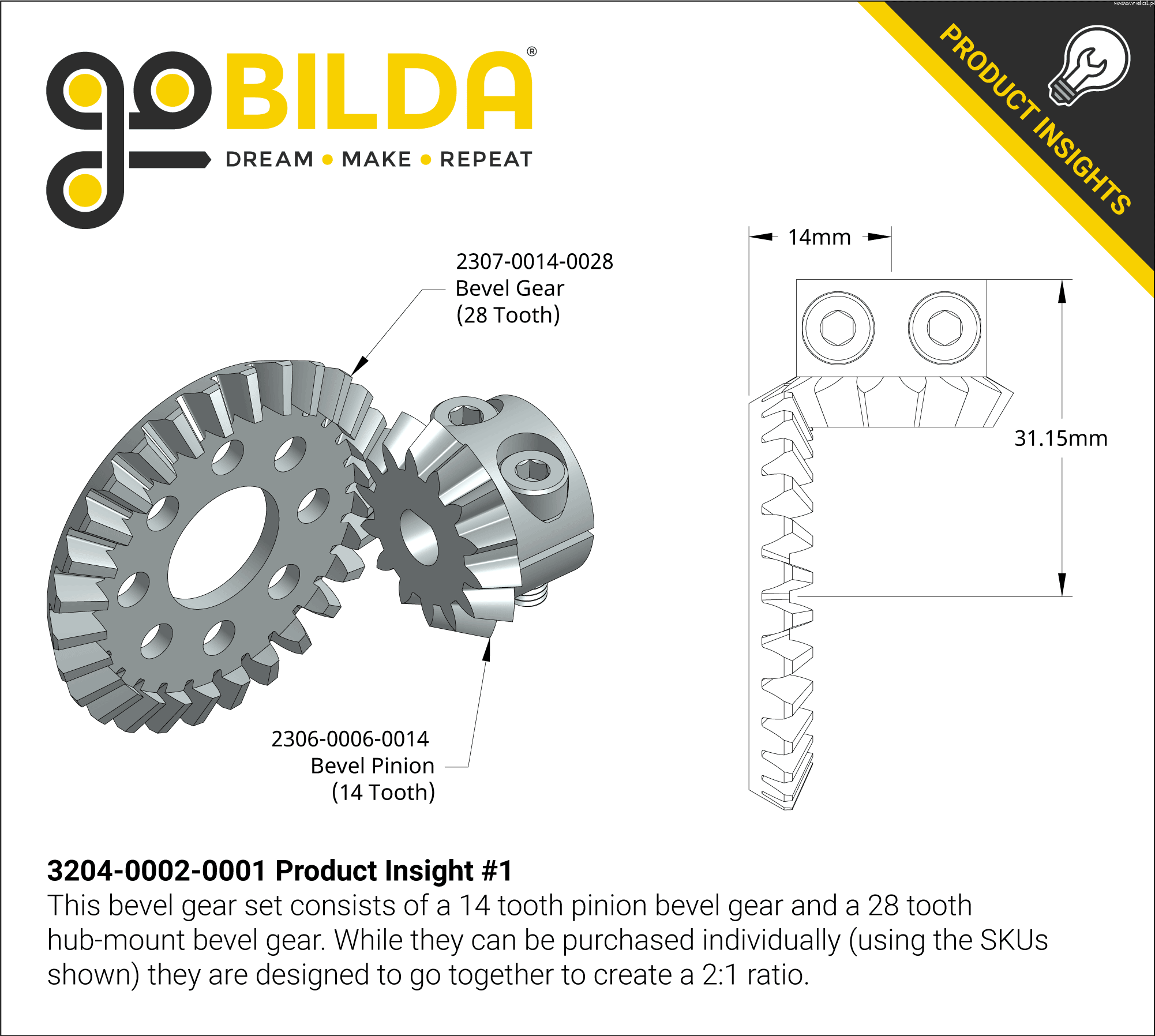

This bevel gear set includes a 14-tooth gear for mounting on a 6mm D shaft and a 28-tooth gear for mounting on a 16mm pattern hub. The combination of gears with 14 and 28 teeth creates a 2: 1 gear ratio which is most commonly used as a reduction gear, meaning the small wheel drives the large wheel. Although they can also be used as 2: 1 overdrive if speed is more important than torque.
Set contains:
| SKU | Pcs. | Product |
| 2306-4008-0014 | 1 | Bevel clamp gear (6mm D bore, 14 teeth) |
| 2307-0014-0028 | 1 | Hub mounted bevel gear (14 mm bore, 28 teeth) |
Specification:
- Waga: 50g
