5202 Series Planetary Gear Motor (99.5: 1, 60 RPM / Encoder)

Silnik DC goBilda z  przekładnia.PNG

5202 Series Planetary Gear Motor (99.5: 1, 60 RPM / Encoder)

Availability: average quantity Dispatched within: up to 21 business days
Vendor: goBilda
Product code: 5202-0002-0100
Kod EAN: 841298123930
Rating: 0
Price: €101.20 101.20
Gross price
incl. 23% TAX, excl. shipping costs
Net price: €82.28
excl. 23% TAX, excl. shipping costs
quantity szt.

product unavailable

Description

5202 Series Planetary Gear Motor (99.5:1, 60 RPM / Encoder)

motor dc gobilda arduino

Technical data:

  • Motor size: RS-555
  • Motor type: DC brush
  • Power supply: 12V DC
  • Output shaft: 6mm (D)
  • No load speed at 12VDC: 60 rpm
  • No-load current at 12VDC: 0.25A
  • Torque at 12VDC: 133 kg / cm
  • Cable length: 470mm
  • Wire gauge: 16AWG

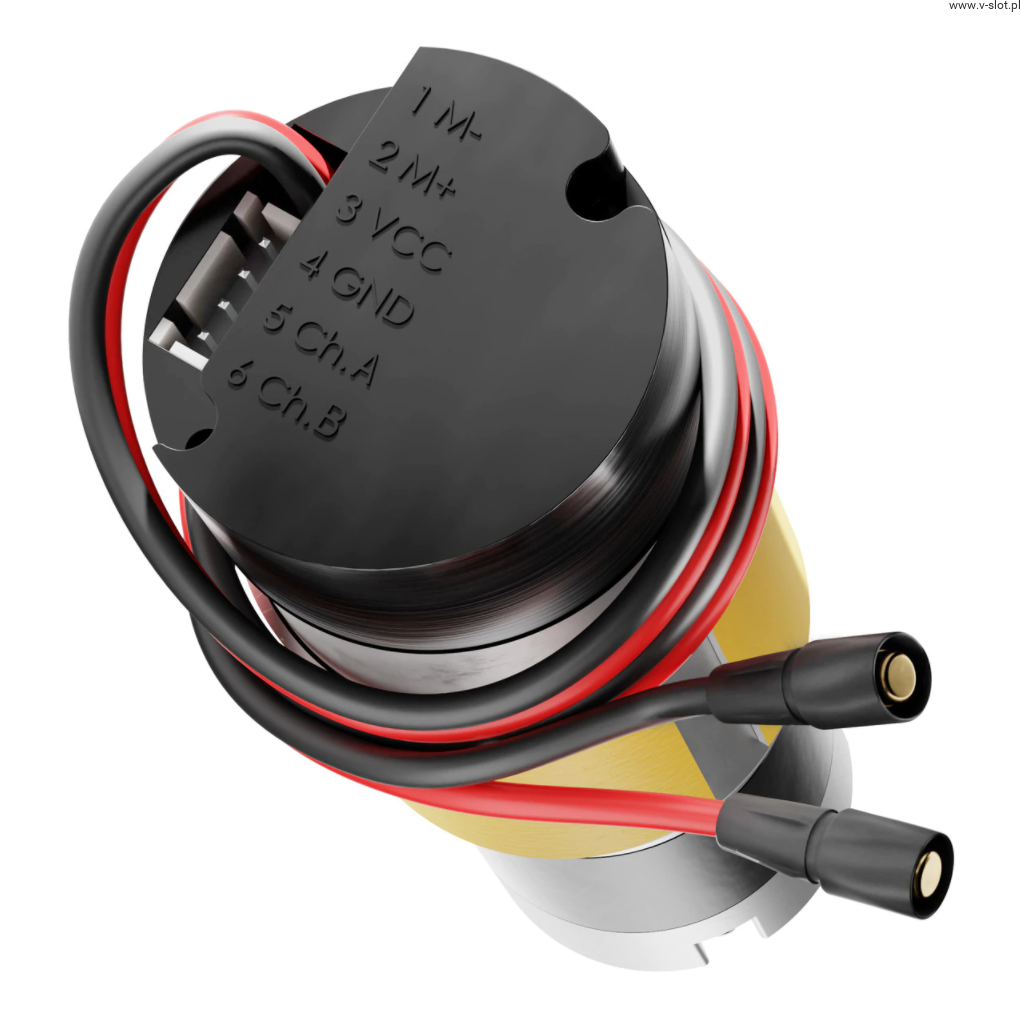

  • Type of encoder connectors: 4 positions
  • Encoder sensor type: Magnetic (Hall)
  • Encoder voltage range: 3.3 - 5VDC
  • Encoder Shaft: 7 (Rises of CH A)
  • Output Shaft: 696.5 (Rises of CH A)
  • Encoder Cycles Per Revolution (Output Shaft): 28 (Rises & Falls of Ch A & B)
  • Encoder Countable Events Per Revolution (Output Shaft): 2,876 (Rises & Falls of Ch A & B)
  • Weight: 456g

motor gobilda dc

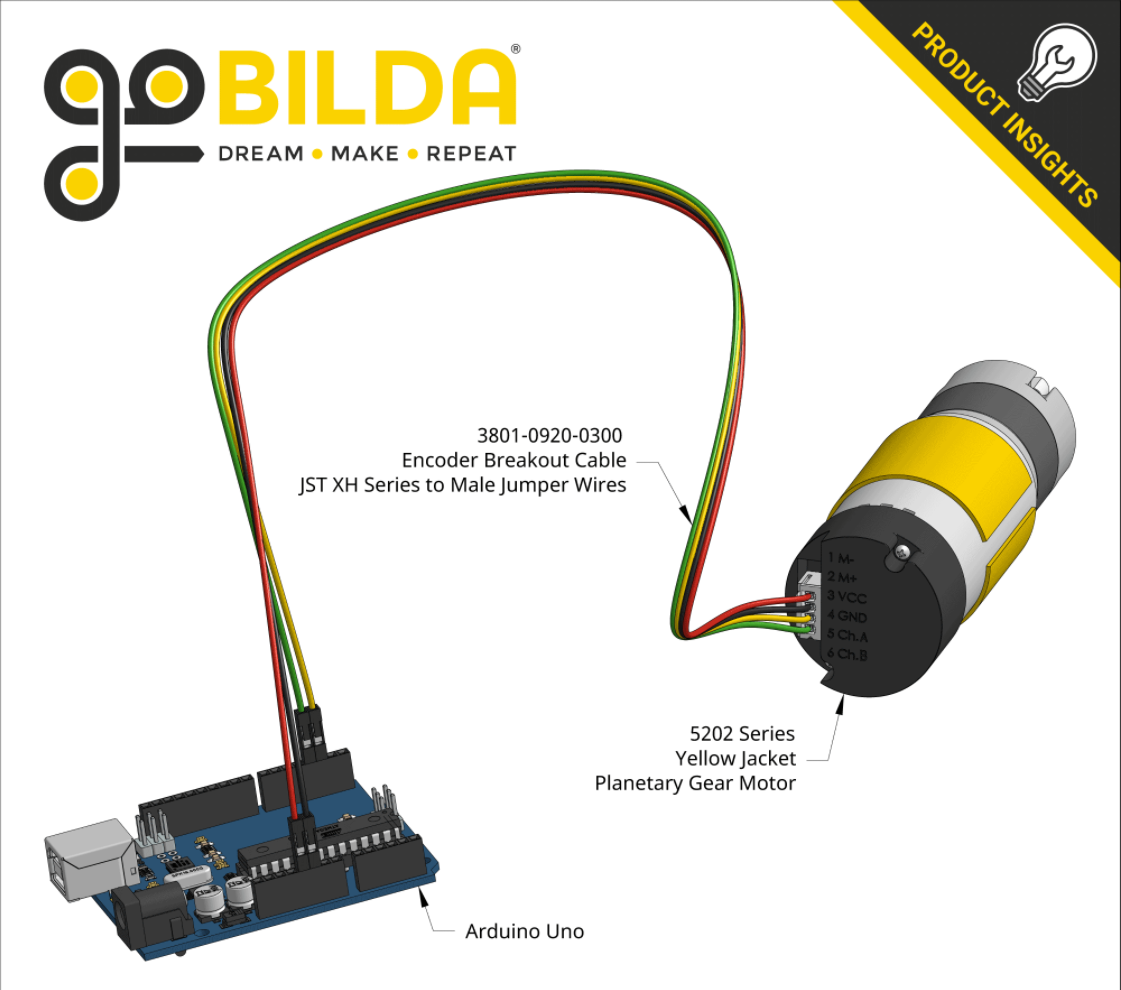

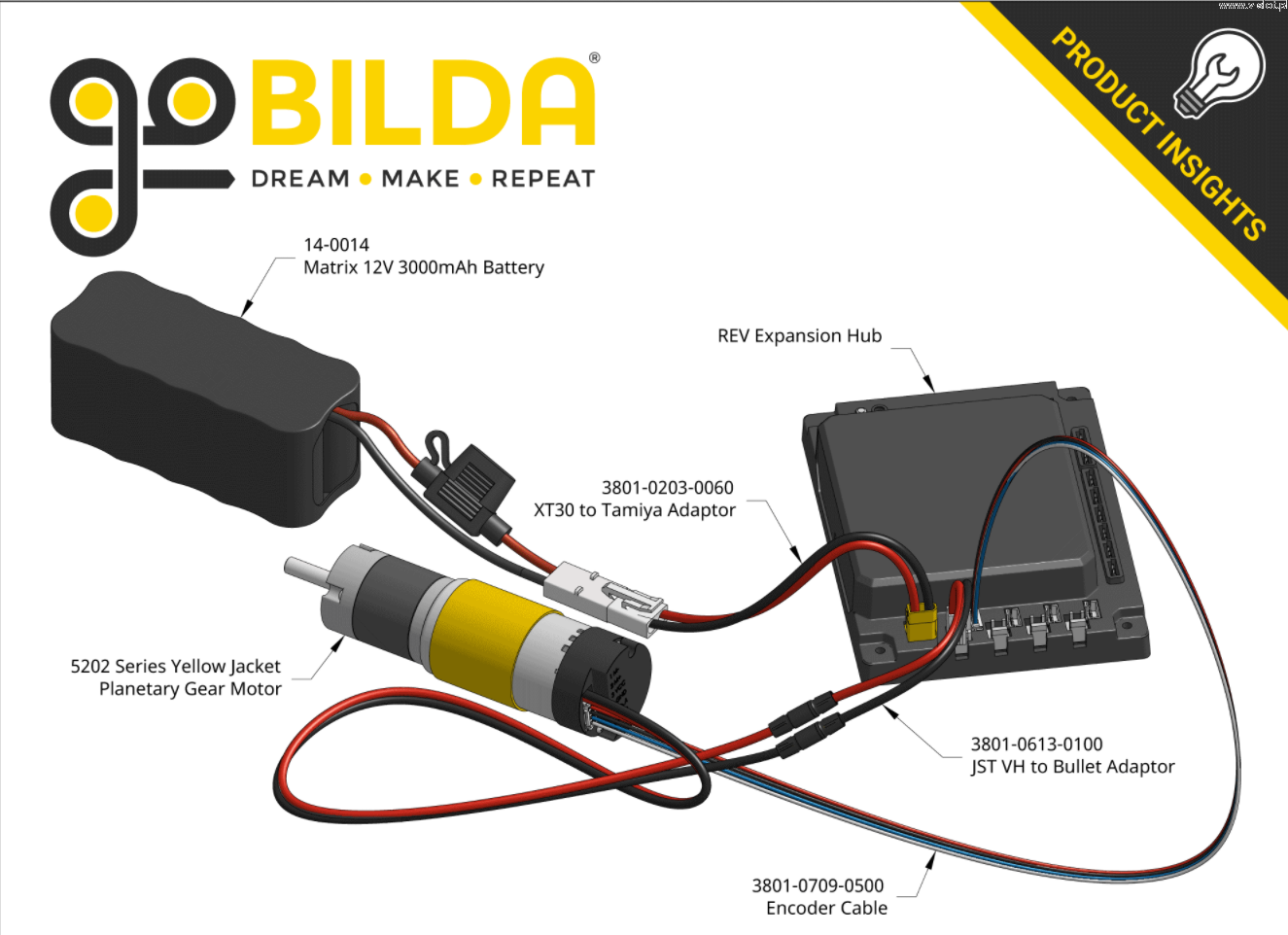

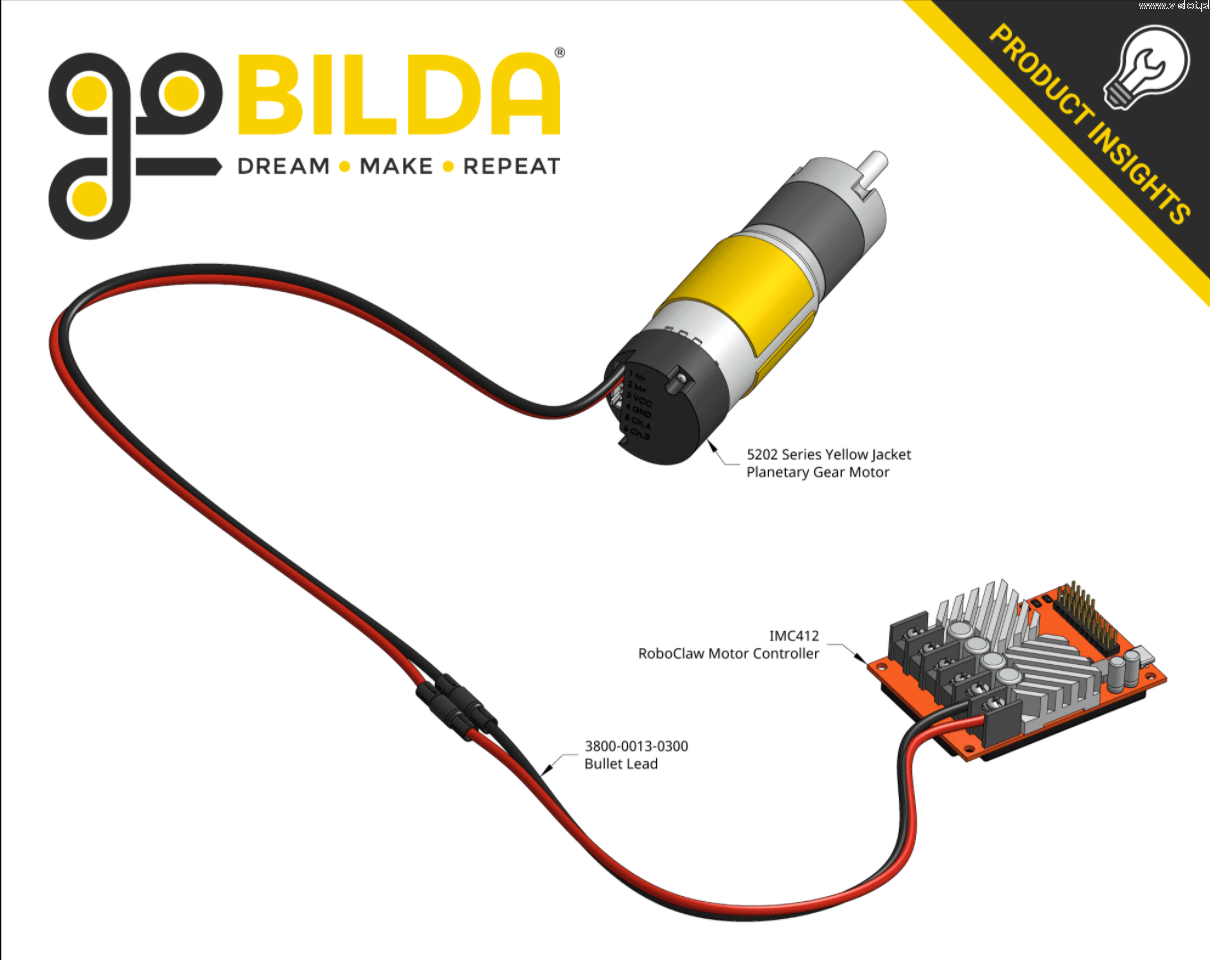

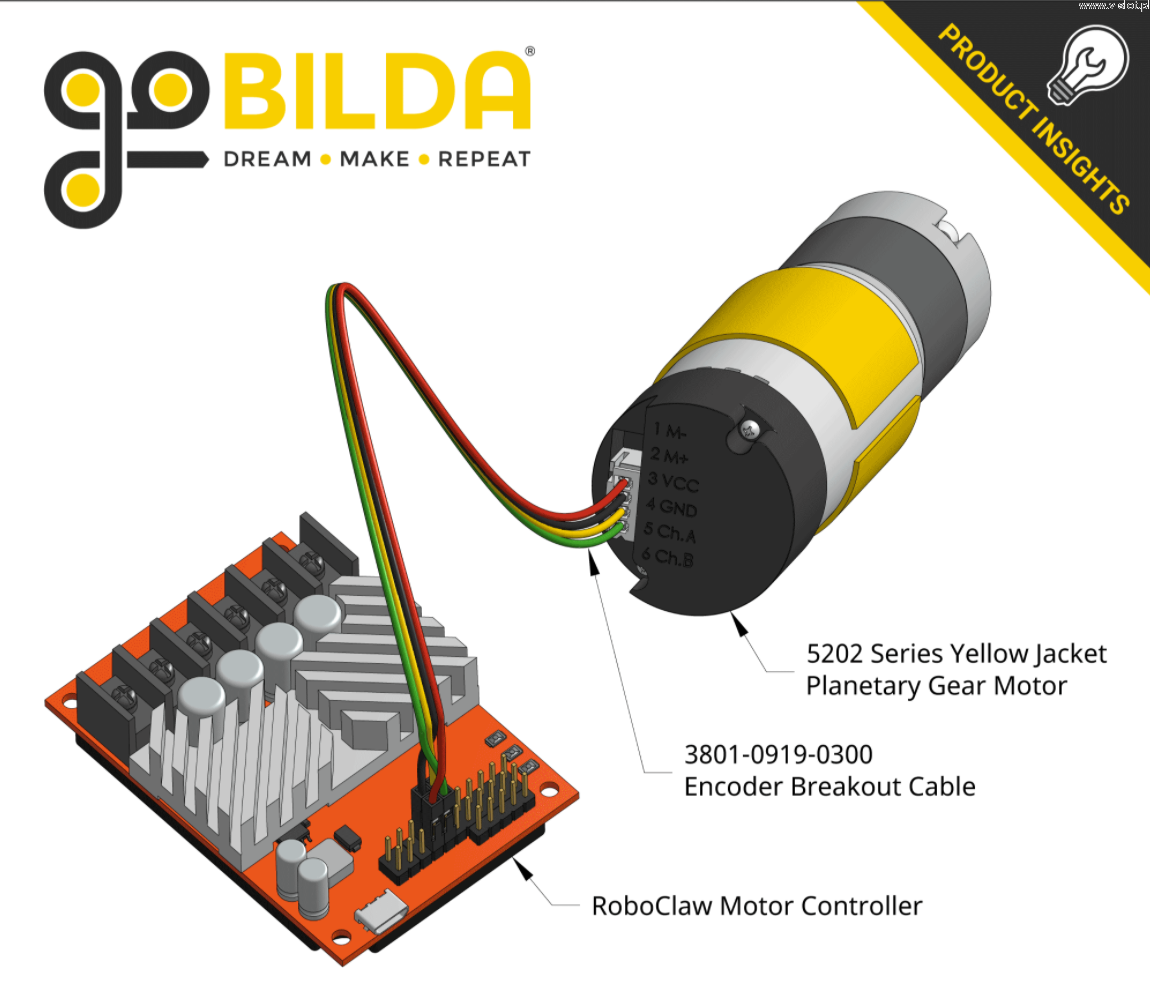

Example of connection to controllers

motor dc   gobilda i arduino
