3mm HTD timing belt pulley (D 6mm bore, 18 teeth)
3mm HTD timing belt pulley (D 6mm bore, 18 teeth)
Availability:
average quantity
Dispatched within:
up to 21 business days
Vendor:
goBilda
Product code:
3419-1006-0018
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€15.29
excl. 23% TAX, excl. shipping costs
product unavailable
Description

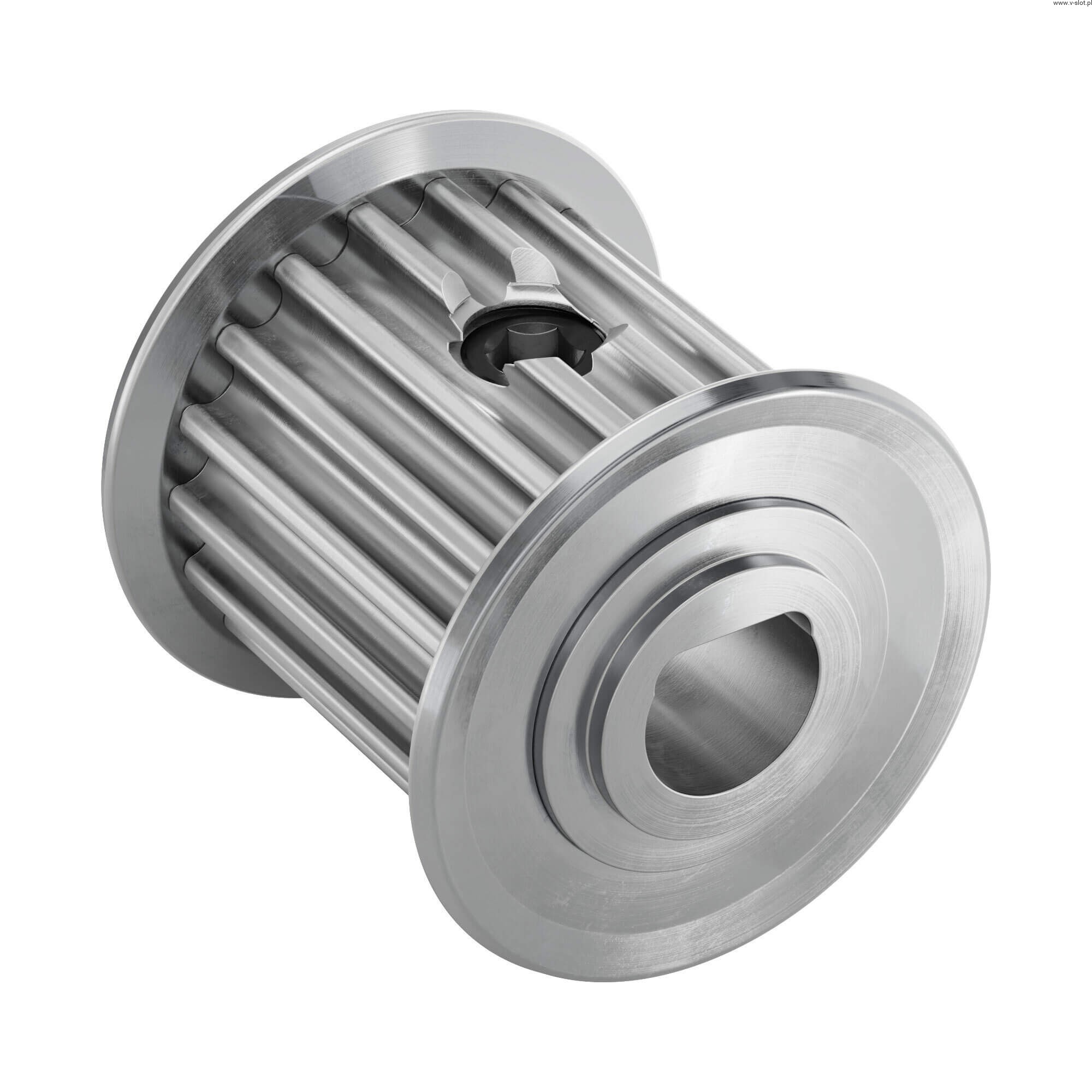

3mm HTD timing belt pulley (D 6mm bore, 18 teeth)

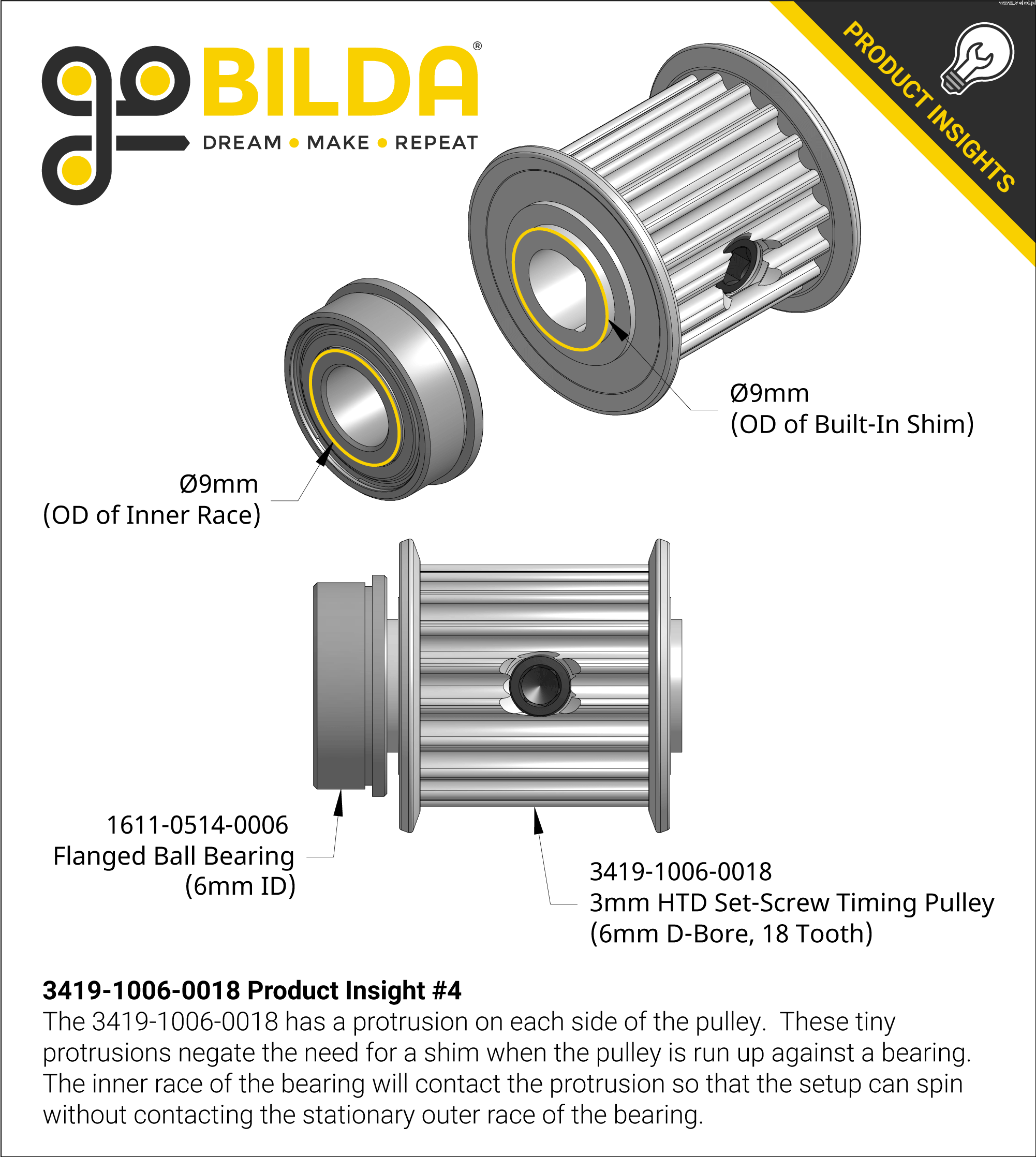

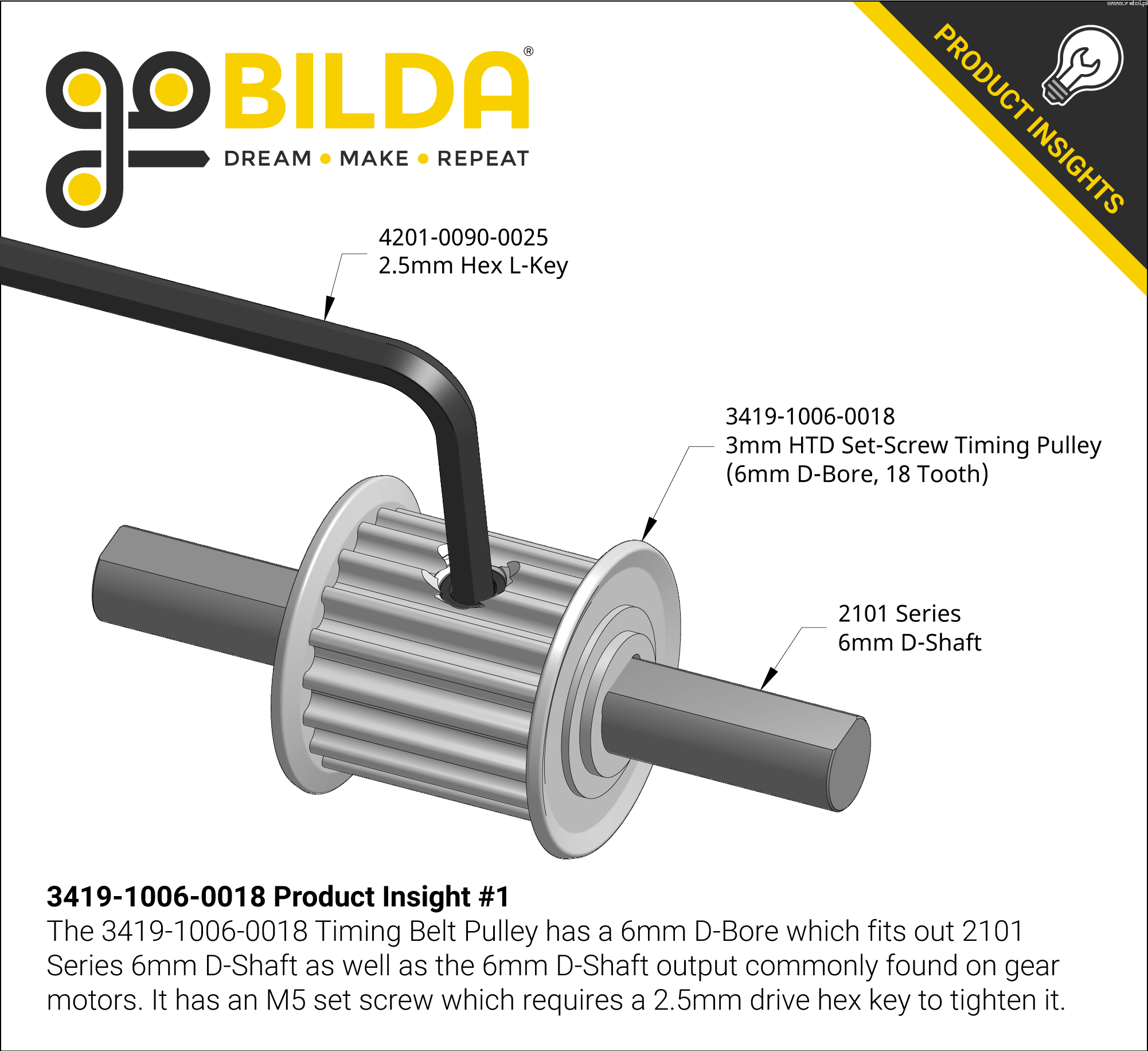

This 18-tooth pressure screw pulley has a 6mm D hole designed to fit our 6mm D shaft or geared motor which has a 6mm D shaft output. It is compatible with a 15mm wide 15mm HTD toothed belt and has a built-in washer on both sides, allowing it to run directly on the bearing without the flanges rubbing against the outer race.
Specification:
- Weight: 8,1g
- Material: Aluminum
- Finishing: Anodized
- Number of teeth: 18
- Stroke: 3mm (HTD)
