30-degree engraving VMH cutter with spiral sharp face
30-degree engraving VMH cutter with spiral sharp face
Availability:
out of stock
Vendor:
-
Product code:
8032000000
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€9.67
excl. 23% TAX, excl. shipping costs
product unavailable
Description
30-degree engraving VMH cutter with spiral sharp face
VMH carbide engraving solid cutter with spiral 30-degree sharp face shank 3.175 mm (1/8 ")
Specification:
- Geometry: 1 helical blade
- Material: cemented carbide
- Country of origin: Germany

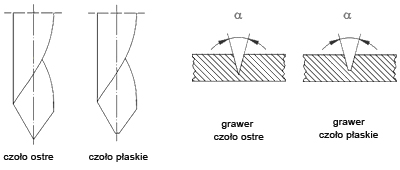

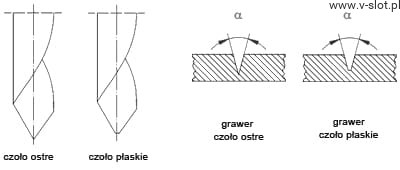

- Angle of the face α: 30°

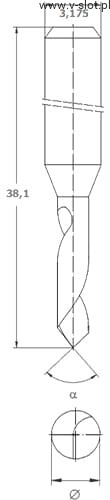

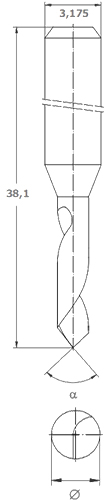

- Diameter of the working part (blade) Ø: 2,00 mm
- Overall length l2: 38,1 mm
- Diameter of the mandrel (chuck) d2: 3,175 mm
- Type: 803
- Code: 8032000000
- Face: sharp
Characteristics
- Long service life
- Very high-performance milling cutters for the most modern CNC machines
- A specially shaped flute and angle of its inclination facilitate chip evacuation
- Outstanding quality of milled edges
Applications
- Edge milling and chamfering, engraving, and punching
- Materials: laminate (PCB), FR4, FR2, CEM3, CEM2, mineral materials, synthetic materials, epoxy glass, wood (MDF)
- Soft metals: aluminum, copper, brass, silver, gold, or platinum
