2000 Series Dual Mode Servo (25-2)
2000 Series Dual Mode Servo (25-2)
0
product unavailable
Description

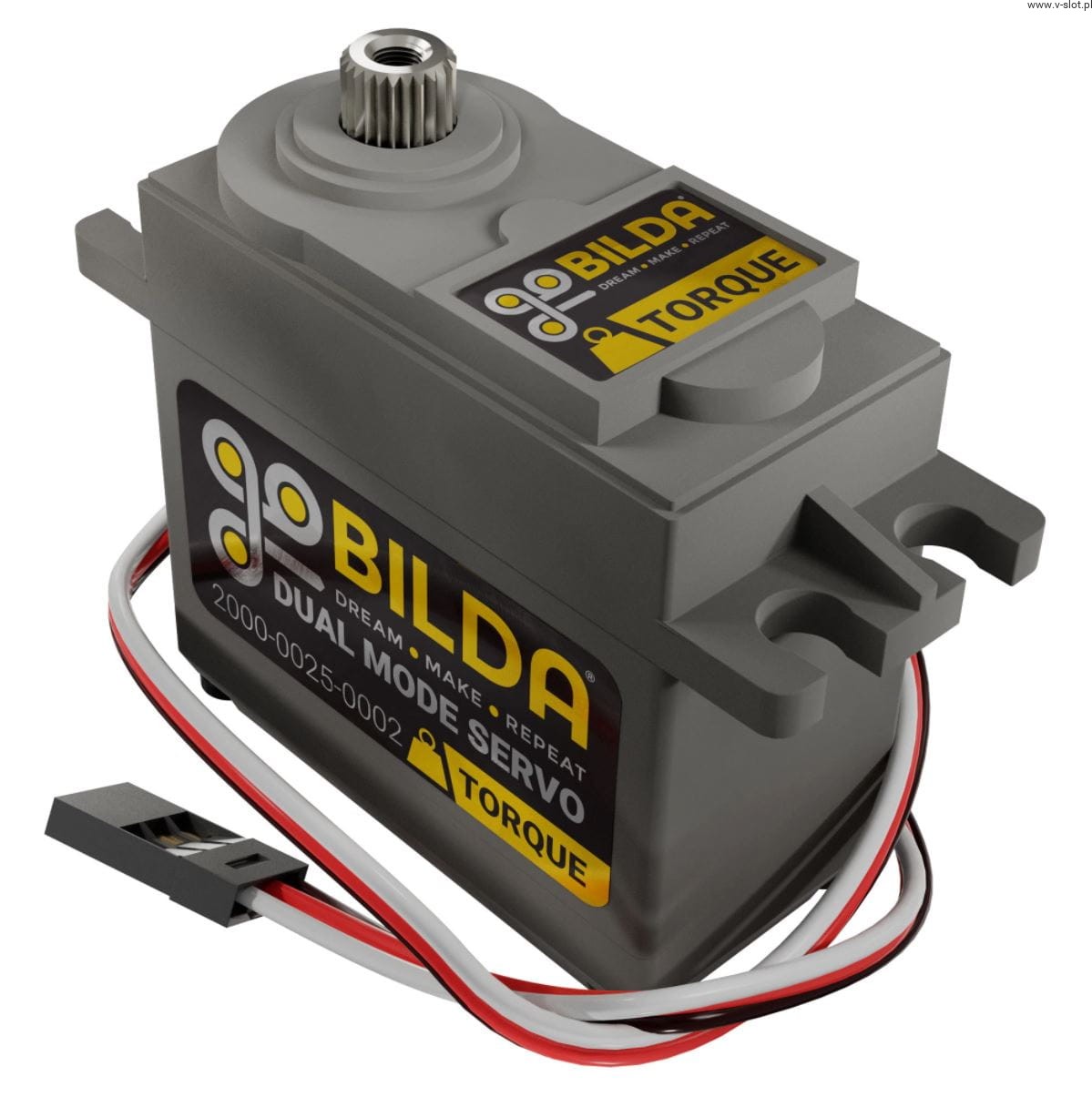

2000 Series Dual Mode Servo (25-2)
The GoBILDA 2000-0025-0002 servo is the successor to the popular 2000-0025-0001 servo. The 25-2 has received some noteworthy updates, including an ultra-strong steel gear, more torque, and a new top case. Like its predecessor, the 25-2 offers two different modes that allow it to fulfill different roles in a robot or project.
In the default mode, the servo is able to turn 300 degrees with position feedback. In this mode, the PWM signal determines the position of the servo. By using the 3102 (1-1) series Dual Mode servo programmer, the servo can be put into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal you are sending through the servo controller.

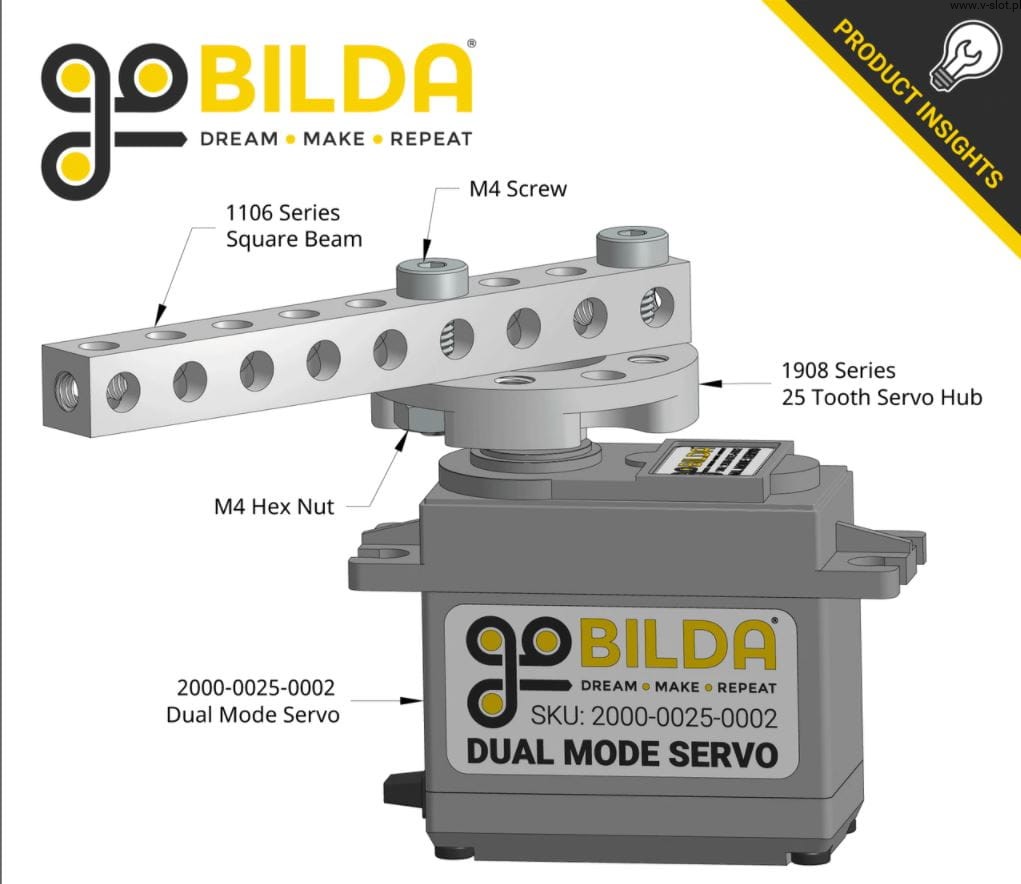

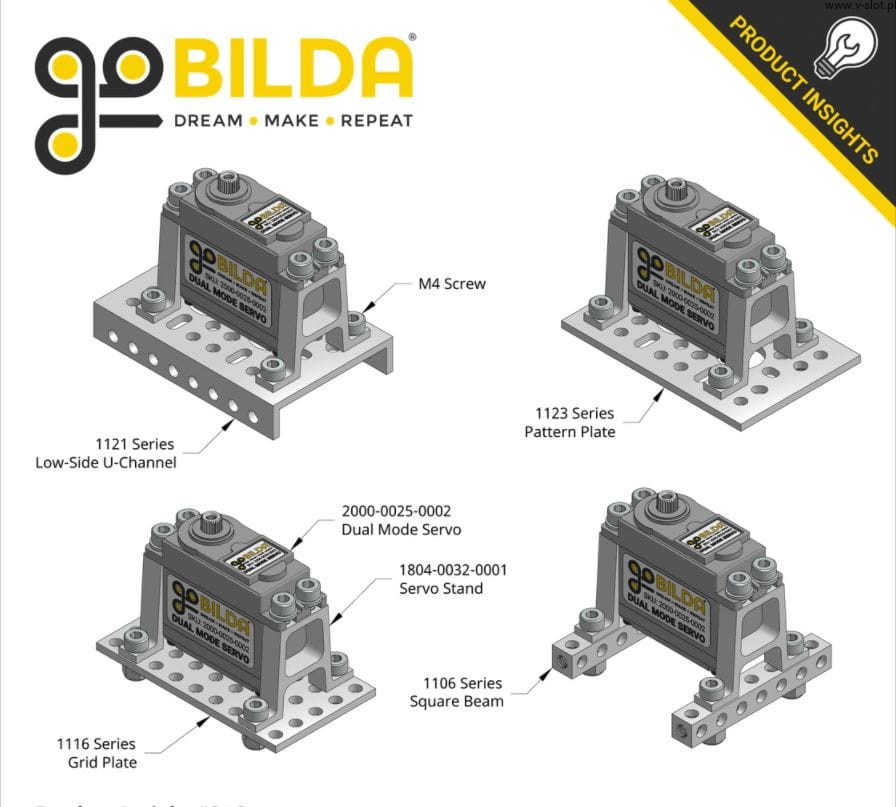

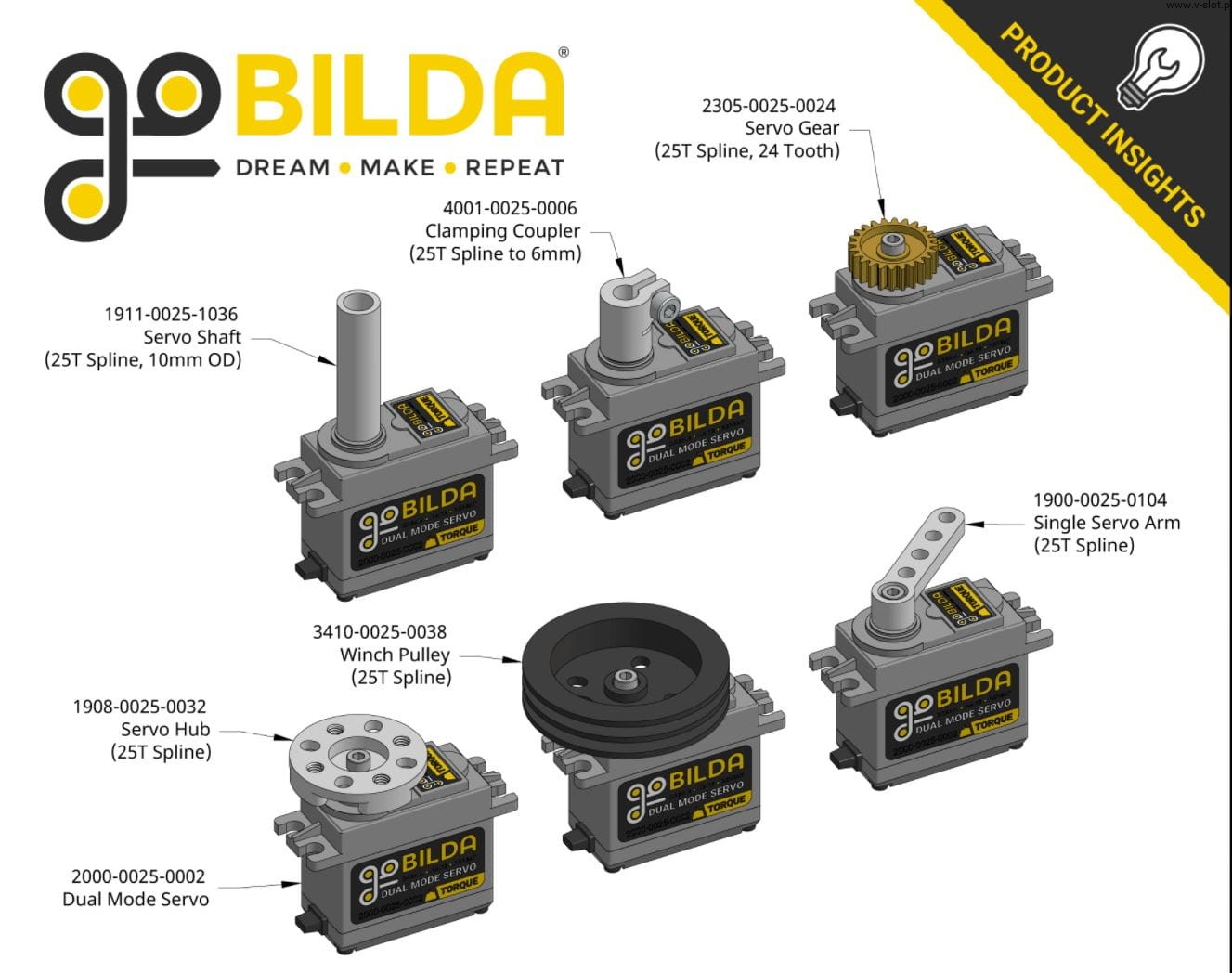

Examples of use with other goBILDA accessories available in our offer:

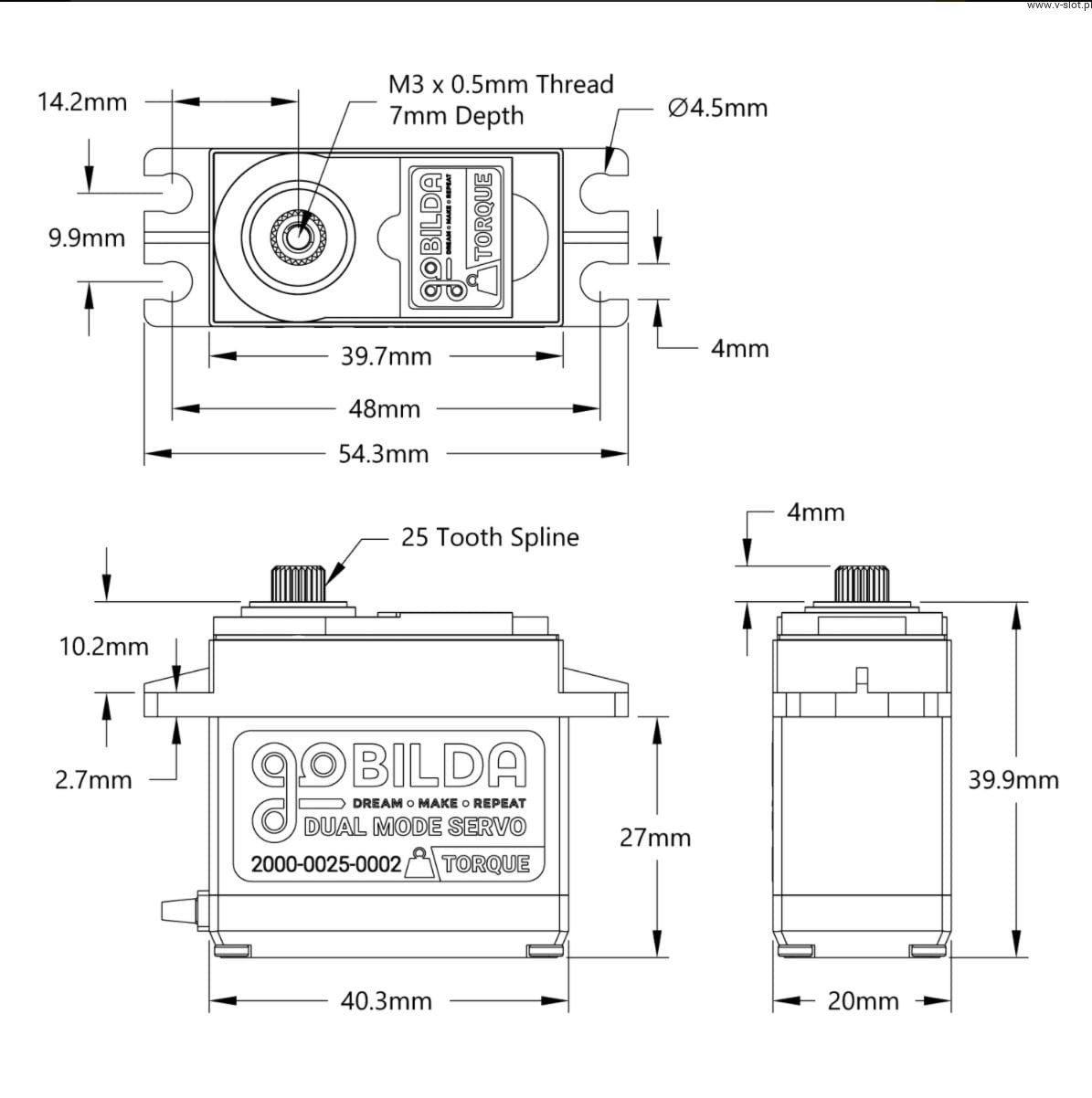

Technical data:
- Weight: 60g
- Gear ratio: 300:1
- Output shaft mode: 25 teeth
- Voltage range: 4.8V ~ 7.4V
- No load speed (4.8 V): 0.25 sec / 60 ° (40 rpm)
- No load speed (6.0V): 0.20 sec / 60 ° (50rpm)
- No load speed (7.4V): 0.16sec / 60 ° (60rpm)
- Holding torque (4.8 V): 17.2 kg.cm (240 oz)
- Holding torque (6.0V): 21.6 kg.cm (300 oz)
- Holding torque (7.4V): 25.2 kg.cm (350 oz)
- Maximum PWM range: 500-2500 μsec
- Travel per µs: 0.15 ° / µsec
- Max Travel: 300 °
- Pulse amplitude: 3-5V
- Direction: Clockwise with increasing PWM signal
- Deadband width: 4 μsec
- Motor type: Brushed DC
- Output shaft support: Double ball bearing
- Gear material: Steel
- Cable length: 300mm
- Wire gauge: 22 AWG
- Connector Type: TJC8 3 Position Servo Connector [MH-FC]
