2000 Series Dual Mode 25-4 servo (super-speed)
2000 Series Dual Mode 25-4 servo (super-speed)
0
product unavailable
Description

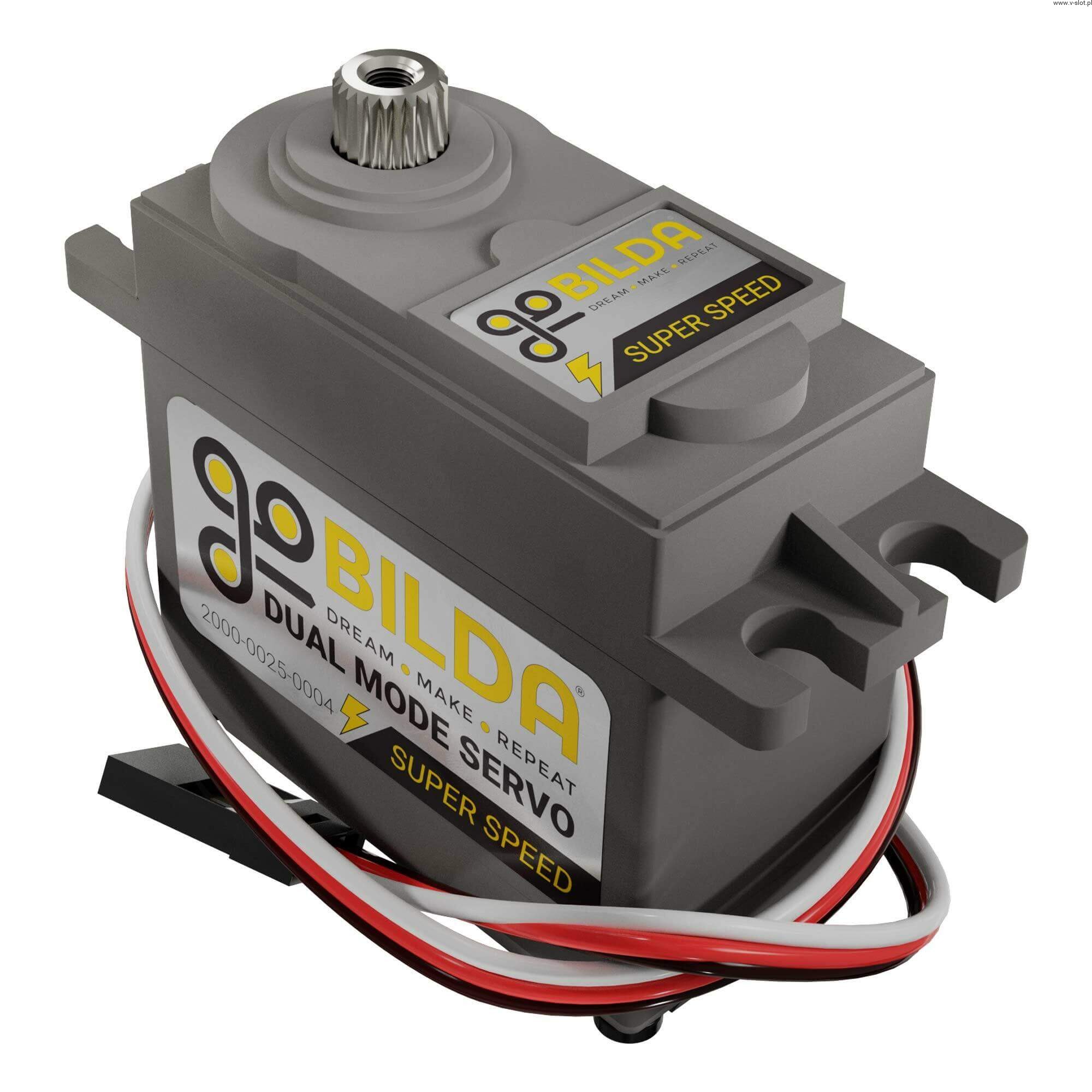

2000 Series Dual Mode 25-4 servo (super-speed)
Meet the Dual Mode "SUPER SPEED" servo. This servo is basically an even faster version of the "SPEED" 2000-0025-0003 servo, reaching speeds of up to 290 RPM!

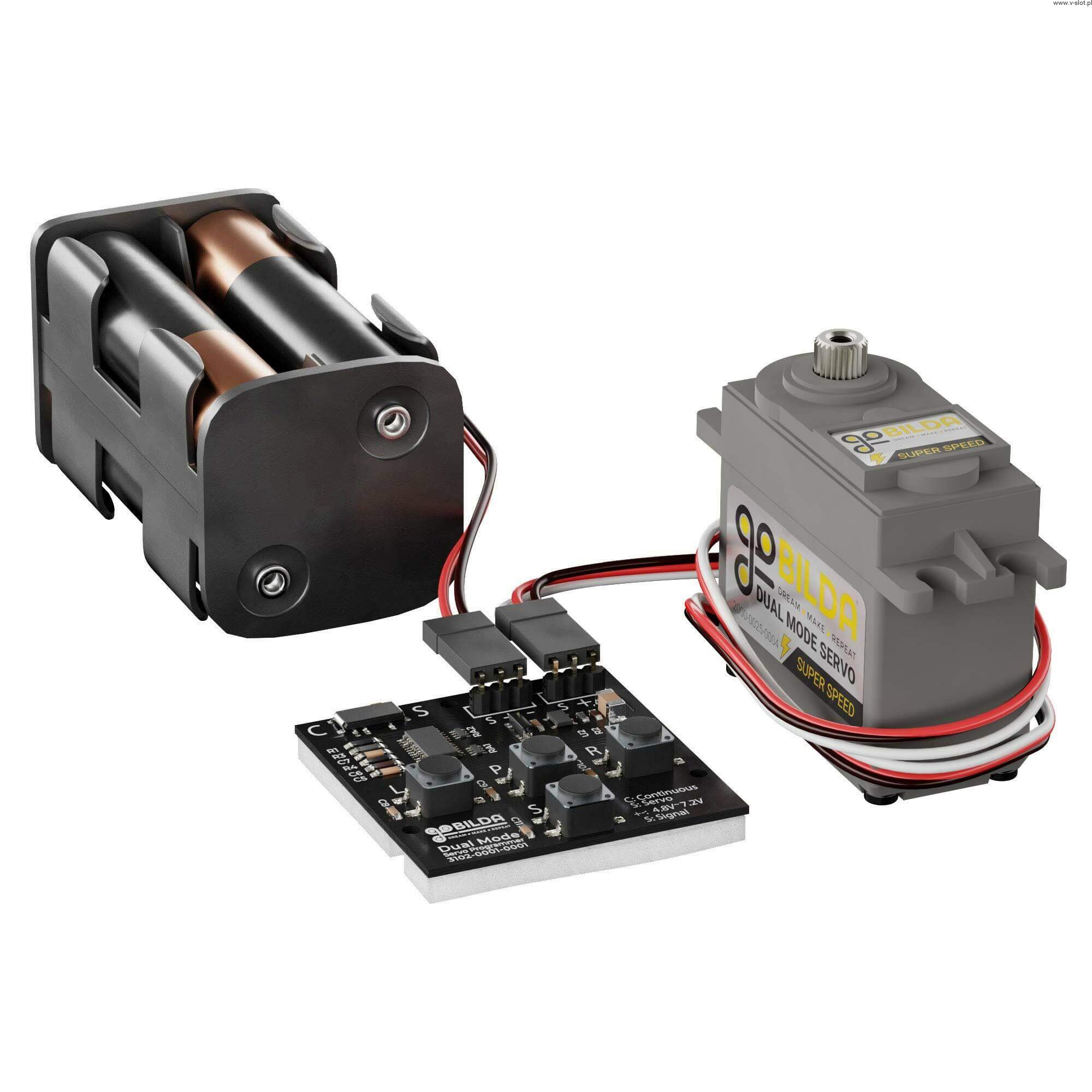

Like other 2000 series servos, this servo offers two different modes that allow it to fulfill a variety of roles in the robot. In the default mode, the servo is able to turn 300 degrees with position feedback. In this mode, the PWM signal will determine the position of the servo. By using the 3102 (1-1) series Dual Mode servo programmer, the servo can be put into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal you are sending through the servo controller.
Specifications:
- Weight: 58g
- Gear ratio: 67:1

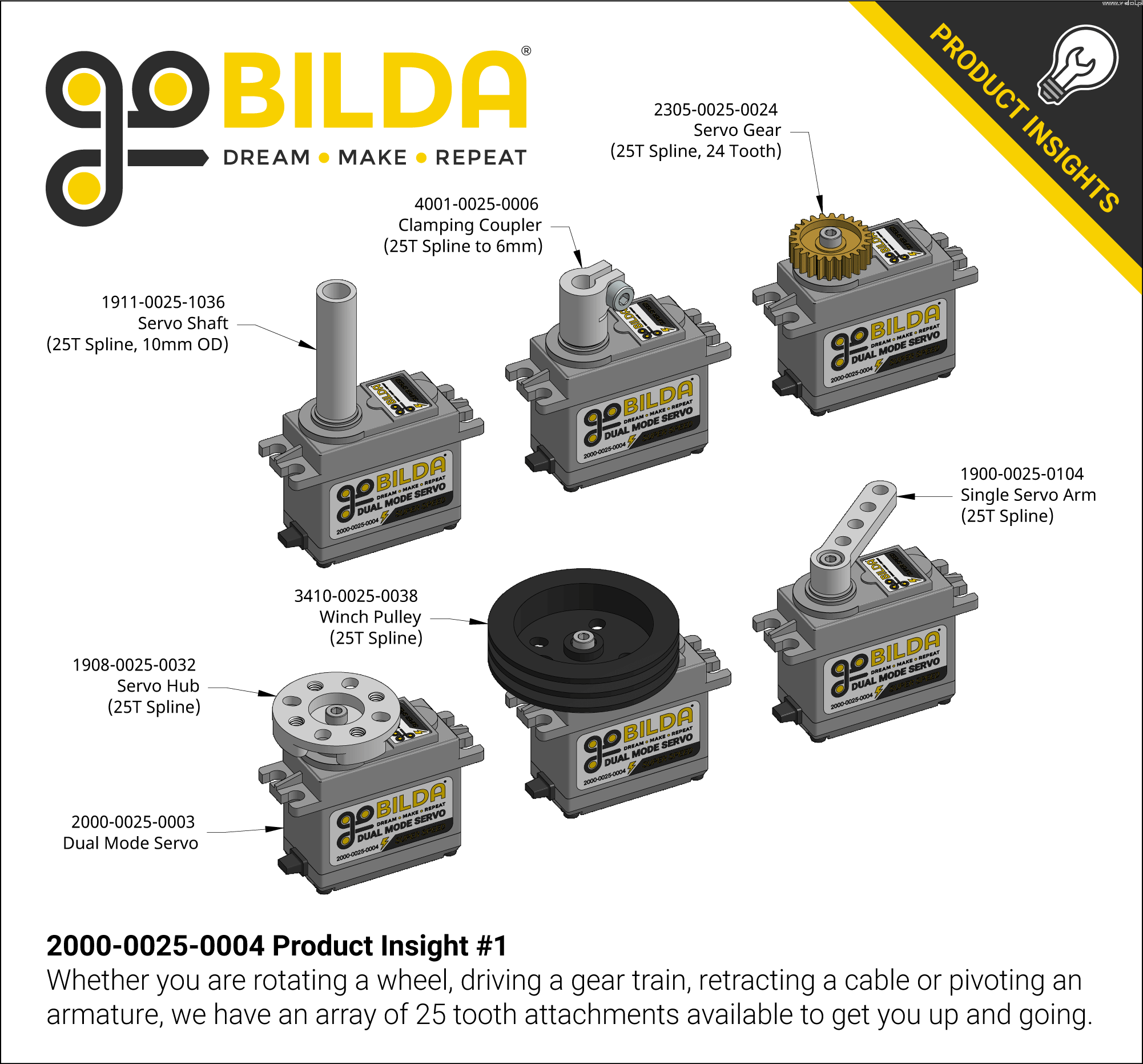

- Output shaft style: 25 teeth
- Voltage range: 4.8V ~ 7.4V
- No load speed (4.8 V): 0,055 sec / 60 ° (90 rpm)
- No load speed (6.0 V): 0,043 sec / 60 ° (115 rpm)
- No load speed (7.4V): 0,035 sec / 60 ° (145rpm)
- Torque at (4.8 V): 4.0 kg.cm (55 oz)
- Torque at (6.0V): 4.7 kg.cm (65 oz)
- Torque at (7.4 V): 5.4 kg.cm (75 oz)
- No-load current (4.8V): 190mA
- No-load current (6.0V): 200mA
- No-load current (7.4V): 230mA
- Overload current (4,8 V): 2000mA
- Overload current (6.0V): 2500mA
- Overload current (7.4V): 3000mA
- Maximum PWM range (default): 500 - 2500μsec
- Maximum PWM range (continuous): 1000 - 2000 μsec
- Travel per µsec (default): 0.15 ° / µsec
- Max Travel (default): 300 °
- Pulse amplitude: 3-5V
- Direction: Clockwise with increasing PWM signal
- Deadband width: 4μsec

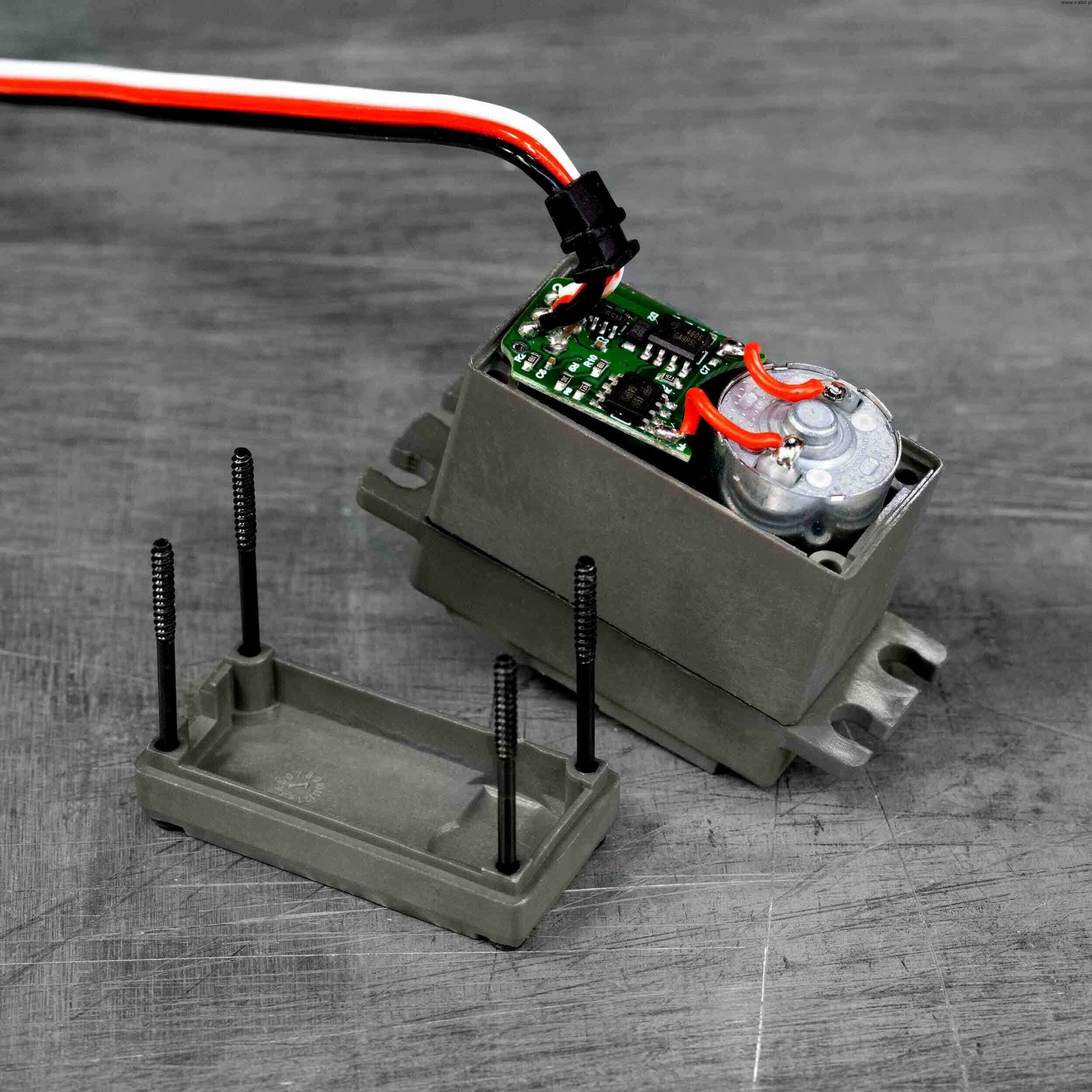

- Motor type: Brushed DC
- Output shaft support: Double ball bearing

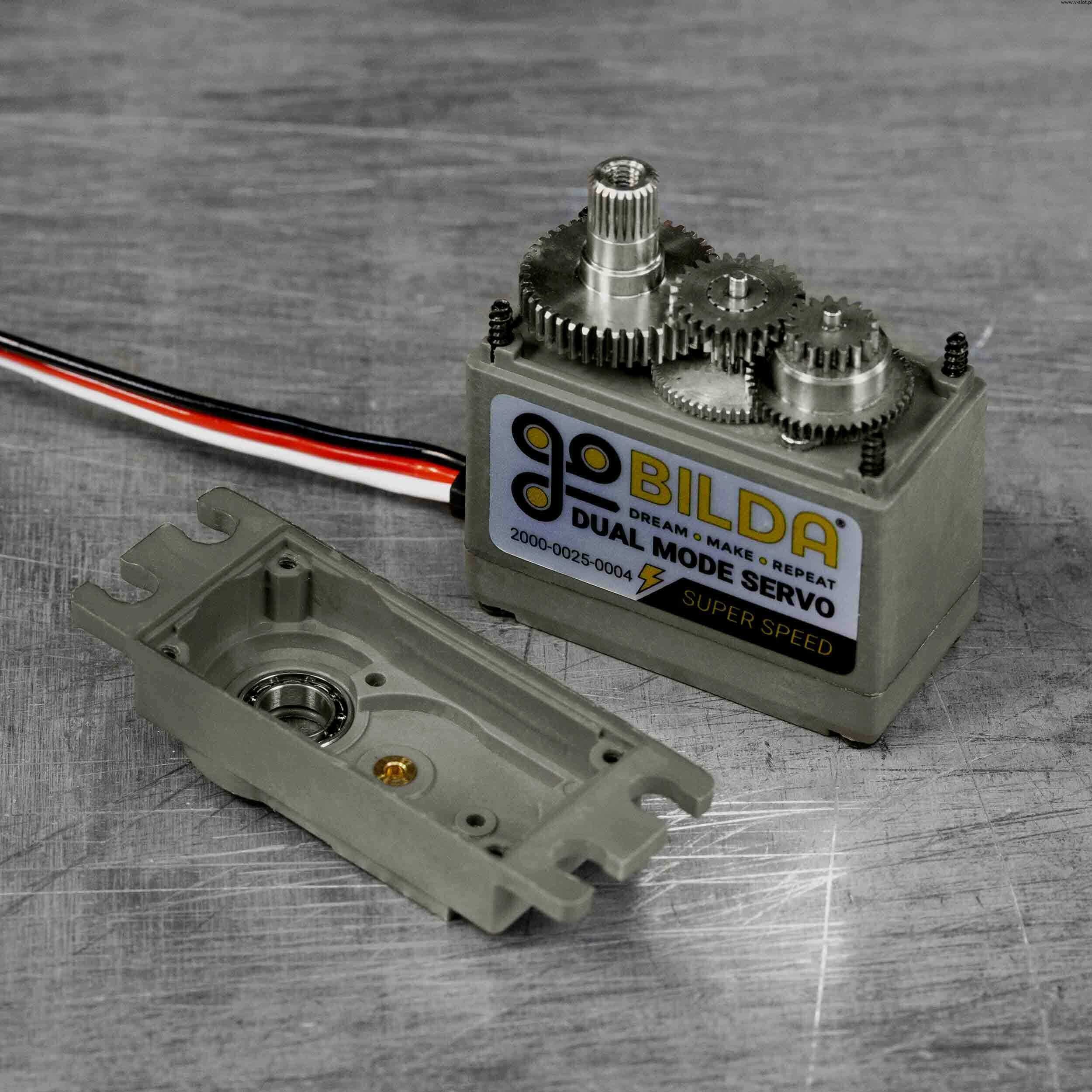

- Gear material: Steel
- Cable length: 300mm
- Wire gauge: 22 AWG
- Connector Type: TJC8 3 Position Servo Connector [MH-FC]
