1608 Series Double Pattern Cushion Block (1-1)
1608 Series Double Pattern Cushion Block (1-1)
Availability:
out of stock
Vendor:
goBilda
Product code:
1608-0001-0001
Kod EAN:
841298127617
Rating:
0
0
Price:
Gross price
incl. 23% TAX, excl. shipping costs
Net price:
€26.93
excl. 23% TAX, excl. shipping costs
product unavailable
Description

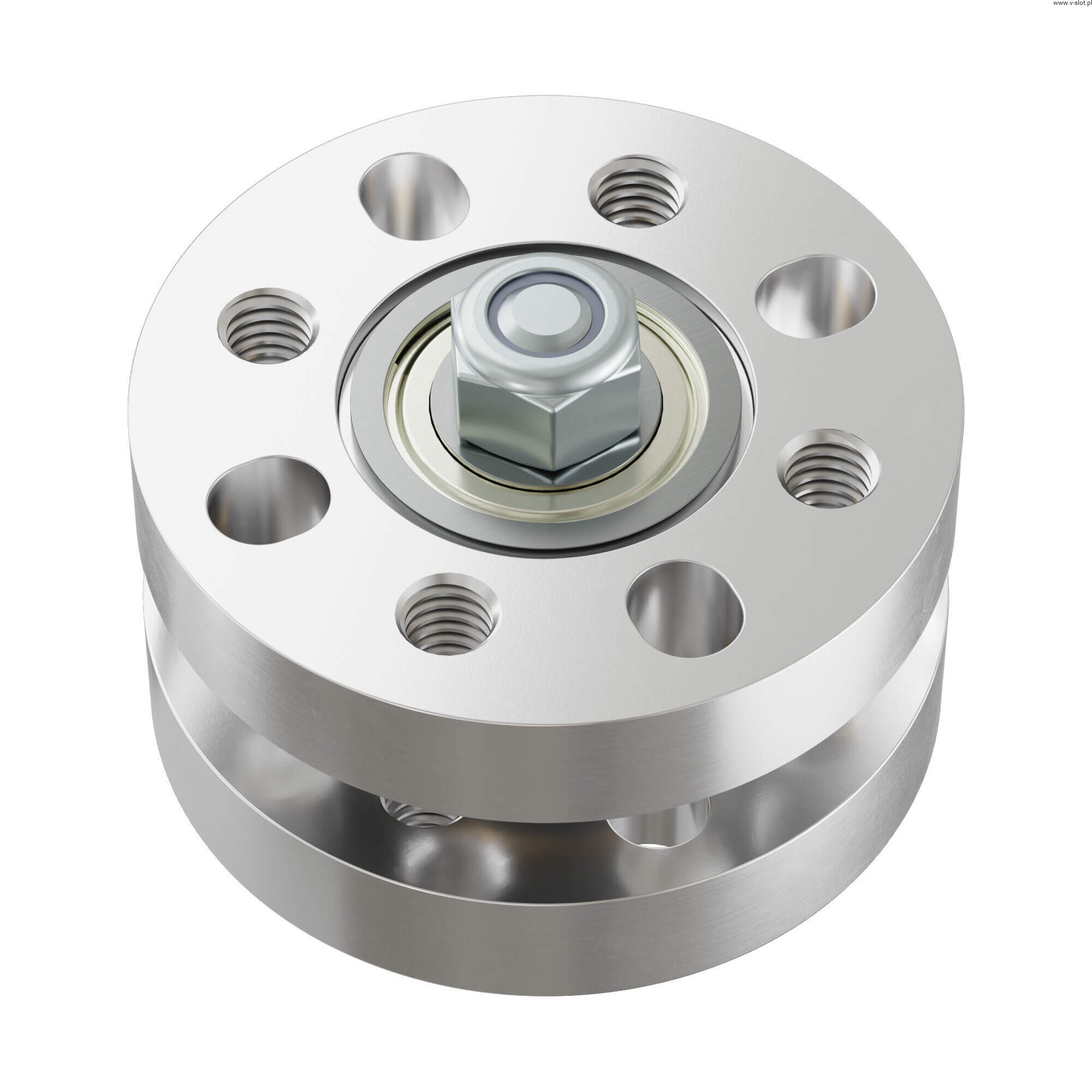

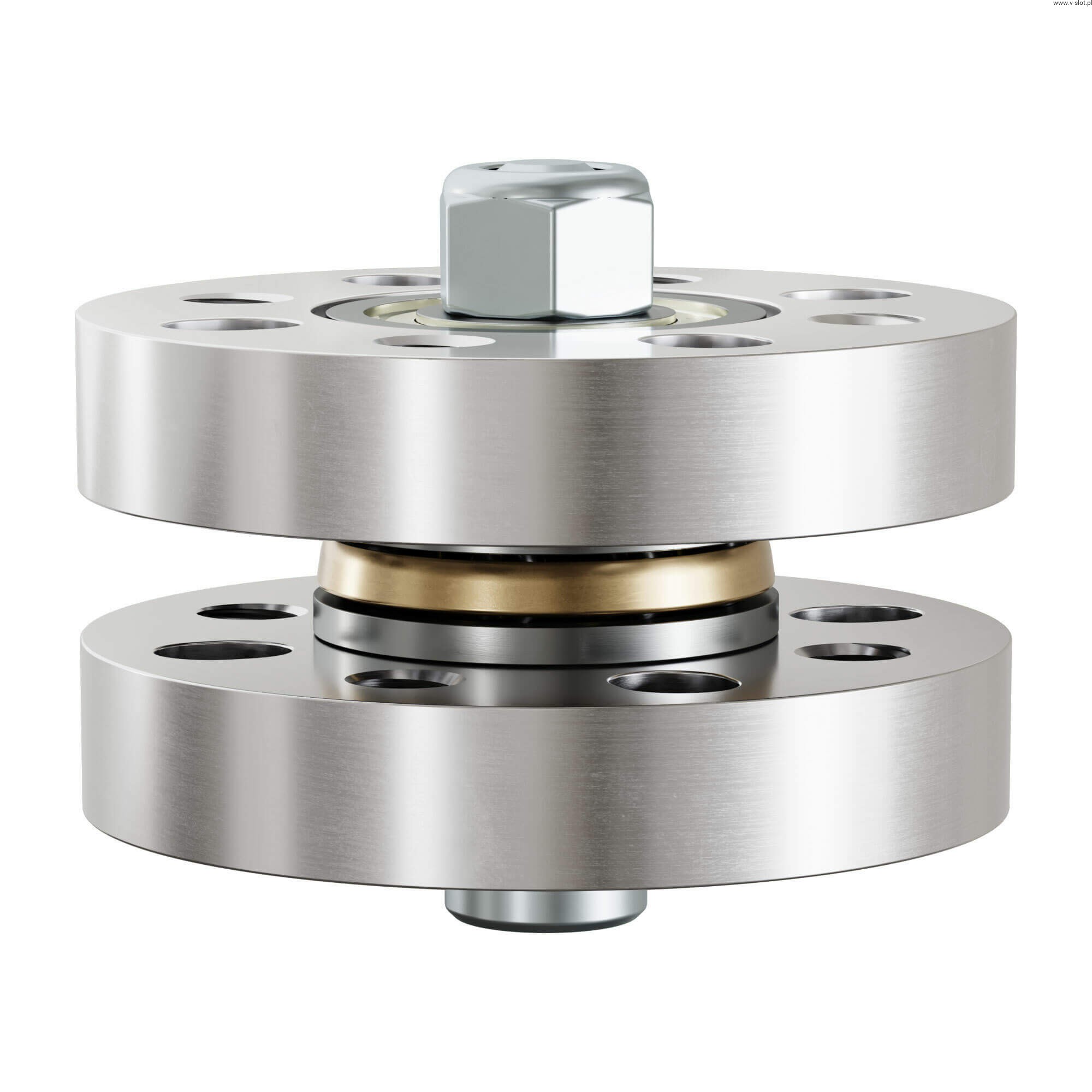

1608 Series Double Pattern Cushion Block (1-1)

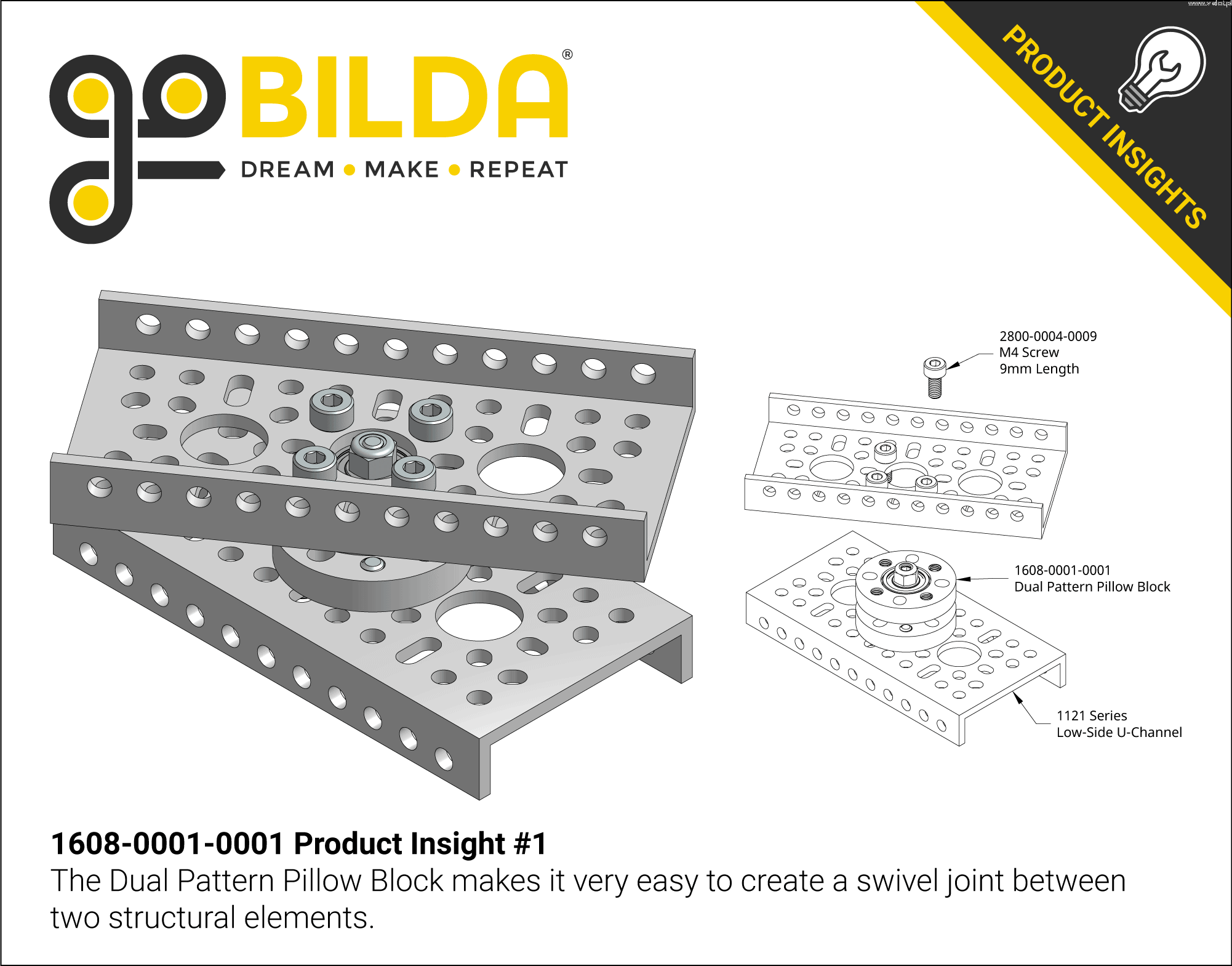

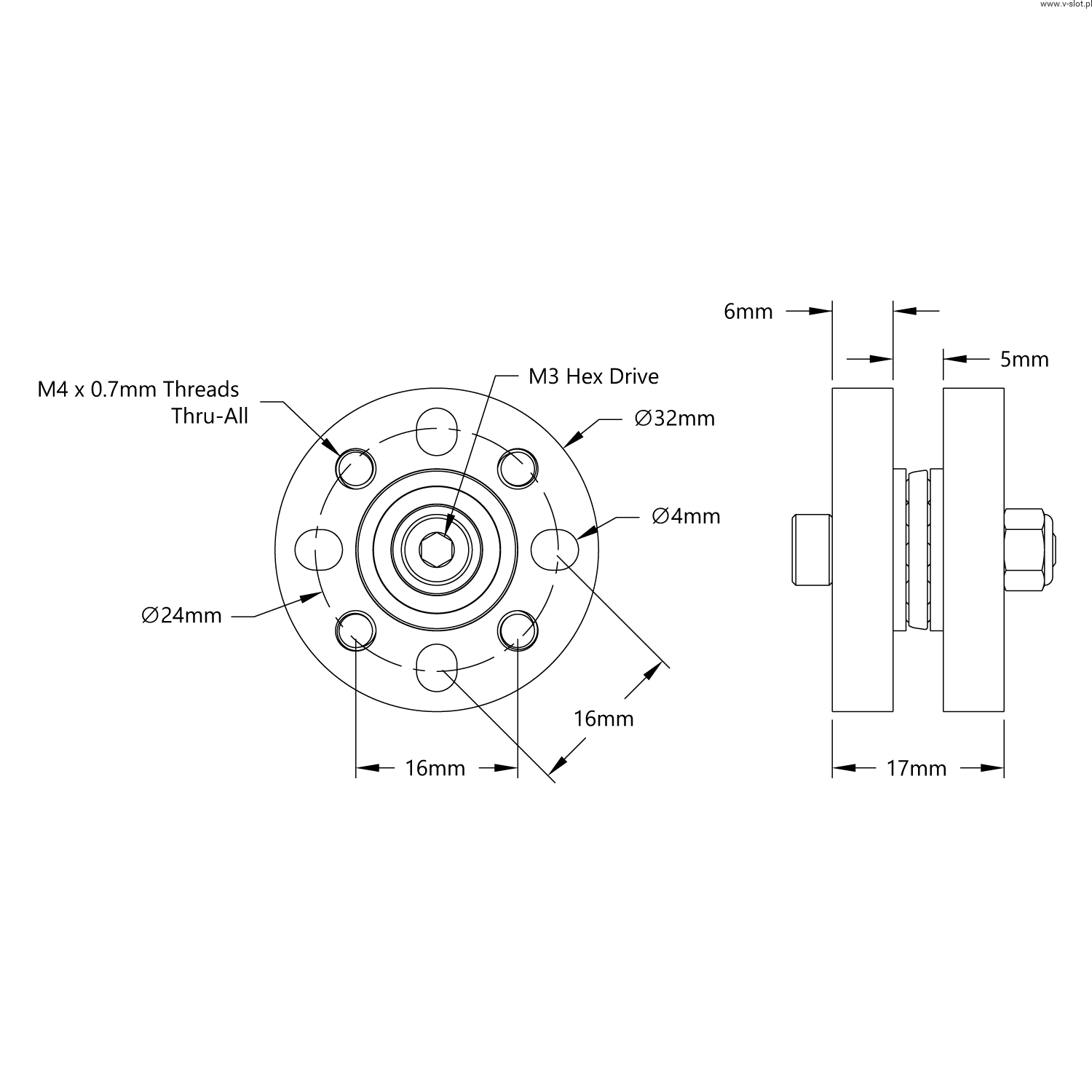

The double cushion pattern block is a swivel assembly with parallel mounting surfaces. The threaded holes allow this kit to be mounted to through-hole components using M4 screws. You can also attach one of the two sides to the threaded holes with the M4 cap screw, providing the clearance between the two sides of the cushion greater than 4mm. The thrust bearing ensures smooth operation in an axial load situation. The kit is delivered unassembled with clear instructions how to assemble it step by step.
Set contains:
| SKU | Item | Product |
| 1502-0006-0165 | 1 | Spacer 4 mm series 1502 (6 mm outer diameter, 16.5 mm length) |
| 1504-0032-0060 | 2 | Spacer series 1504 r (outer diameter 32 mm, length 6 mm) |
| 1512-0008-0060 | 1 | Spacer 6 mm 1512 series (8 mm outer diameter, 6 mm length) |
| 1611-0514-0006 | 2 | Flanged ball bearing 1611 series (ID 6mm x OD 14mm, thickness 5mm) |

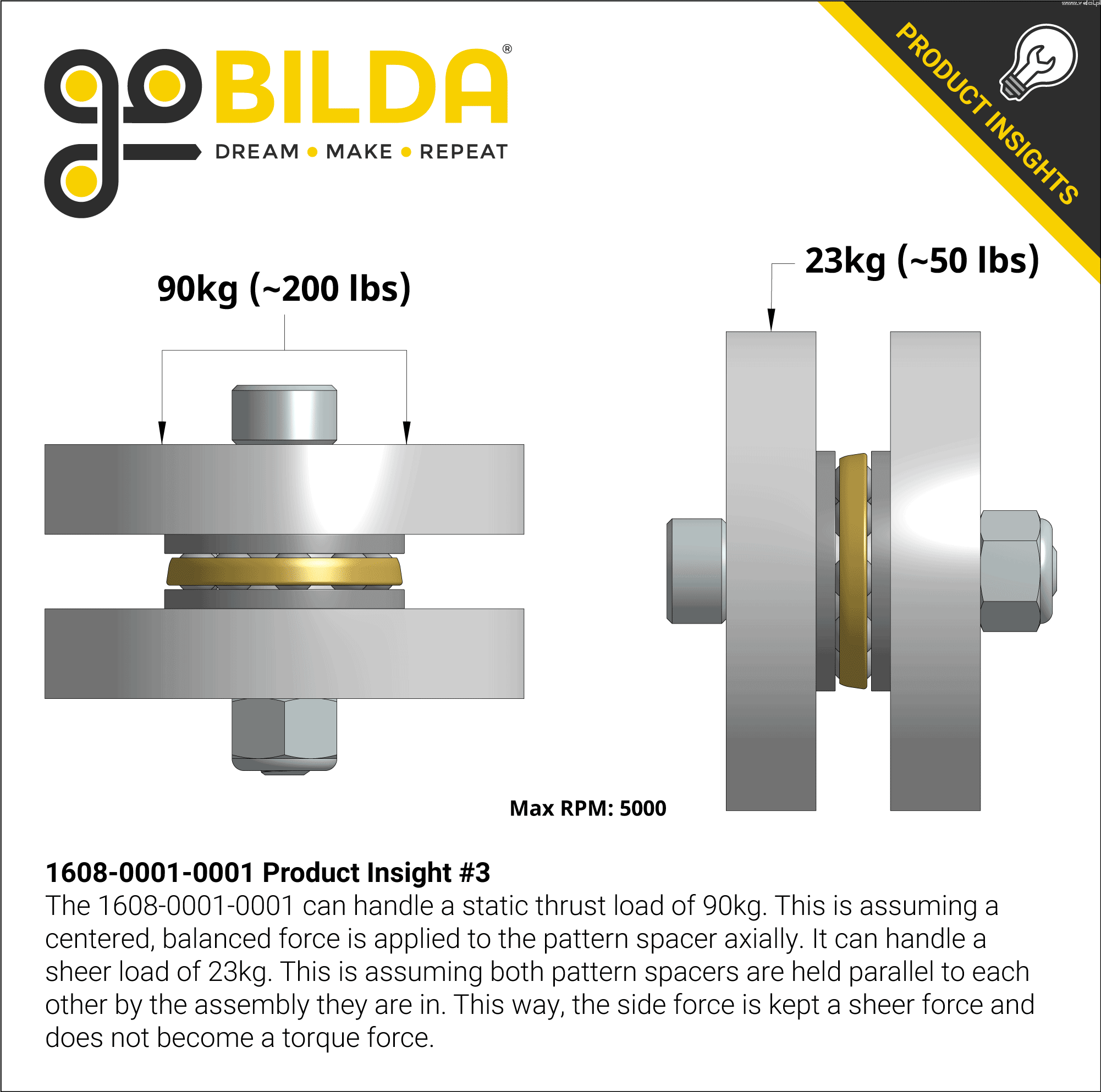

| 1613-0516-0008 | 1 | Thrust Ball Bearing 1613 series (8mm ID x 16mm OD, 5mm Thickness) |
| 2800-0004-0022 | 1 | Hexagon socket head cap screw series 2800 (M4 x 0.7 mm, length 22 mm) |
| 2812-0004-0007 | 1 | Zinc Plated Steel Locknut series 2812 (M4 x 0.7mm, 7mm Hex) |
Specification:
- Weight: 34g
