1/4-inch 12V solenoid valve, double-acting
product unavailable
Description

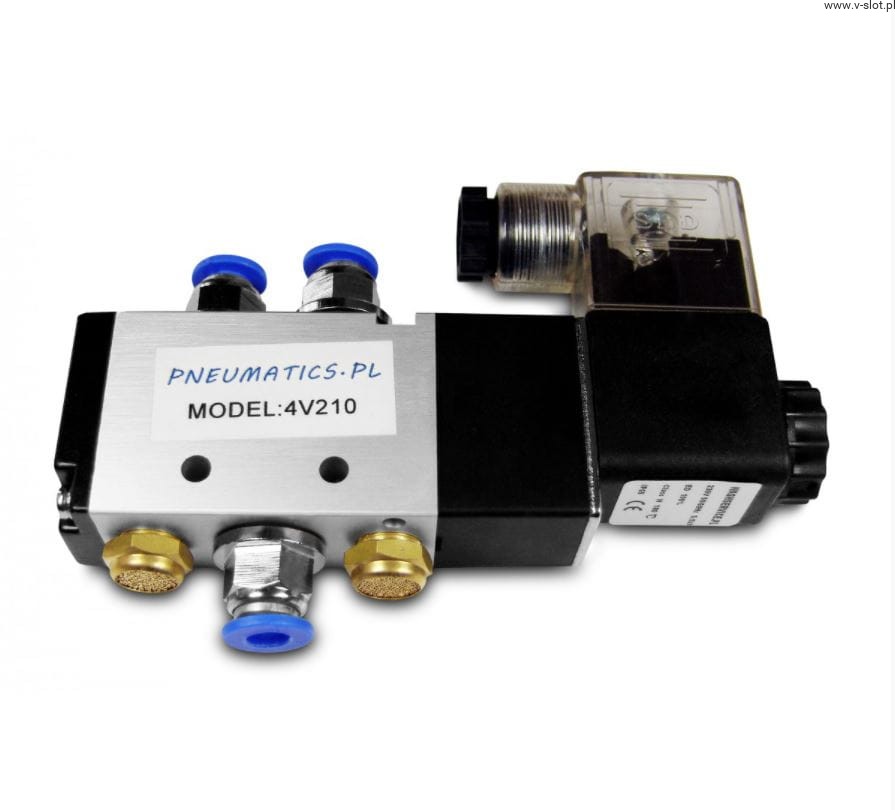

1/4-inch 12V solenoid valve, double-acting
The set consists of
- Valve
- Va12V DC coilslve
- Electrical connection- with a standard DIN plug with a diode indicating the operation
The valve can be manually opened in the event of a coil failure or voltage failure.
Basic applications:
5/2 control of double-acting cylinders.

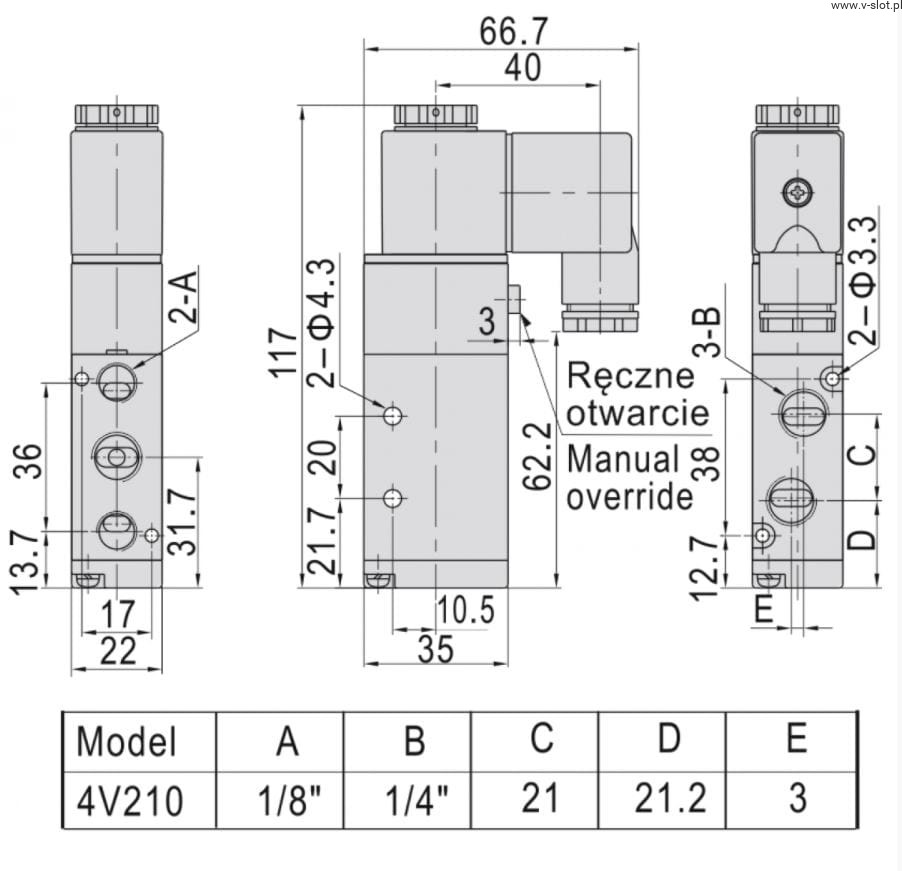

Technical data:
- 5/2 solenoid valve with a 1/4-inch thread
- Type: 2 Positions 5 Roads
- Connections: 3x 1/4-inch female thread, 2x 1/8-inch air exhaust
- AC current consumption: 5.5VA DC: 4.8W
- Culvert: 16mm2
- Flow: 800l / min at 3 bars
- Working temperature: 5-50 ° C
- Working medium: compressed air
- Working pressure: 1.5-8 bar
- Seals material: NBR
- Insulation class: IP65
- Response time: 0.05 sec
