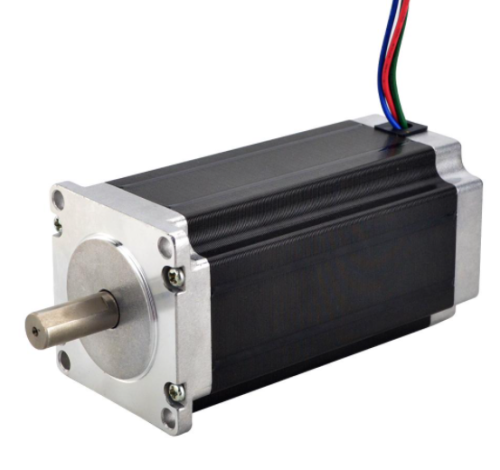

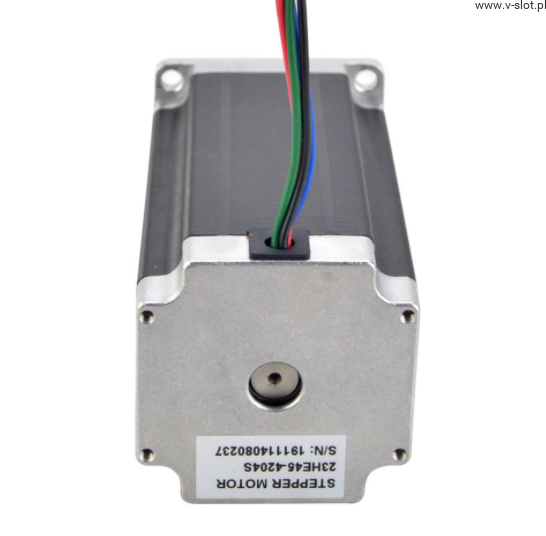

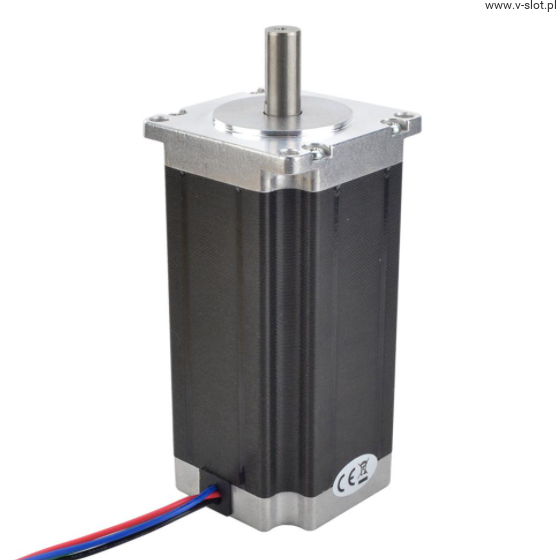

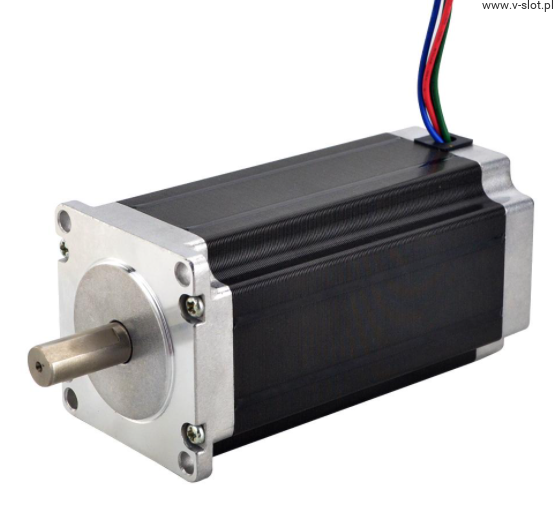

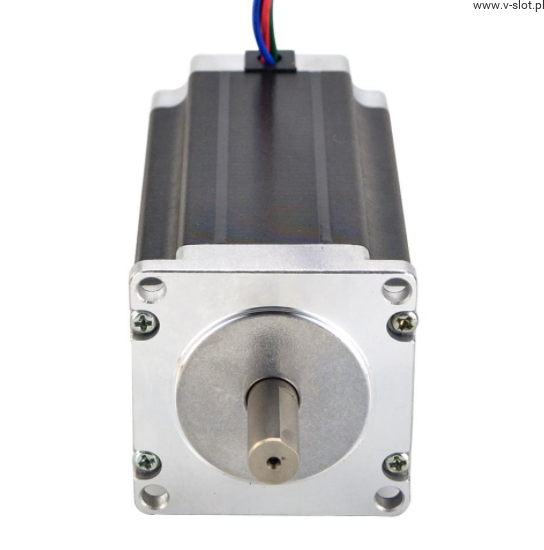

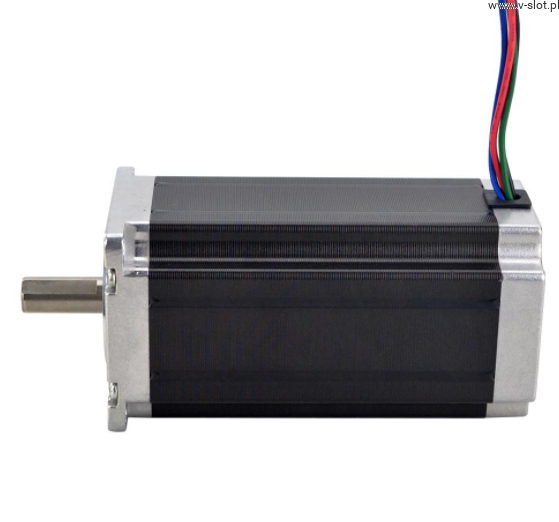

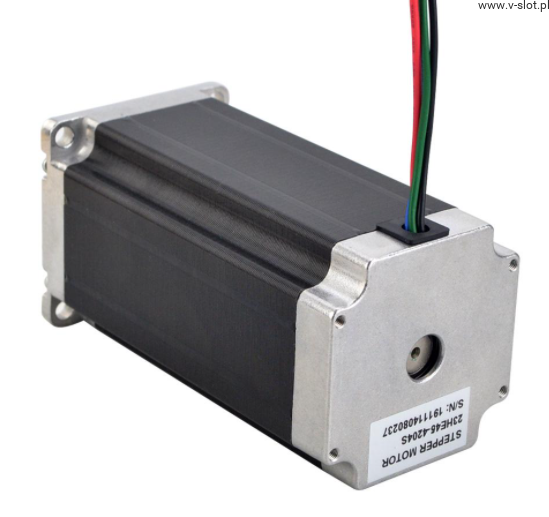

Seria E Nema 23 dwubiegunowa 1,8 ° 3,0 Nm (425oz.in) 4,2A 57x57x113mm 4 przewody
product unavailable
Description
E Series Nema 23 Bipolar 1.8deg 3.0 Nm(425oz.in) 4.2A 57x57x113mm 4 Wires
Electrical Specification:
- Manufacturer Part Number: 23HE45-4204S
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 3.0 Nm(425oz.in)
- Rated Current/phase: 4.2 A
- Phase Resistance: 0.9 ohms± 10%
- Inductance: 3.8 mH ± 20%(1KHz)
Physical Specification:
- Frame Size: 57 x 57 mm
- Body Length: 113 mm
- Shaft Diameter: Φ10 mm
- Shaft Length: 24 mm
- D-cut Shaft Length: 20 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 1.8 kg
Connection:
