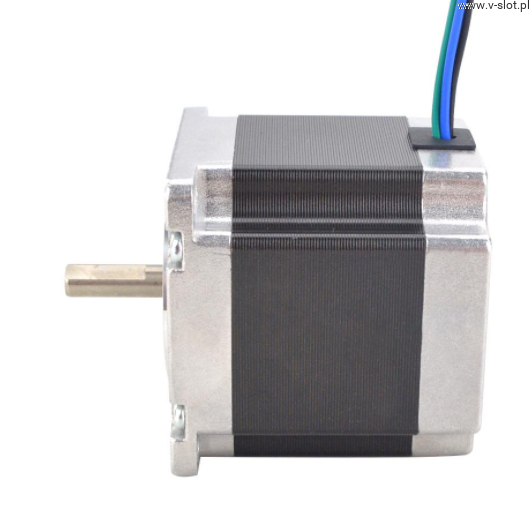

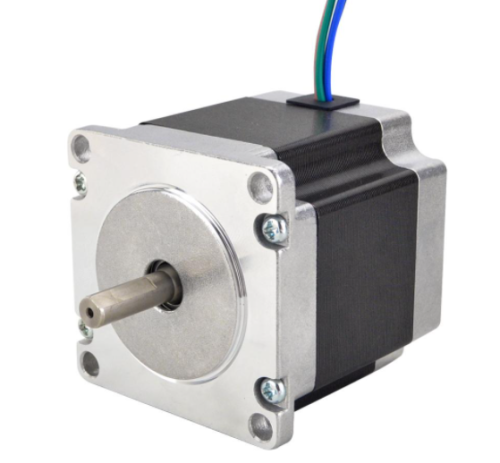

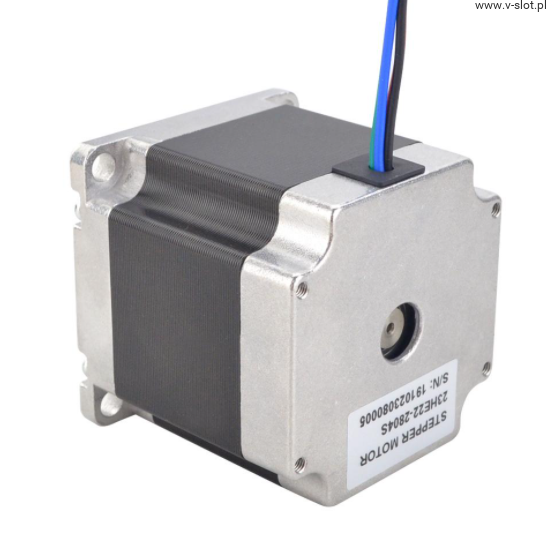

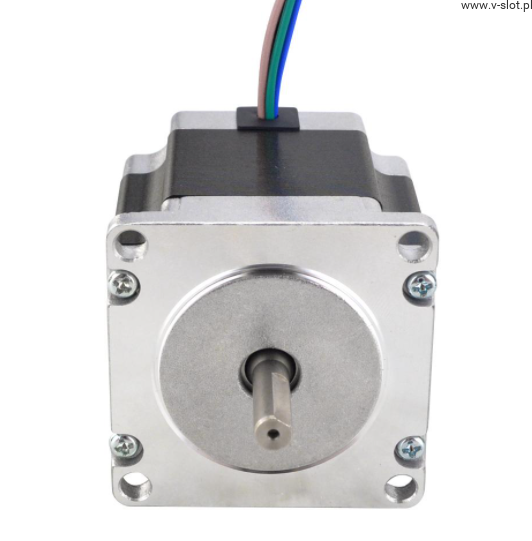

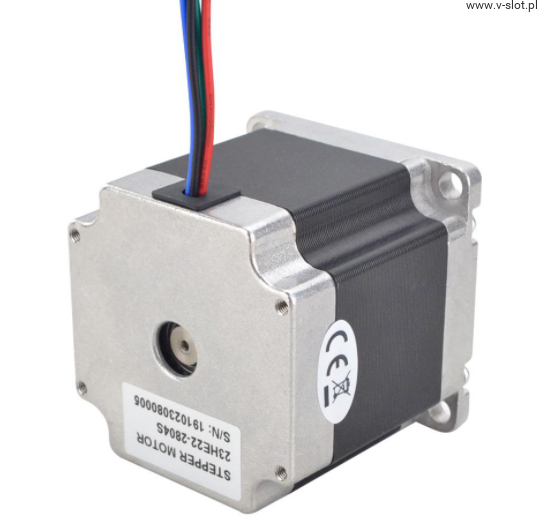

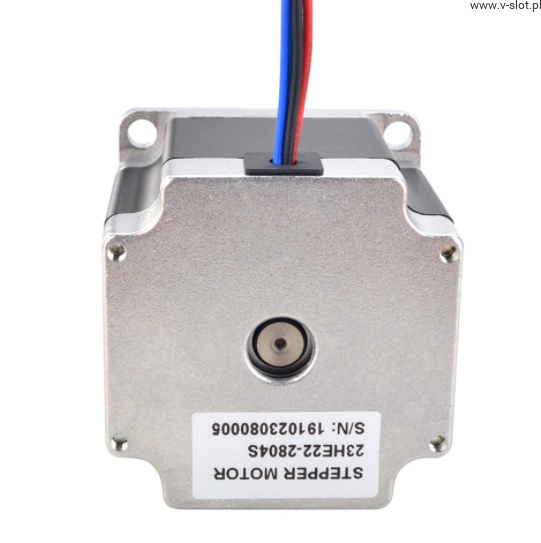

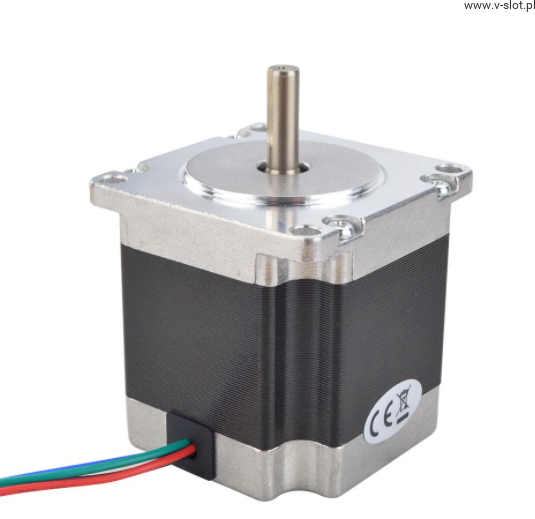

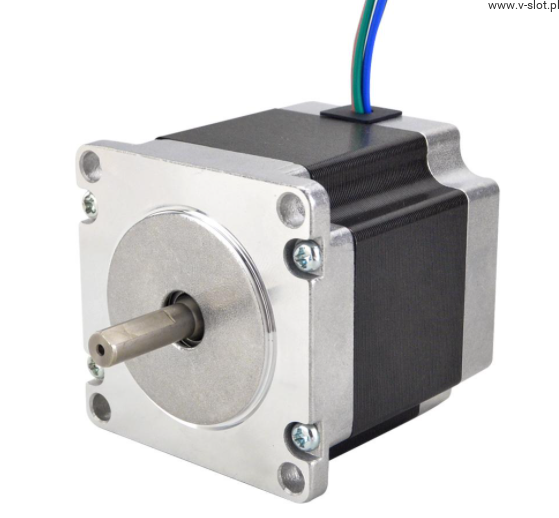

E Series Nema 23 Stepper Motor Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A 57x57x56mm 4 Wires
product unavailable
Description
E Series Nema 23 Stepper Motor Bipolar 1.8deg 1.26 Nm(178.04oz.in) 2.8A 57x57x56mm 4 Wires
Electrical Specification
- Manufacturer Part Number: 23HE22-2804S
- Number of phase: 2
- Step Angle: 1.8 deg
- Holding Torque: 1.26 Nm(178.04oz.in)
- Rated Current/phase: 2.8 A
- Phase Resistance: 0.9 ohms± 10%
- Inductance: 2.5 mH ± 20%(1KHz)
Physical Specification
- Frame Size: 57 x 57 mm
- Body Length: 56 mm
- Shaft Diameter: Φ6.35 mm
- Shaft Length: 21 mm
- D-cut Length: 15 mm
- Number of Leads: 4
- Lead Length: 300 mm
- Weight: 0.7 kg
Connection:
