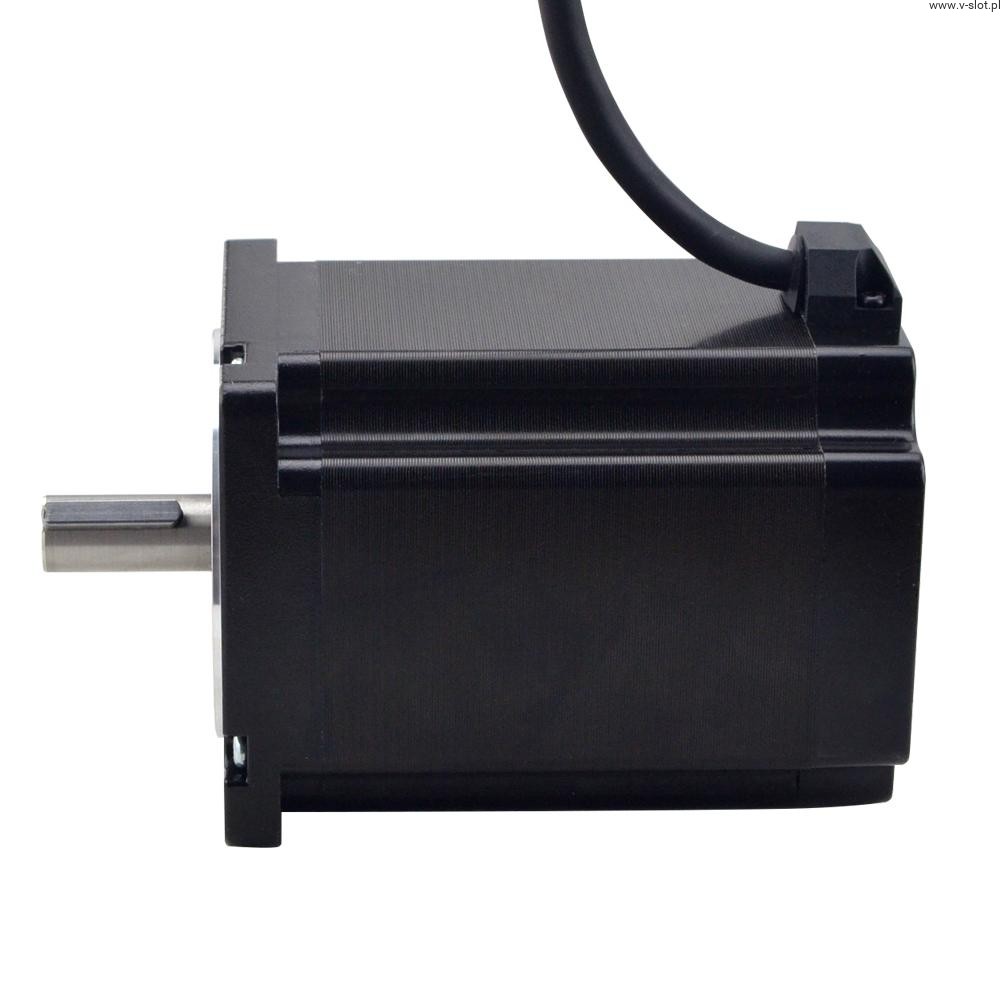

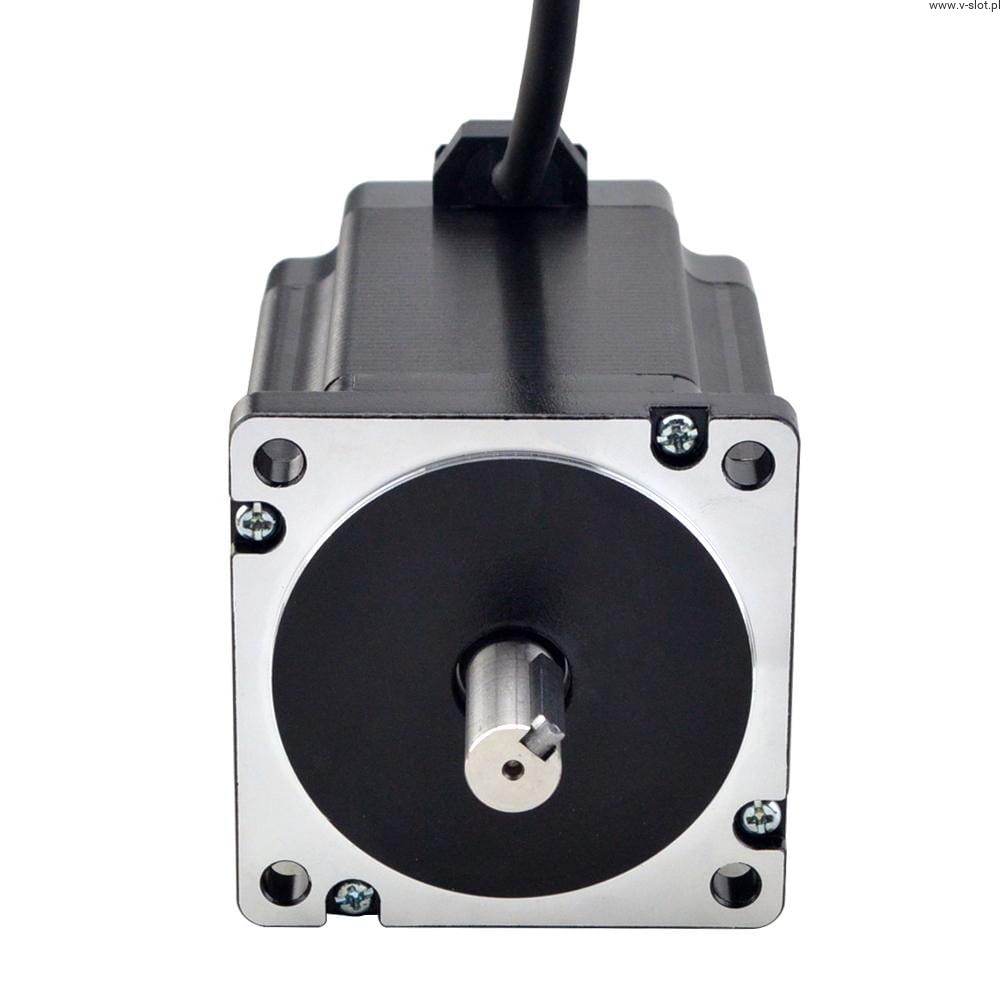

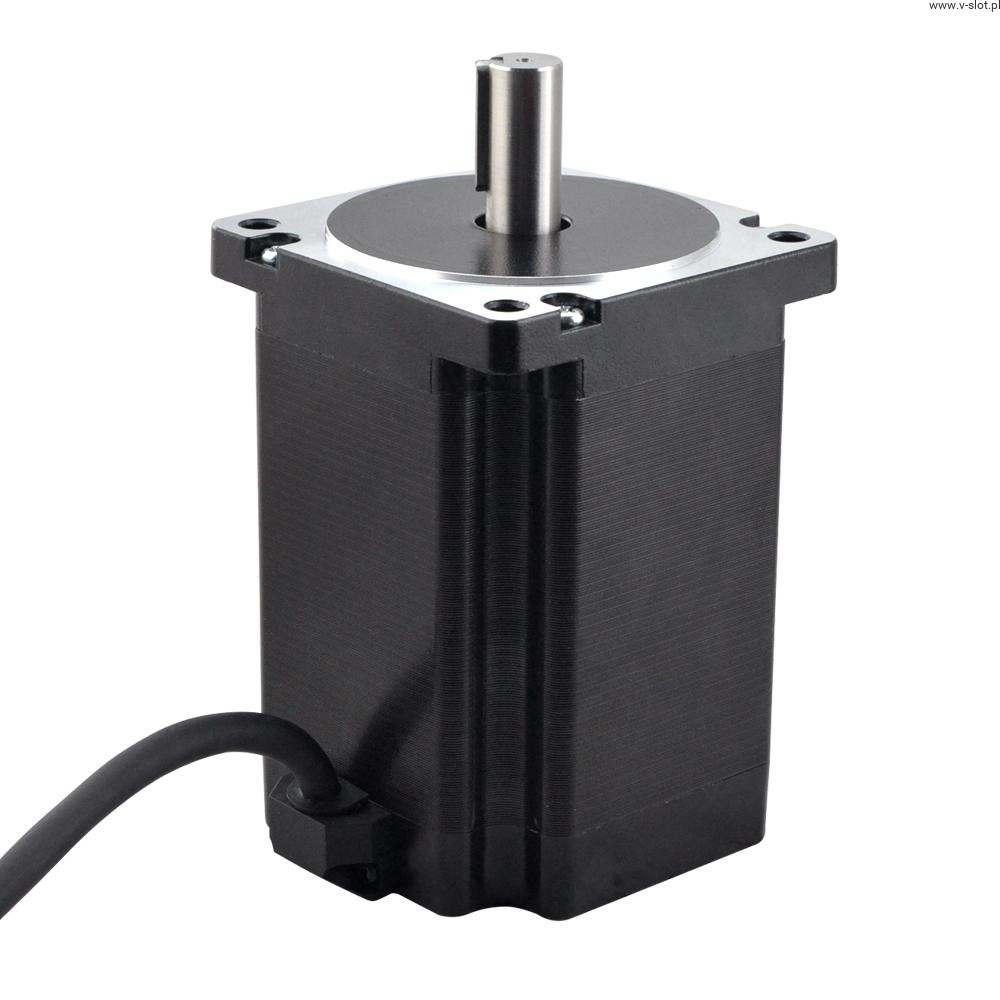

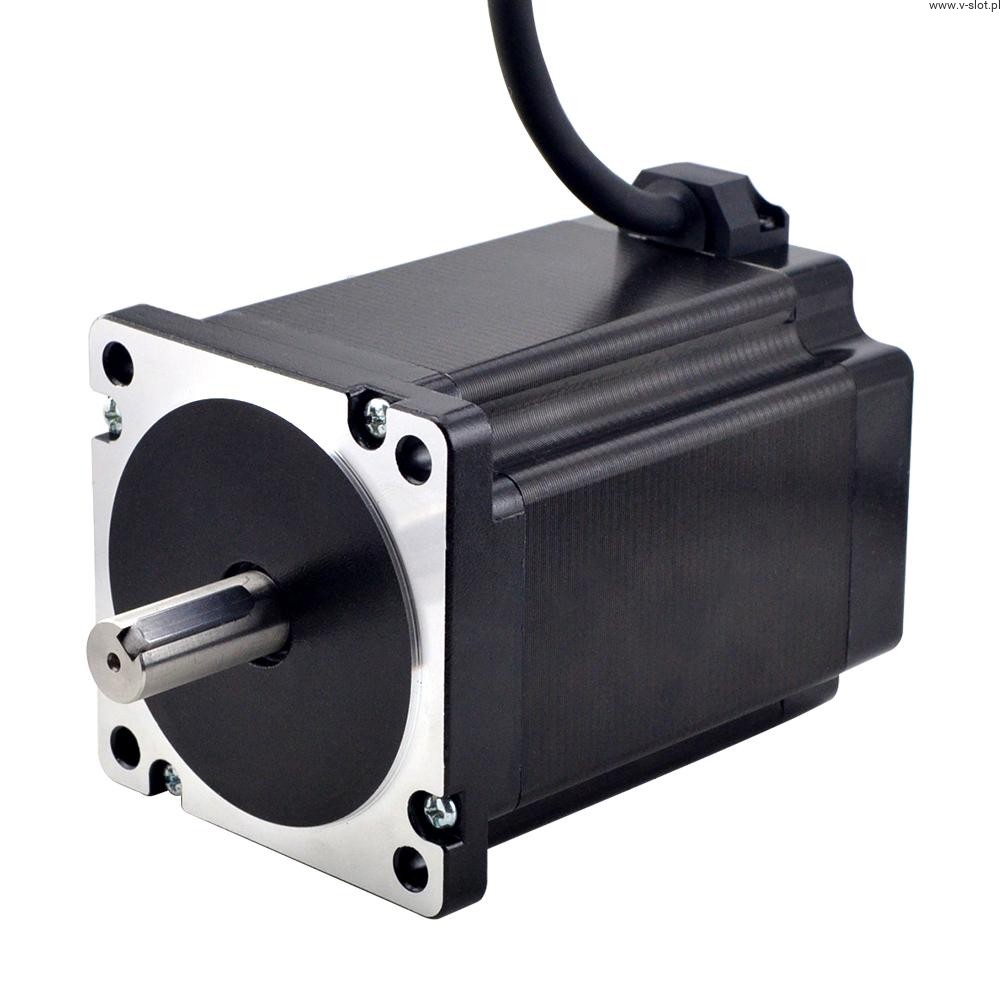

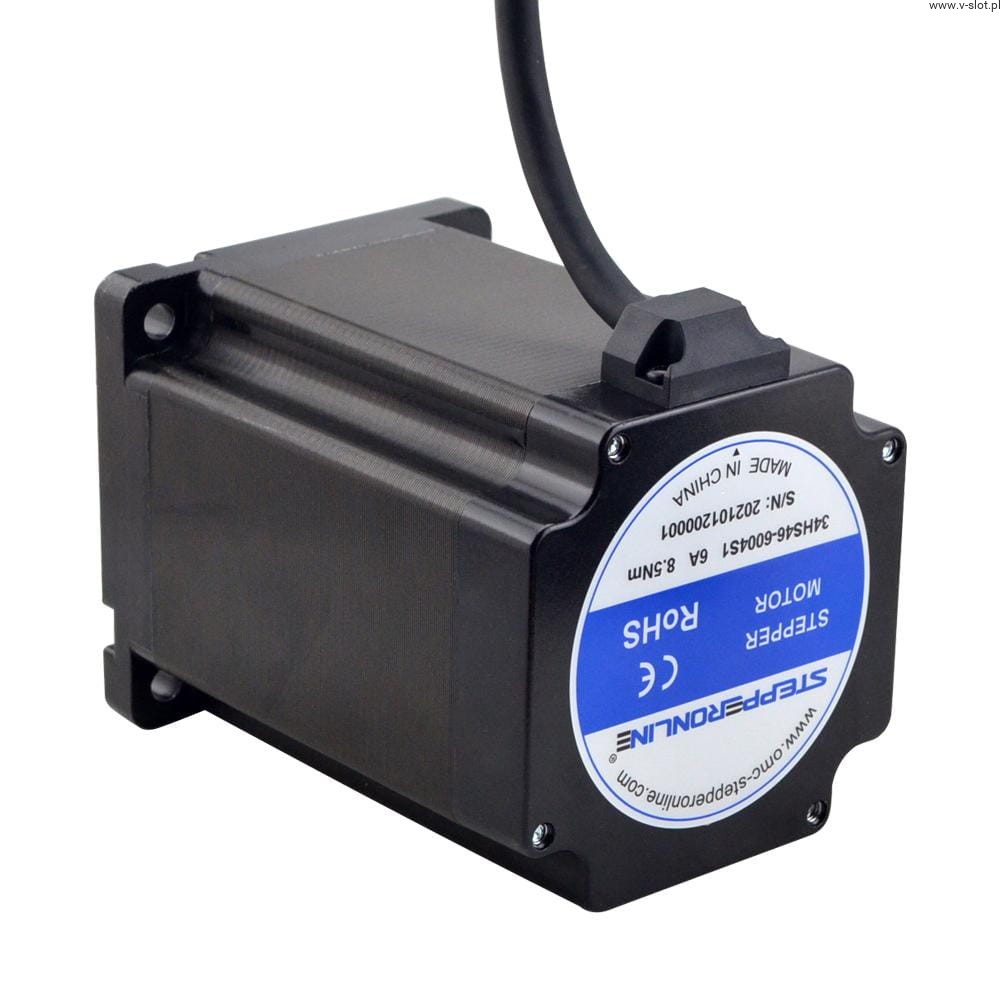

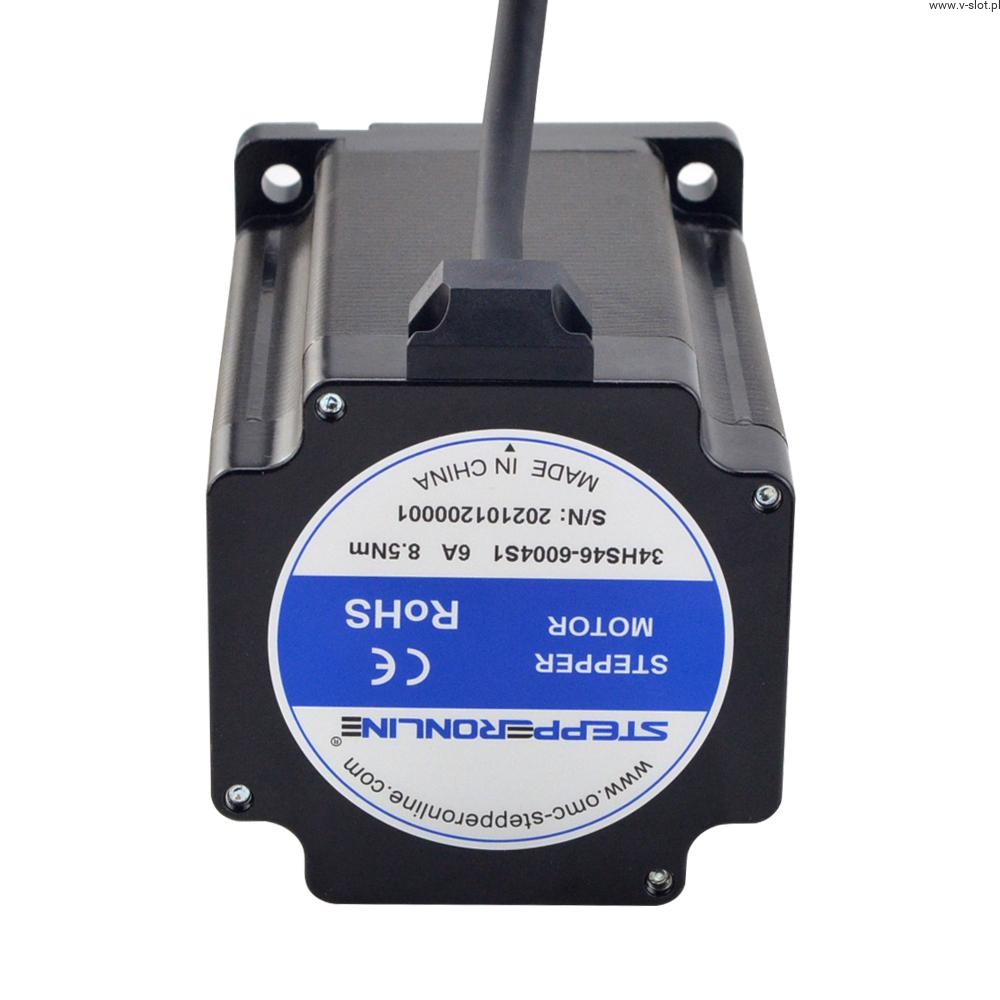

Stepper motor NEMA 34 1,8º 8,5Nm - 1204 OZ
product unavailable
Description
Stepper motor NEMA 34 1,8º 8,5Nm - 1204 OZ
Electrical Specifications:
Inductance: 5.8 mH
Phase resistance: 0.7 ohm
Rated current: 6.0 A
Step angle: 1.8 degrees
Holding torque: 850 Ncm
Holding torque: 1203.94 oz.in
Physical Specifications:
Frame size: Nema 34 (86 mm x 86 mm)
Body length: 110 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 32 mm
Number of wires: 4
Cable length: 1000 mm
Weight: 4000 g
Connection:
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
