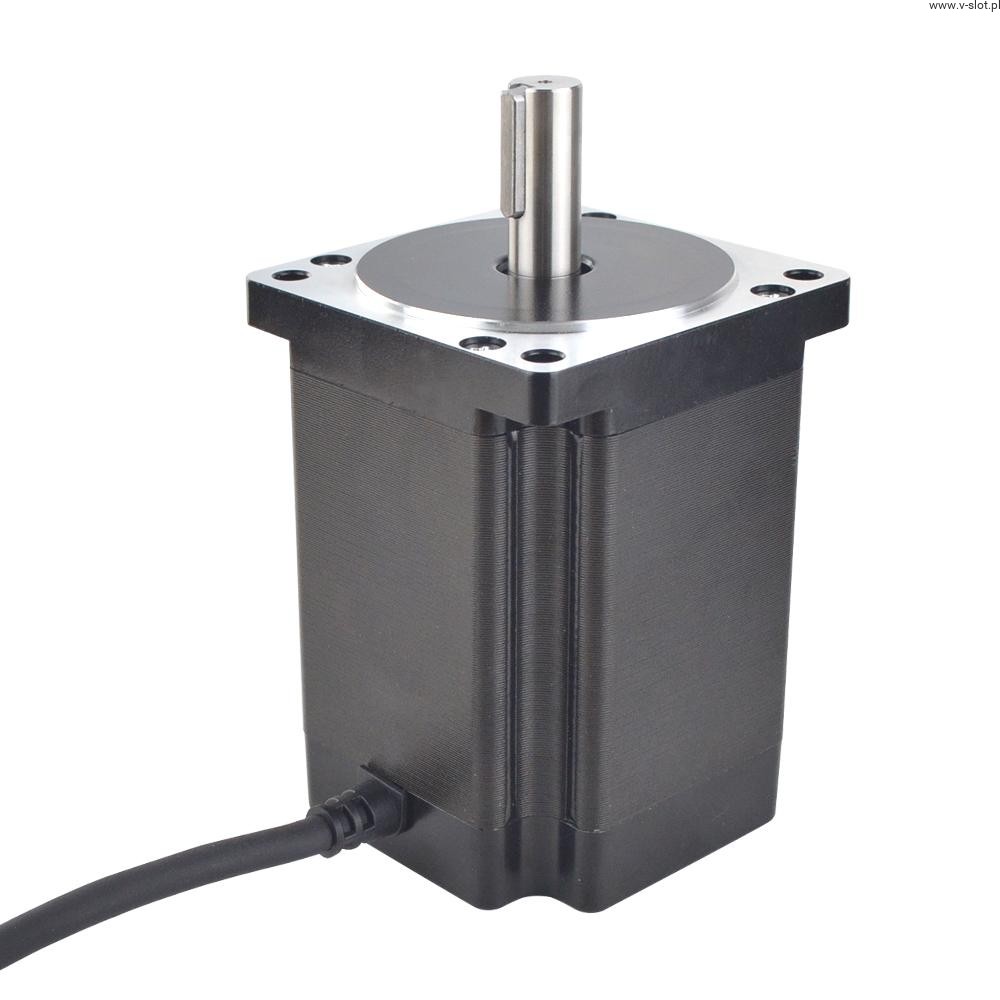

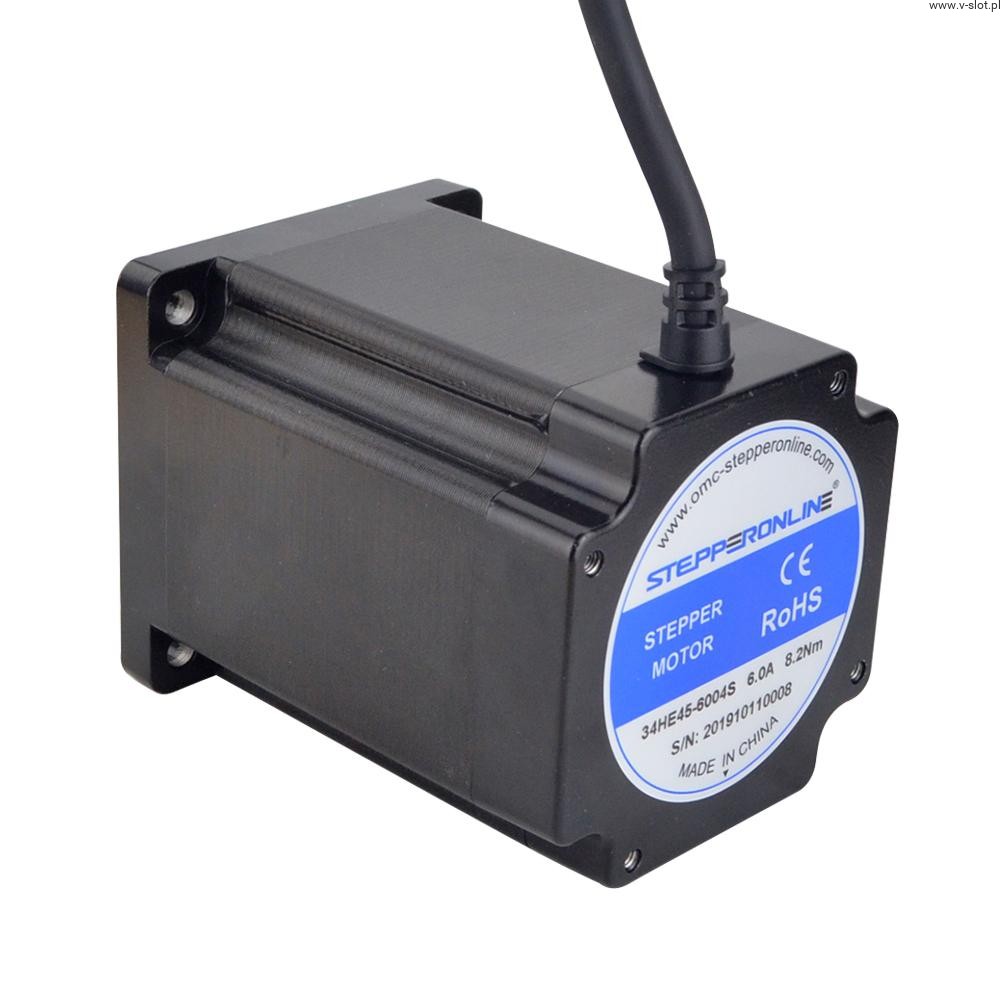

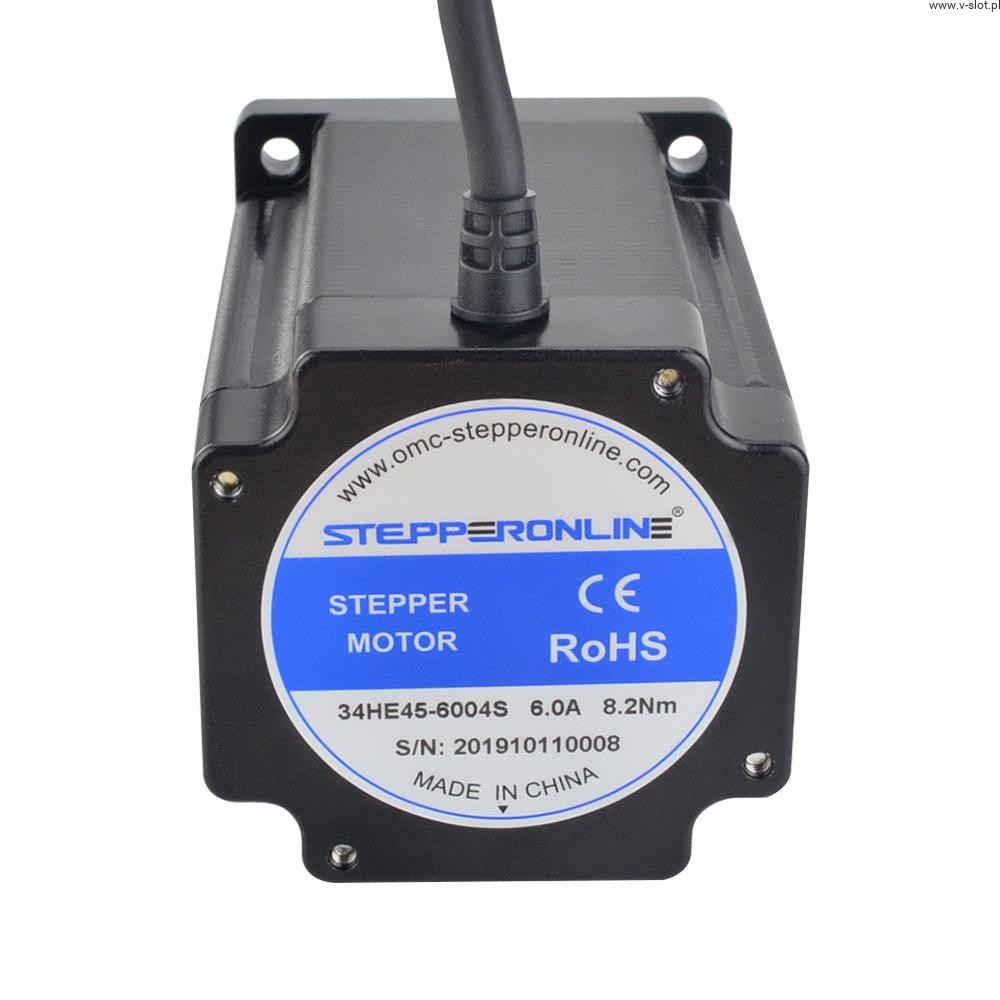

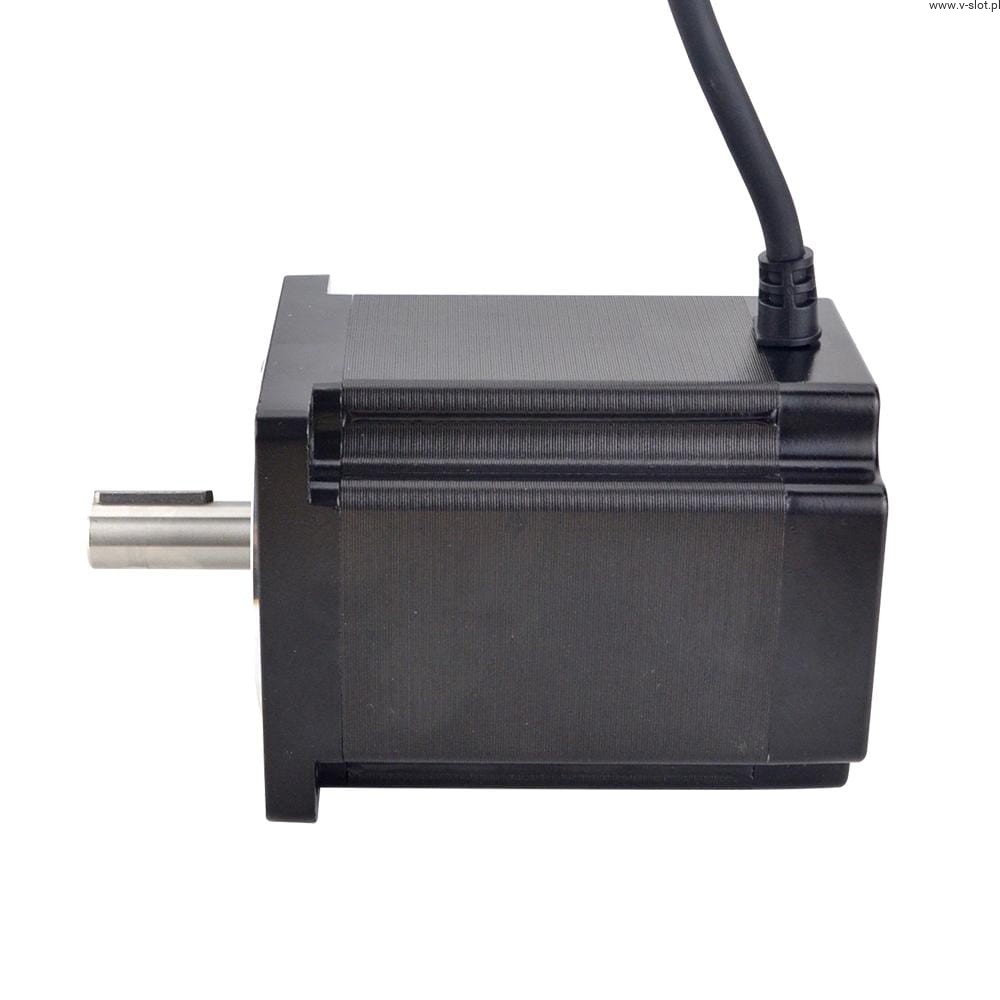

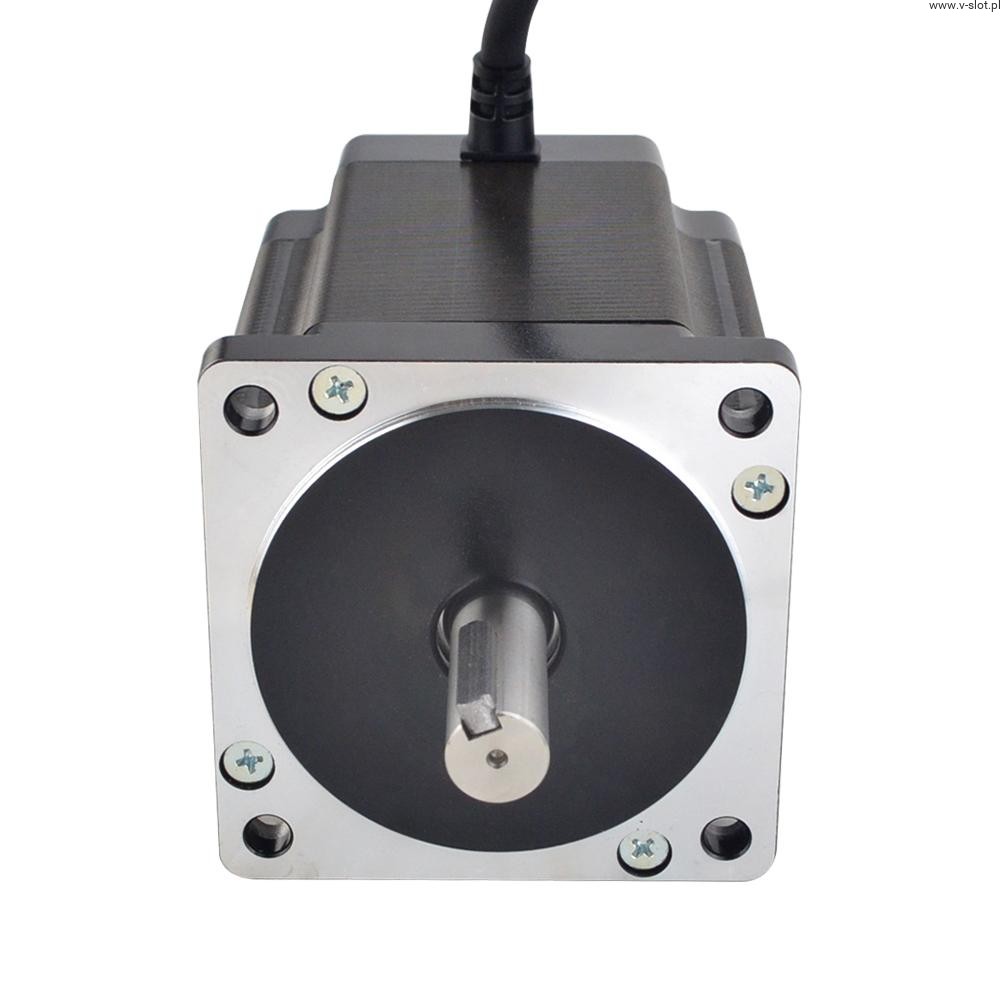

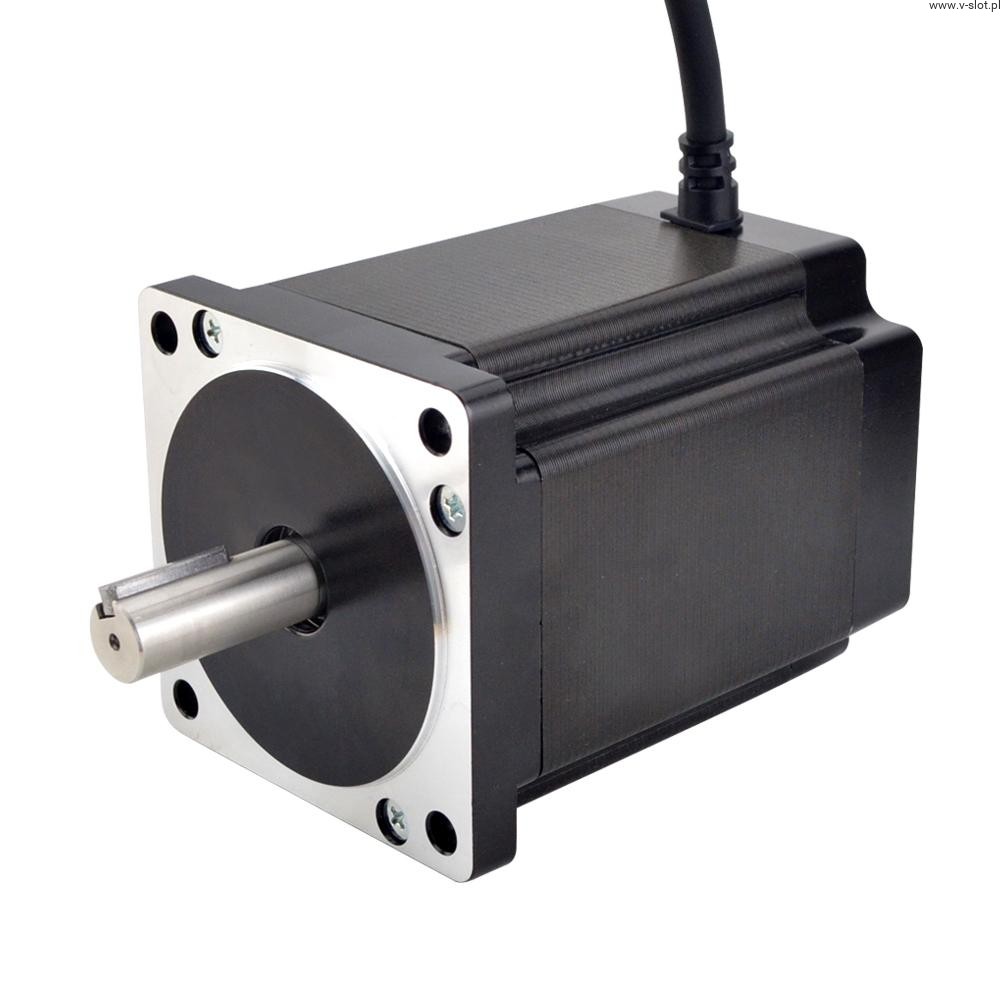

Stepper motor NEMA 34 1,8º 8,2Nm - 1162 OZ

Stepper motor NEMA 34 1,8º 8,2Nm - 1162 OZ

Availability: out of stock

Vendor: STEPPERONLINE

Product code: 34HE45-6004S

Rating:

Price: €145.10 145.10

Gross price

incl. 23% TAX, excl. shipping costs

Net price: €117.96

excl. 23% TAX, excl. shipping costs

quantity szt.

product unavailable

Description

Stepper motor NEMA 34 1,8º 8,2Nm-1162 OZ

Electrical Specifications:

Inductance: 5.1 mH
Phase resistance: 0.51 ohm
Rated current: 6.0 A
Step angle: 1.8 degrees
Holding torque: 820 Ncm
Holding torque: 1161.45 oz. in

Physical Specifications:

Frame size: Nema 34 (86mmx86mm)
Body length: 114 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 37 mm
Number of wires: 4
Cable length: 500 mm
Weight: 3700 g

Connection:

A+	A-	B+	B-
Black	Green	Red	Blue
