Stepper motor NEMA 34 CNC 4,5Nm - 637 OZ
product unavailable
Description

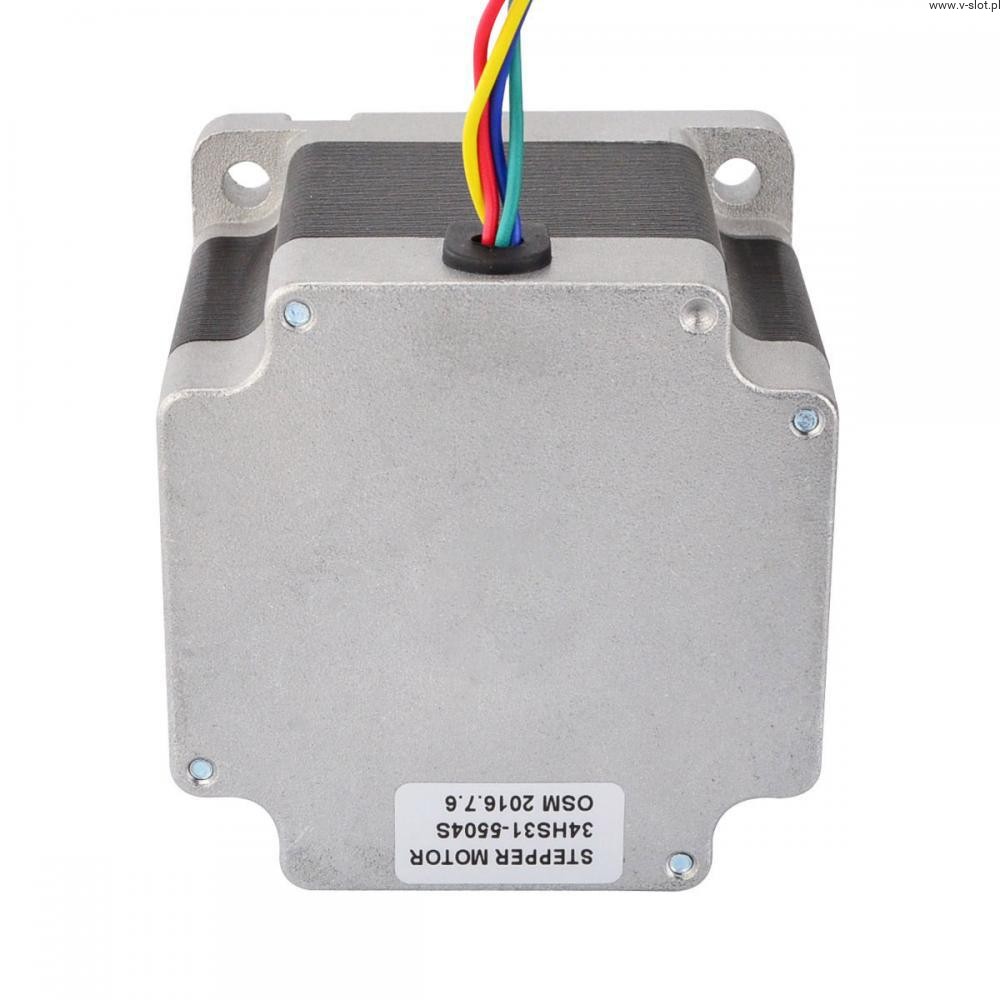

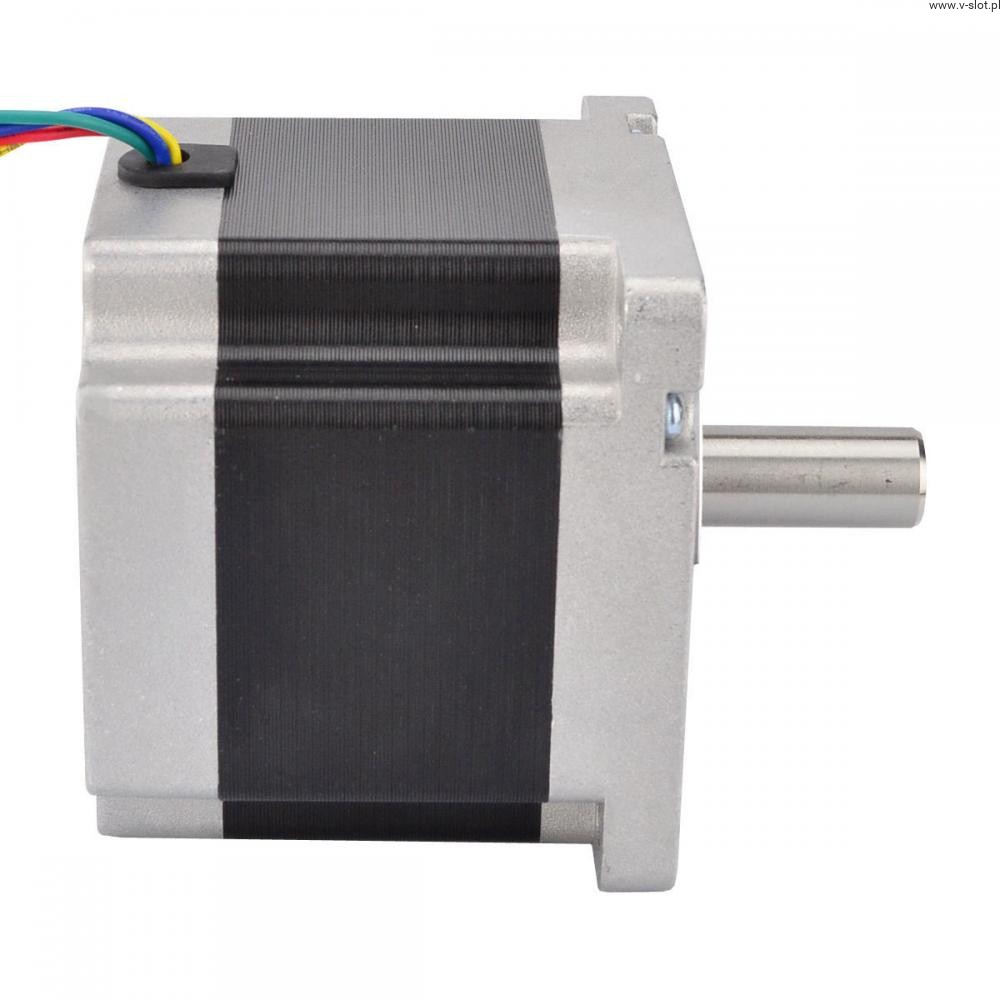

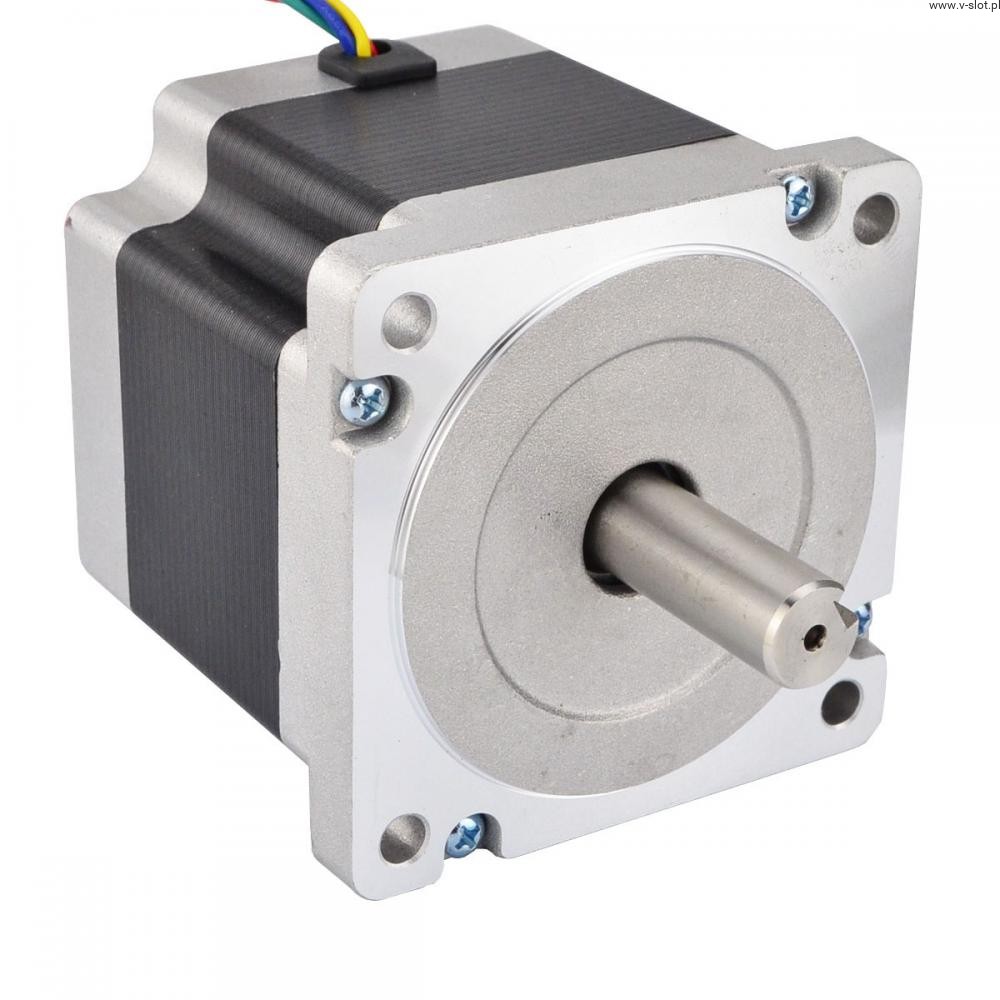

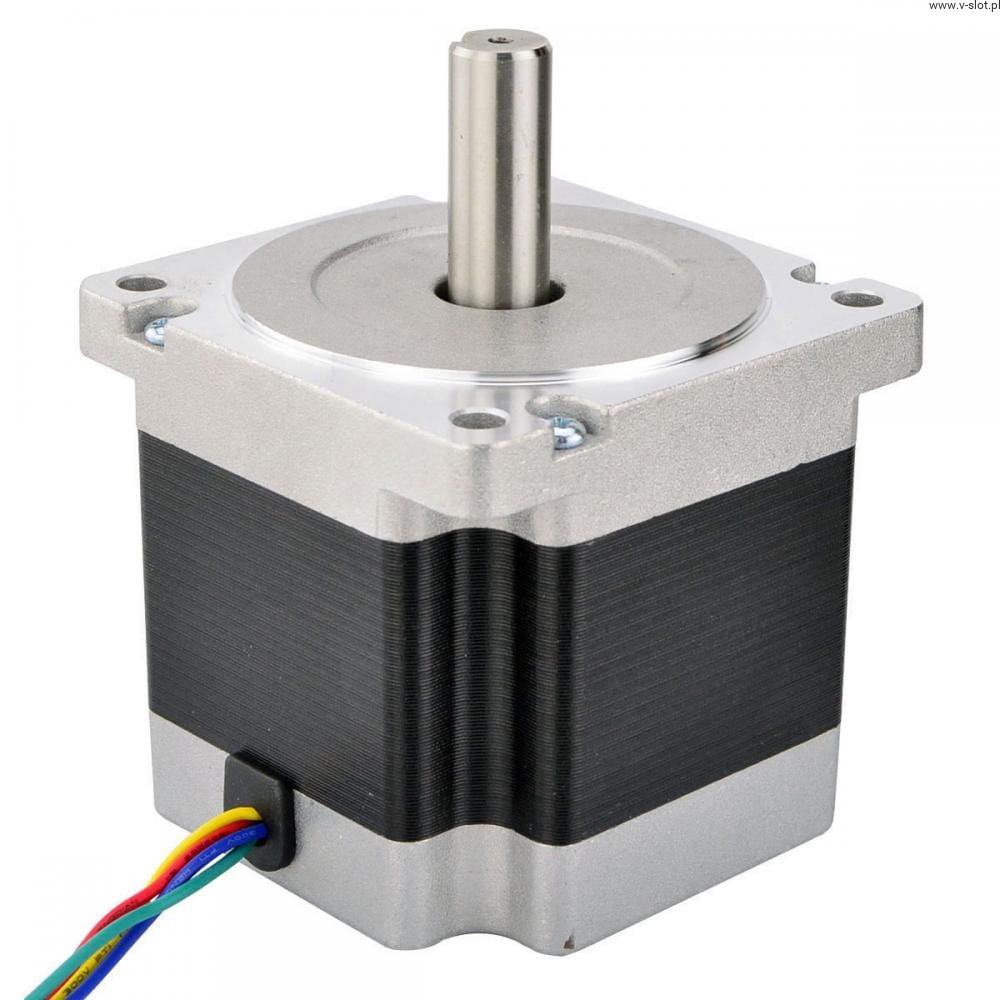

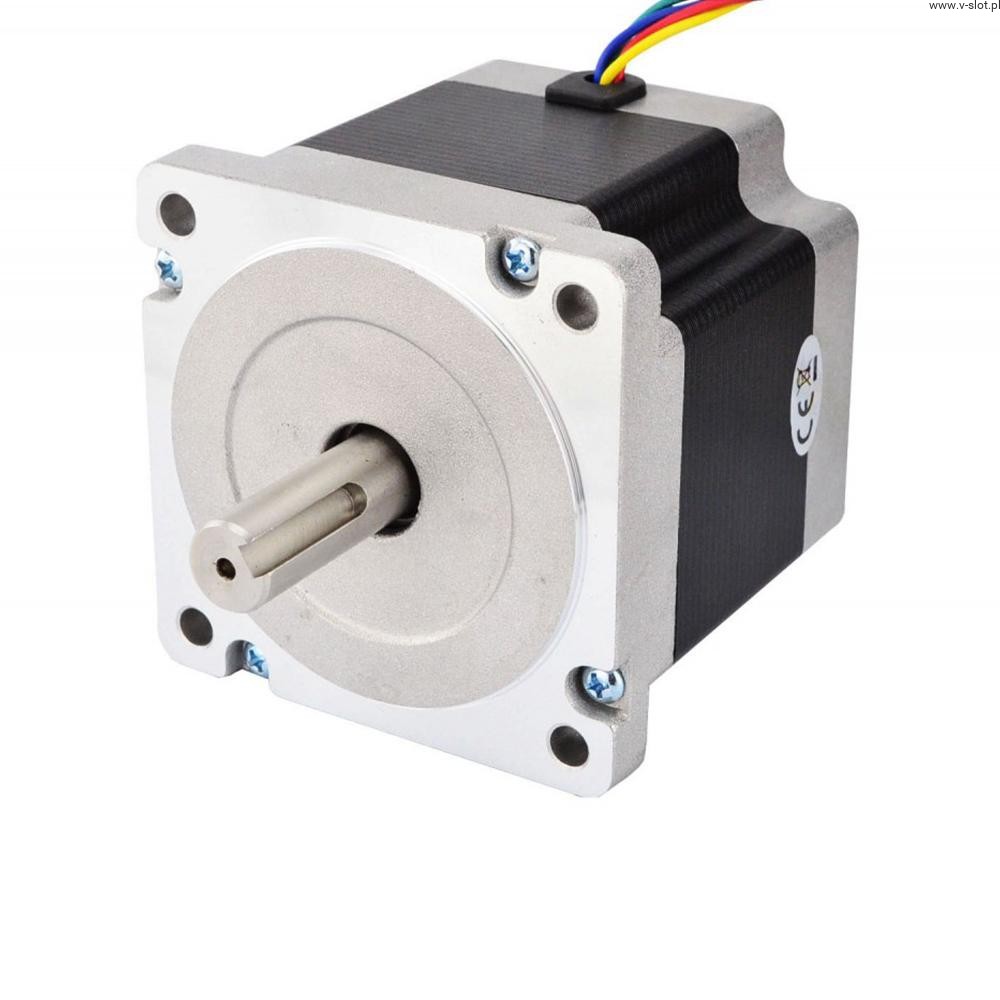

Stepper motor NEMA 34 CNC 4,5Nm - 637 OZ
Electrical Specifications:
Inductance: 3.5 mH
Phase resistance: 0.4 ohm
Rated current: 5.5 A
Step angle: 1.8 degrees
Holding torque: 450 Ncm
Holding torque: 637 oz. in
Physical Specifications:
Frame size: Nema 34 (86mm x 86mm)
Body length: 80 mm
Single Shaft/Double Shaft: Single Shaft
Output shaft type: wedge-shaped
Shaft diameter: 14 mm
Shaft length: 35 mm
Number of wires: 4
Cable length: 500 mm
Weight: 2300 g
Connection:
A+
|
A-
|
B+
|
B-
|
Red
|
Green
|
Yellow
|
Blue
|
